Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

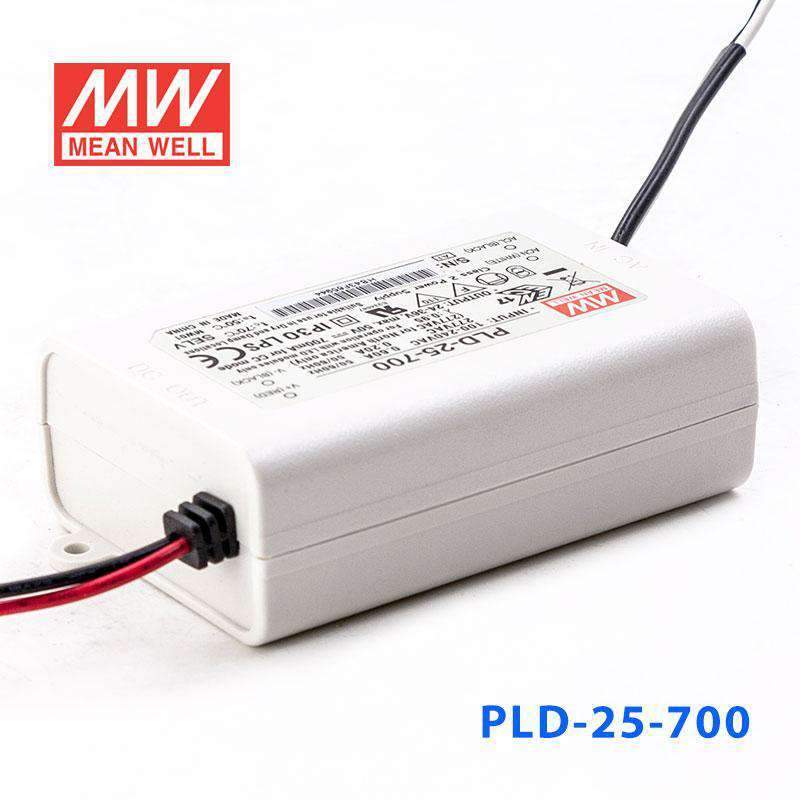

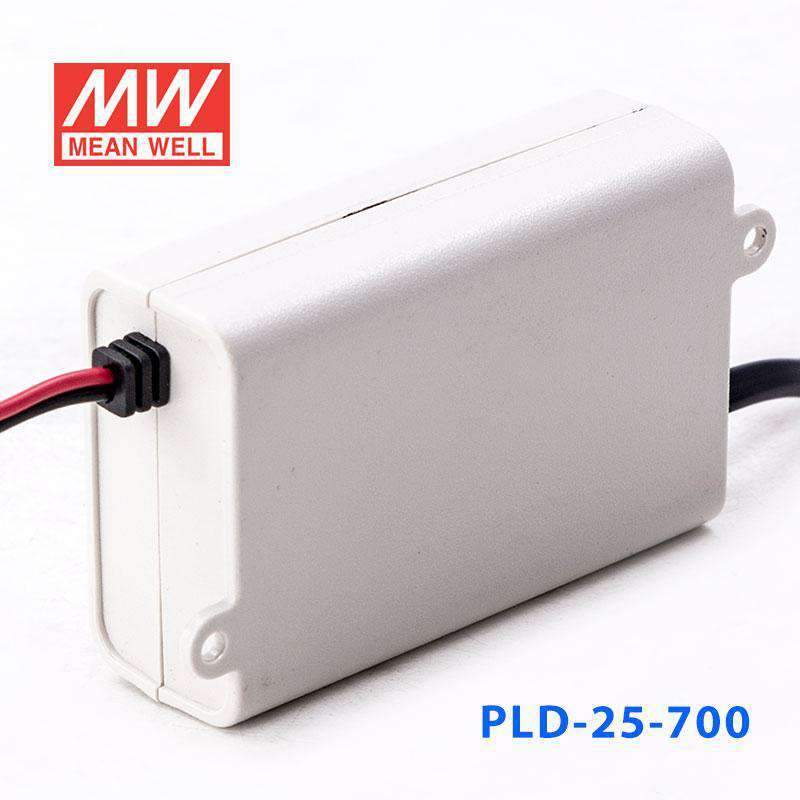

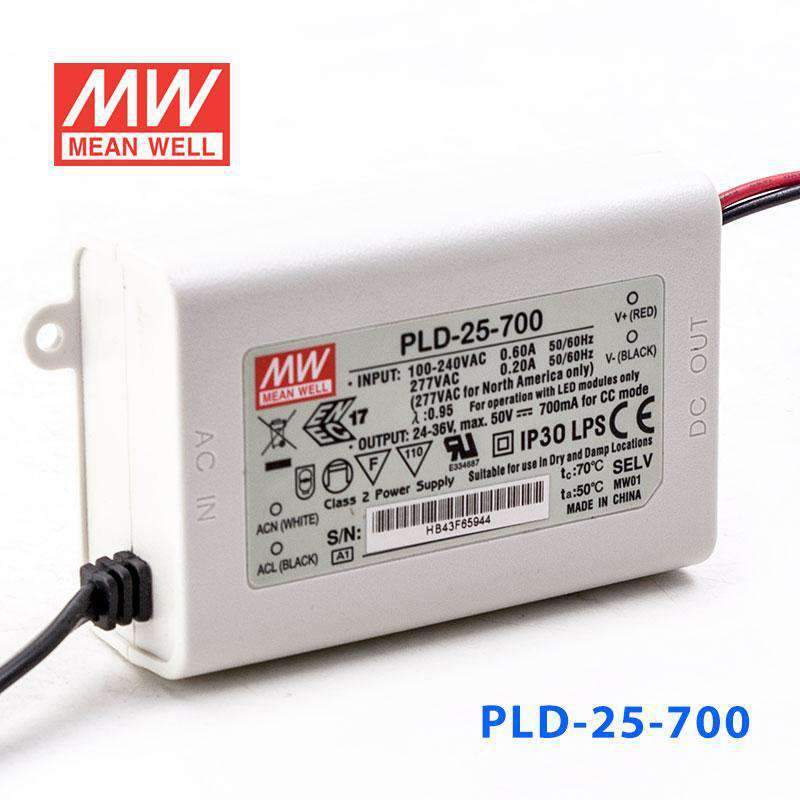

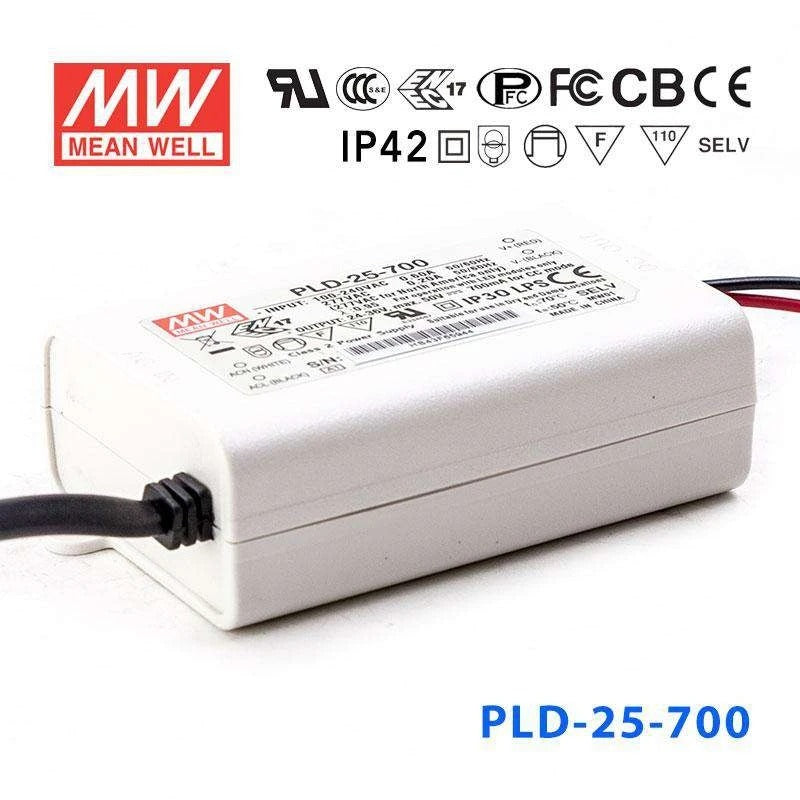

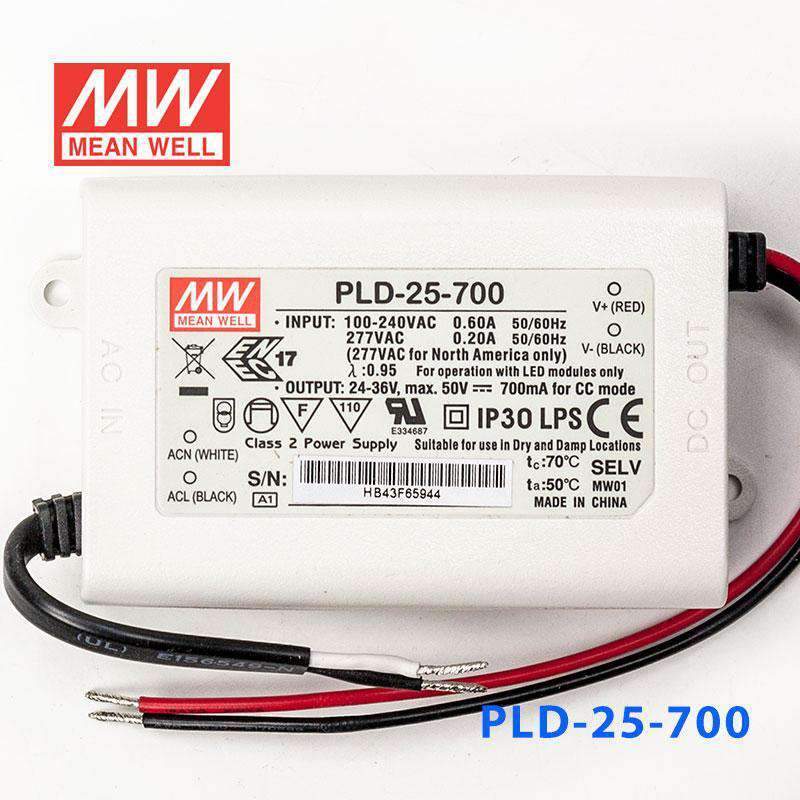

Mean Well PLD-25-700 Power Supply 25W 700mA
$19.80 USD
Unit price /
Unavailable
Description
Description
Features
| 90 ~ 295VAC input |
| Built-in active PFC function |
| Fully isolated plastic case |
| Constant current design (CC mode) |
| IP30 design |
| Class 2 power unit / Pass LPS |
| Isolation class II, no FG |
| Protections: Short circuit / Over temperature |
| Suitable for indoor LED lighting applications |
| Cooling by free air convection |
| 3 years warranty |
General Specification
| AC input voltage range | 90 ~ 295VAC |
| AC inrush current (max.) | Cold start, 15A at 230VAC |
| Withstand voltage | I / P - O / P: 3.75 k VAC |
| Short circuit protection | Hiccup mode, auto-recovery |
| Over Temp. Protection | 95ºC ± 10ºC (RTH1) shut down o / p voltage, re-power on to recover |
| Working temperature | -30 ~ + 60ºC |
| Safety standards | UL8750 (PLD-16/25 only), ENEC EN61347-1, EN61347-2-13, EN62384 (except for A-Type) approved |
| EMC standards | A-Type & PLD-25: EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4,2,3,4, 5,6,8,11, EN61547 |
| Connection Input | A-Type: UL1430 18AWGx2C (7.5cm); B-Type & PLD-25: NISPT-1 18AWGx2C (7.5cm) |
| Connection Output | UL1430 18AWGx2C (15cm) |
| Dimension (LxWxH) (mm) | 84x 57x 29.5 |
Specifications
Specifications
-
BrandMean Well
-
SeriesPLD Series
-
Power Rating25.2 Watt
-
Output Voltage36 Volt
-
Rated Current0.7 Ampere
-
Input Voltage90V~295V
-
Standards MetCB,CE,cUL,EAC,ENEC,FCC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~60°C
-
Warranty3 Year
-
Length3.31 in
-
Width2.24 in
-
Height1.16 in
-
Weight0.42 lb
