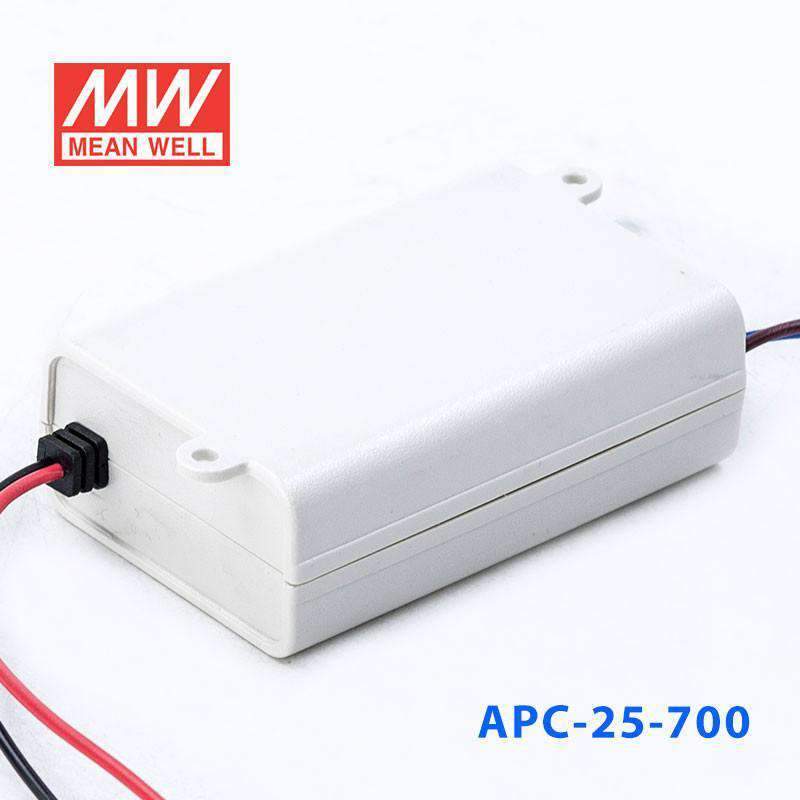

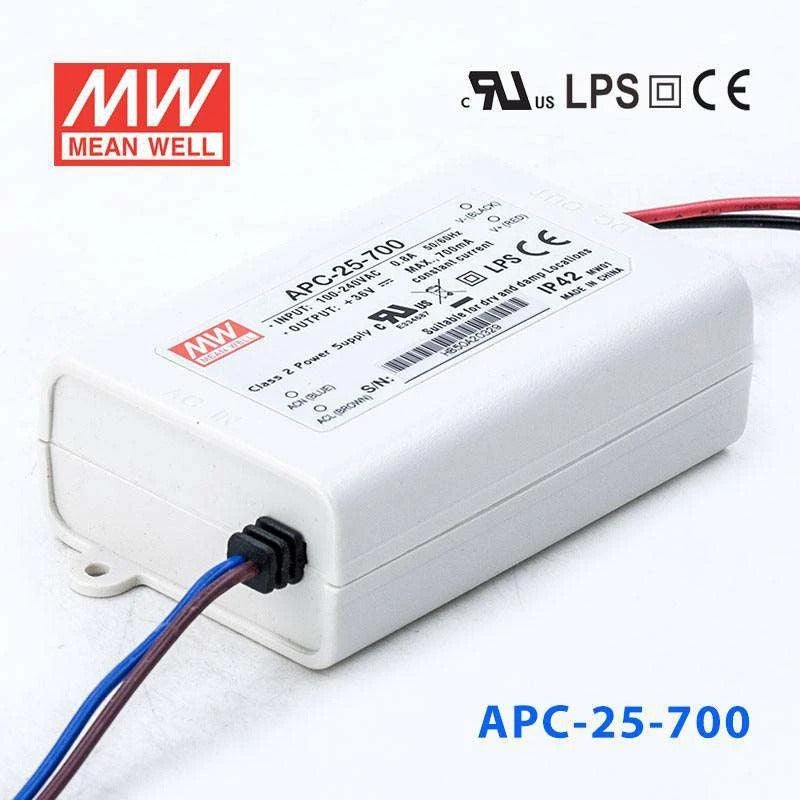

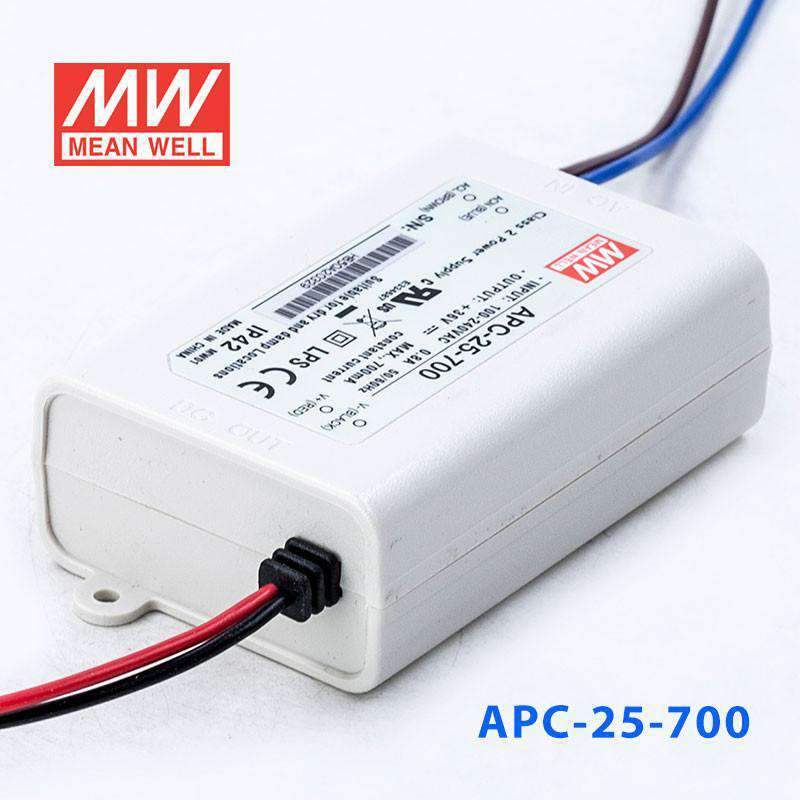

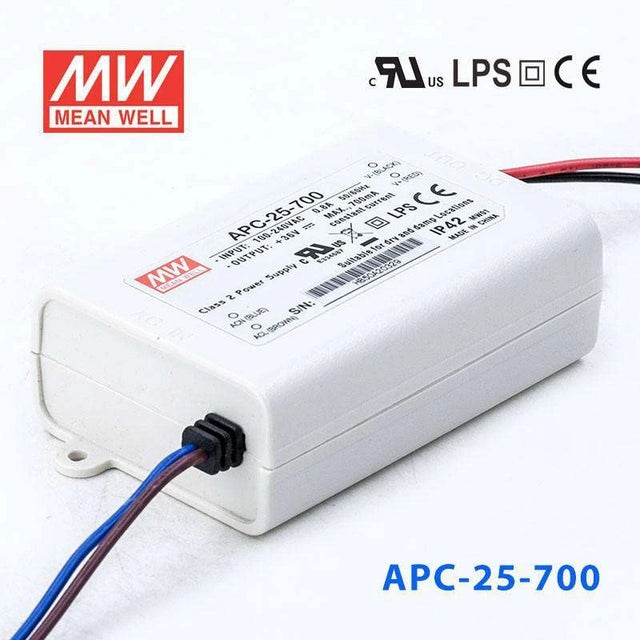

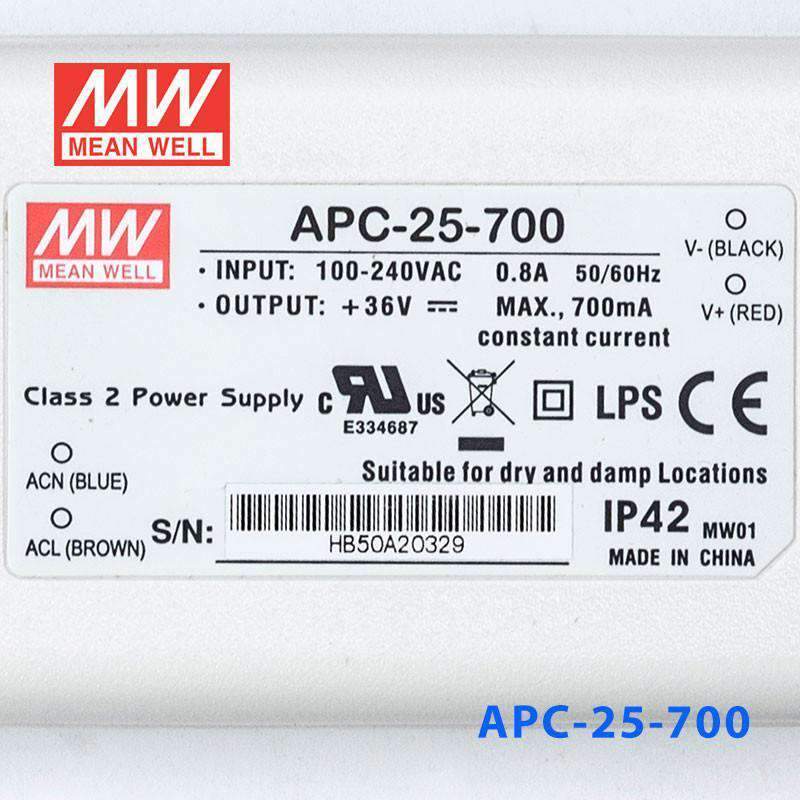

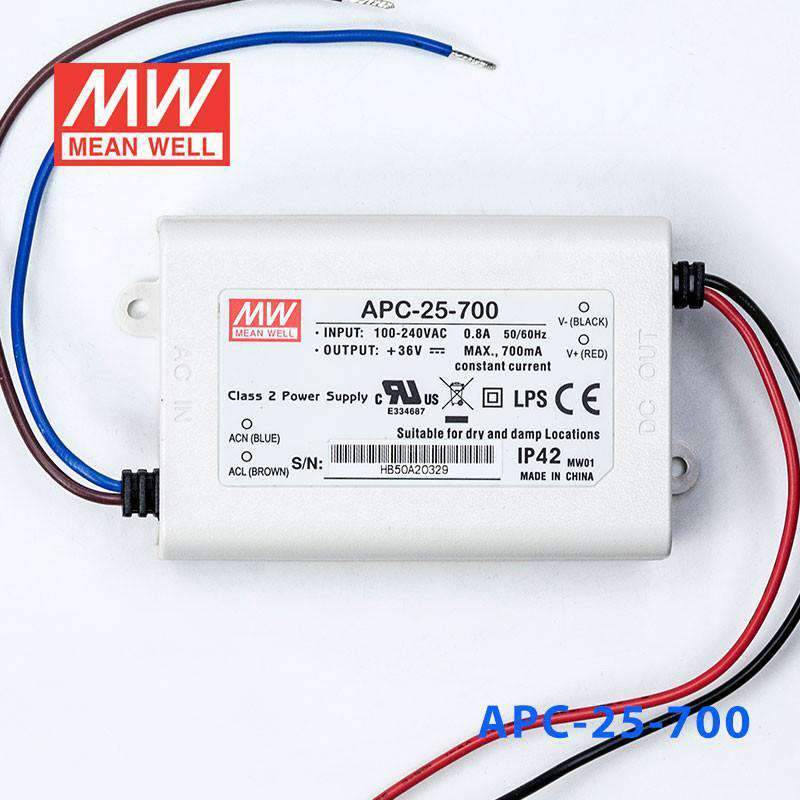

Mean Well APC-25-700 Power Supply 25W 700mA
Overview
APC-25-700 is the model of this series: rated current 700mA, rated power 25.2W, typical efficiency 83%.
Features
- Constant current mode power supply
- Universal AC input / Full range
- Withstand 300VAC Surge input for 5 seconds
- Protections:Short circuit / Over voltage
- Fully isolated plastic case
- Small and compact size
- Cooling by free air convection
- IP42 design
- 100% full load burn-in test
- Display devices for decorative & advertising accessories (Note.6)
- Low cost / High reliability
- 2 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 700mA
- DC VOLTAGE RANGE
- 11~36V
- RATED POWER
- 25.2W
- CURRENT RIPPLE
- 5.0%
- CURRENT ACCURACY
- ±8.0%
- SETUP, RISE TIME
- 1500ms, 30ms / 230VAC 1500ms, 30ms / 115VAC at full load
- HOLD UP TIME (Typ.)
- 20ms/230VAC 12ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.2
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY(Typ.)
- 83%
- AC CURRENT
- 0.4A/230VAC;0.8A/115VAC
- INRUSH CURRENT(Typ.)
- COLD START 45A(twidth=310μs measured at 50% Ipeak) at 230VAC
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 9 units (circuit breaker of type B) / 15 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- 0.25mA / 240VAC
PROTECTION
- OVER VOLTAGE
- 41 ~ 49V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -30 ~ 70℃(Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.2%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 5)
- SAFETY STANDARDS
- UL8750 (except for APC-25-350), CSA-C22.2 No. 250.0-13 (only for APC-25-700&1050), BIS IS15885(except for APC-25-350), EAC TP TC 004,IP42, BS EN/EN 62368-1 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC
- ISOLATION RESISTANCE
- I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032,BS EN/EN61000-3-2 Class A,BS EN/EN61000-3-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN55035,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020
OTHERS
- MTBF
- 4955.9K hrs min. Telcordia SR-332 (Bellcore) ; 504.9K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 84*57*29.5(L*W*H)
- PACKING
- 0.13Kg; 72pcs/10.4Kg/0.92CUFT
Certifications & ratings
- Marked features
- IP42 LPS
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Derating may be needed under low input voltage. Please check the static characteristic for more details.
- 3. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 6. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)
