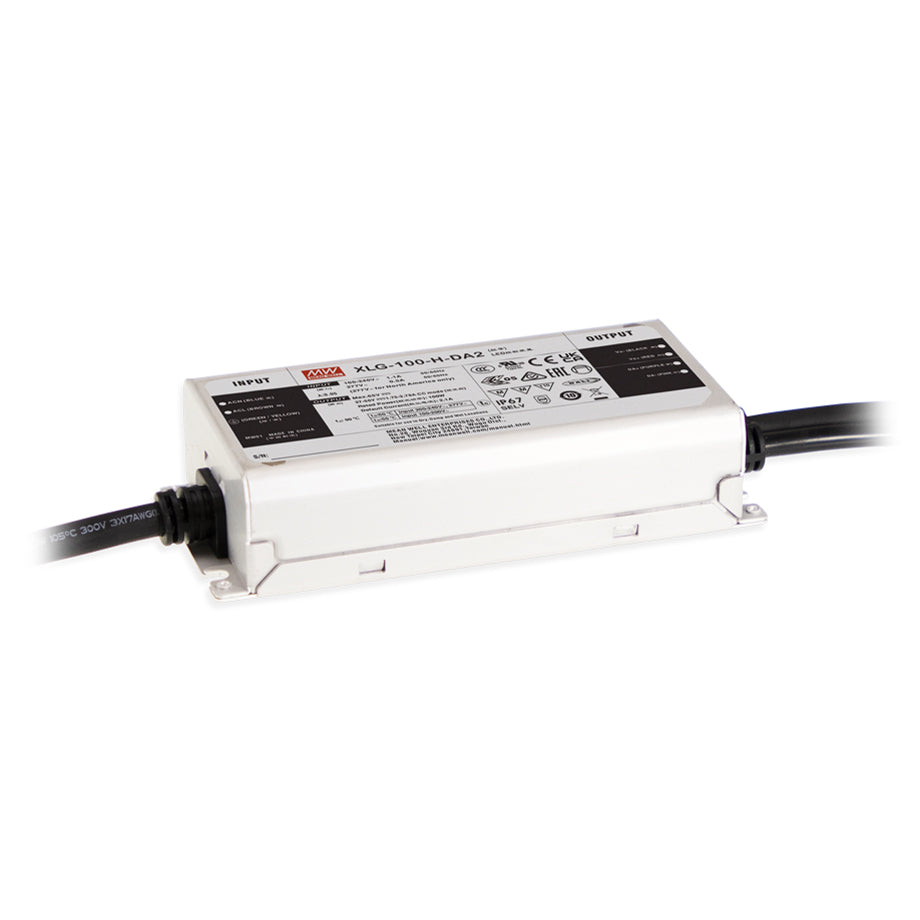

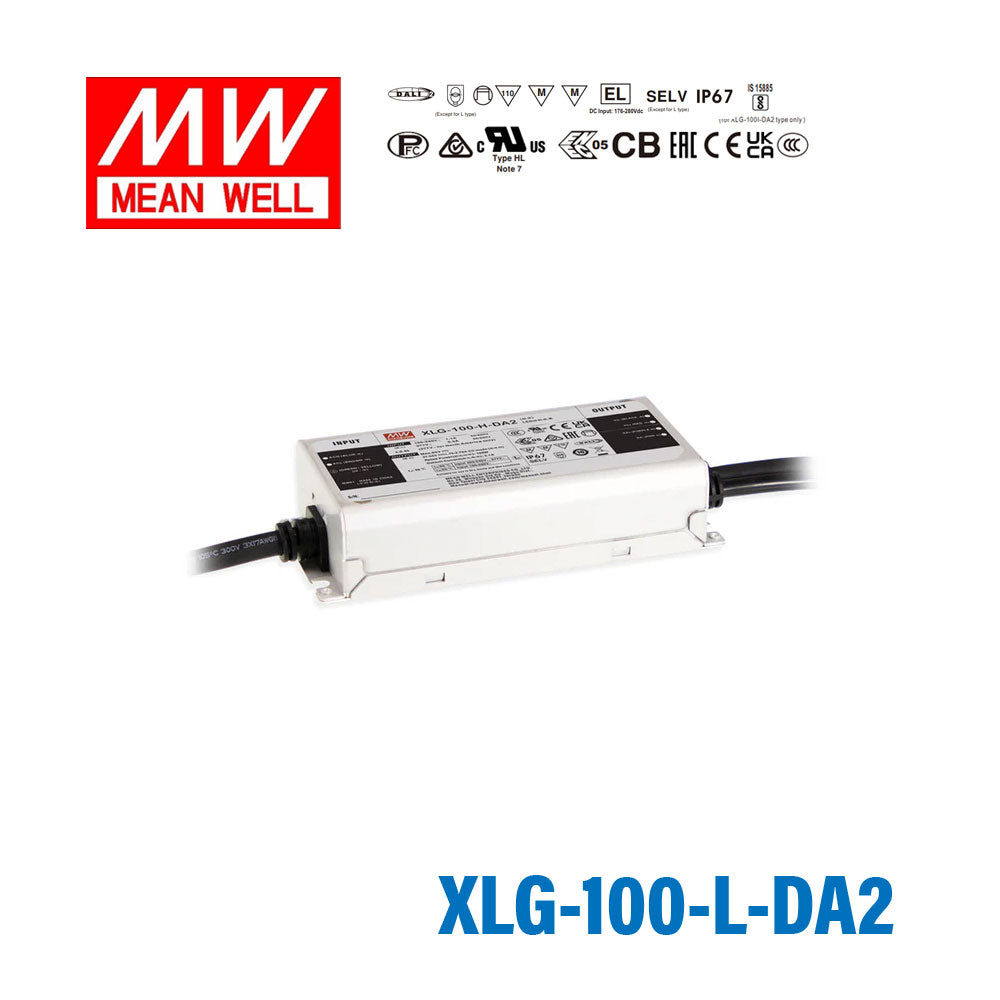

Mean Well XLG-100-L-DA2 Power Supply 100W 700mA - DALI2 Dimmable
Overview
XLG-100-L-DA2 is the model of this series: rated current 700mA, rated power 100W, typical efficiency 92.5%.
XLG-100-DA2 series is a 100W LED AC/DC driver featuring the constant power mode with DALI-2 dimming function. XLG-100-DA2 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 2780mA. Thanks to the high efficiency up to 92.5%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XLG-100-DA2 series comply with the latest version of IEC61347/GB/T19510.1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.
Features
- Wide input range 100~305V AC( Class I)
- Full power output at 70~100% Constant power mode operation
- Metal case with IP67, suitable for outdoor application
- Surge protection with 6KV/4KV

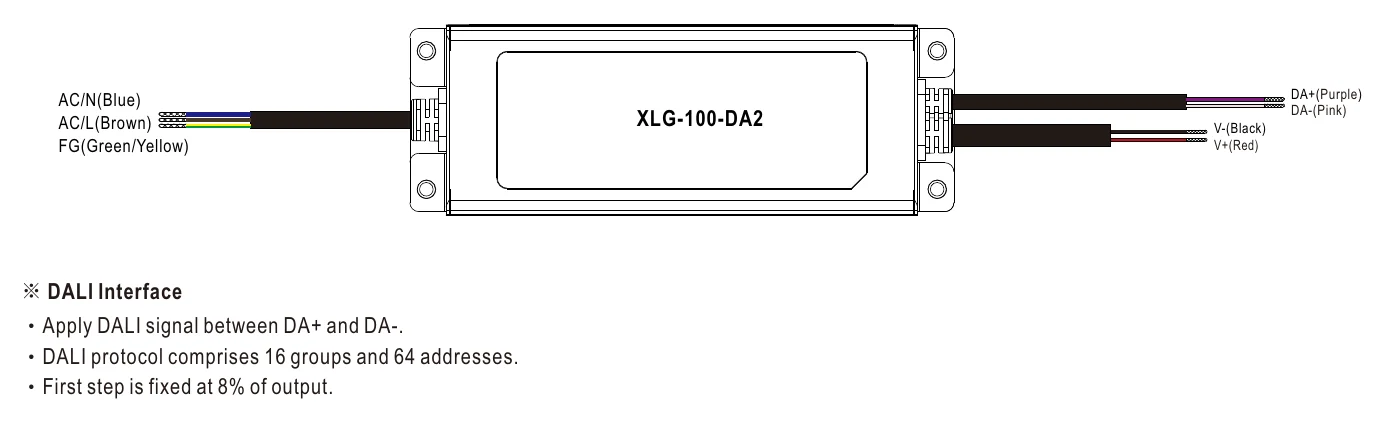

- DALI-2 Dimming with minimum level 8%
- India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
- Protection functions: SCP/OTP
- Life time >50,000 hrs. and 5 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 700mA
- RATED POWER
- 100W
- CONSTANT CURRENT REGIONNote.2
- 71 ~142V
- FULL POWER CURRENT RANGE
- 700~1050mA
- OPEN CIRCUIT VOLTAGE (max.)
- 158V
- CURRENT ADJ. RANGE
- (Via the built-in potentiometer)
- CURRENT ADJ. RANGE
- 350~1050mA
- CURRENT RIPPLE
- 4.0%(@ full load)
- CURRENT TOLERANCE
- ±5%
- SET UP TIME
- 500ms/230VAC, 1200ms/115VAC
INPUT
- VOLTAGE RANGENote.4
- 100 ~ 305VAC 142VDC ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" ang “ DRIVING METHODS OF LED MODULE"section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.97 / 115VAC, PF≧0.95 / 230VAC, PF≧0.92 / 277VAC at full load (Please refer to "Power Factor Characteristic" section)

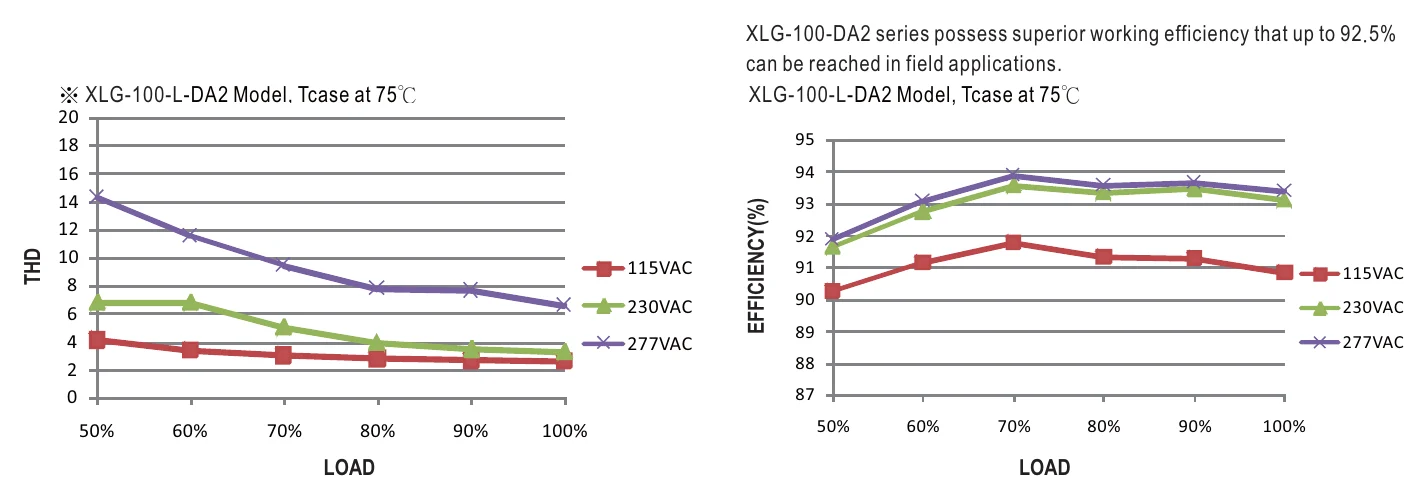

- TOTAL HARMONIC DISTORTION
- THD< 10% (@ load≧50% at 115VAC/230VAC ,@load≧75% at 277VAC) Please refer to “TOTAL HARMONIC DISTORTION (THD)” section
- EFFICIENCY (Typ.)
- 92.5%
- AC CURRENT (Typ.)
- 1.1A / 115VAC 0.5A / 230VAC 0.42A/277VAC
- INRUSH CURRENT(Typ.)
- COLD START 45A(twidth=330μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. NO. of PSUs on 16A CIRCUIT BREAKER
- 8 unit(circuit breaker of type B) / 14 units(circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
- STANDBY POWER CONSUMPTION
- Standby power consumption <0.5W (Dimming OFF) (For standard version)
PROTECTION
- SHORT CIRCUIT
- Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed
- INPUT OVER VOLTAGENote.7
- 320 ~ 390VAC (Shut down output voltage when the input voltage exceeds protection voltage,recovers automatically after fault condition is removed) Can survive input voltage stress of 440Vac for 48 hours
- OVER TEMPERATURE
- Stage 1: Derating to 75% loading; stage 2: Derating to 50% loading. recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.

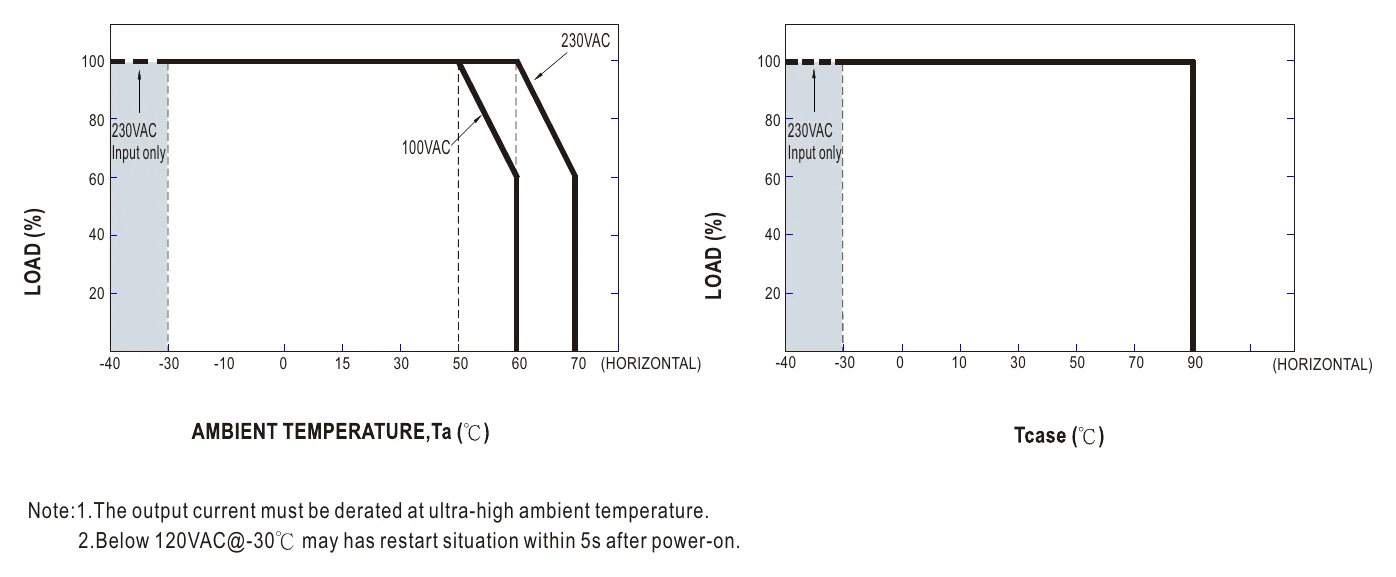

- Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase=+90℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.06%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations(DC Input: 176-280Vdc) independent ,BS EN/EN62384;IS 15885(Part2/Sec13)(for XLG-100I-DA2 only); GB/T19510.1,GB/T19510.213; EAC TP TC 004; IP67 approved
- DALI STANDARDS
- Comply with IEC62386-101,102,207,251,Device type 6(DT6)
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted BS EN/EN55015(CISPR15) ,GB/T 17743 Radiated BS EN/EN55015(CISPR15) ,GB/T 17743 Harmonic Current BS EN/EN61000-3-2 ,GB17625.1 Class C @load≥50% Voltage Flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
BS EN/EN61547
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact Radiated BS EN/EN61000-4-3 Level 2 EFT/Burst BS EN/EN61000-4-4 Level 3 Surge BS EN/EN61000-4-5 4KV/Line-Line 6KV/Line-Earth Conducted BS EN/EN61000-4-6 Level 2 Magnetic Field BS EN/EN61000-4-8 Level 4 Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
OTHERS
- MTBF
- 2137.1Khrs min. Telcordia SR-332 (Bellcore) ; 186.7Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 140*63*32mm (L*W*H)
- PACKING
- 0.58Kg;24pcs/15Kg/0.85CUFT
Test conditions and notes16
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.

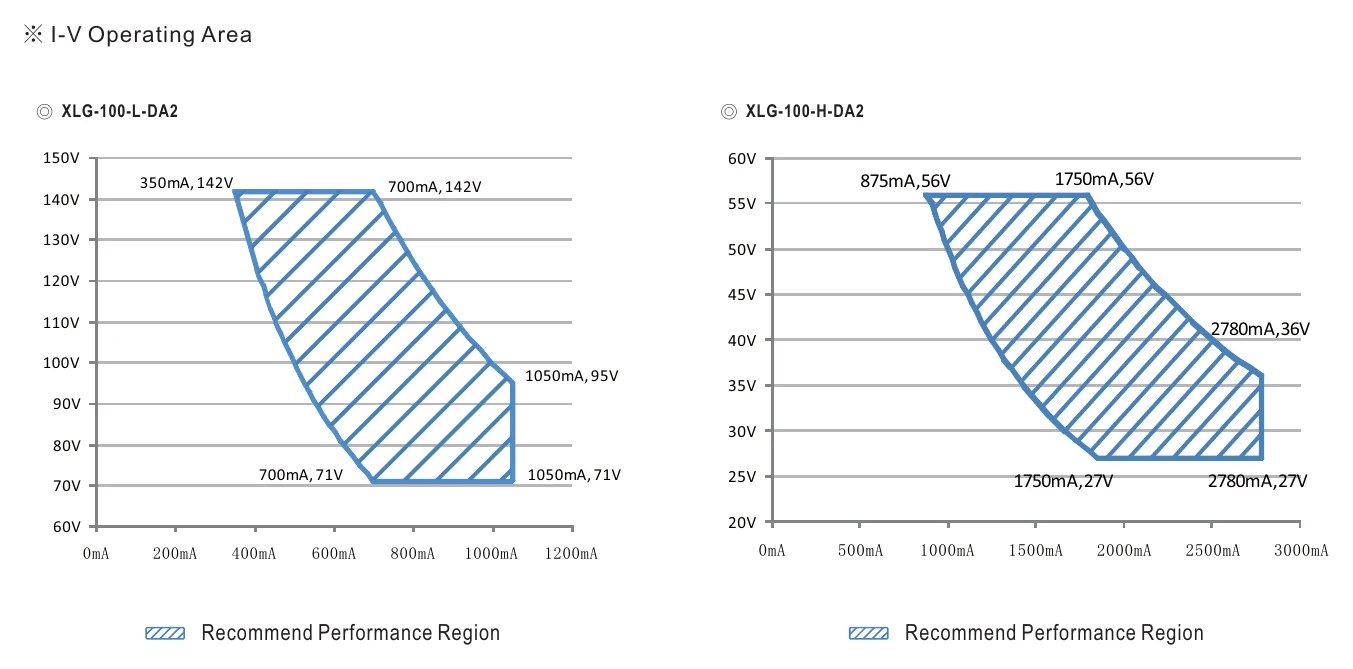

- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.

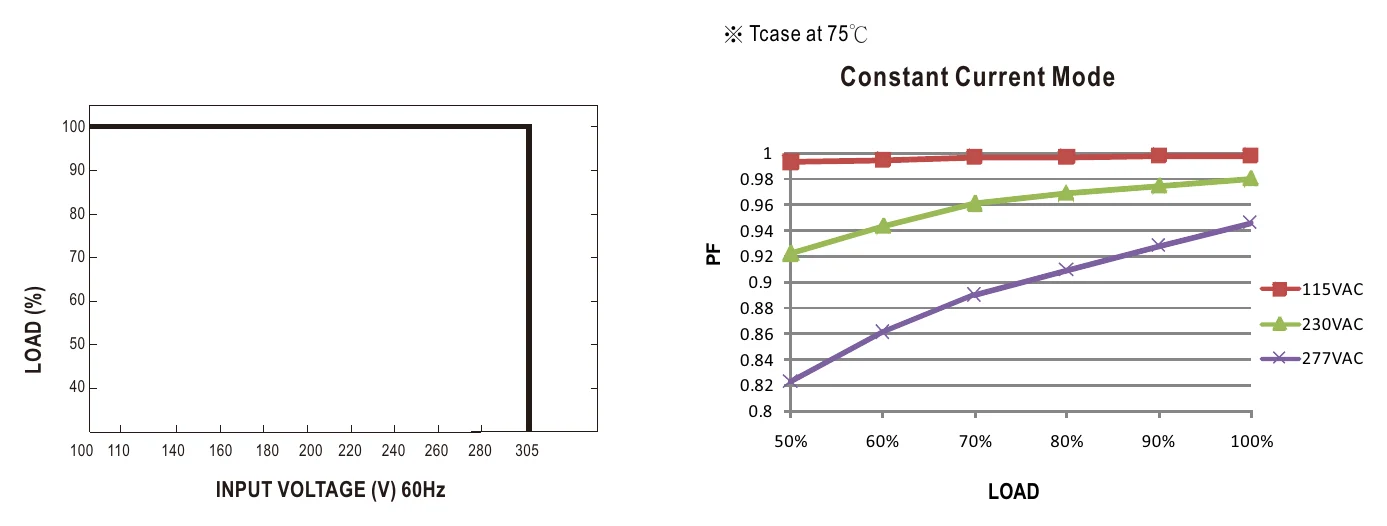

- 4. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 5. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 6. Based on IEC 62386-101/102 DALI power on timing and interruption regulations, the set up time needs to test with a DALI controller which can support for DALI power on function, otherwise the set up time will be longer than 500ms.
- 7. Input over voltage only for XLG-100 I series,and I series without UL/CSA certificate.
- 8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com

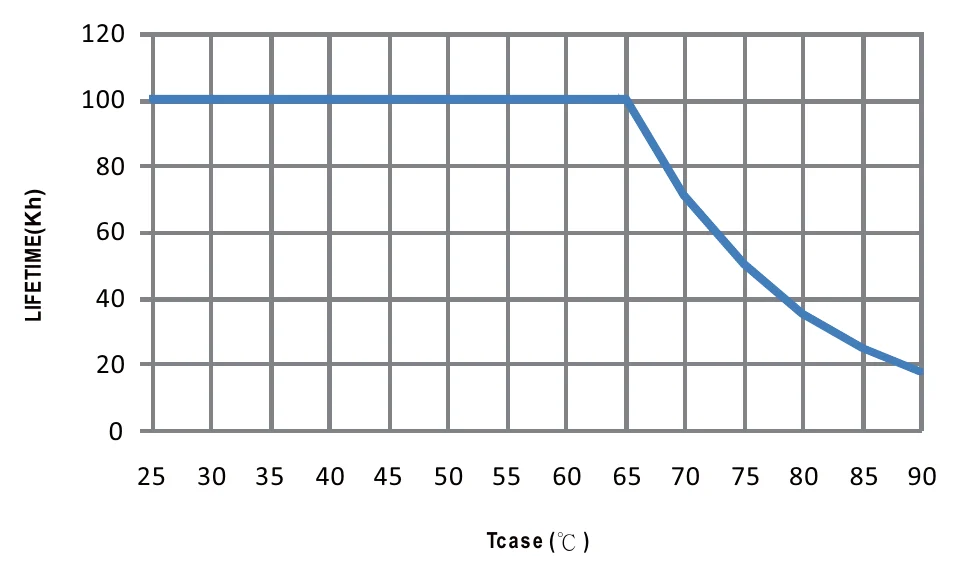

- 11. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
- 12. Products sourced from the Americas regions may not have the CCC/PSE/BIS/KC logo. Please contact your MEAN WELL sales for more information.
- 13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 14. H type: RCM is on a voluntary basis. Non IC classfication Independent LED control gear is not suitable for residential installations; L type: RCM is on a voluntary basis and meets relevant IEC or AS/NZS standards complying with AS/NZS 4417.1
- 15. To fulfill requirements of the latest ErP regulation for lighting fixture, this LED driver can only be used behind a switch without permanently connected to the mains.
- 16. This series need to consider build in using to comply with Type HL application.

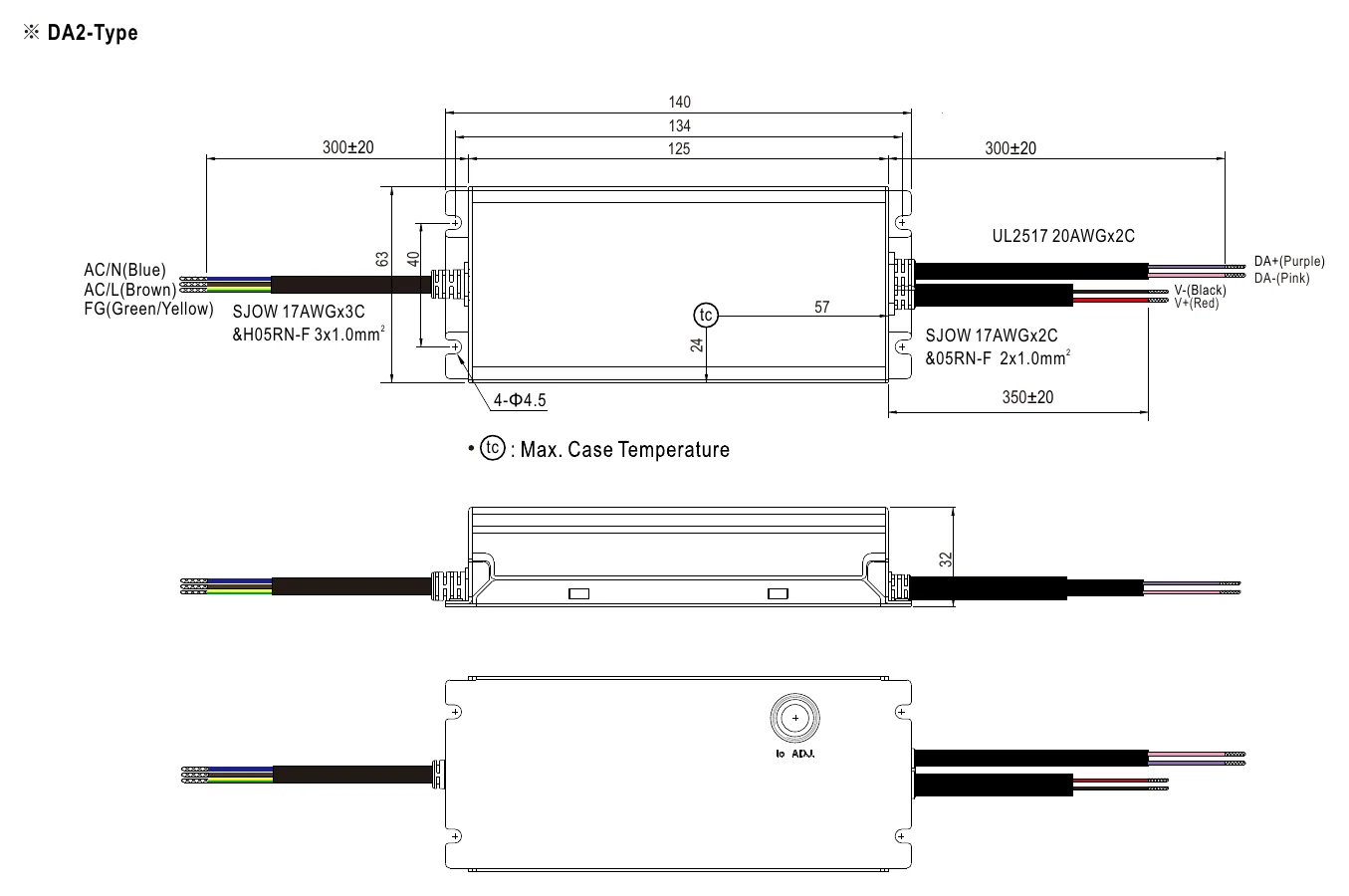

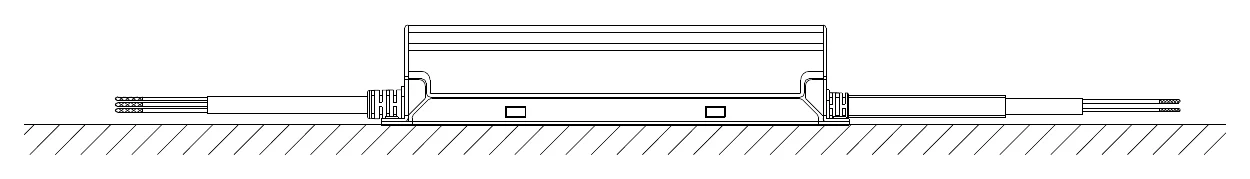

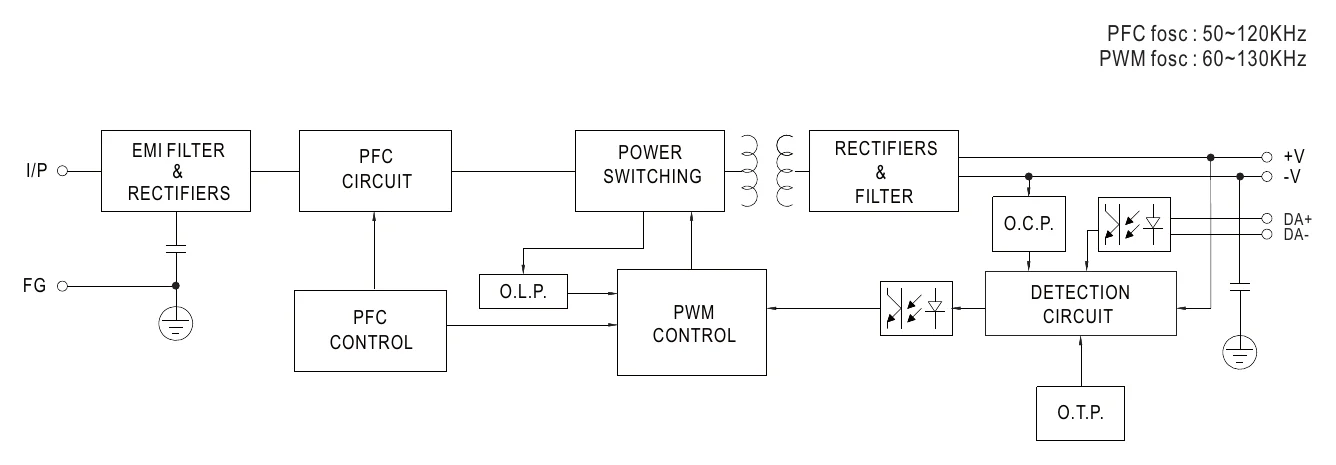

Technical drawings
Typical applications
- Street lighting
- Floodlight Lighting
- Stage lighting
- Fishing lighting
- Horticulture lighting
- Bay lighting
- Type HL for use in class I, Division 2
Downloads
Datasheet1
FAQ
Can the XLG-100-L-DA2 drive a series string of LED modules in a high-bay or street lighting fixture?
Yes. The XLG-100-L-DA2 operates in constant current mode with a 71–142V output range at 700mA, making it a good match for longer series strings of LED modules used in high-bay or street lighting applications that require higher string voltages.
Is the XLG-100-L-DA2 appropriate for outdoor LED signage that uses high-voltage series LED strings?
Yes. With an IP67 waterproof rating and a constant current region of 71–142V, the driver can support outdoor signage systems built around higher-voltage LED module strings. The 100W, 700mA output is suitable for moderate-wattage sign arrays.
Can the XLG-100-L-DA2 be dimmed below 10% using a DALI2 controller?
The minimum dimming level for the XLG-100-L-DA2 via DALI2 is 8%, so dimming to that floor is supported. Going below 8% is not within the specified operating range of this driver.
How many LEDs can I connect to the XLG-100-L-DA2 in series?
The driver delivers constant current across an output voltage range of 71–142V. The number of LEDs in the series string depends on the forward voltage of each individual LED — you must ensure the combined string voltage falls within that 71–142V window.
Does the XLG-100-L-DA2 operate reliably in very cold outdoor environments?
Yes. The operating temperature range is -40°C to +90°C and the driver carries an IP67 waterproof rating, so it is designed for reliable operation in harsh outdoor conditions including cold climates.
What is the difference between the XLG-100-H-DA2 and the XLG-100-L-DA2?
Both are 100W DALI2 constant current drivers with IP67 ratings. The XLG-100-H-DA2 outputs 2100mA across a 27–56V CC range, while the XLG-100-L-DA2 outputs 700mA across a 71–142V CC range. Choose the H variant for lower-voltage, higher-current LED strings and the L variant for higher-voltage, lower-current strings.
