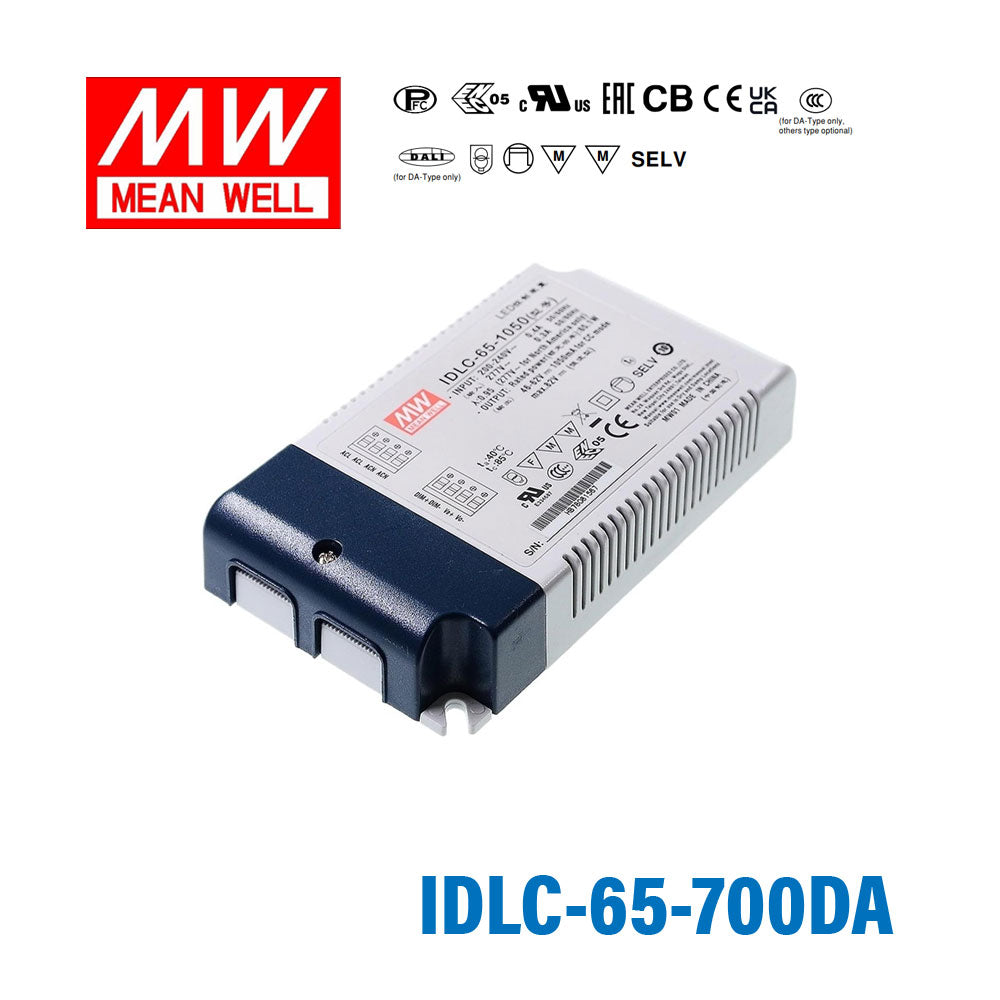

Mean Well IDLC-65-700DA Power Supply 65W 700mA, DALI
$24.64 USD
$102.75
Unit price /
Unavailable
Description
Description
T case=-20~+85°C (Please refer to OUTPUT LOAD vs TEMPERATURE section)
Key Features
- ✓Constant Current mode output
- ✓Flicker-free design
- ✓Plastic housing with class II design
- ✓Built-in active PFC function
- ✓No load power consumption<0.5W(Blank-Type)
- ✓Function options: 2 in 1 dimming (dim-to-off);Auxiliary DC output
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesIDLC Series
-
Power Rating65.1 Watt
-
Output Voltage93 Volt
-
Rated Current0.7 Ampere
-
Input Voltage180V~295V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length5.12 in
-
Width2.95 in
-
Height0.98 in
-
Weight0.51 lb
