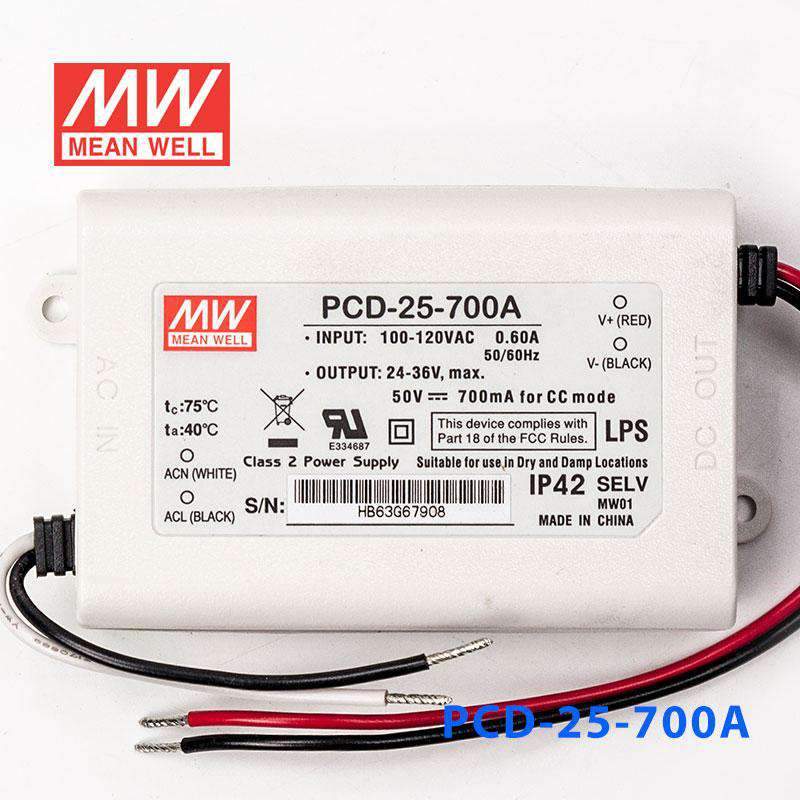

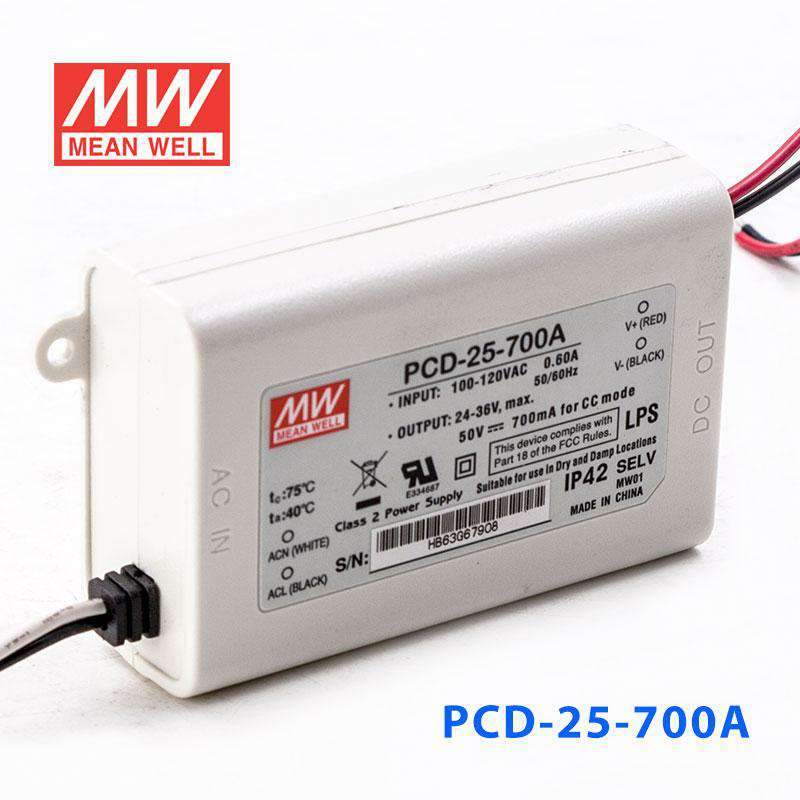

Mean Well PCD-25-700A Power Supply 25W 700mA

Name: Mean Well PCD-25-700A Power Supply 25W 700mA
Brand: Mean Well
SKU: PCD-25-700A
Price: 20.14 USD
Availability: InStock

TRIAC dimmableplastic casing IP42Class II design without FGconstant current

SKU PCD-25-700A

$20.14 USD

Shipping calculated at checkout.

Available to order

Overview

PCD-25-700A is the model of this series: rated current 700mA, rated power 25.2W, typical efficiency 81%.

Features

AC phase-cut dimming
Work with leading edge and trailing edge TRIAC dimmers
115VAC or 230VAC models available
Built-in active PFC function
Constant current design
Protections: Short circuit / Over temperature
Cooling by free air convection
Fully isolated plastic case
IP42 design
Class Ⅱ power unit, no FG
Class 2 power unit
Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
100% full load burn-in test
Low cost
High reliability
3 years warranty

Specifications

PCD-25-700ASpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT: 700mA
OPERATING VOLTAGE RANGE: 24 ~ 36V
CURRENT ACCURACY: ±5.0%
RATED POWER: 25.2W
RIPPLE & NOISE (max.)^Note.1: 2.7Vp-p
NO LOAD OUTPUT VOLTAGE (max.): 50V
SETUP TIME: 500ms / 230VAC 2000ms / 115VAC at full load

INPUT

FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.9/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION A series: THD< 20% when output loading≧70% at 115VAC
TOTAL HARMONIC DISTORTION B series: THD< 20% when output loading≧70% at 230VAC input and output loading≧80% at 277VAC input
EFFICIENCY (Typ.): 81%
AC CURRENT (Typ.): 0.6A/115VAC 0.3A/230VAC 0.2A/277VAC
INRUSH CURRENT(max.): COLD START 10A(twidth=20μs measured at 50% Ipeak) at 115VAC / 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER A series: 37 units (circuit breaker of type B) / 37 units (circuit breaker of type C) at 115VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER B series: 80 units (circuit breaker of type B) / 80 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.5mA 120VAC / 240VAC

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN613471, BS EN/EN61347-2-13, BS EN/EN62384(for B type only), BIS IS15885(for 350B,700B only), EAC TP TC 004,IP42 approved ; design refer to UL60950-1, BS EN/EN61347-1, BS EN/EN61347-2-13
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015 (B type only), BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, FCC part 18 non-consumer equipment (A type only), EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024,BS EN/EN61547, light industry level, EAC TP TC 020

OTHERS

MTBF: 6612.9K hrs min. Telcordia SR-332 (Bellcore) 806.1Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 84*57*29.5mm (L*W*H)
PACKING: 0.19Kg; 72pcs/14.7Kg/0.92CUFT

Test conditions and notes5

1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

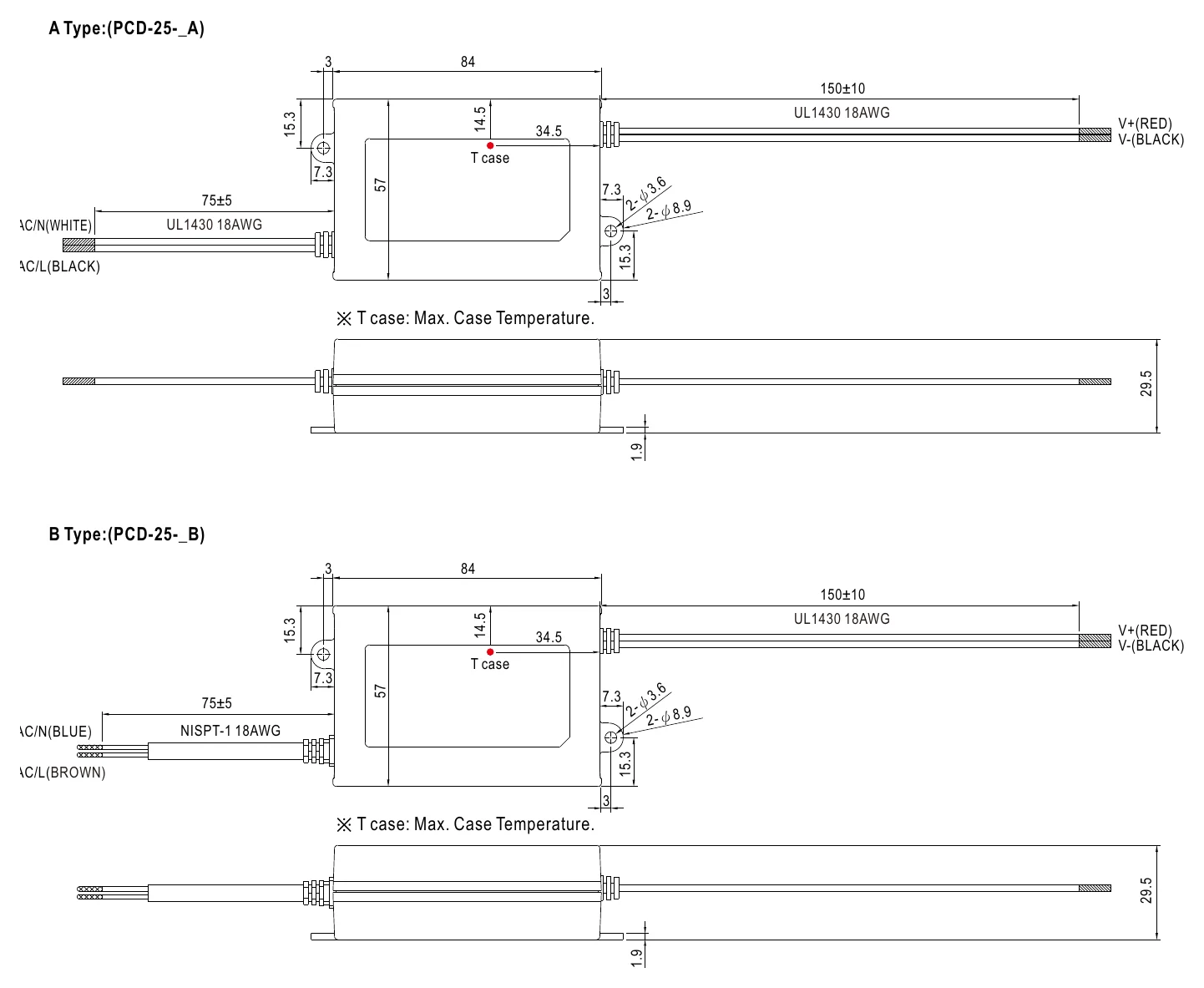

PCD-25-700A Mechanical Specification — Mechanical Specification

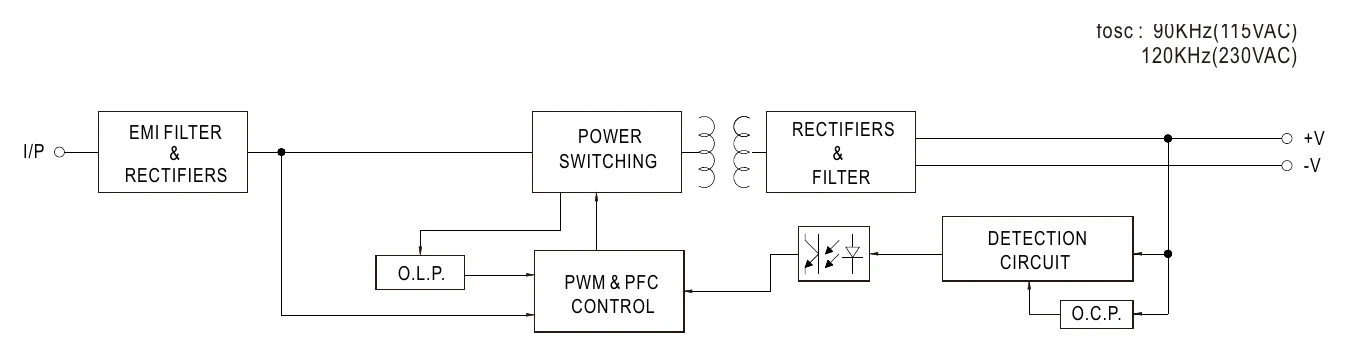

PCD-25-700A Block Diagram — Block Diagram

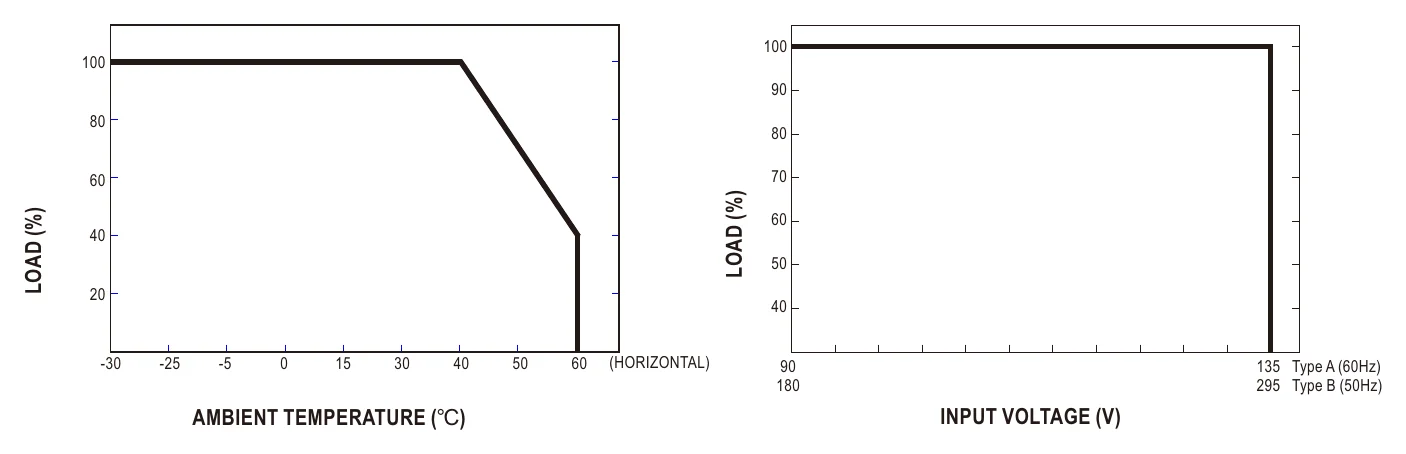

PCD-25-700A Derating Curve — Derating Curve

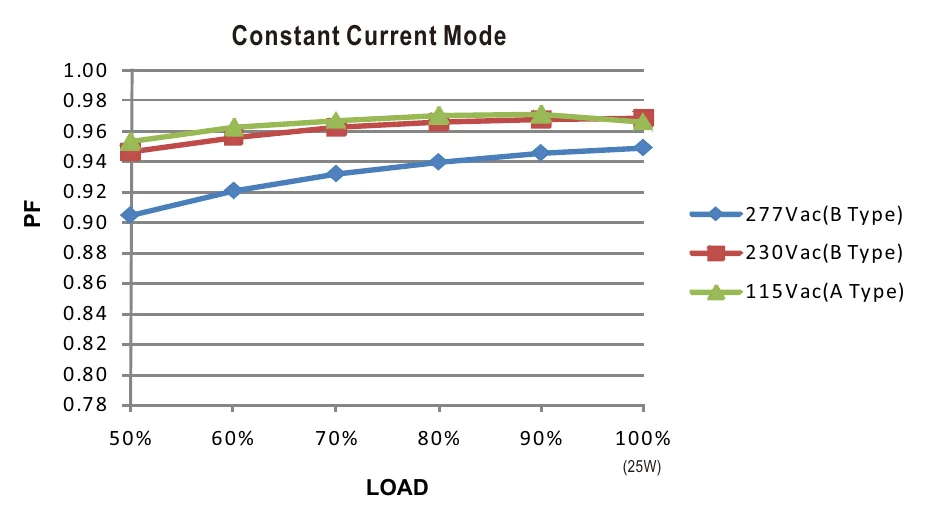

PCD-25-700A Power Factor Characteristic — Power Factor Characteristic

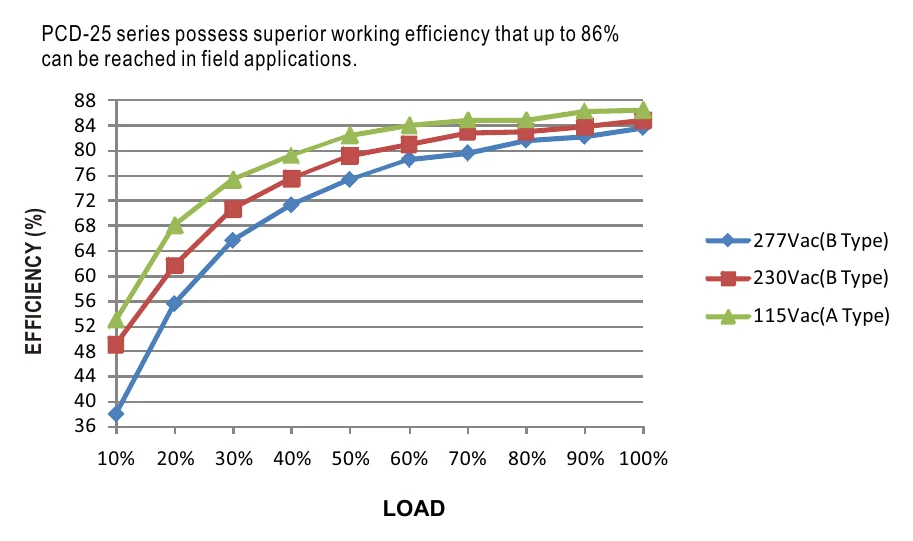

PCD-25-700A EFFICIENCY vs LOAD (PCD-25-350) — EFFICIENCY vs LOAD (PCD-25-350)

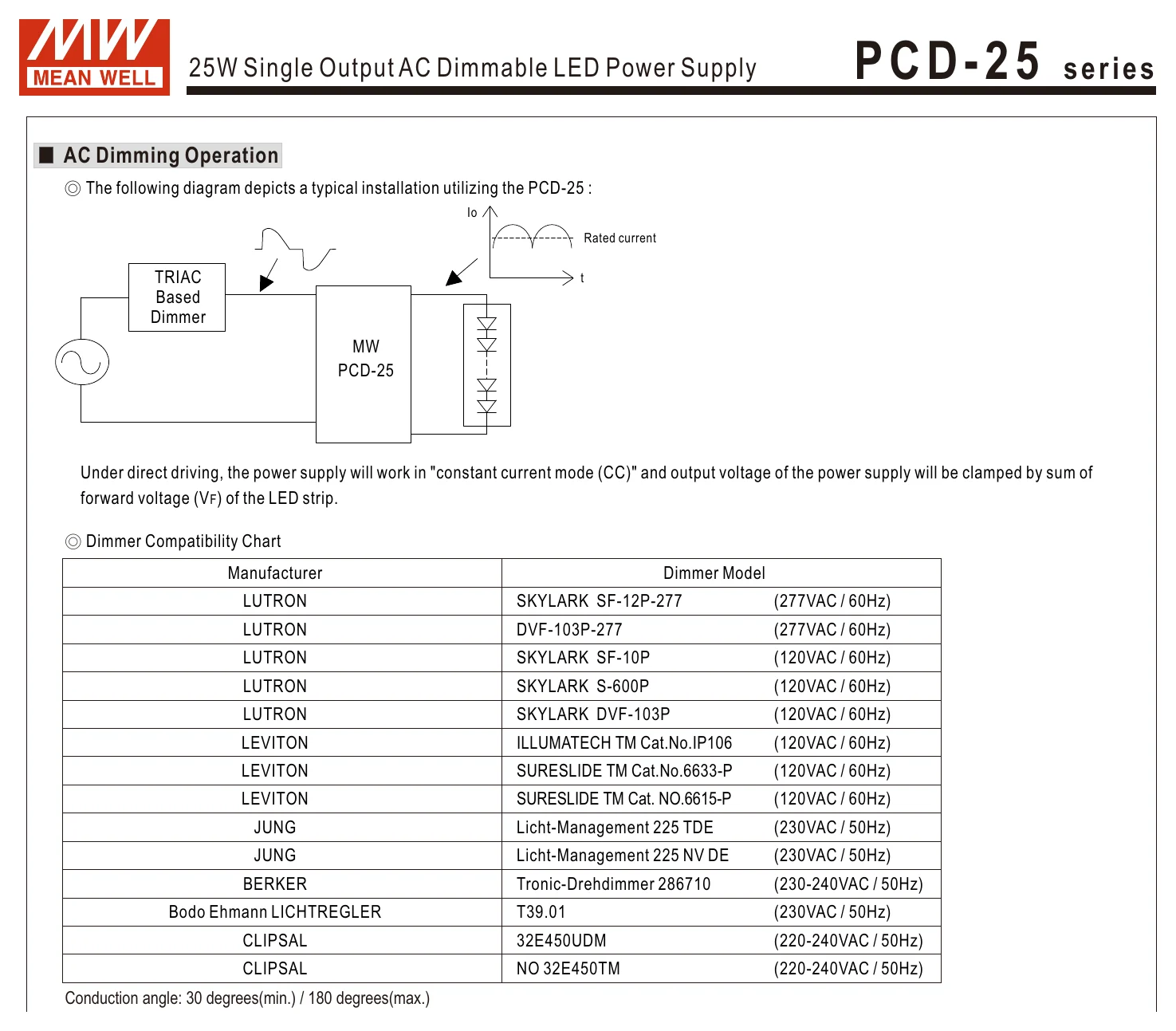

PCD-25-700A P C D - 2 5 series — P C D - 2 5 series

Downloads

Certificates5

UL Certificate (PCD-25)(EN) PDF Download

CB Certificate (PCD-25)(EN) PDF Download

EMC Certificate (PCD-25)(EN) PDF Download

FCC Certificate(PCD-25)(EN) PDF Download

ENEC Certificate (PCD-25)(EN) PDF Download

Test reports1

Test Report (PCD-25-700A)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the PCD-25-700A for an LED downlight project?

Yes, if the downlight is specified for constant current operation at 700mA and the LED load falls within 24-36V. With 25.2W available, it is suited to downlights that match both that current and voltage range.

Is the PCD-25-700A suitable for signage LED modules?

It can be used for signage modules that require a 700mA constant current driver and operate across 24-36V. It should not be used where the signage system expects a constant voltage power supply instead.

Can this driver run a small LED array with a mid-voltage string?

Yes, this model is designed for 700mA constant current loads in the 24-36V range. A small LED array is a fit when its total forward voltage stays inside that window and its load remains within 25.2W.

How do I check LED compatibility for the PCD-25-700A?

Your LED load should be rated for constant current at 700mA, and the total forward voltage should land between 24V and 36V. The number of LEDs depends on each LED's forward voltage, so the correct match is based on current plus total voltage, not a fixed LED count.

What environmental limits apply to the PCD-25-700A?

The driver is IP42 approved and operates from -30°C to +60°C, with derating per the derating curve. Those limits make it appropriate where the project specification does not require a higher enclosure rating than IP42.
