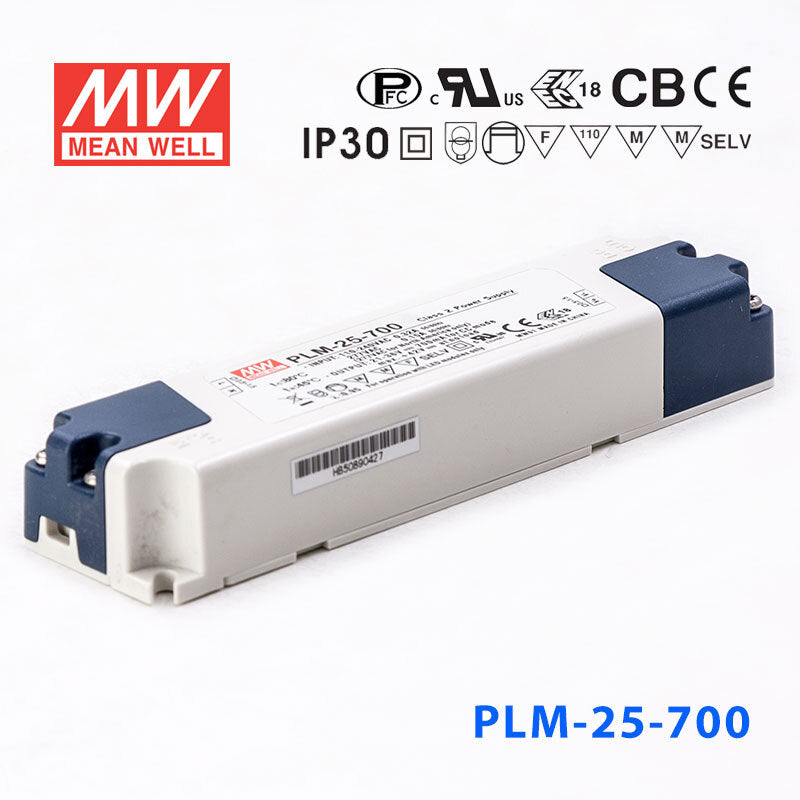

Mean Well PLM-25-700, 700mA Constant Current with PFC - Terminal Block

Name: Mean Well PLM-25-700, 700mA Constant Current with PFC - Terminal Block
Brand: Mean Well
SKU: PLM-25-700
Price: 16.88 USD
Availability: InStock

fully isolated plastic caseClass II design without FGpush terminal I/O

SKU PLM-25-700

$16.88 USD

Shipping calculated at checkout.

In stock

Overview

PLM-25-700 is the model of this series: rated current 0.7A, rated power 25.2W, typical efficiency 86%.

PLM-25 is a 25W economical AC/DC LED power supply series. Incorporating a built-in active PFC design, PLM-25 provides a high Power Factor value greater than 0.9. In addition, with the low no load power consumption below 0.5W, and the setup time less than 500ms, PLM-25 is complied with the ErP regulation required by European Union for lighting fixtures. PLM-25 is a class Ⅱ(without FG pin) power unit housed with the UL 94V-0 rated flame retardant plastic case. The I/O terminals are designed with screw-less clamp style terminal block that greatly simplifies the wiring installation.PLM-25 series, which operates from 110~295VAC.The series is constant current output design, supplying models with the current of 350mA, 500mA, 700mA and 1050mA, respectively.

Features

Full range (up to 295VAC)models
Built-in active PFC function
Constant current design
Protections:Short circuit
Cooling by free air convection
Fully isolated plastic case
Class Ⅱ power unit, no FG
Class 2 power unit(for PLM-25-500/700/1050)
No load power consumption <0.5W
High reliability,low cost
2 years warranty

Specifications

PLM-25-700Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

CONSTANT CURRENT REGION^Note.5: 21 ~ 36V
RATED CURRENT: 0.7A
NO LOAD OUTPUT VOLTAGE(max.): 42V
RATED POWER: 25.2W
RIPPLE & NOISE (max.)^Note.2: 3.6Vp-p
CURRENT ACCURACY^Note.3: ±5.0%
SETUP TIME: 500ms / 115VAC, 230VAC at full load;

INPUT

VOLTAGE RANGE^Note.4: 110 ~ 295VAC 156 ~ 417VDC;
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≥0.97/115VAC,PF≥0.95/230VAC,PF>0.9/277VAC(at full load)(Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION: THD< 20% when output loading≧60% at 115VAC/230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.): 86%
AC CURRENT: 0.3A/115VAC 0.15A/230VAC 0.12A/277VAC;
INRUSH CURRENT(Typ.): COLD START 15A(twidth=50μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 80 units (circuit breaker of type B) / 80 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: 0.25mA / 240VAC

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed.

ENVIRONMENT

WORKING TEMP.: -30 ~ +45℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.06%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: Ul8750, CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384, EAC TP TC 004, IP30 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms/500VDC / 25℃/ 70%RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C(≥60% load);BS EN/EN61000-3-3,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11;BS EN/EN61547, light industry level, criteria B(surge 2KV),EAC TP TC 020

OTHERS

MTBF: 7905.4K hrs min. Telcordia SR-332 (Bellcore) ; 608.9Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 145*38*22mm (L*W*H)
PACKING: 0.126Kg;60pcs/8.6 Kg/0.48CUFT

Certifications & ratings

Input Voltage: 110~295VAC

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Please see "AC input voltage drop vs. output current characteristics" table.
4. Derating may be needed under low input voltage, please check the static characteristic for more details.
5. Constant current operation region is within 60% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design.
6. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
8. The models certified by CCC (GB/T19510.1, GB/T19510.213, GB/T 17743 and GB17625.1) are optional models. Please contact your MEAN WELL sales for more information.

Technical drawings

PLM-25-700 Mechanical Specification — Mechanical Specification

PLM-25-700 Derating Curve — Derating Curve

PLM-25-700 Power Factor Characteristic — Power Factor Characteristic

PLM-25-700 EFFICIENCY vs LOAD (500mA Model) — EFFICIENCY vs LOAD (500mA Model)

Typical applications

Indoor LED lighting
LED office lighting
LED commercial lighting
LED decorative lighting

Downloads

Certificates8

Mean Well PLM-12-25 CCC Certificate PDF Download

Mean Well PLM-12-25 ENEC Certificate PDF Download

Mean Well PLM-12-25 CB Certificate PDF Download

Mean Well PLM-12-25 EMC Certificate PDF Download

Mean Well PLM-12-25 UK Certificate PDF Download

Mean Well PLM-12-25 CE Certificate PDF Download

Mean Well PLM-12-25 ERP Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Test reports1

Mean Well PLM-25-700 Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the PLM-25-700 for a 700mA LED downlight?

Yes, if the downlight needs a constant current driver at 700mA and its LED load stays within the 21-36V constant-current range. This is a constant current model and is not meant for fixed-voltage LED products.

Is the PLM-25-700 a fit for compact LED arrays?

It can be a fit for compact LED arrays that are specified for 700mA constant current operation. The array's total forward voltage must remain within 21-36V, and the driver is rated at 25.2W.

Can this driver be used for constant current signage modules?

Yes, if the signage module assembly is designed around 700mA constant current and the full LED load stays inside the 21-36V CC range. It should not be used where a constant voltage output is required.

What should I check before pairing LEDs with the PLM-25-700?

Check that the LEDs are intended for 700mA constant current operation and that their combined forward voltage falls within 21-36V. The number of LEDs depends on each LED's forward voltage, so there is no single fixed LED count for this driver.

Does the PLM-25-700 have any stated operating limits for ambient temperature?

Yes. The specified operating temperature range is -30°C to +45°C, which defines the ambient range given in the product data.
