Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

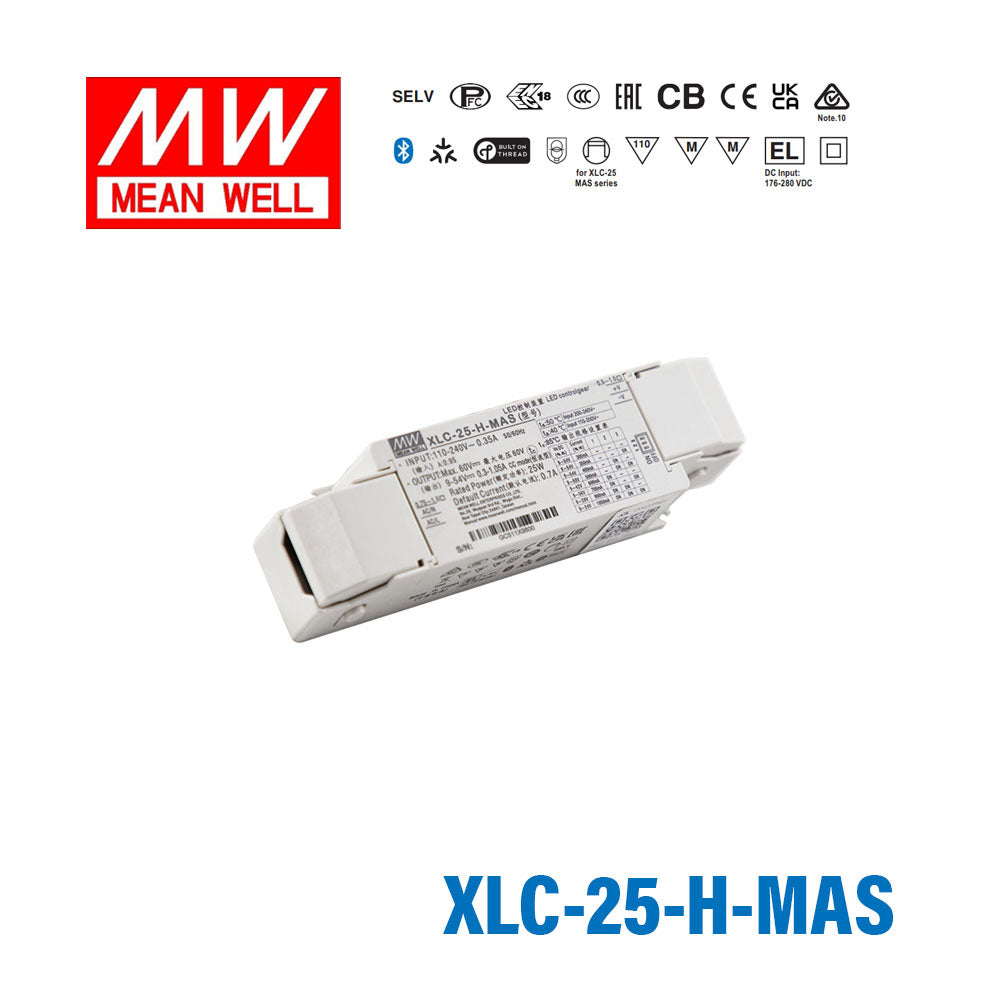

Mean Well XLC-25-H-MAS LED Driver 25W 700mA 9~54V Constant Power, Current Setting by Dip Switch, Matter Wireless Dimming with Strain Relief
$137.30 USD
Unit price /
Unavailable
Shipping calculated at checkout.
Notify me when it's back in stock
|
Your order will be processed within 24 hours
Mean Well XLC-25-H-MAS LED Driver 25W 700mA 9~54V Constant Power, C...
$137.30 USD
Unit price /
Unavailable
Description
Description
Key Features
- ✓Constant power mode output with multiple stage selectable by DIP switch
- ✓Plastic housing with class II and PFC design
- ✓Flicker free, complying with CE ErP directive
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Minimum dimming level 0.5%
- ✓Matter over thread, Matter 1.3 specification
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating25 Watt
-
Output Voltage60 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Current
-
Operating Temperature-25°C~85°C
-
Warranty5 Year
-
Length5.79 in
-
Width1.26 in
-
Height1.57 in
-
Weight0.31 lb
