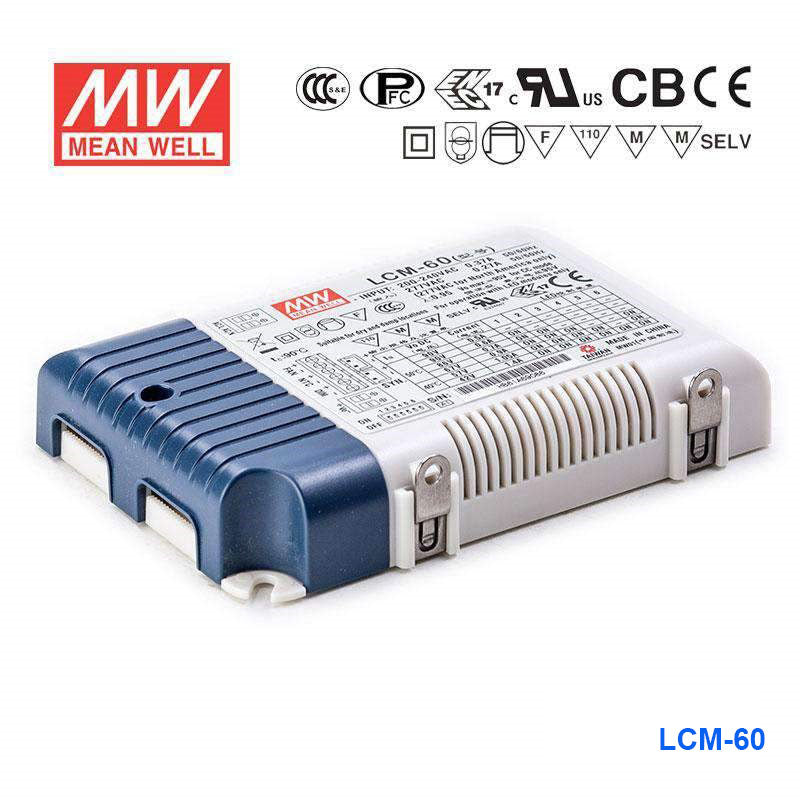

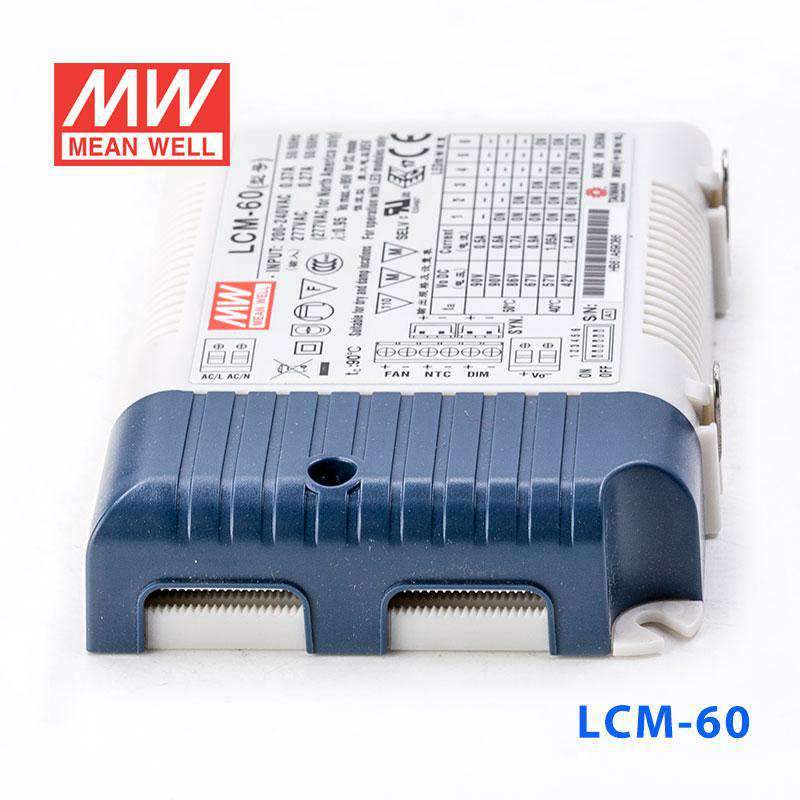

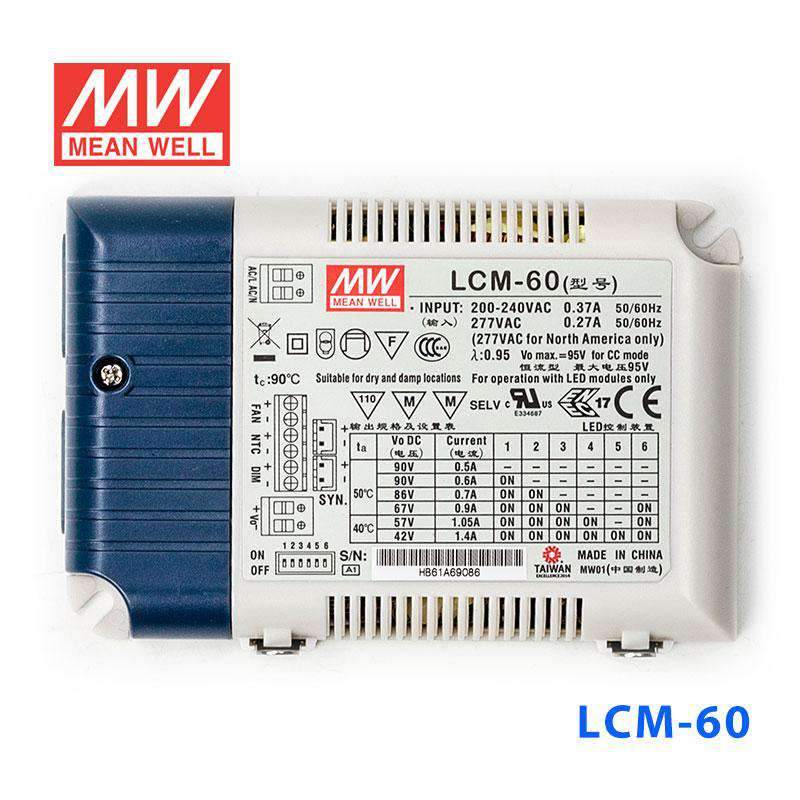

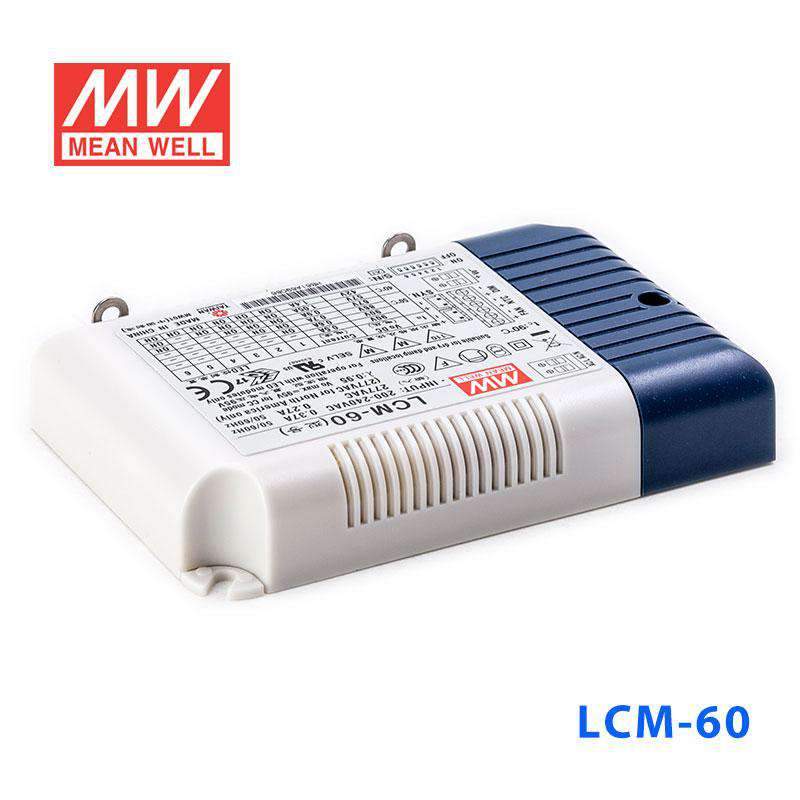

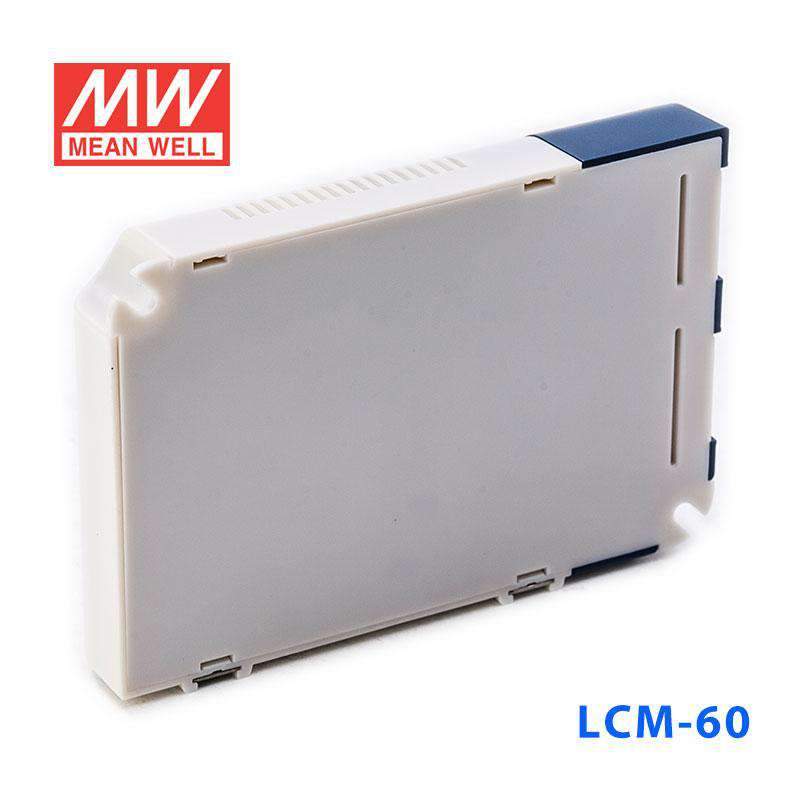

Mean Well LCM-60 AC-DC Multi-Stage LED driver Constant Current

Name: Mean Well LCM-60 AC-DC Multi-Stage LED driver Constant Current
Brand: Mean Well
SKU: LCM-60
Price: 34.69 USD
Availability: InStock

selectable output current using dip switchflicker-freeClass II without FGbuilt-in 3 in 1 dimming

SKU LCM-60

$34.69 USD

Shipping calculated at checkout.

In stock

Overview

LCM-60 is the model of this series: rated power 60.3W, typical efficiency 92%.

LCM-60 series is a 60W LED AC/DC constant current mode output LED driver featuring the multiple levels selectable by dip switch. LCM-60 operates from 180～295VAC and offers different current levels ranging between 500mA and 1400mA. Thanks to the efficiency up to 92%, with the fanless design, the entire series is able to operate for -30℃~+90℃ case temperature under free air convection. LCM-60 is equipped with various functions, such as the dimming function and synchronization, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output with multiple levels selectable by dip switch
Plastic housing with class II design
Built-in active PFC function
Standby power consumption <1W
Functions: 3 in 1 dimming (dim-to-off); Auxiliary DC output; synchronization up to 10 units
Optional: Wireless LED driver with integrated EnOcean module
3 years warranty

Specifications

LCM-60Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

CURRENT LEVEL: Current level selectable via DIP switch, please refer to"DIP SWITCH TABLE" section: 500mA / 600mA / 700mA(default) / 900mA / 1050mA / 1400mA
RATED POWER: 60.3W
DC VOLTAGE RANGE: 500mA: 2 ~ 90V / 600mA: 2 ~ 90V / 700mA: 2 ~ 86V / 900mA: 2 ~ 67V / 1050mA: 2 ~ 57V / 1400mA: 2 ~ 42V
OPEN CIRCUIT VOLTAGE (max.): 500mA: 102V / 600mA: 102V / 700mA: 102V / 900mA: 76V / 1050mA: 76V / 1400mA: 76V
CURRENT RIPPLE^Note.5: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
AUXILIARY DC OUTPUT: Nominal 12V(deviation 11.4~12.6V)@50mA
SETUP TIME^Note.3: 500ms / 230VAC

INPUT

VOLTAGE RANGE^Note.2: 180 ~ 295VAC 254 ~ 417VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.975/230VAC, PF≧0.96/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧75%) (Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)
EFFICIENCY (Typ.)^Note.4: 92%
AC CURRENT (Typ.): 0.32A/230VAC 0.27A/277VAC
INRUSH CURRENT (Typ.): COLD START 20A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 25 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.5mA / 240VAC
STANDBY POWER CONSUMPTION^Note.6: <1W

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 105 ~ 125V Shutdown o/p voltage, re-power on to recover
OVER TEMPERATURE: Shutdown o/p voltage,re-power on to recover

FUNCTION

WIRELESS PROTOCOL(Optional): EnOcean standard 868 MHz; Max. device(switch) saved into the memory : 33
DIMMING: Please refer to "DIMMING OPERATION" section
SYNCHRONIZATION: Please refer to "SYNCHRONIZATION OPERATION" section
TEMP. COMPENSATION: By external NTC, please refer to "TEMPERATURE COMPENSATION OPERATION"section

ENVIRONMENT

WORKING TEMP.: Tcase=-30 ~ +90℃ (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: Ul8750, CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, GB/T19510.1,GB/T19510.213,BIS IS15885, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.7: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C(@load≧40%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(surge immunity Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 2628.7K hrs min. Telcordia SR-332 (Bellcore) ; 260.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 123.5*81.5*23mm (L*W*H)
PACKING: 0.24Kg ; 54pcs/15Kg/1.12CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
3. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
4. Efficiency is measured at 900mA/67V output set by DIP switch.
5. Current ripple is measured 60%~100% of maximum voltage under rated power delivery.
6. Standby power consumption is measured at 180~230VAC.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

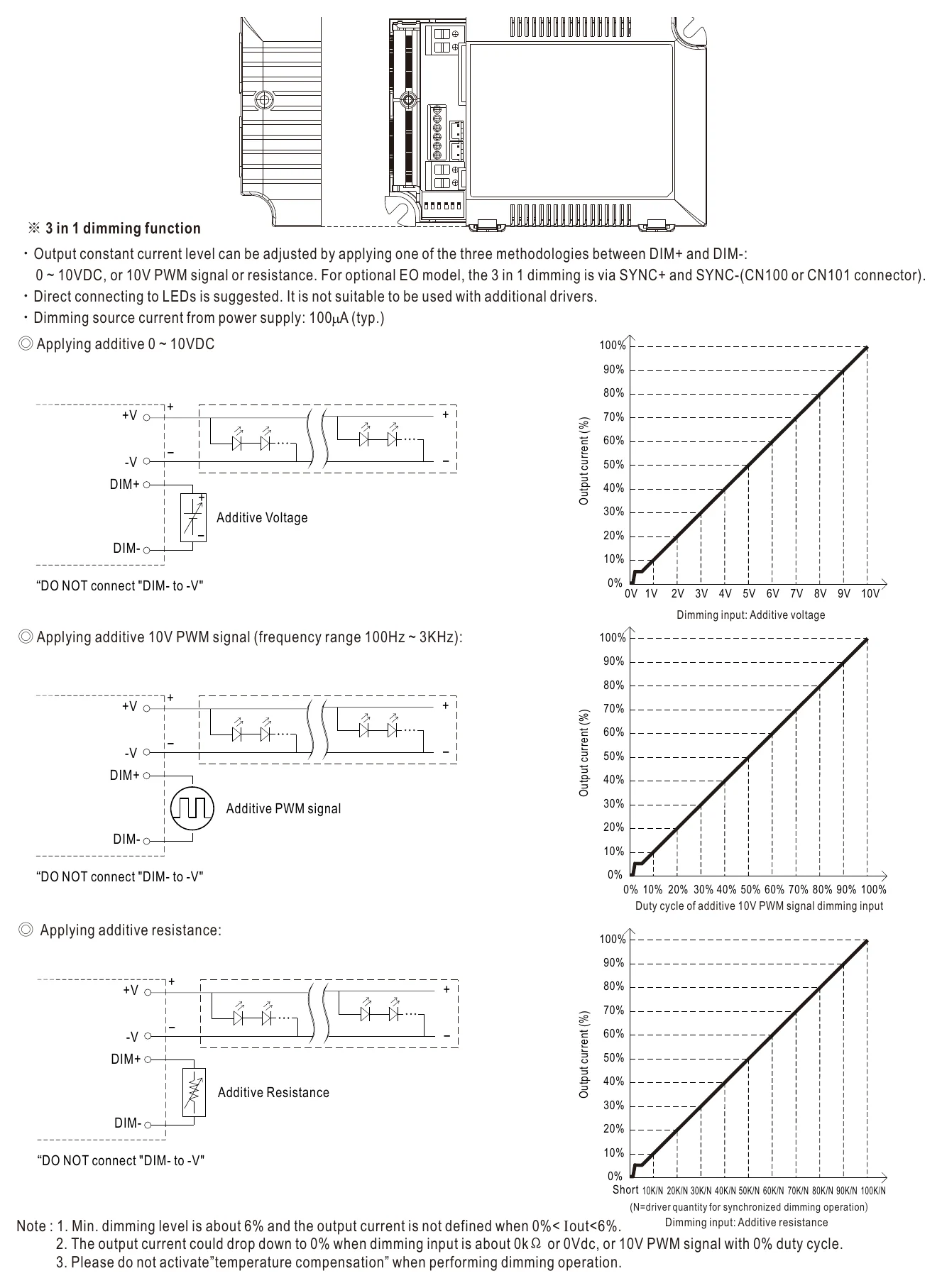

LCM-60 DIMMING OPERATION — DIMMING OPERATION

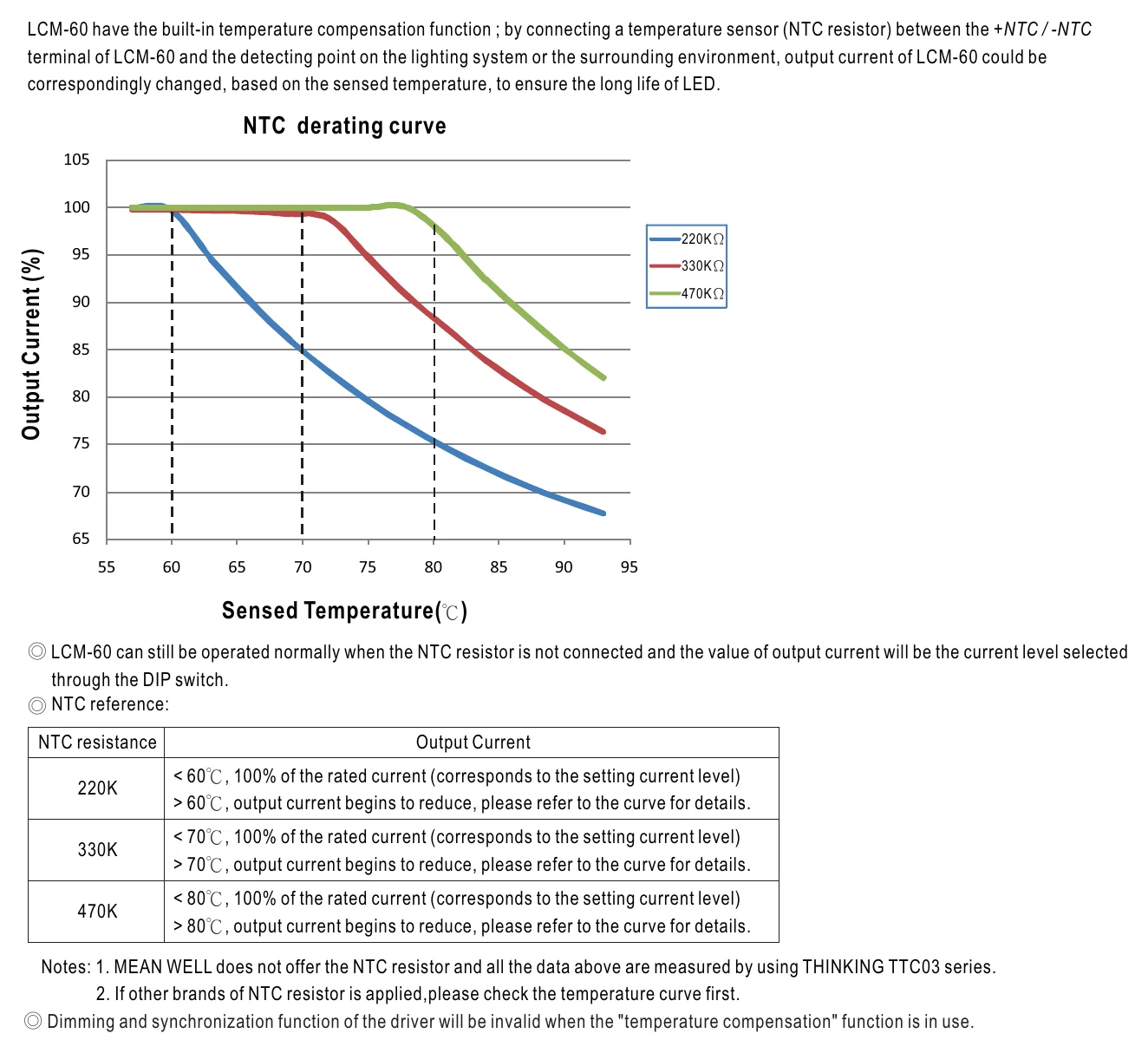

LCM-60 TEMPERATURE COMPENSATION — TEMPERATURE COMPENSATION

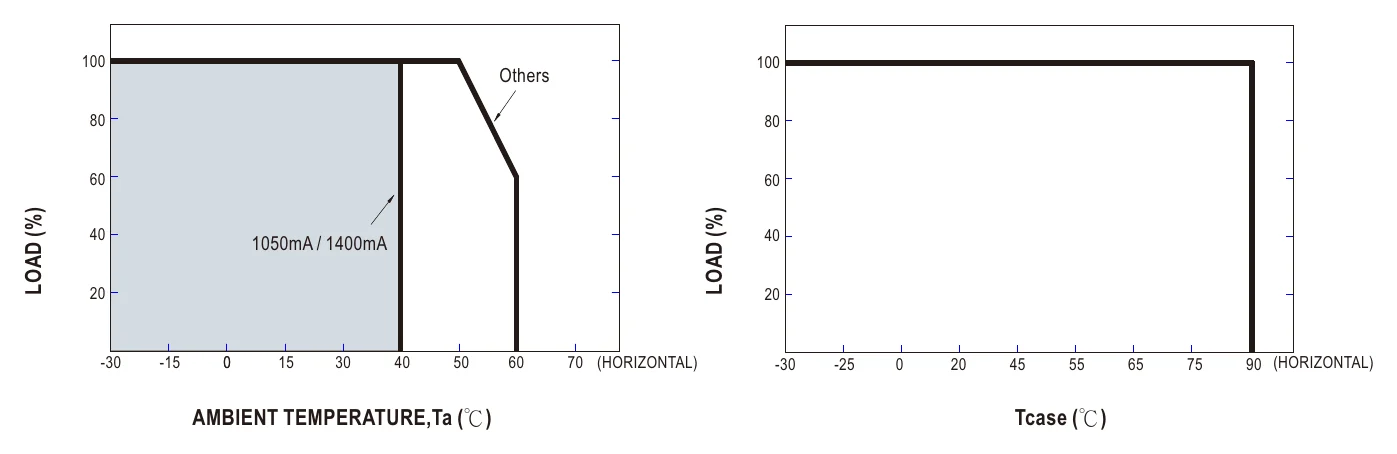

LCM-60 OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

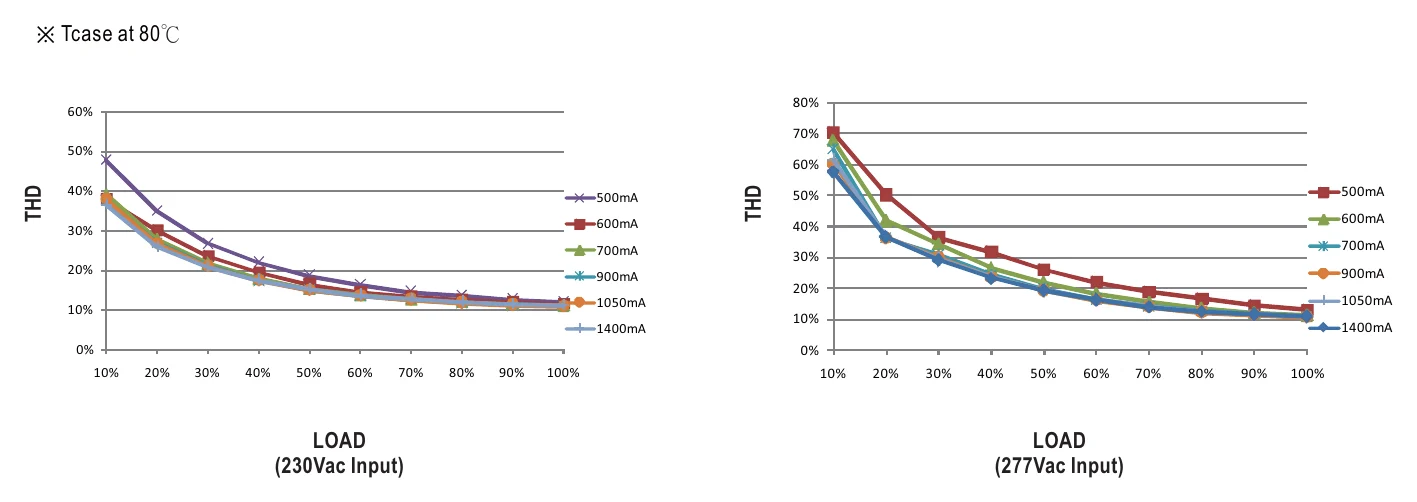

LCM-60 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

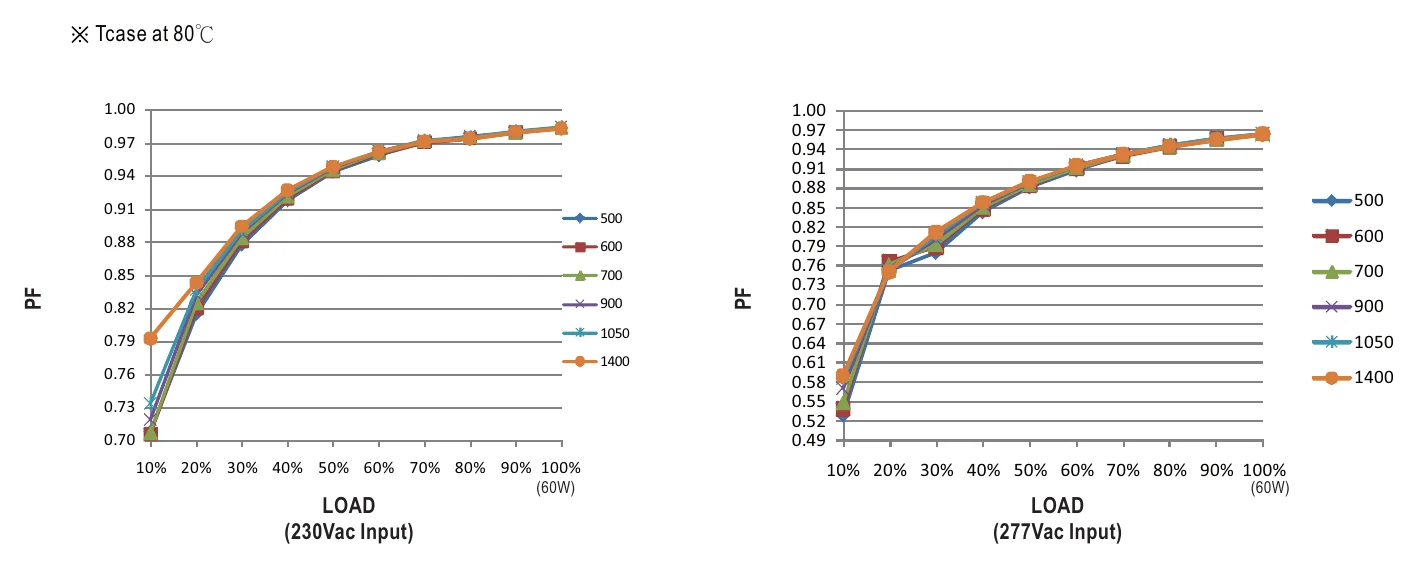

LCM-60 POWER FACTOR (PF) CHARACTERISTIC — POWER FACTOR (PF) CHARACTERISTIC

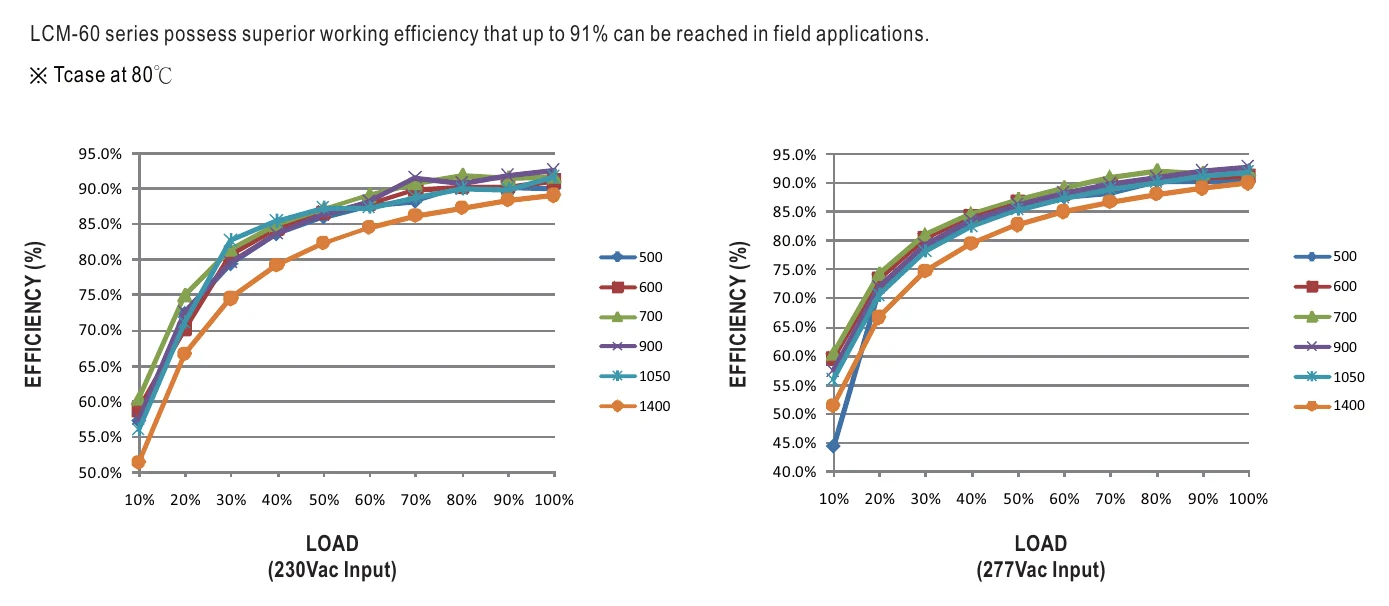

LCM-60 EFFICIENCY vs LOAD — EFFICIENCY vs LOAD

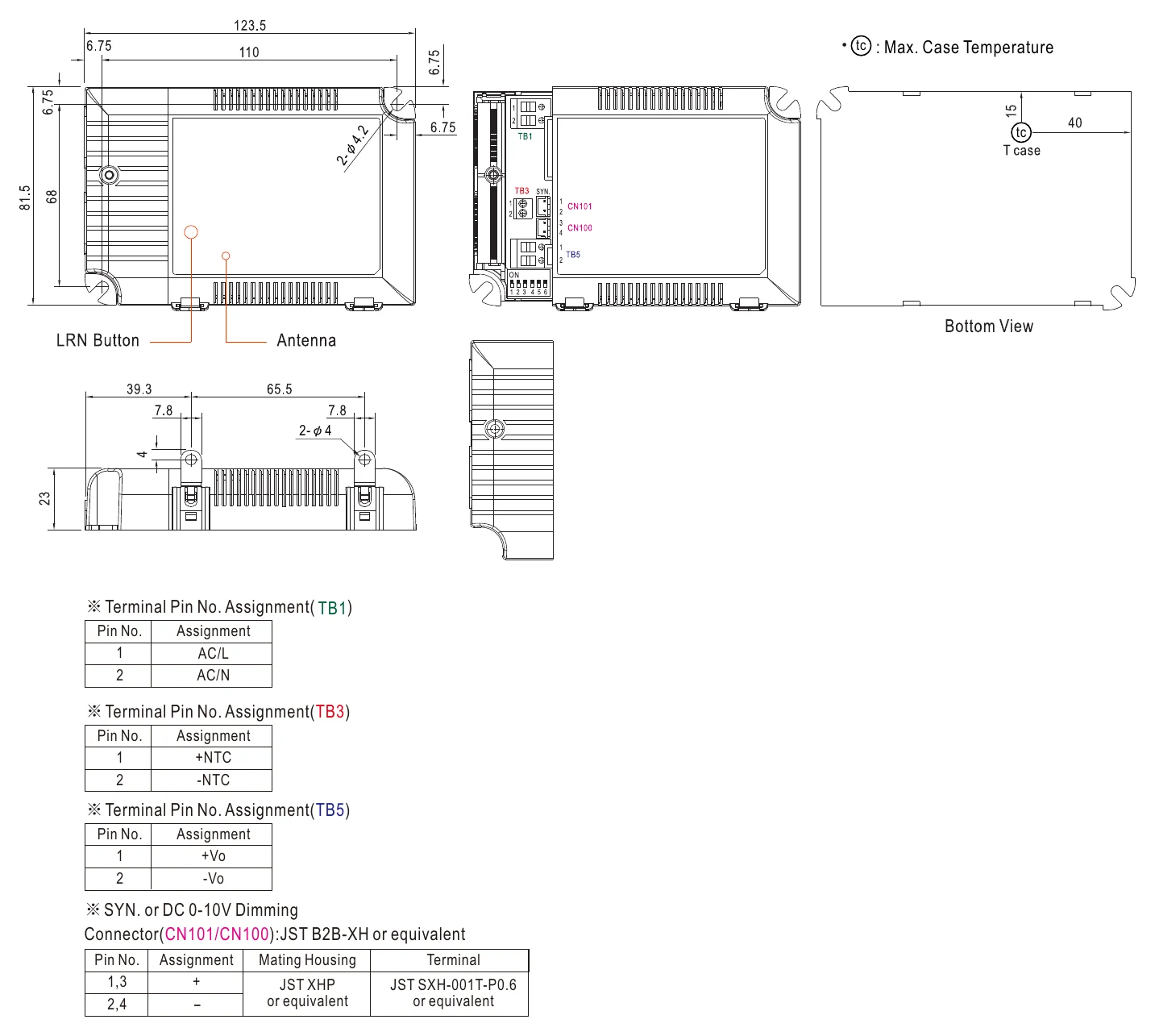

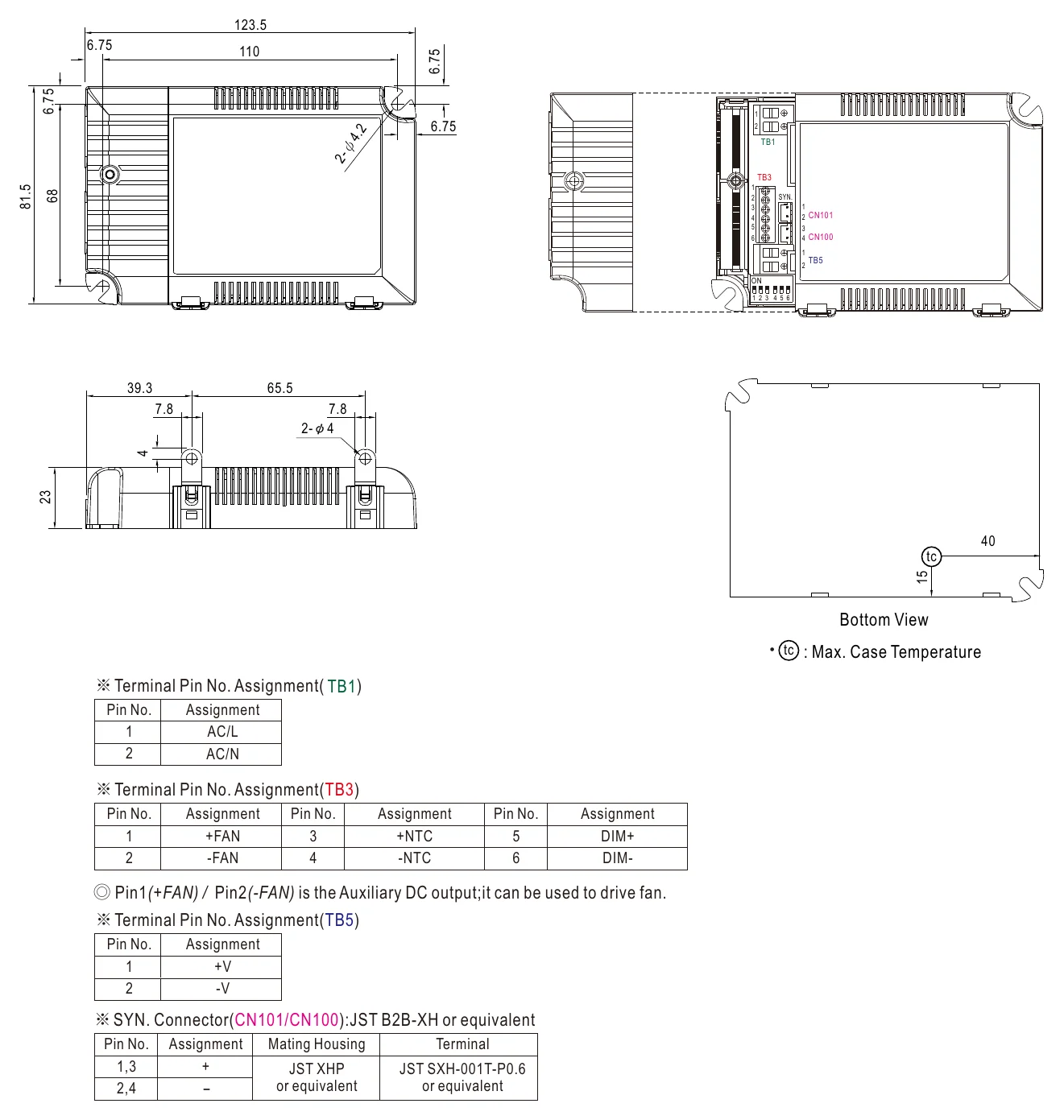

LCM-60 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

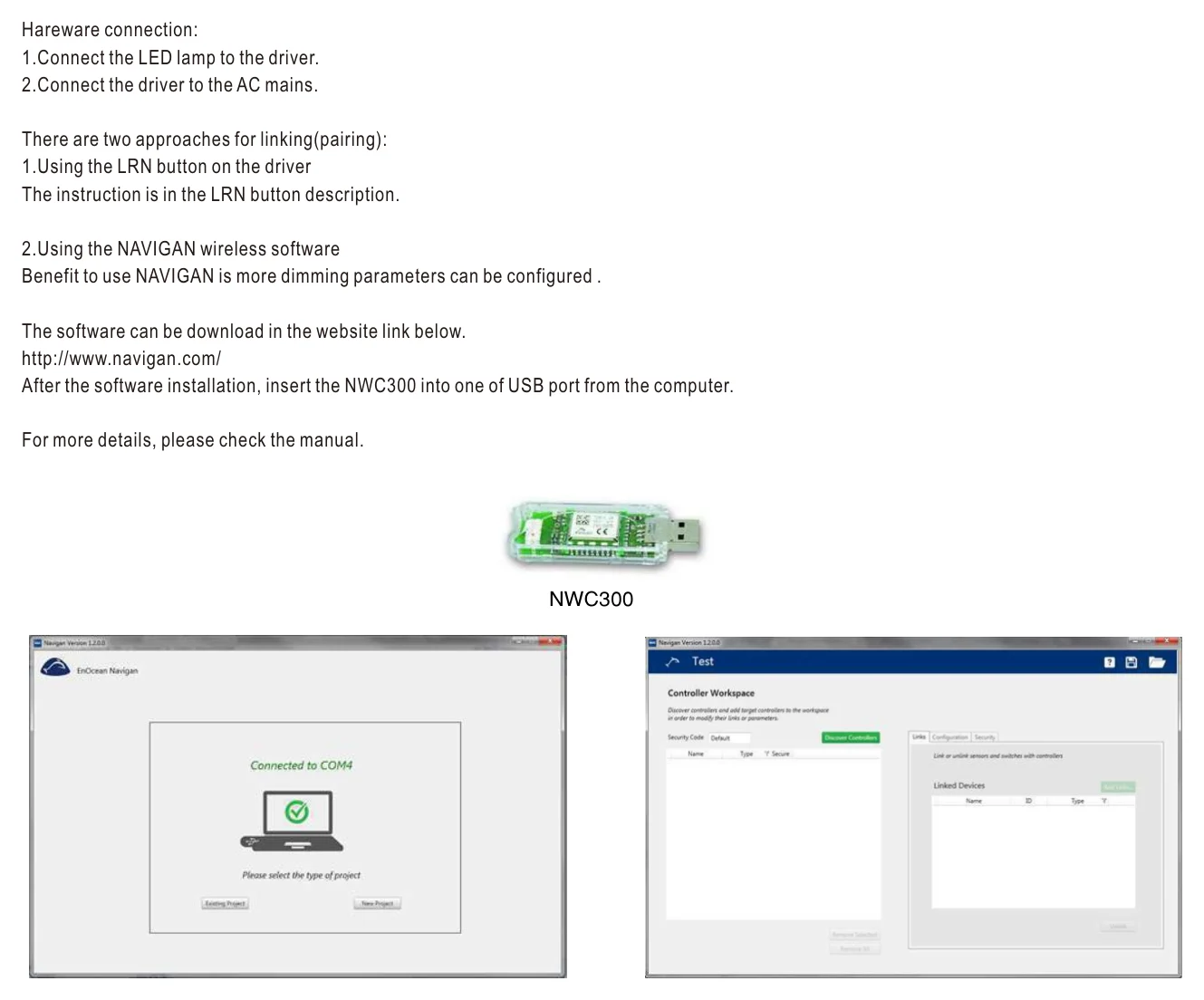

LCM-60 Installation & Pairing — Installation & Pairing

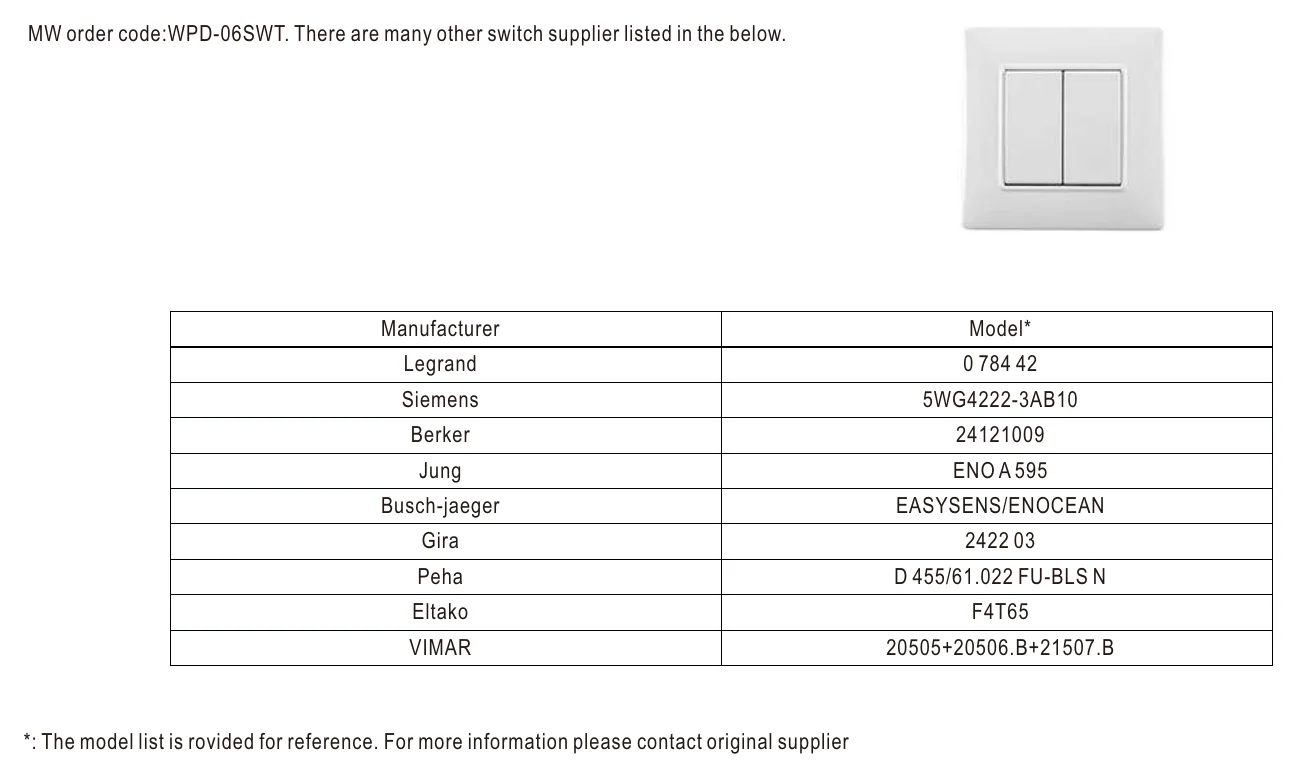

LCM-60 Batteryless wireless switch supplier — Batteryless wireless switch supplier

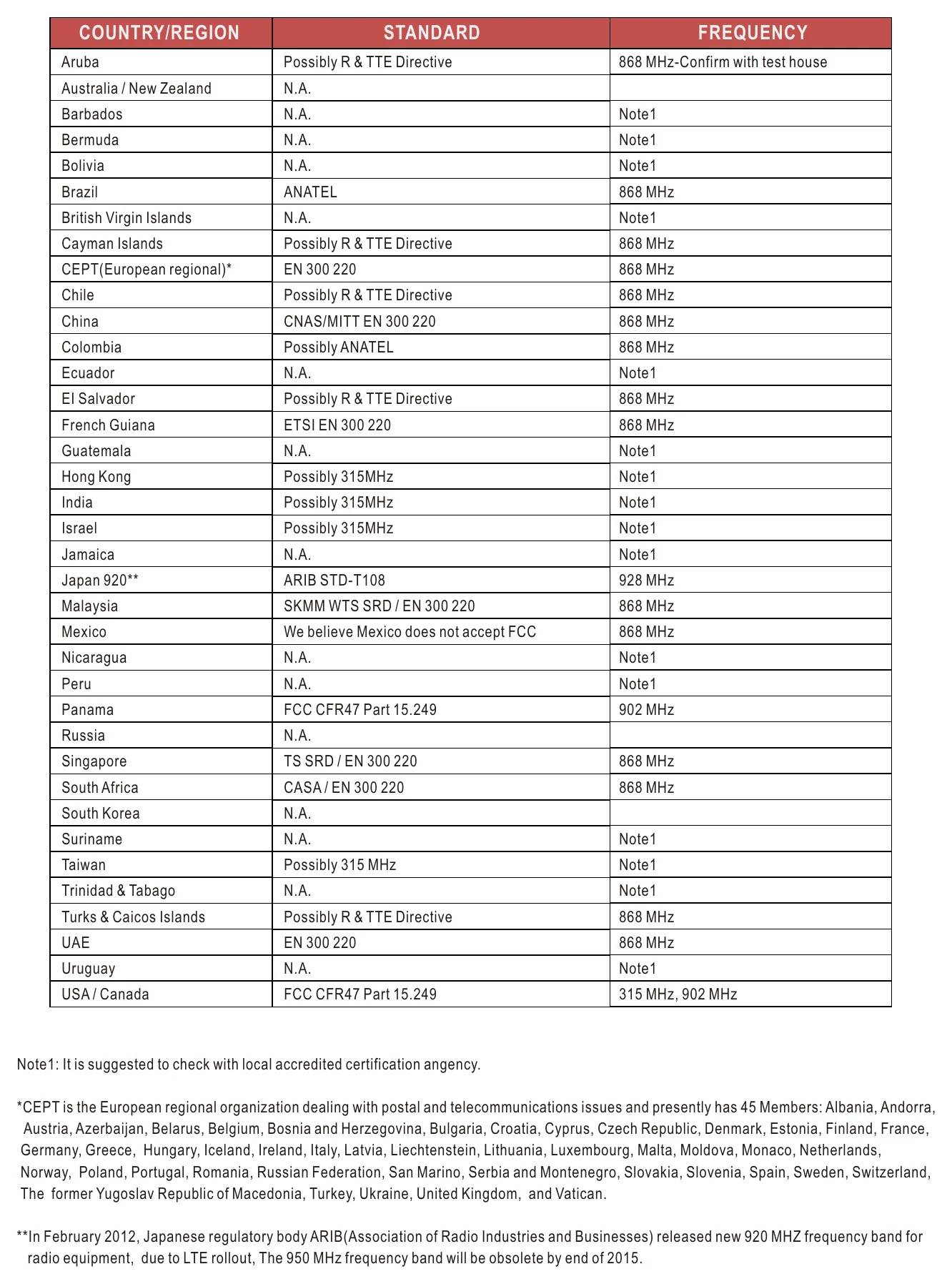

LCM-60 World Coverage Map — World Coverage Map

Typical applications

LED indoor lighting
LED office lighting
LED architectural lighting
LED panel lighting

Downloads

Certificates4

UL Certificate(LCM-60)(EN) PDF Download

CB Certificate(LCM-60)(EN) PDF Download

ENEC Certificate(LCM-60)(EN) PDF Download

EMC Certificate(LCM-60)(EN) PDF Download

Test reports1

Test Report (LCM-60)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the LCM-60 for higher-power LED downlights?

Yes, this constant current driver suits LED downlights up to its 60.3W rating, with a DC voltage range of 2-90V depending on the DIP-switch current setting (2-86V at the default 700mA). It is a better fit for constant current downlights than constant voltage products because the driver regulates current rather than supplying a fixed DC voltage.

Is the LCM-60 suitable for larger LED signage modules or small LED arrays?

It can be suitable where the LED module or array is designed for constant current operation and the total load stays within 60.3W and the DC voltage range of the selected current level (2-90V at 500/600mA, 2-86V at 700mA, down to 2-42V at 1400mA).

Can this driver be used for dimmable architectural LED arrays?

Yes, it is relevant for dimmable constant current LED arrays because it includes built-in 3 in 1 dimming (0-10VDC, 10V PWM signal or resistance). The array still needs to match the selected current setting and remain within that setting's DC voltage range.

How do I check LED compatibility with the LCM-60?

Confirm that the LEDs require constant current drive and that their total forward voltage stays within the DC voltage range for the selected current (for example 2-86V at the default 700mA, 2-42V at 1400mA). The number of LEDs depends on each LED forward voltage, so the proper sizing method is total forward voltage, not a fixed LED count.

Is the LCM-60 suitable for broad temperature ranges?

Its working temperature is specified as a case temperature (Tcase) of -30°C to +90°C, with output load derating per the output load vs temperature curve, which supports use in demanding indoor lighting environments and enclosed luminaires. These specs do not provide an IP rating, so exposure to dust or water should be managed by the final enclosure.
