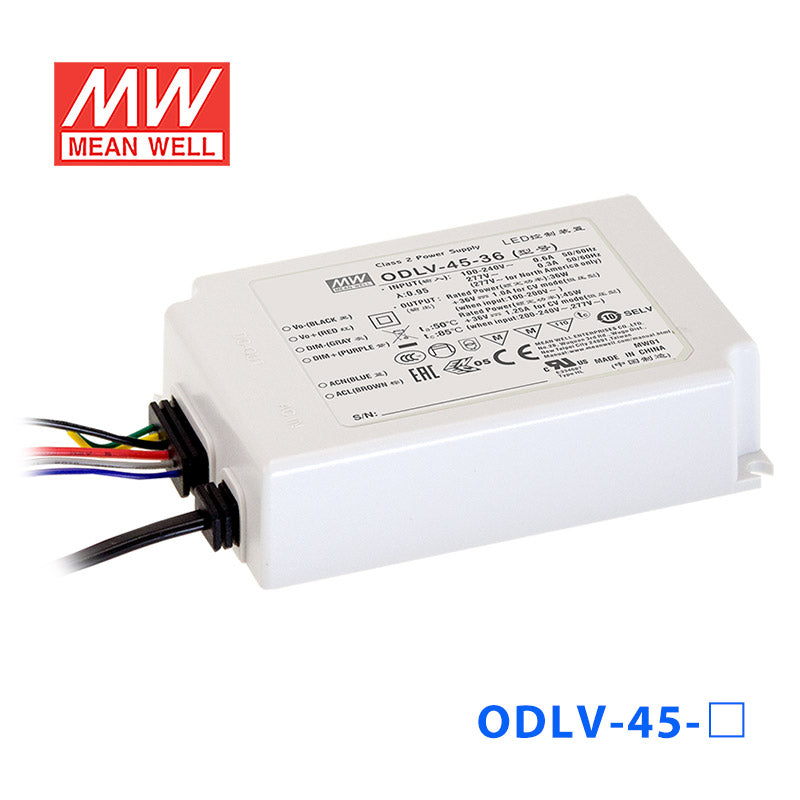

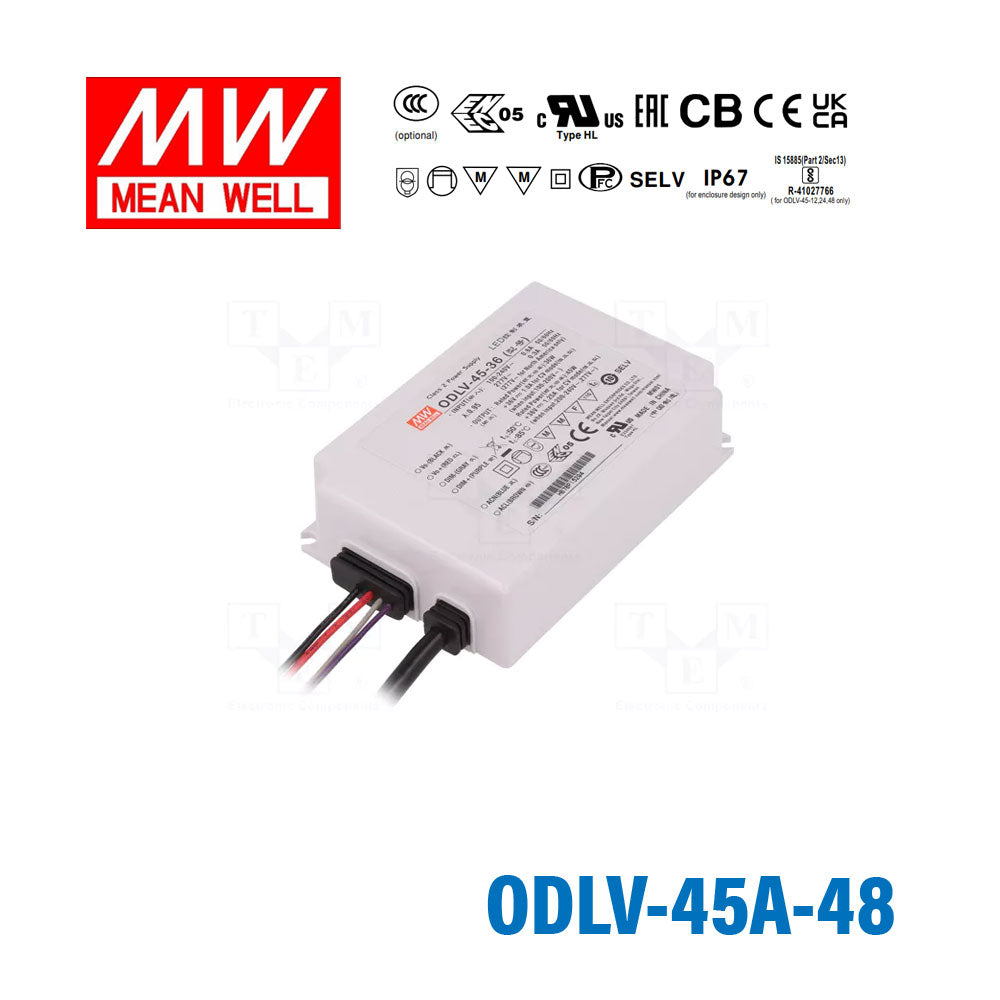

Mean Well ODLV-45A-48 Power Supply 45W 48V (Auxiliary DC output)
$28.81 USD
Unit price /
Unavailable
Description
Description
Features
| Constant voltage PWM style output with frequency 1KHz |
| Plastic housing with class II design |
| Built-in active PFC function |
| No load power consumption<0.5W(Blank-Type) |
| IP67 rating for indoor or outdoor installations |
| Function options: 2 in 1 dimming(dim-to-off); Auxiliary DC output |
| 3 years warranty |
General Specification
| AC input voltage range | 90~295VAC |
| AC inrush current (Typ.) | COLD START 30A(twidth=150μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
| Short circuit protection | Shut down O/P voltage, re-power on to recovery |
| Over current protection | 105~115% |
| Setup time | 500ms / 230VAC; 1200ms/115VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC |
| Working temperature | -20~+85ºC |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020 |
| Dimension (LxWxH)(mm) | 111*77*28.5mm |
| Packing | 24pcs/11Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesODLV Series
-
Power Rating45.12 Watt
-
Output Voltage48 Volt
-
Rated Current0.94 Ampere
-
Input Voltage90V~295V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length4.37 in
-
Width3.03 in
-
Height1.12 in
-
Weight0.93 lb
