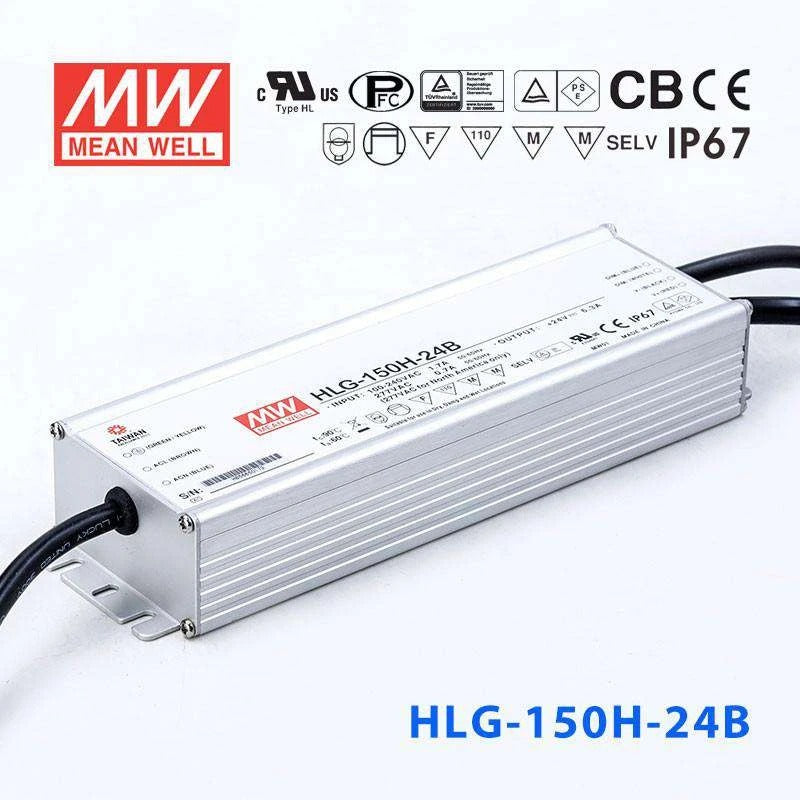

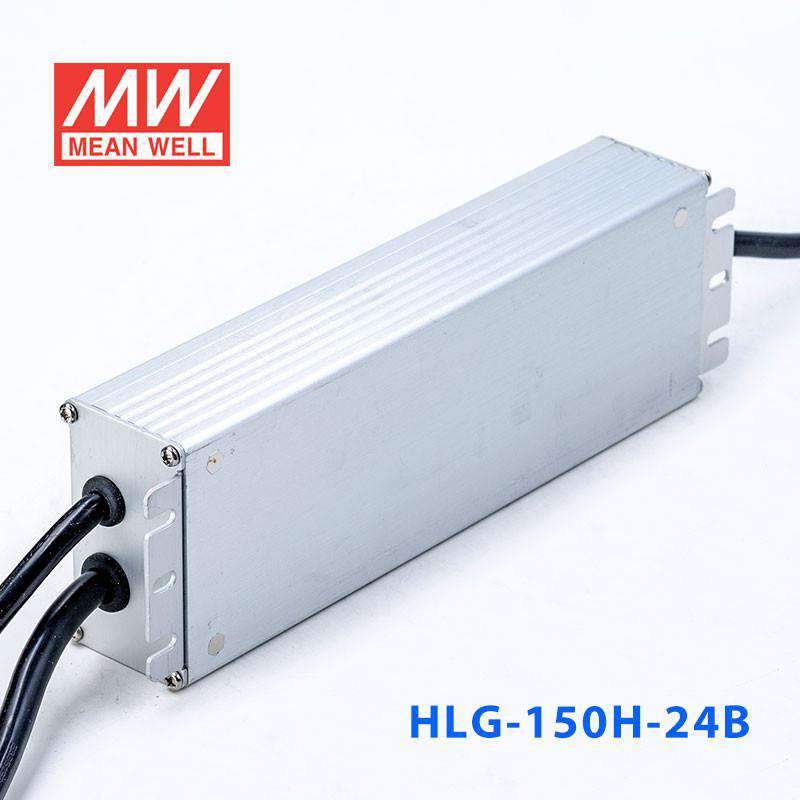

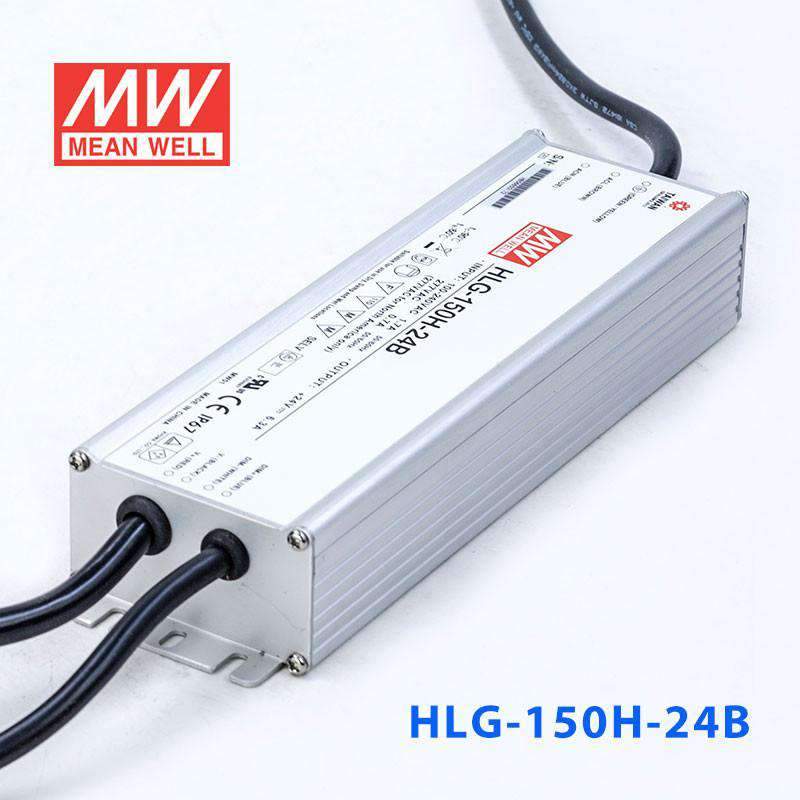

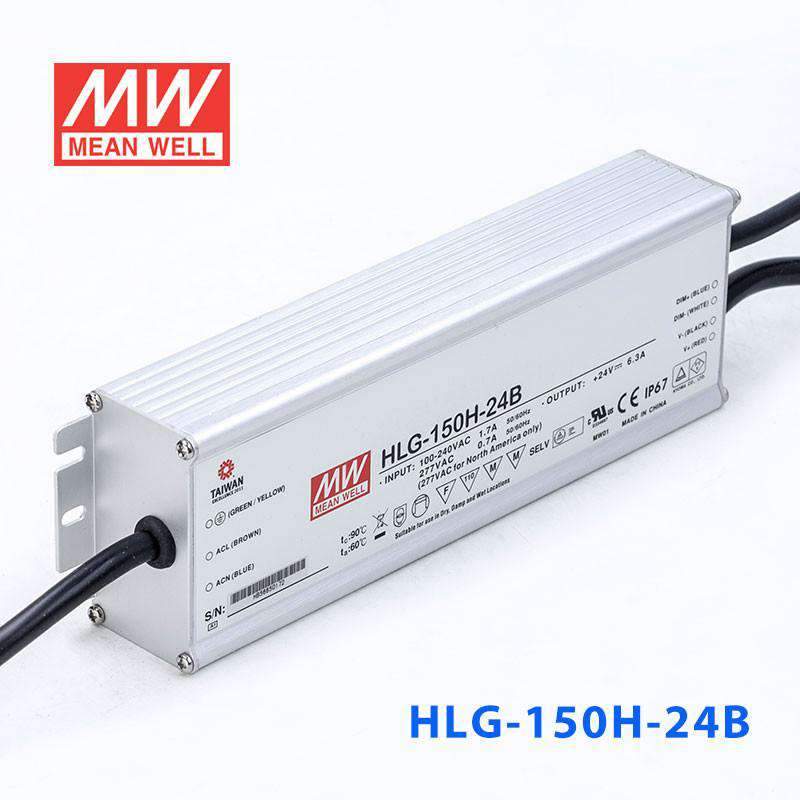

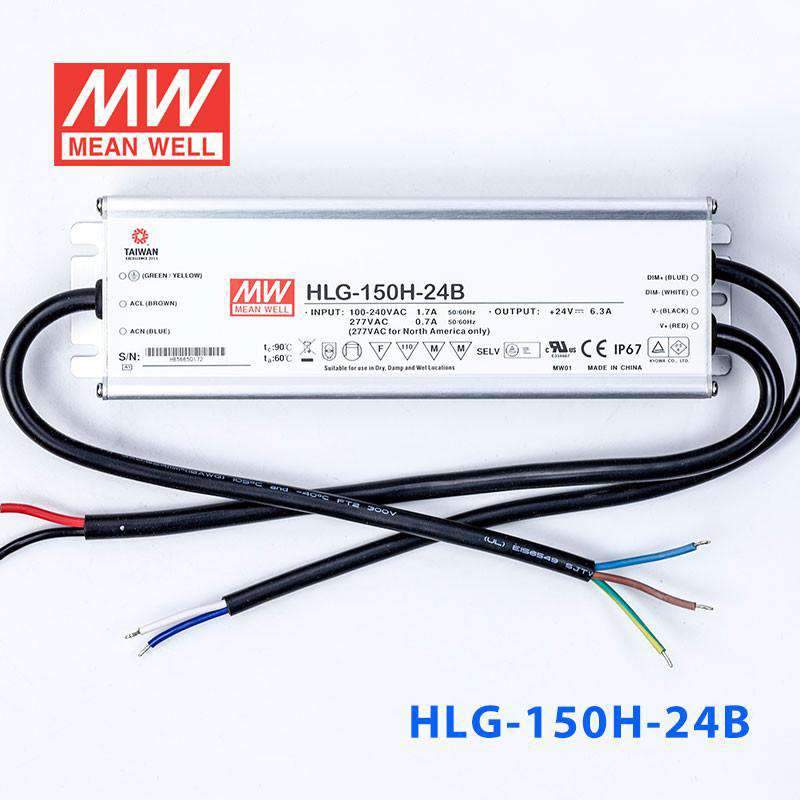

Mean Well HLG-150H-24B Power Supply 150W 24V- Dimmable 6.3A

premium quality7 years warrantyaluminium casinghigh efficiency
SKU HLG-150H-24B
$62.48 USD
Shipping calculated at checkout.

Select model — 24 in this family

HLG-150H-24B
In stock
|

Overview

HLG-150H-24B is the 24V output model of this series: rated current 6.3A, rated power 151.2W, typical efficiency 93%.

HLG-150H series is a 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-150H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-150H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing with class I design
  • IP67 / IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer; 3 in 1 dimming
  • Typical lifetime > 62000 hours
  • 7 years warranty

Specifications

HLG-150H-24BSpecifications from the official datasheet (2019-12-10 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE
24V
CONSTANT CURRENT REGIONNote.4
12 ~ 24V
RATED CURRENT
6.3A
RATED POWER
151.2W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGE
Adjustable for A/AB-Type only (via built-in potentiometer) 22 ~ 27V
CURRENT ADJ. RANGE
Adjustable for A/AB-Type only (via built-in potentiometer) 3.8 ~ 6.3A
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.6
1000ms,200ms/115VAC 500ms,200ms/230VAC
HOLD UP TIME (Typ.)
16ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to " TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.)
93%
AC CURRENT (Typ.)
1.7A / 115VAC 0.75A / 230VAC 0.7A / 277VAC
INRUSH CURRENT (Typ.)
COLD START 65A(twidth=425μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
28 ~ 34V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.
Tcase= +90℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750(type”HL”), CSA C22.2 No. 250.0-08; EN/AS/NZS 61347-1, EN/AS/NZS 61347-2-13 independent;GB19510.1, GB19510.14; IP65 or IP67; J61347-1, J61347-2-13 (except for B,AB and D-type) ,BIS IS15885( for 12B,24B,36A,54A only), EAC TP TC 004; KC61347-1,KC61347-2-13 (except for AB,D-type) approved ; Design refer to UL60950-1, TUV EN60950-1
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to EN55015, EN55032 (CISPR32) Class B, EN61000-3-2 Class C (@ load≧60%) ; EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF
192.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
228*68*38.8mm
PACKING
1.15Kg; 12pcs/14.8Kg/0.8CUFT

Certifications & ratings

Type
HL
Test conditions and notes12
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uF & 47uF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Please refer to "DRIVING METHODS OF LED MODULE".
  5. 5. De-rating may be needed under low input voltages. Please refer to "STATIC CHARACTERISTIC" sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
  8. 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  9. 9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly point (or TMP, per DLC), is about 80℃ or less.
  10. 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
  11. 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  12. 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HLG-150H-24B BLOCK DIAGRAM
BLOCK DIAGRAM
HLG-150H-24B DIMMING OPERATION
DIMMING OPERATION
HLG-150H-24B Illustration (page 5)
Illustration (page 5)
HLG-150H-24B STATIC CHARACTERISTICS
STATIC CHARACTERISTICS
HLG-150H-24B TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
HLG-150H-24B MECHANICAL SPECIFICATION
MECHANICAL SPECIFICATION
HLG-150H-24B ※B-Type
※B-Type
HLG-150H-24B Dimensions (mm)
Dimensions (mm)
HLG-150H-24B ※AB-Type
※AB-Type
HLG-150H-24B Dimensions (mm)
Dimensions (mm)
HLG-150H-24B WATERPROOF CONNECTION
WATERPROOF CONNECTION

Typical applications

  • LED street lighting
  • LED high-bay lighting
  • Parking space lighting
  • LED fishing lamp
  • LED greenhouse lighting
  • Type “HL” for use in ClassⅠ, Division 2 Hazardous (Classified) Location.

Downloads

FAQ

Can I use the HLG-150H-24B for dimmable outdoor 24V LED strip lighting?

Yes. The HLG-150H-24B outputs 151.2W at 24V with a 1-10V/PWM dimming input and carries an IP67 waterproof rating. It combines external dimming control with outdoor rain and temporary-immersion protection in a single unit.

Is the HLG-150H-24B a good choice for dimmable 24V LED landscape or garden lighting?

Yes. Its 151.2W at 24V capacity can power multiple landscape fixtures, and the dimming input enables nighttime brightness reduction for ambiance or energy savings. The IP67 rating and -40°C to +90°C case-temperature (Tcase) range handle ground-level moisture, irrigation splash, and seasonal temperature extremes.

Can the HLG-150H-24B drive dimmable 24V LED sign modules in a weather-exposed location?

Yes. At 151.2W and 24V, it powers a substantial run of 24V sign modules. The dimming input allows scheduled brightness changes for nighttime operation, and the IP67 waterproof rating means it can be mounted alongside outdoor signs; use waterproof connectors or a cable joiner for the wiring.

Can I pair with the HLG-150H-24B to a smart lighting controller for scheduled dimming?

Yes, if the controller has a suitable output. The dimming input accepts 1-10VDC, 10V PWM (100Hz-3KHz) or resistance signals, so smart lighting controllers, astronomical timers, and building automation systems with one of these outputs can drive it. This allows automated brightness scheduling without manual adjustment.

How many meters of 24V LED strip can the HLG-150H-24B power?

Divide the 151.2W rated power by the strip's rated wattage per meter. A 24V strip at 14.4W/m allows about 10.5 meters (151.2W / 14.4W per meter). A 10W/m strip allows about 15 meters. Always check your strip's rated power per meter and keep total load at or below 151.2W.

Can the HLG-150H-24B withstand rain, snow, and temporary water pooling?

Yes. Its IP67 rating certifies complete dust protection and protection against temporary immersion in water. It handles rain, snow, and temporary ground-level flooding. It is not designed for permanent submersion, however.
