Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

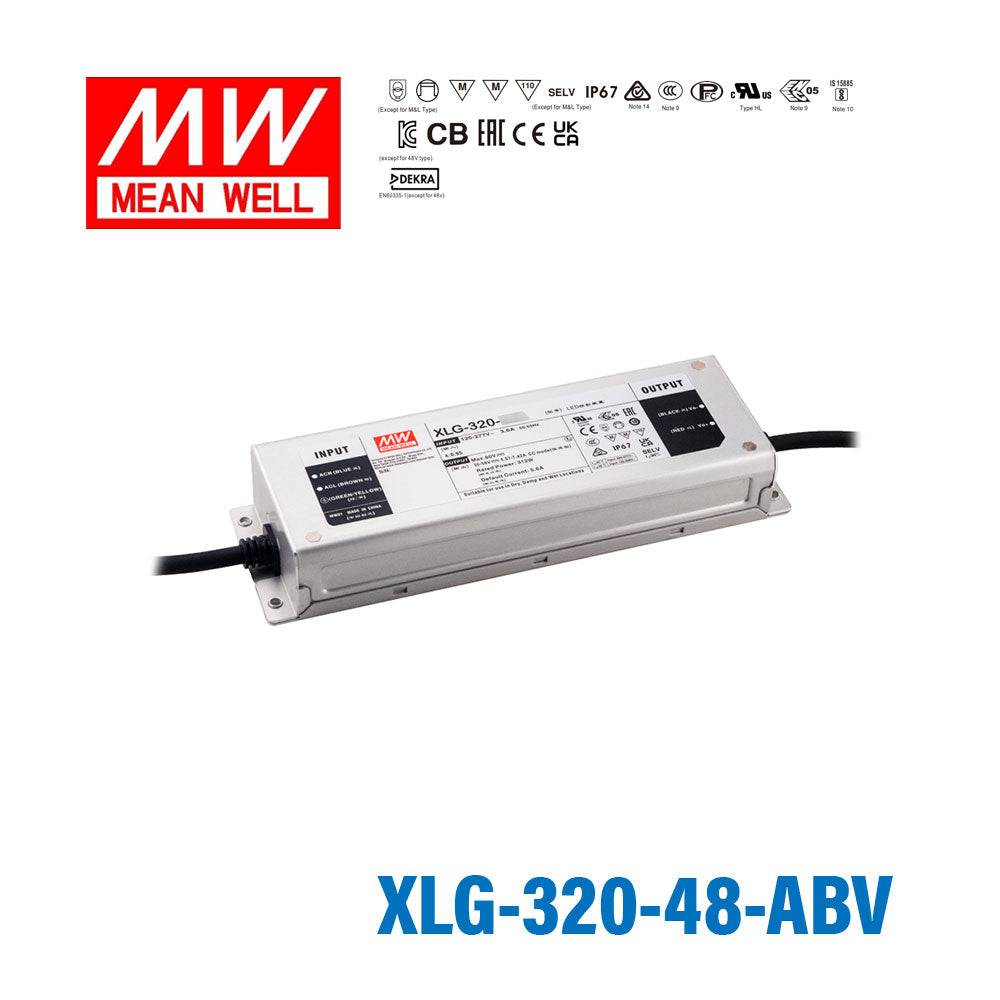

Mean Well XLG-320-48-ABV Power Supply 312W 48V 6.5A

Name: Mean Well XLG-320-48-ABV Power Supply 312W 48V 6.5A
Brand: Mean Well
SKU: XLG-320-48-ABV
Price: 124.33 USD
Availability: InStock

$124.33 USD

Shipping calculated at checkout.

Model

240W 48V 5A 312W 48V 6.5A

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

XLG-320-48-ABV is the 48V(Adjustable 43.2~52.8V) output model of this series: rated current 6.5A, typical efficiency 93.5%.

XLG-320 series is a 315W LED AC/DC driver featuring with constant power mode. XLG-320 operates from 120~305VAC and offers models with different rated current ranging between 1050mA and 7420mA. Thanks to the high efficiency up to 94.5% with the fanless design, the entire series is able to operate for -40℃ ~+85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XLG-320 series comply with the latest version of IEC61347/GB/19510.1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations and isolation to ensure the safety of both user and luminaire system during installation.

Features

Wide input range 100~305VAC(classⅠ)
Full power output at 75~100% constant power mode operation
Metal case with IP67,suitable for outdoor application
Surge protection with 6KV/4KV
3 in 1 dimming (Dim-to-off and Isolation design)
Protection Functions: OLP/ SCP/ OVP/ OTP
Compliance to EN60335-1 household application
Lifetime>50,000 hours and 5 years warranty
Type “HL” for use in classⅠ,Division 2
Household devices
Retail and refrigerated display

Specifications

XLG-320-48-ABVSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 6.5A
RATED POWER (Max.): 312W
DC VOLTAGE: 48V(Adjustable 43.2~52.8V)
RIPPLE & NOISE(max.): 250mVp-p
VOLTAGE TOLERANCE: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
DIMMING TOLERANCE: ±4%
SET UP TIME^Note.9: 500ms/230VAC, 1200ms/115VAC
RISE TIME,HOLD UP TIME (Typ.): 160ms,10ms/230VAC/115VAC

INPUT

VOLTAGE RANGE^Note.2: 100 ~ 305VAC 142VDC ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" )
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98 / 115VAC, PF≧0.95 / 230VAC, PF≧0.92 / 277VAC at full load
TOTAL HARMONIC DISTORTION: THD< 10% @ load≧50% at 115VAC/230VAC, THD<15%@Load>75% at 277VAC;
EFFICIENCY (Typ.): 93.5%
AC CURRENT (Typ.): 3A / 120VAC 1.6A / 230VAC 1.3A / 277VAC
INRUSH CURRENT(Typ.): COLD START 45A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
STANDBY POWER CONSUMPTION: Standby power consumption <0.5W for ABV/BV-Type(Dimming OFF)

PROTECTION

SHORT CIRCUIT: Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 54 ~ 60V Shut down output voltage, re-power on to recovery
OVER TEMPERATURE^Note.10: Shut down output voltage, re-power on to recovery
OVER LOAD: 105~135% Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: Tcase=-20 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; IS15885(Part2/Sec13)(Note 14), GB/T19510.1, GB/T19510.213;EAC TP TC 004; IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55015(CISPR15),GB/T 17743
Radiated BS EN/EN55015(CISPR15),GB/T 17743
Harmonic Current BS EN/EN61000-3-2 , GB17625.1 Class C @load≥50%
Voltage Flicker BS EN/EN61000-3-3 -----; BS EN/EN61547
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2
EFT / Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-4-5 4KV/Line-Line 6KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 2
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55015(CISPR15),GB/T 17743
Radiated	BS EN/EN55015(CISPR15),GB/T 17743
Harmonic Current	BS EN/EN61000-3-2 , GB17625.1	Class C @load≥50%
Voltage Flicker	BS EN/EN61000-3-3	-----; BS EN/EN61547

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 2
EFT / Burst	BS EN/EN61000-4-4	Level 3
Surge	BS EN/EN61000-4-5	4KV/Line-Line 6KV/Line-Earth
Conducted	BS EN/EN61000-4-6	Level 2
Magnetic Field	BS EN/EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 1476.4K hrs min. Telcordia SR-332(Bellcore) ; 168.1 K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 246*77*39.5mm (L*W*H)
PACKING: 1.45Kg;9pcs/14Kg/0.76CUFT

Test conditions and notes15

Technical drawings

XLG-320-48-ABV BLOCK DIAGRAM — BLOCK DIAGRAM

XLG-320-48-ABV DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

XLG-320-48-ABV DIMMING OPERATION — DIMMING OPERATION

XLG-320-48-ABV OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

XLG-320-48-ABV STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

XLG-320-48-ABV TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

XLG-320-48-ABV MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

XLG-320-48-ABV Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

Downloads

::specification::

FAQ

Can I use the XLG-320-48-ABV to power 48V LED strip lighting in an outdoor sign cabinet?

Yes. The XLG-320-48-ABV is rated IP67, meaning it is fully protected against dust ingress and temporary water immersion, making it suitable for outdoor and enclosed sign cabinet installations. It supplies 48V at up to 6.5A with a 312W capacity, which is appropriate for driving 48V LED strip runs in signage applications.

Can this power supply drive a long run of 48V LED strip for architectural lighting?

Yes. At 312W and 48V, this driver can support up to 312W of 48V LED strip load — for example, roughly 31 meters of 10W/m strip or 20.8 meters of 15W/m strip. Always check your strip's rated power per meter and derate to 80% of the driver's max load for continuous use. The flicker-free constant voltage output also suits high-visibility architectural installations.

Does the XLG-320-48-ABV support dimming for tunable or dimmable LED strip systems?

Yes. This unit includes a 3-in-1 dimming function supporting 1-10V, PWM, and resistance dimming methods. The output is specified as flicker-free CV dimming, which is suitable for photography studios, retail displays, or any application sensitive to flicker.

Is the XLG-320-48-ABV suitable for wet or outdoor environments?

Yes. The IP67 rating means this driver is dustproof and can withstand temporary immersion in up to 1 meter of water for 30 minutes. Its operating temperature range of -20°C to +85°C also covers most outdoor climates. It is appropriate for exterior architectural lighting, outdoor sign boxes, and covered wet-location LED installations.

Can I adjust the output voltage on the XLG-320-48-ABV to fine-tune strip brightness?

Yes. The output voltage is adjustable, allowing you to trim the 48V output within a range to compensate for cable voltage drop in longer runs or to optimize LED strip brightness. This is particularly useful in constant voltage LED strip systems where precise voltage delivery affects uniform brightness along the strip.

How does the XLG-320-48-ABV compare to other 320W XLG models?

The XLG-320 series includes constant current (CC) models at high voltages (H, L, M variants) and constant voltage (CV) models like this one and the XLG-320-V-A. The XLG-320-48-ABV provides 312W at 48V (CV) with dimming, while the XLG-320-V-A offers 312W at 24V (CV) without dimming, and the H/L/M variants use constant current at much higher voltages for series LED string applications.
