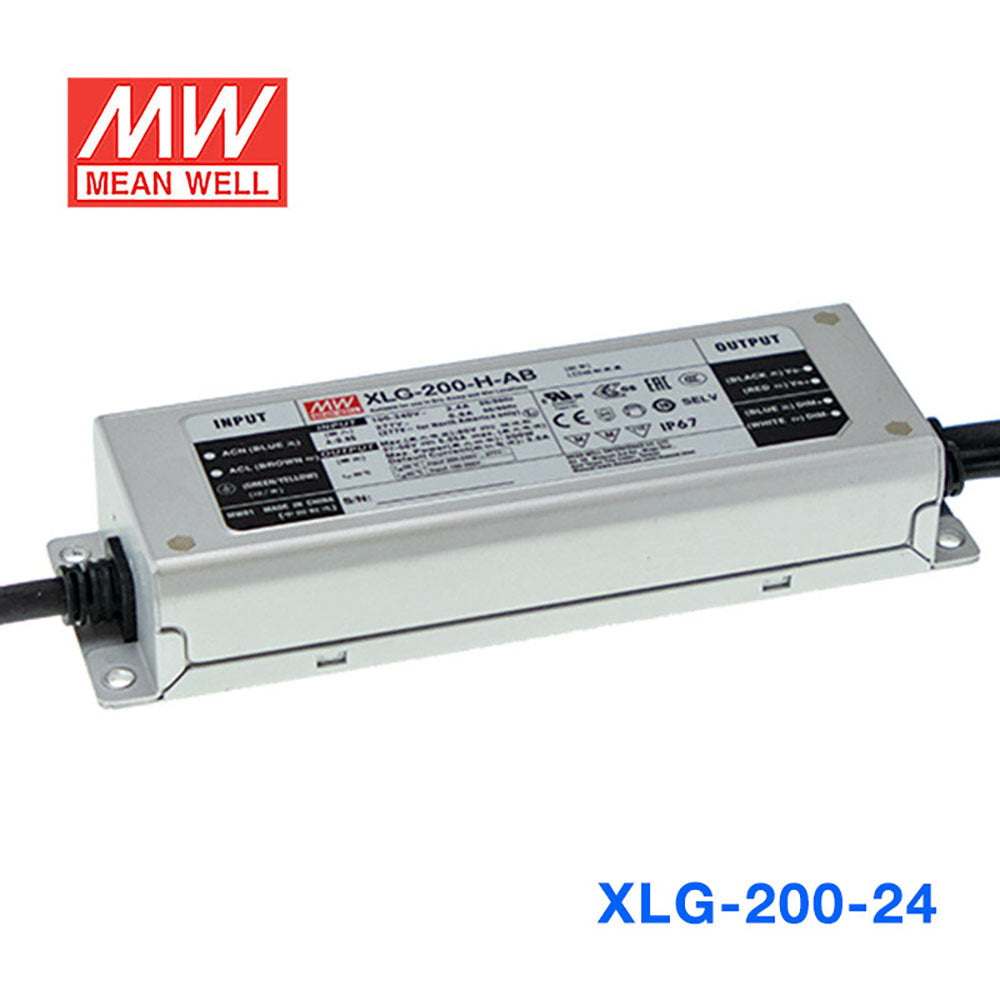

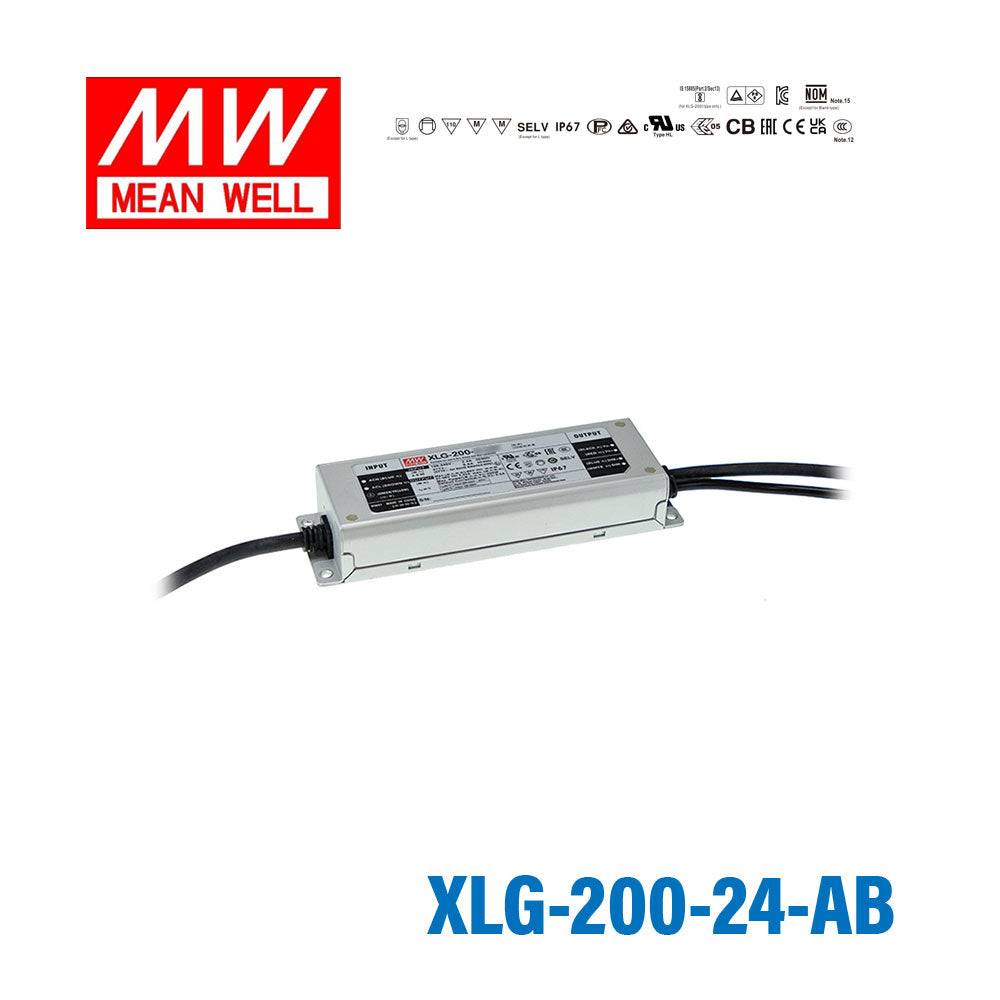

Mean Well XLG-200-24-AB Power Supply 200W 24V - Adjustable and Dimm...
$50.77 USD
Unit price /
Unavailable
Description
Description
Features
| Wide input range 100~305VAC (Class I) |
| Full power output at 70~100% constant power mode operation |
| Metal case with IP67, suitable for outdoor application |
| Surge protection with 6KV/4KV (10KV/6KV optional) |
| 3 in 1 dimming function (Dim to off and isolation design) |
| India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours |
| Protection functions: OVP/SCP/OCP/OTP |
| Lifetime > 50,000 hrs. and 5 years warranty |
General Specification
| AC input voltage range | 100~305VAC;142~431VDC |
| AC inrush current | Cold start, 65A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Over-voltage protection | 125%~150% rated output voltage |
| Setup, rise, hold up time | 500ms, 100ms, 12ms |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC |
| Working temperature | -40~+90°C |
| Safety standards | UL8750 approved; ENEC BS EN/EN61347-1; EAC TP TC 004; NOM-058-SCFI-2017; IP67 approved |
| EMC standards | EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 |
| Dimension (LxWxH) | 199x63x35.5 |
| Packing | 16pcs / 14.2kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesXLG Series
-
Power Rating199.2 Watt
-
Output Voltage24 Volt
-
Rated Current8.3 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.83 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
