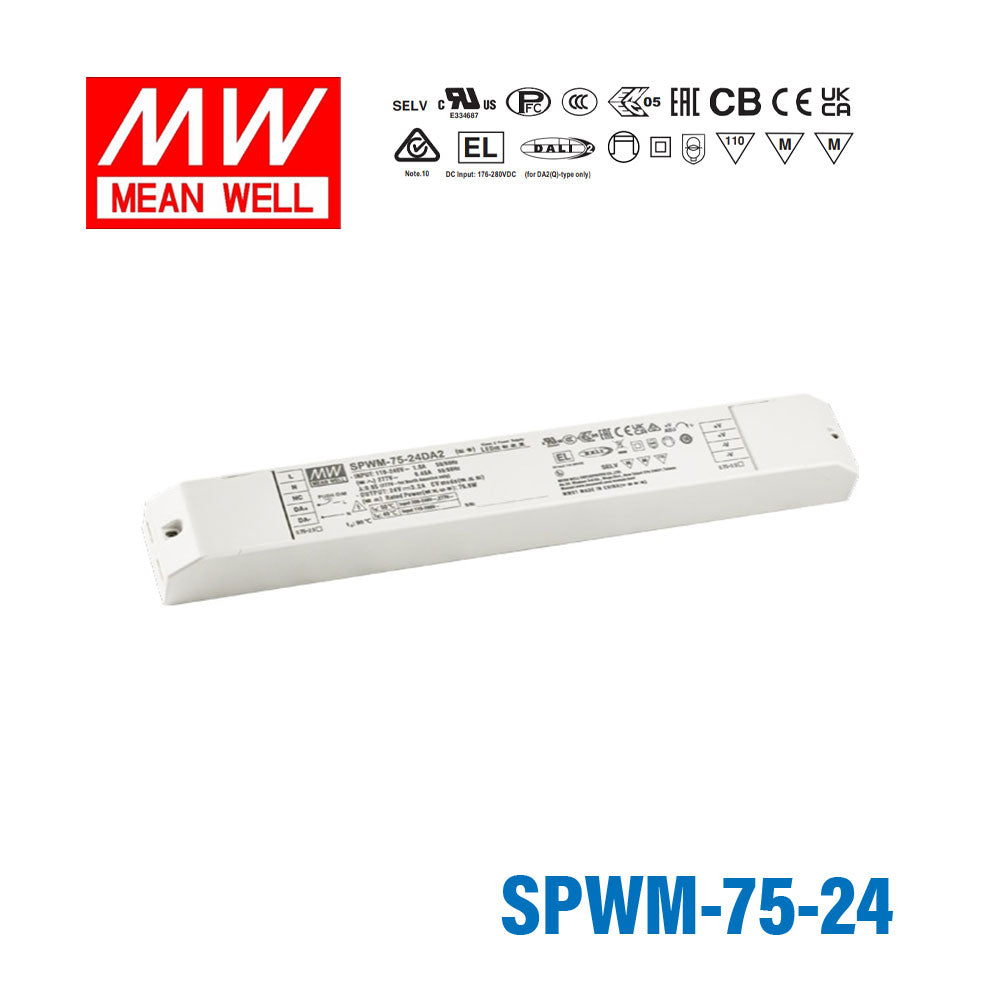

MEAN WELL SPWM-75-24 76.8W 24V CV LED Driver

Name: MEAN WELL SPWM-75-24 76.8W 24V CV LED Driver
Brand: Mean Well
SKU: SPWM-75-24
Price: 29.7 USD
Availability: InStock

$29.70 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The MEAN WELL SPWM-75 series is a 75W constant voltage AC/DC LED driver featuring PWM-style output, specifically designed for LED strip lighting applications requiring stable brightness and consistent colour performance. Operating from a wide 100–305VAC input range with built-in active PFC, it supports both 12V and 24V output variants and achieves efficiency up to 90%. The driver utilises a fanless, free-air convection design within a slim plastic housing and delivers flicker-free operation compliant with CE ErP requirements. With 3-in-1 dimming support (0–10V, PWM signal, or resistance), the SPWM-75 provides flexible control for architectural, decorative, and residential lighting systems.

Key Features

Specifications

Brand

Mean Well
Series

SPWM Series
Power Rating

76.8 Watt
Output Voltage

24 Volt
Rated Current

3.2 Ampere
Input Voltage

100V~305V
Standards Met

CB,CE,EAC,RCM,UL
Operation Mode

Constant Voltage
Operating Temperature

-40°C~80°C
Warranty

5 Year
Length

11.42 in
Width

1.5 in
Height

1.12 in
Weight

0.62 lb

File Downloads

::specification::
