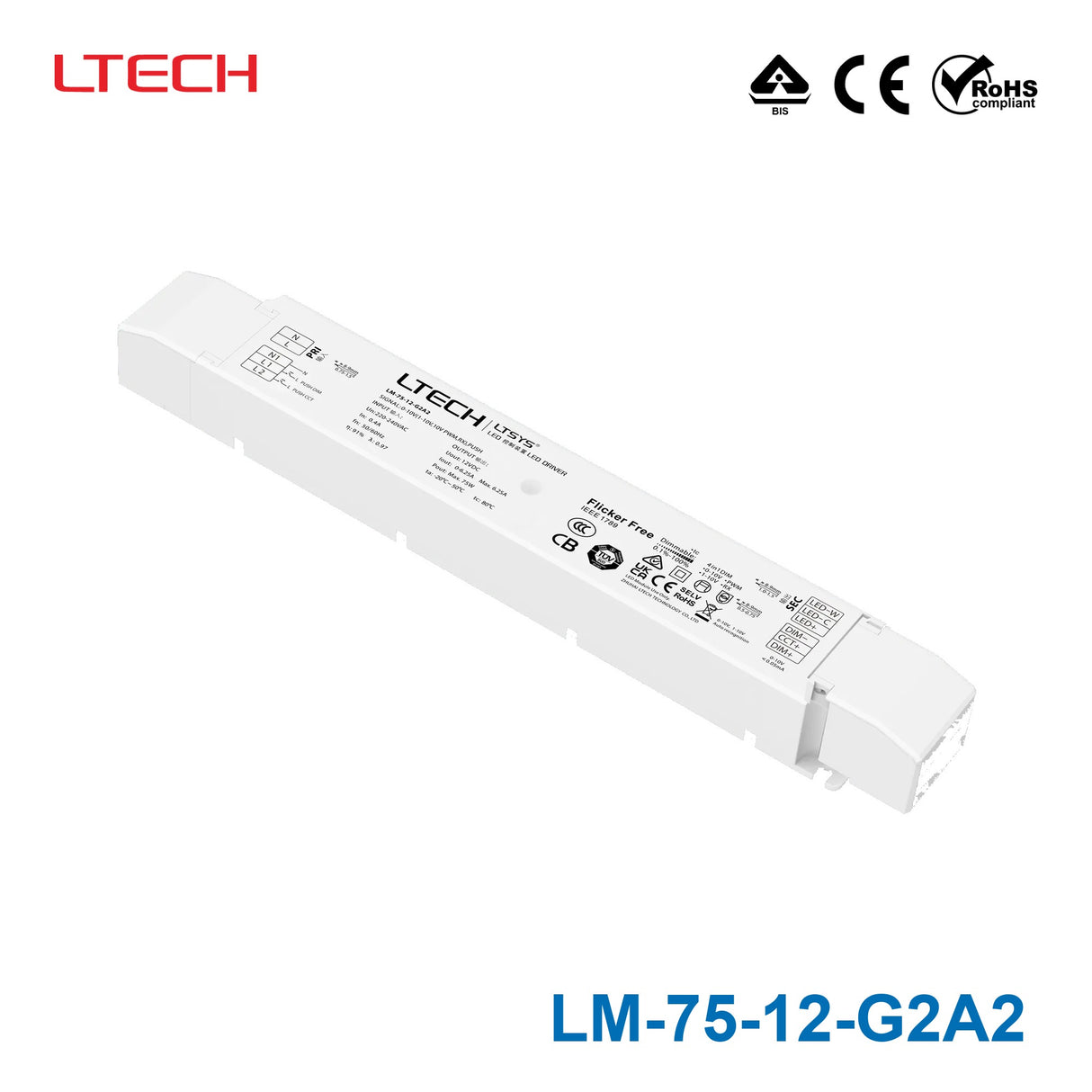

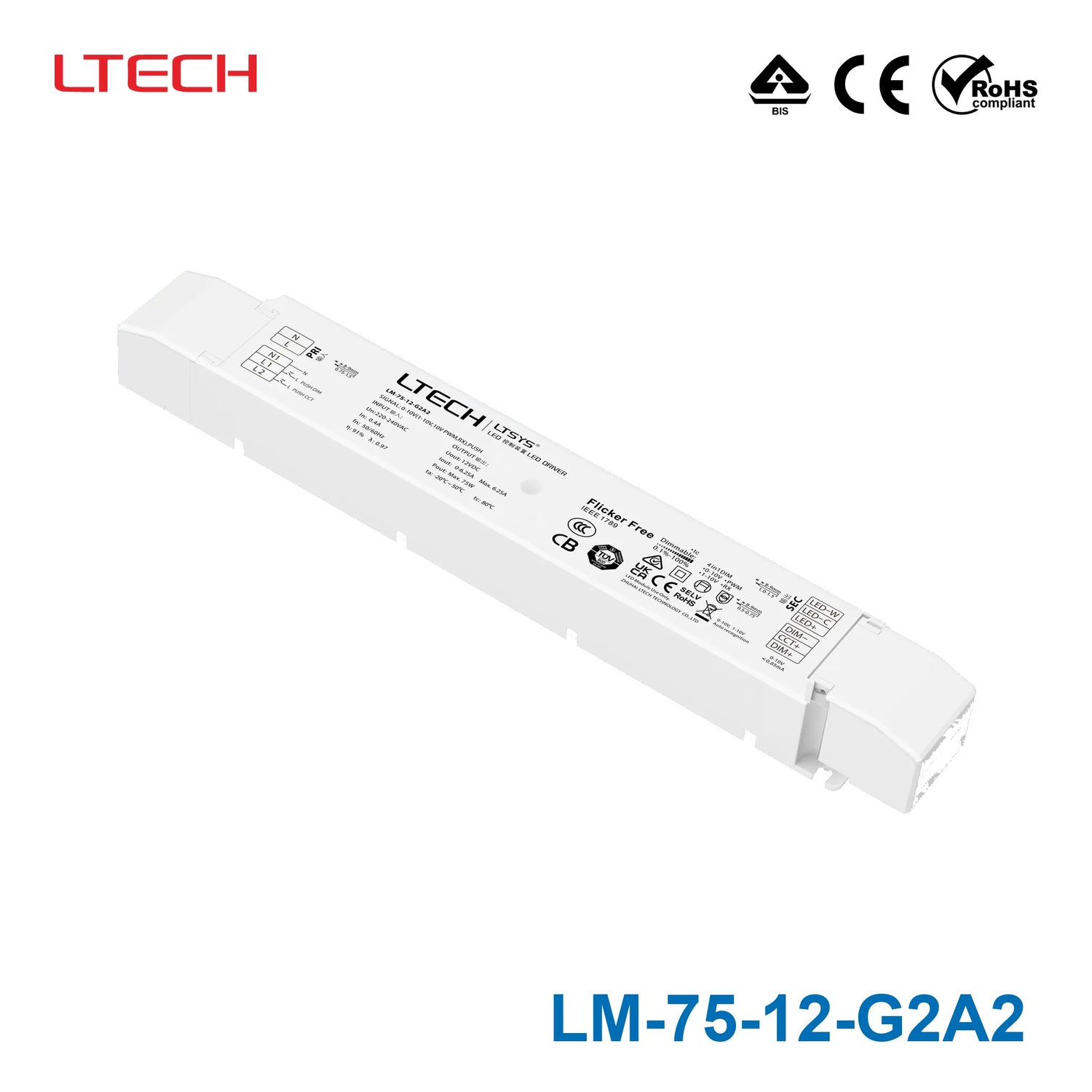

Ltech LM-75-12-G2A2 75W 12VDC CV LED Driver - 0/1-10Vdimmable
$73.50 USD
Unit price /
Unavailable
Description
Description
- Dimming interface: 0-10V (1-10V/10V PWM/RX)
- Push DIM/CCT
- 0-10V DIM and color temperature adjusting driver
- 2 independently SELV constant voltage output channels.
- Constant power design
- adjust different color temperature to keep the same brightness.
- Dimming range from 0-100%
- LED start at 0.1%possible.
- Color temperature adjusting range: 2700-6500K
- Automatic recognition of 0-10V
- 1-10V input signal.
- 0~100% flicker-free
- achieve the level of exemption assessment.
- Over-heat / Over voltage / Over load / Short circuit protection
- recover automatically.
- Full protective plastic housing.
- Compliant with Safety Extra Low Voltage standard.
- Suitable for indoor I/II/III type lamps application.
Specifications
Specifications
-
BrandLtech
-
SeriesLtech 0/1-10V Series
-
Power Rating75 Watt
-
Output Voltage12 Volt
-
Rated Current6.25 Ampere
-
Input Voltage220V~240V
-
Standards MetBIS,CE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length11.54 in
-
Width1.69 in
-
Height1.18 in
-
Weight0.66 lb
