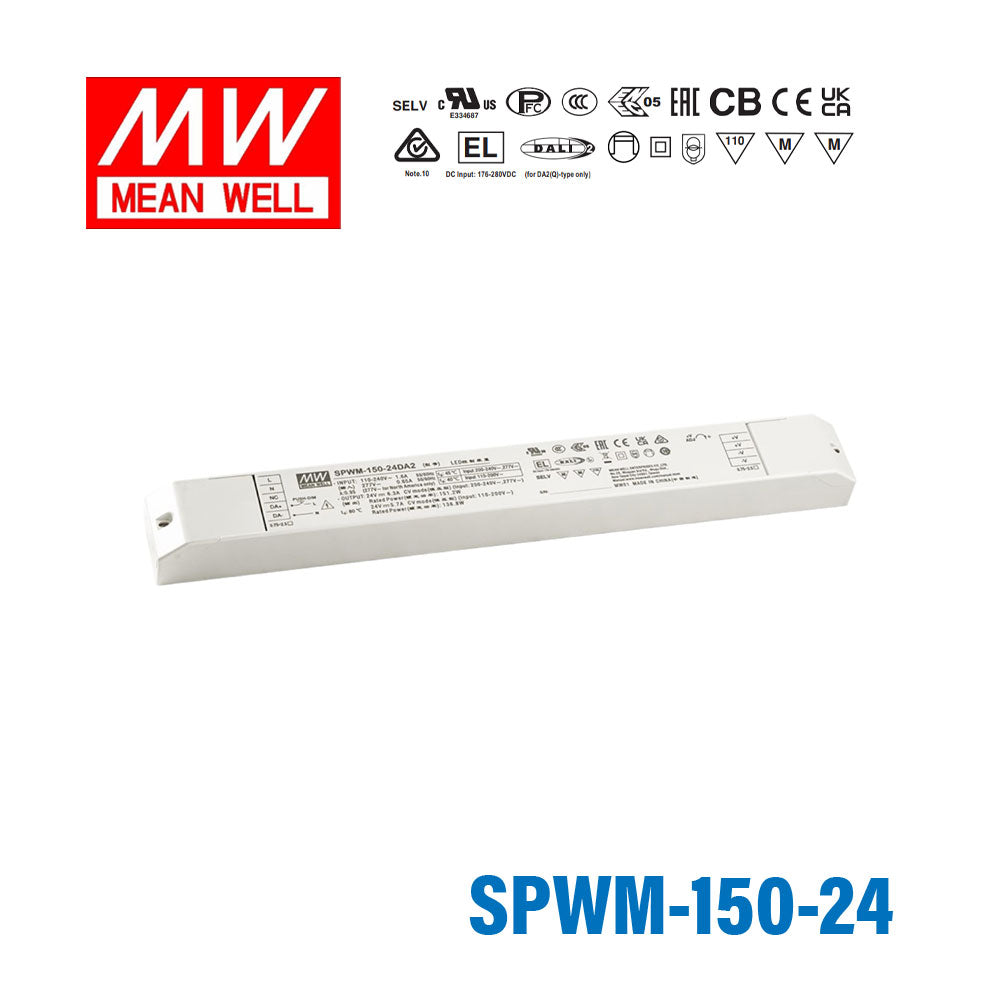

MEAN WELL SPWM-150-24 151.2W 24V CV LED Driver

Name: MEAN WELL SPWM-150-24 151.2W 24V CV LED Driver
Brand: Mean Well
SKU: SPWM-150-24
Price: 48.53 USD
Availability: InStock

$48.53 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The MEAN WELL SPWM-150 series is a 150W constant voltage AC/DC LED driver with PWM-style output, designed for LED strip lighting applications requiring consistent brightness and colour uniformity. Operating from a wide 100–305VAC input range with built-in active PFC, the SPWM-150 series delivers high efficiency up to 93% and flicker-free performance compliant with CE ErP requirements. The fanless, free-air convection design allows reliable operation at case temperatures from –20°C to +80°C. Supporting 3-in-1 dimming (0–10V, 10V PWM signal, or resistance), the SPWM-150 provides flexible and cost-effective control for architectural, decorative, and residential LED lighting systems.

Key Features

Specifications

Brand

Mean Well
Series

SPWM Series
Power Rating

151.2 Watt
Output Voltage

24 Volt
Rated Current

6.3 Ampere
Input Voltage

100V~305V
Standards Met

CB,CE,EAC,RCM,UL
Operation Mode

Constant Voltage
Operating Temperature

-40°C~80°C
Warranty

5 Year
Length

13.39 in
Width

1.5 in
Height

1.12 in
Weight

0.88 lb
