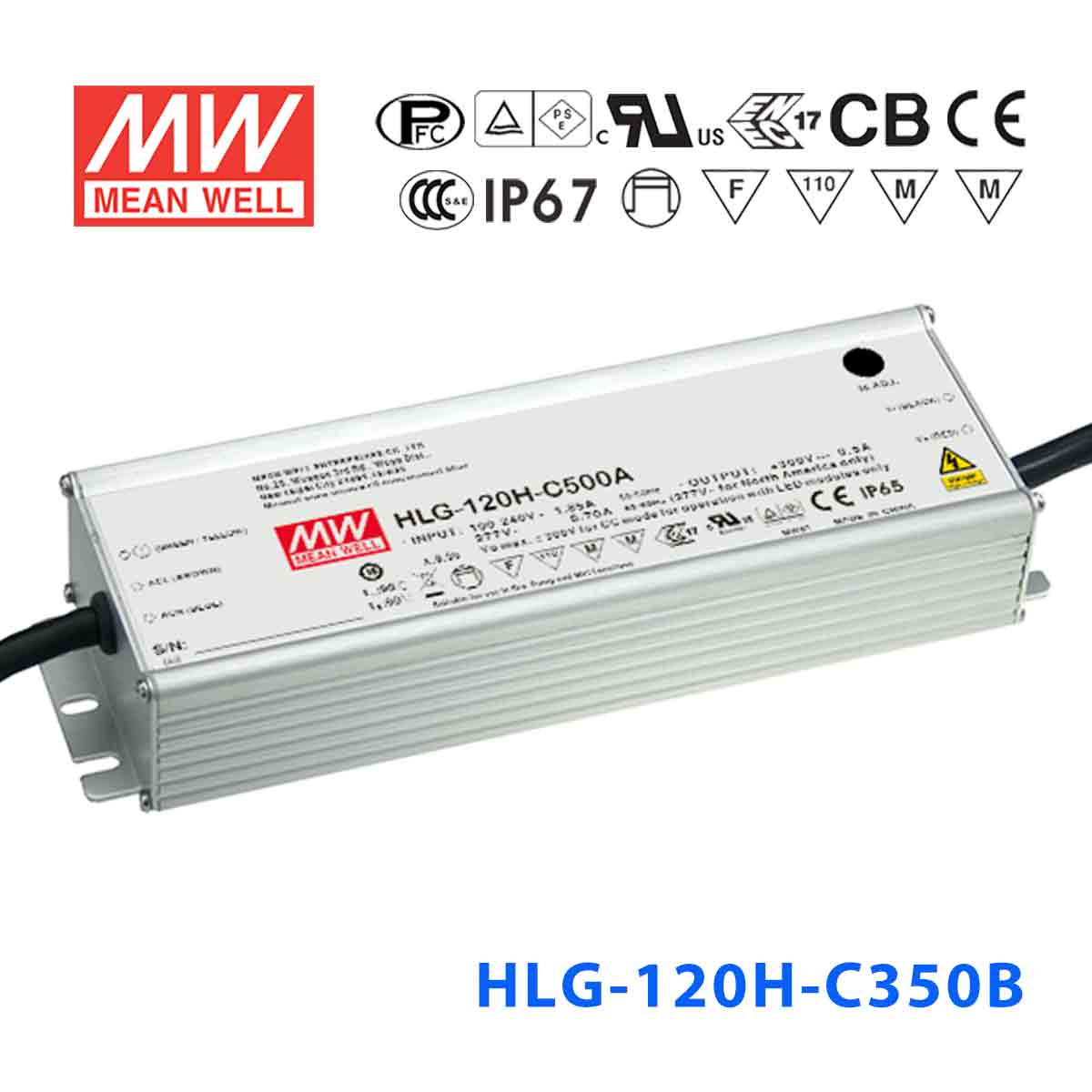

Mean Well HLG-120H-C350AB Power Supply 150.5W 350mA - Adjustable and Dimmable

Name: Mean Well HLG-120H-C350AB Power Supply 150.5W 350mA - Adjustable and Dimmable
Brand: Mean Well
SKU: HLG-120H-C350AB
Price: 61.18 USD
Availability: InStock

premium quality7 years warrantyaluminium casinghigh efficiencyhigh output voltage > 60VDC

SKU HLG-120H-C350AB

$61.18 USD

Shipping calculated at checkout.

Select model — 9 in this family

HLG-120H-C350AB

HLG-60H-C350A 350mA Adjustable Low stock$37.03 USD

HLG-60H-C350AB 350mA Adjustable and Dimmable Low stock$41.96 USD

HLG-60H-C350B 350mA Dimmable Low stock$37.88 USD

HLG-80H-C350A 350mA Adjustable Low stock$39.62 USD

HLG-80H-C350AB 350mA Adjustable and Dimmable Low stock$48.60 USD

HLG-80H-C350B 350mA Dimmable Low stock$45.32 USD

HLG-120H-C350A 350mA Adjustable Low stock$54.79 USD

HLG-120H-C350AB 350mA Adjustable and Dimmable Low stock$61.18 USD

HLG-120H-C350B 350mA Dimmable Backorder$56.10 USD

Product variants

In stock

Overview

HLG-120H-C350AB is the model of this series: rated current 350mA, rated power 150.5W, typical efficiency 94%.

HLG-120H-C series is a 150W AC/DC LED driver featuring the constant current mode and high voltage output. HLG-120H-C operates from 90~305VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-120H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing with ClassⅠ design
Built-in active PFC function
IP67 / IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming; Timer dimming
Typical lifettime>62000 hours
7 years warranty

Specifications

HLG-120H-C350ABSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 350mA
RATED POWER: 150.5W
CONSTANT CURRENT REGION^Note.2: 215 ~ 430V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 175 ~ 350mA
CURRENT RIPPLE: 8.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 1000ms / 115VAC 500ms / 230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.96/230VAC, PF≧0.93/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 1.6A / 115VAC 0.8 A / 230VAC 0.7A / 277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=600μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 475 ~ 495V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE^Note.7: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 10 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.6: UL8750, CSA C22.2 No. 250.13-12, BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13, BS EN/EN62384 independent, GB/T19510.1, GB/T19510.213, IP65 or IP67, J61347-1, J61347-2-13, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.6: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 2456.4K hrs min. Telcordia SR-332 (Bellcore) ; 191.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 220*68*38.8mm (L*W*H)
PACKING: 1.04Kg; 12pcs/13.5Kg/0.8CUFT

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
8. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HLG-120H-C350AB BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-120H-C350AB DIMMING OPERATION — DIMMING OPERATION

HLG-120H-C350AB Illustration (page 5) — Illustration (page 5)

HLG-120H-C350AB OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HLG-120H-C350AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HLG-120H-C350AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-120H-C350AB MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

HLG-120H-C350AB Dimensions (mm) — Dimensions (mm)

HLG-120H-C350AB WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

Downloads

Certificates5

UL Certificate(HLG-120H-C)(EN) PDF Download

CB Certificate(HLG-120H-C)(EN) PDF Download

EMC Certificate(HLG-120H-C)(EN) PDF Download

ENEC Certificate(HLG-120H-C)(EN) PDF Download

PSE Certificate(HLG-120H-C)(EN) PDF Download

Test reports1

Test Report(HLG-120H-C350)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-120H-C350AB with a dimmer to control long LED string brightness in architectural lighting?

Yes. The HLG-120H-C350AB delivers 350mA constant current over a 215-430V range and accepts 1-10V or PWM dimming signals. This makes it ideal for dimmable architectural lighting with long series strings of LEDs, such as cove lighting, facade outlines, or decorative contour lighting where smooth brightness control is required.

Is the HLG-120H-C350AB a good choice for dimmable LED backlit sign panels?

Yes. The high 215-430V CC range allows many LED modules to be connected in series for large sign panels, while the dimming input enables brightness reduction for nighttime operation or energy management. At 350mA and 150.5W, it provides reliable constant current across the full string with smooth dimming response.

Can the HLG-120H-C350AB drive a linear LED array for retail shelf lighting with dimming?

Yes, if the total forward voltage of your linear LED array falls within the 215-430V CC range. The 350mA constant current output maintains even illumination along the full length, and the dimming capability allows you to adjust brightness for different retail displays or time-of-day schedules.

How do I determine if the HLG-120H-C350AB is compatible with my LED string?

Sum the forward voltages of all LEDs in your series string and confirm the total falls between 215V and 430V. The LEDs must be rated for 350mA drive current. The number of LEDs depends on each LED's individual forward voltage. The adjustable potentiometer also lets you trim the output current between 175mA and 350mA to match your LEDs' rating.

Is the HLG-120H-C350AB safe to install in a dust-prone industrial environment?

Yes. The series' IP65/IP67 rating means the enclosure is dust-tight and protected against water jets. Combined with a case temperature (Tcase) range of -40°C to +90°C, it can withstand dusty, dirty conditions found in factories, workshops, and industrial production areas.

What are the differences between the HLG-120H-C350AB and the other C350 variants?

All HLG-120H-C350 variants deliver 150.5W at 350mA constant current with a 215-430V CC range. The C350AB (this model) includes both an adjustable potentiometer and a 3-in-1 dimming input (1-10V, PWM or resistance). The C350A has only the potentiometer for output adjustment. The C350B has only the dimming input with no manual adjustment.
