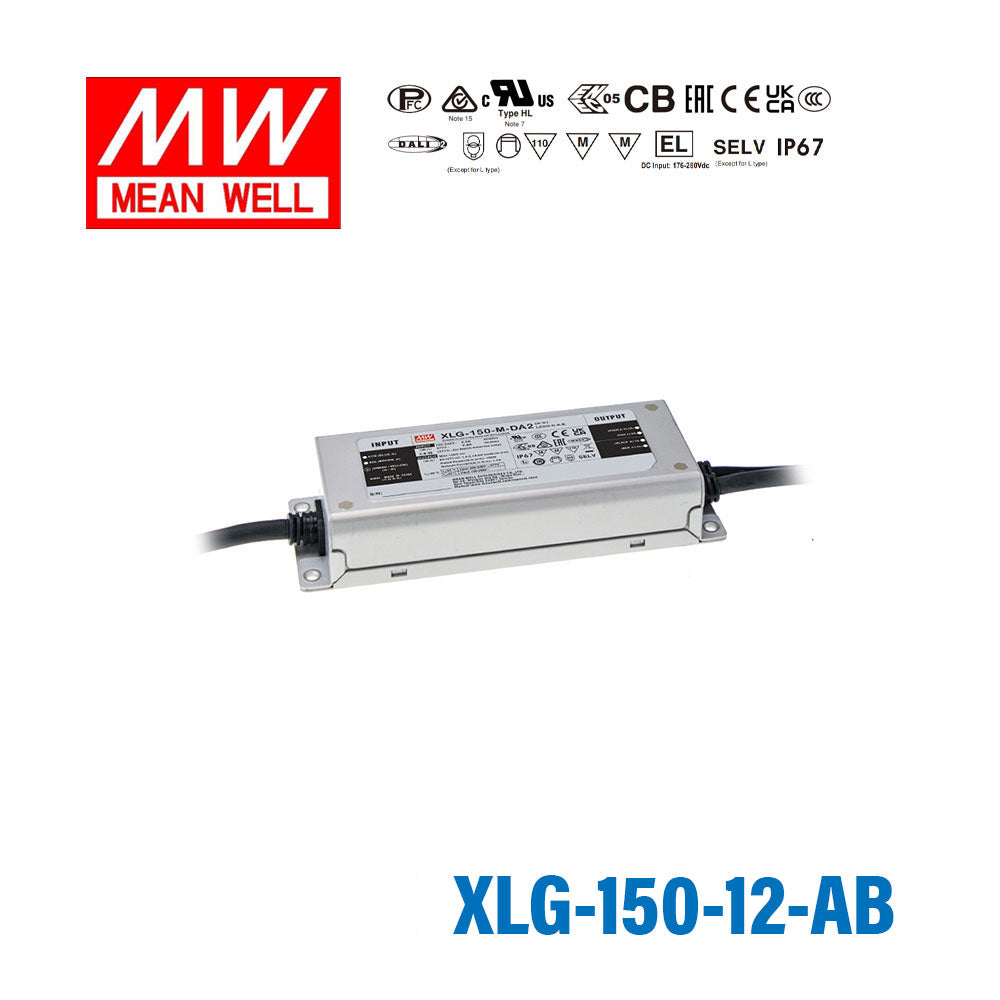

Mean Well XLG-150-12-AB Power Supply 150W 12V - Adjustable and Dimm...
$42.47 USD
$132.75
Unit price /
Unavailable
Description
Description
The XLG-150 is a 150W Mean Well AC-DC LED driver (input: 100~305VAC, output: 12V, operating temperature: -40~+90°C).
Key Features
- ✓ Input voltage: 100~305VAC
- ✓ Output voltage: 12V
- ✓ Rated output current: 12.5A
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -40~+90°C
- ✓ Safety certifications: CB, CCC, CE, EAC, ENEC, RCM, UL
- ✓ 5 year warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesXLG Series
-
Power Rating150 Watt
-
Output Voltage12 Volt
-
Rated Current12.5 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.09 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.76 lb
