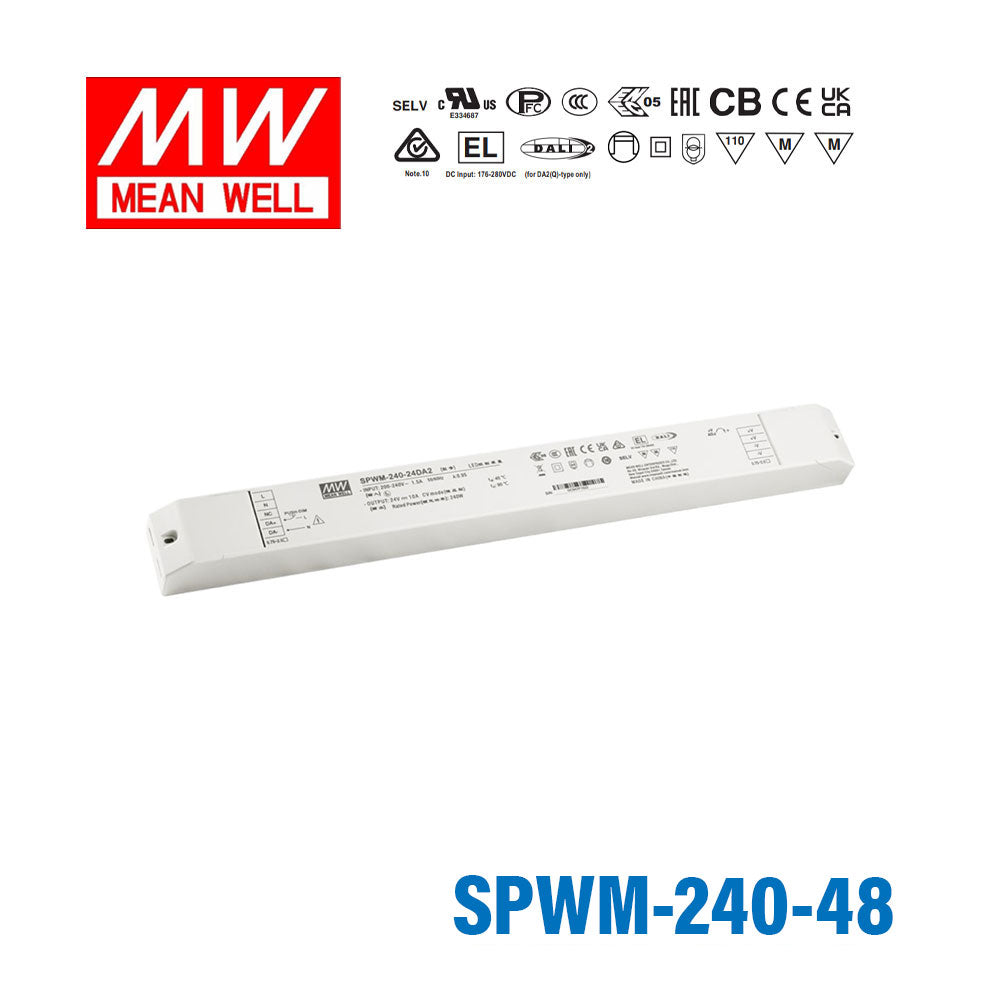

MEAN WELL SPWM-240-48 240W 48V CV LED Driver

Name: MEAN WELL SPWM-240-48 240W 48V CV LED Driver
Brand: Mean Well
SKU: SPWM-240-48
Price: 56.49 USD
Availability: InStock

$56.49 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The MEAN WELL SPWM-240 series is a 240W constant voltage AC/DC LED driver with PWM-style output, designed for high-power LED strip lighting applications that require stable brightness and colour consistency. Operating from a wide 180–305VAC input range with built-in active PFC, the SPWM-240 achieves efficiency up to 94% while maintaining flicker-free performance compliant with CE ErP requirements. Its fanless, free-air convection design supports reliable operation at case temperatures from –20°C to +90°C. With support for 3-in-1 dimming (0–10V, 10V PWM signal, or resistance), the SPWM-240 offers flexible and robust control for architectural, decorative, and residential lighting installations.

Key Features

Specifications

Brand

Mean Well
Series

SPWM Series
Power Rating

240 Watt
Output Voltage

48 Volt
Rated Current

5 Ampere
Input Voltage

180V~305V
Standards Met

CB,CE,EAC,RCM,UL
Operation Mode

Constant Voltage
Operating Temperature

-20°C~90°C
Warranty

5 Year
Length

14.96 in
Width

1.5 in
Height

1.12 in
Weight

1.19 lb

File Downloads

::specification::
