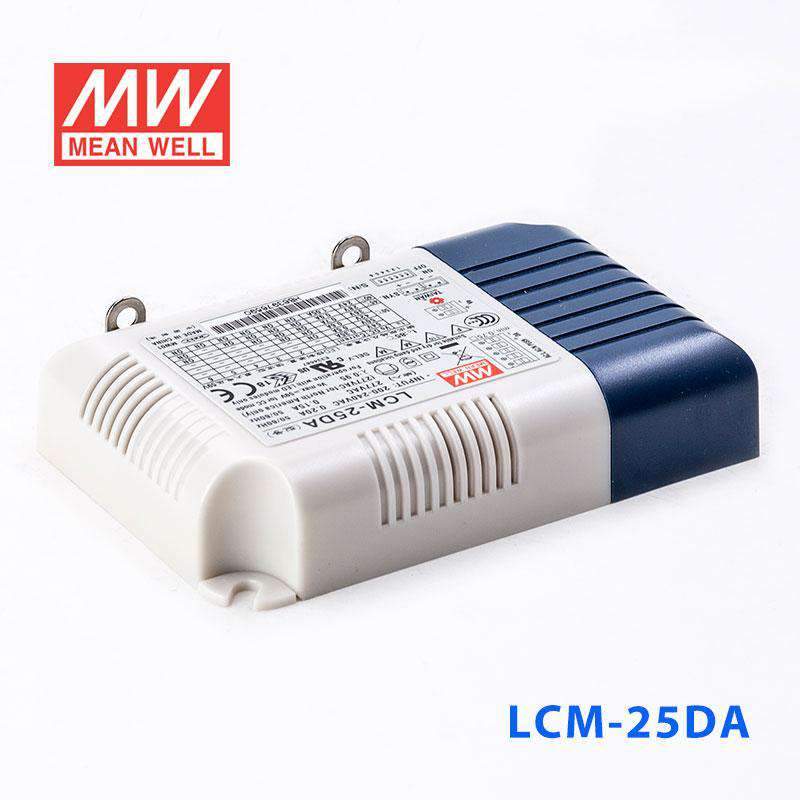

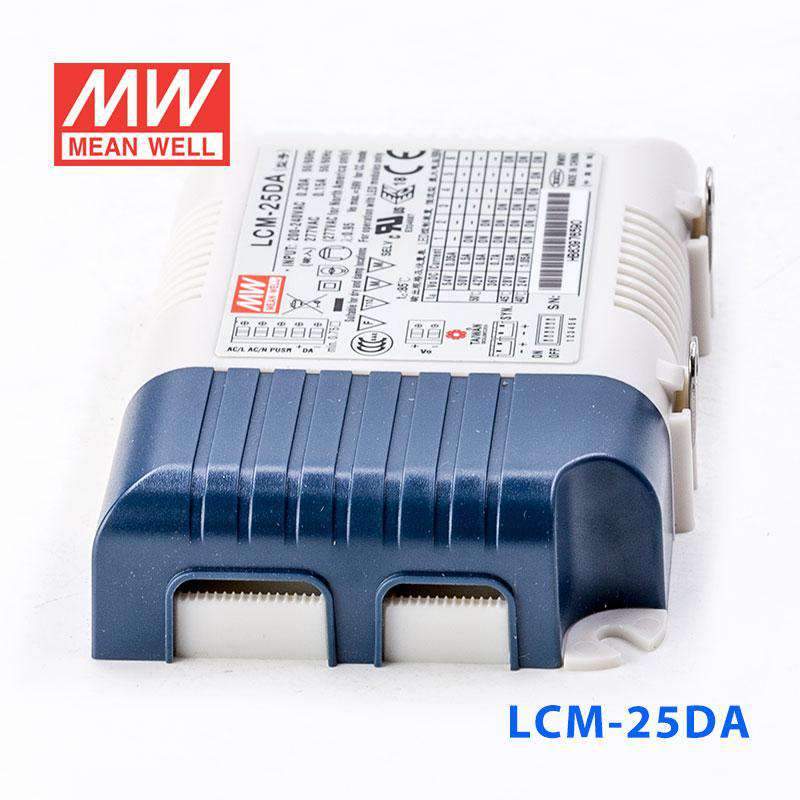

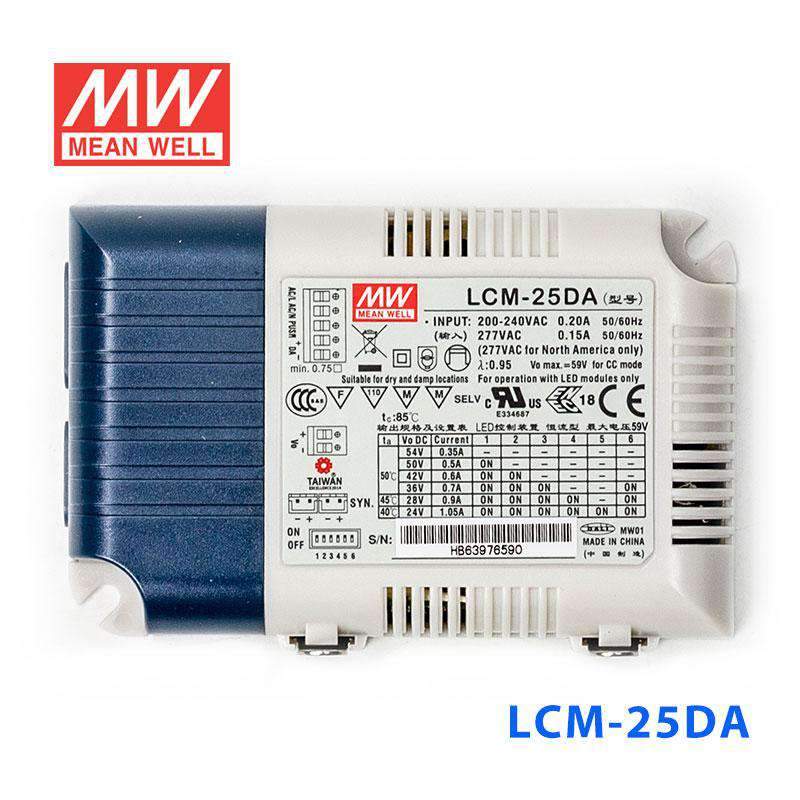

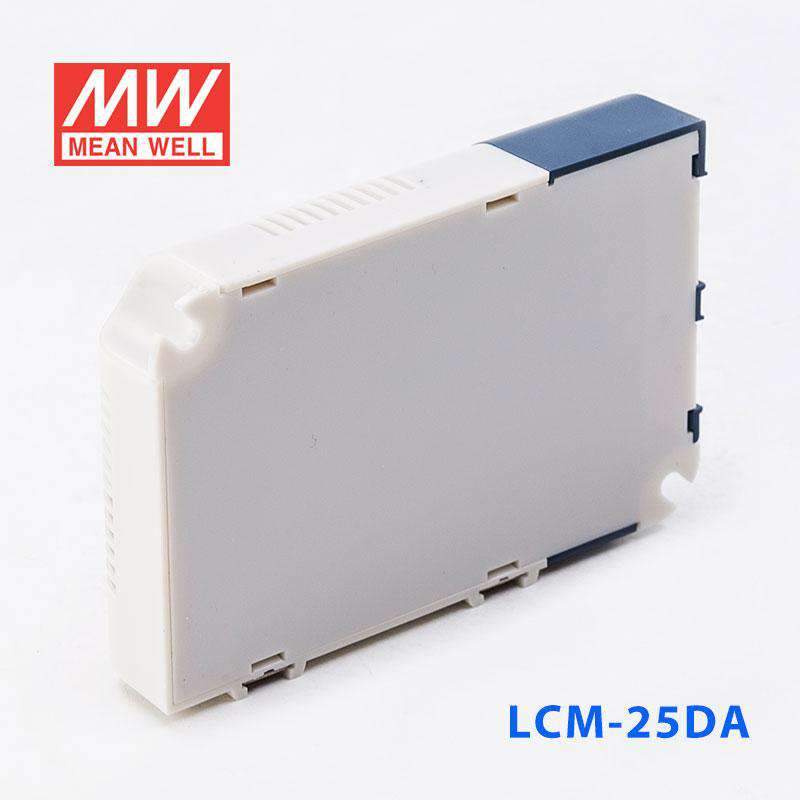

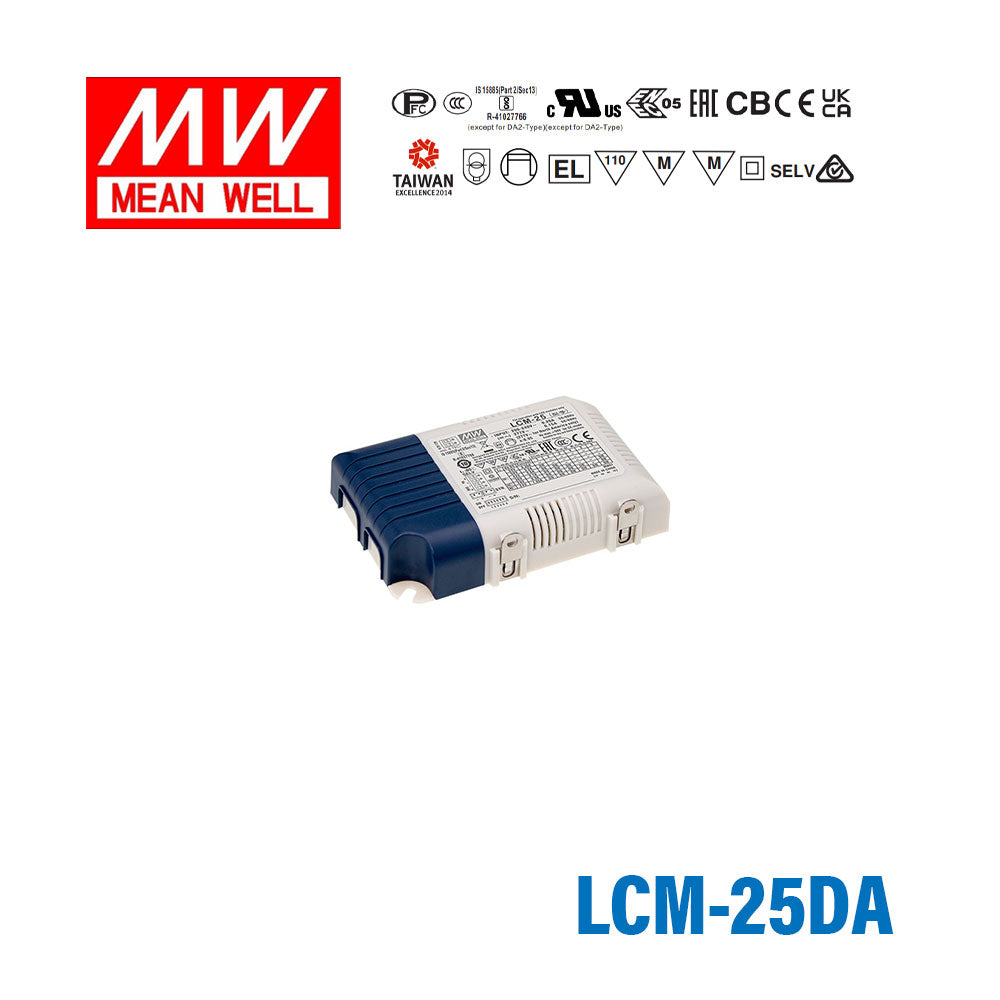

Mean Well LCM-25DA AC-DC Multi-Stage Output LED driver Active PFC

Name: Mean Well LCM-25DA AC-DC Multi-Stage Output LED driver Active PFC
Brand: Mean Well
SKU: LCM-25DA
Price: 31.53 USD
Availability: InStock

selectable output current using dip switchflicker-freeClass II without FGDALI

SKU LCM-25DA

$31.53 USD

Shipping calculated at checkout.

In stock

Overview

LCM-25DA is the model of this series: rated power 18.9W (350mA); 25.2W (500mA ~ 1050mA), typical efficiency 86%.

LCM-25DA series is a 25W AC/DC constant current mode output LED driver featuring the multiple levels selectable by dip switch and the DALI interface with the compliance to IEC62386. LCM-25DA operates from 180～277VAC and offers different current levels ranging between 350mA and 1050mA. Thanks to the efficiency up to 86%, with the fanless design, the entire series is able to operate for -30℃~+85℃ case temperature under free air convection. In addition, LCM-25DA is equipped with push dimming and synchronization functions, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output with multiple levels selectable by dip switch
Emergency lighting application is available according to IEC61347-2-13
Built-in active PFC function and class II design
Standby power consumption <0.5W
Functions: DALI interface(logarithm or linear dimming curve selectable), push dimming synchronization up to 10units
3 years warranty

Specifications

LCM-25DASpecifications from the official datasheet (2026-02-09 edition)

OUTPUT

CURRENT LEVEL: Current level selectable via DIP switch, please refer to "DIP SWITCH TABLE" section: 350mA / 500mA / 600mA / 700mA(default) / 900mA / 1050mA
RATED POWER: 18.9W (350mA); 25.2W (500mA ~ 1050mA)
DC VOLTAGE RANGE: 6 ~ 54V (350mA); 6 ~ 50V (500mA); 6 ~ 42V (600mA); 6 ~ 36V (700mA); 6 ~ 28V (900mA); 6 ~ 24V (1050mA)
OPEN CIRCUIT VOLTAGE (max.): 59V (350mA ~ 600mA); 41V (700mA ~ 1050mA)
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SETUP TIME^{Note.3 Note.8}: 500ms / 230VAC

INPUT

VOLTAGE RANGE^Note.2: 180 ~ 277VAC 254 ~ 380VDC(254~375VDC for DA2-Type) (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.94/230VAC, PF≧0.91/277VAC@ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%( @load≧50%/230VAC; @load≧75%/277VAC ) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)^Note.4: 86%
AC CURRENT (Typ.): 0.17A/230VAC / 0.15A/277VAC
INRUSH CURRENT (Typ.): COLD START 20A(twidth=260μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 26 units (circuit breaker of type B) / 44 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.5mA / 240VAC
STANDBY POWER CONSUMPTION^Note.5: <0.5W

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

DIMMING: Please refer to "DIMMING OPERATION" section

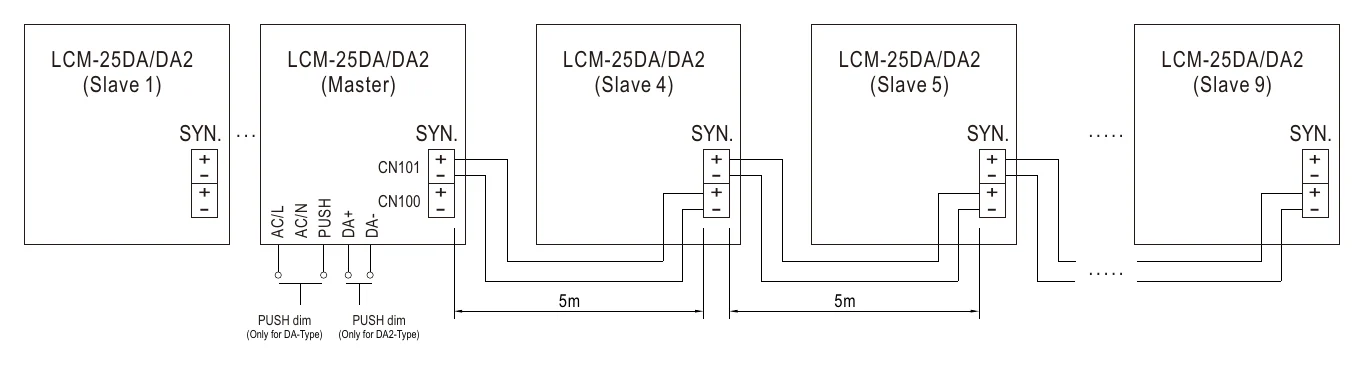

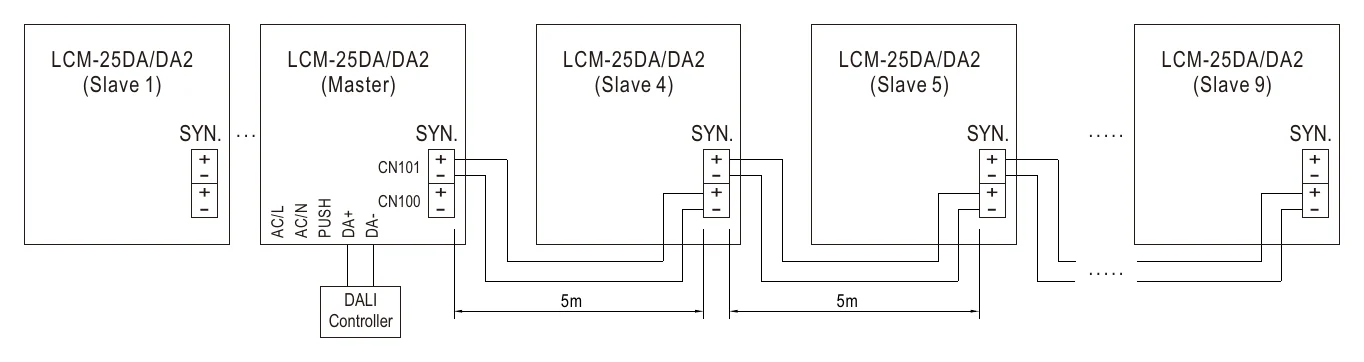

SYNCHRONIZATION: Please refer to "SYNCHRONIZATION OPERATION” section

ENVIRONMENT

WORKING TEMP.: Tcase=-30 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(except for DA2-Type), CSA C22.2 NO.250.0-08, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent,GB/T19510.1,GB/T19510.213,BIS IS15885(except for DA2-Type), EAC TP TC 004 approved; According to BS EN/EN61347-2-13 appendix J suitable for emergency installations(EL)(AC Input: 200-240Vac)(for DA2-Type only)
DALI STANDARDS: IEC62386-101, 102, 207,251
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC ; I/P-DA:1.5KVAC ; O/P-DA:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.6: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C(@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(surge immunity Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 2661.8K hrs min. Telcordia SR-332 (Bellcore) ; 213.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 105*68*23mm (L*W*H)
PACKING: 0.17Kg ; 72pcs/13.2Kg/1.04CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
3. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
4. Efficiency is measured at 500mA/50V output set by DIP switch.
5. Standby power consumption is measured at 230VAC.
6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. Based on IEC 62386-101/102 DALI power on timing and interruption regulations, the set up time needs to test with a DALI controller which can support for DALI power on function, otherwise the set up time will be higher than 0.5 second for DA2-type.
9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

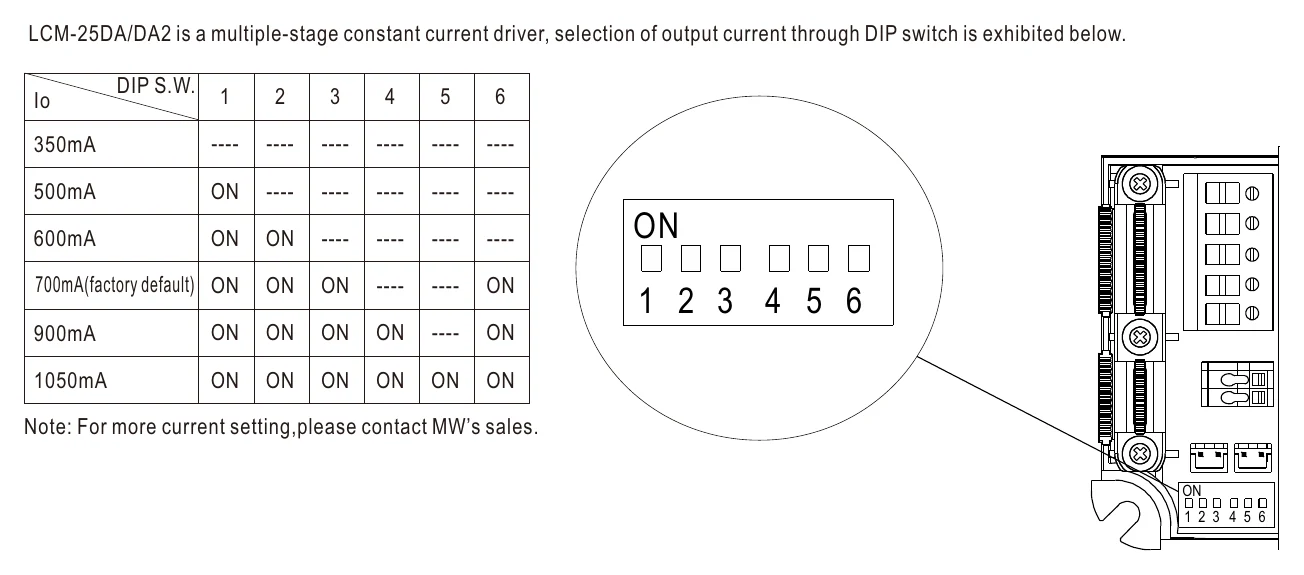

LCM-25DA DIP SWITCH TABLE — DIP SWITCH TABLE

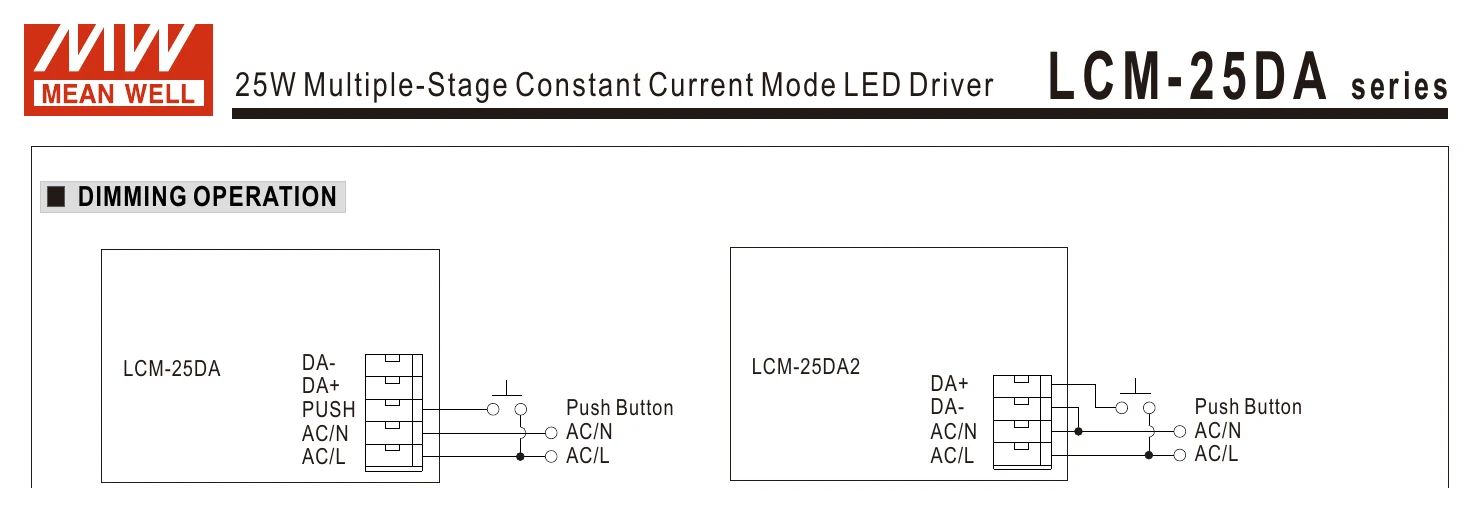

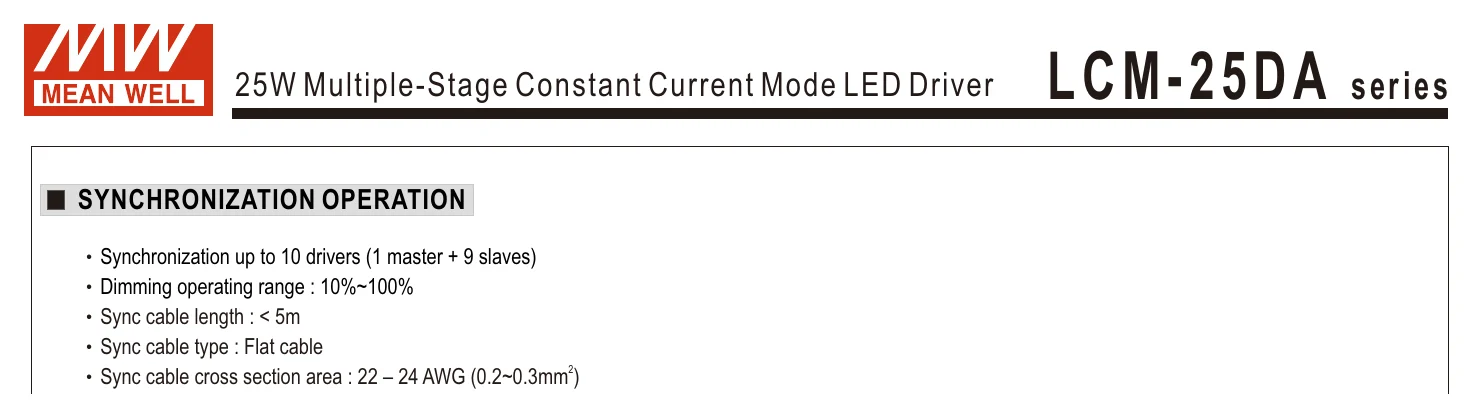

LCM-25DA LCM-25DA series — LCM-25DA series

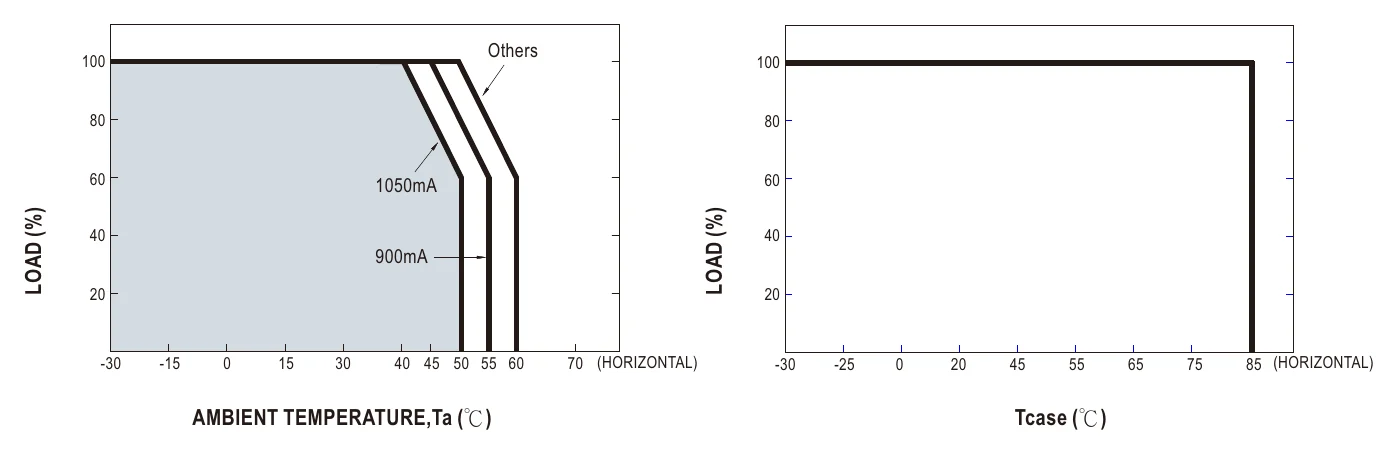

LCM-25DA OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

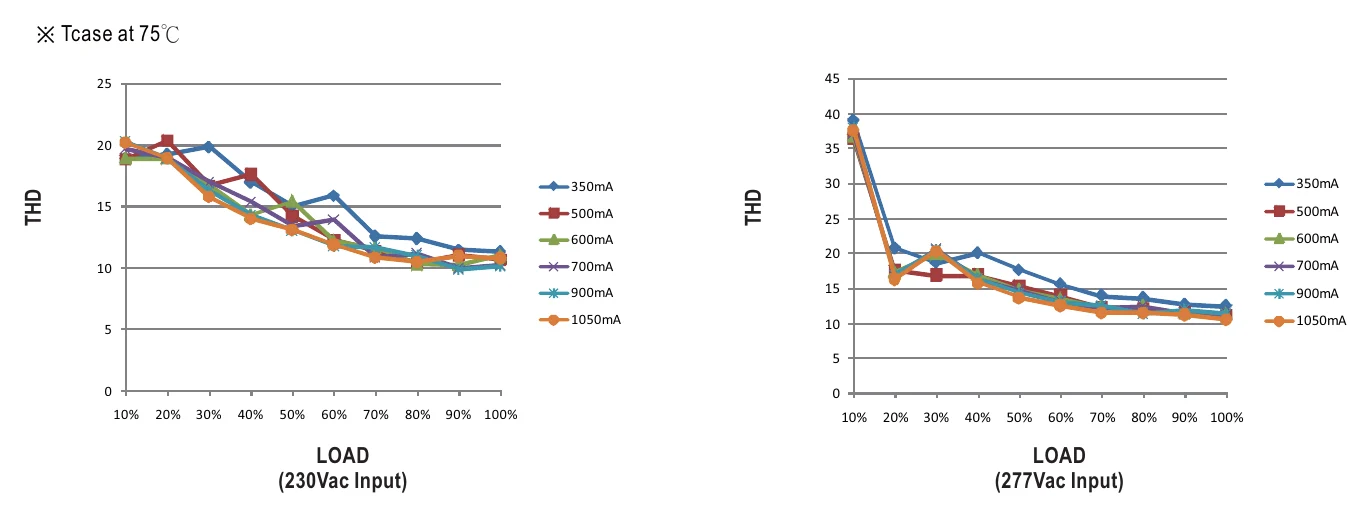

LCM-25DA TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

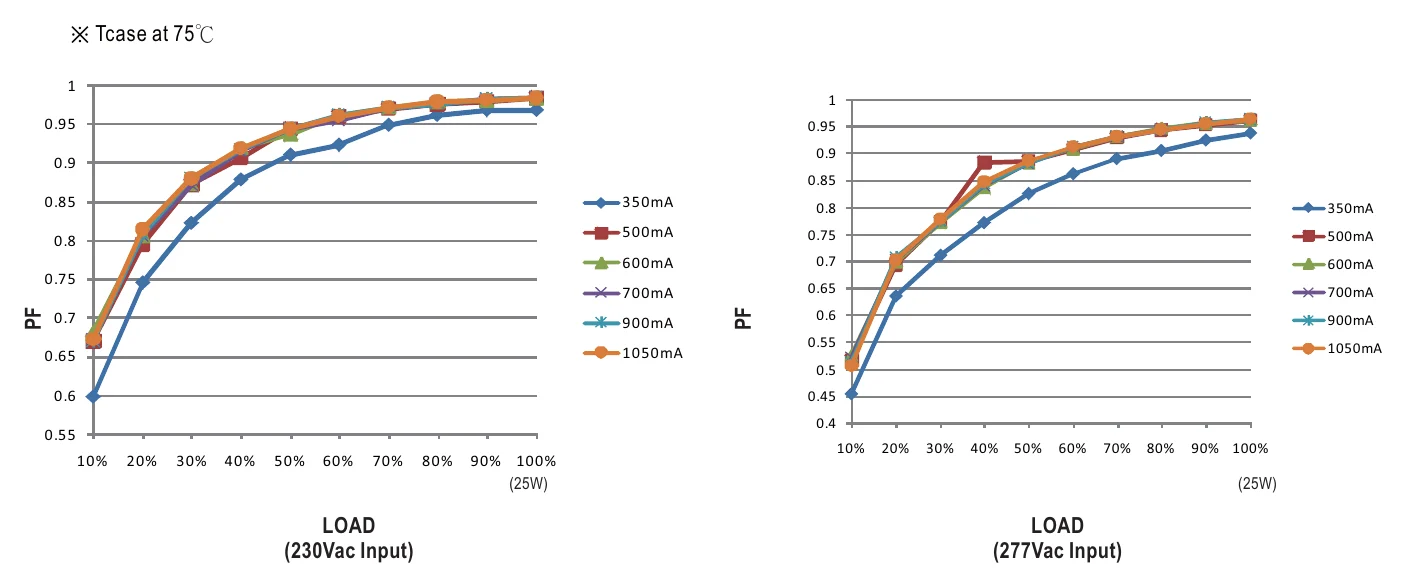

LCM-25DA POWER FACTOR (PF) CHARACTERISTIC — POWER FACTOR (PF) CHARACTERISTIC

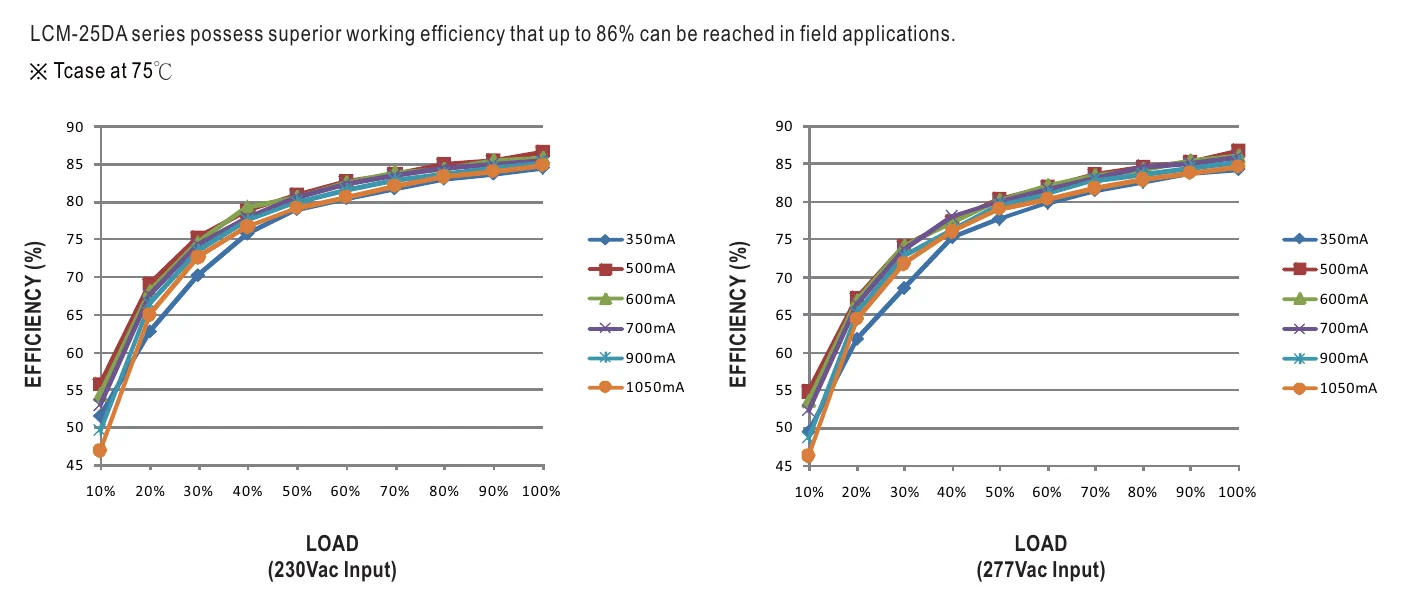

LCM-25DA EFFICIENCY vs LOAD — EFFICIENCY vs LOAD

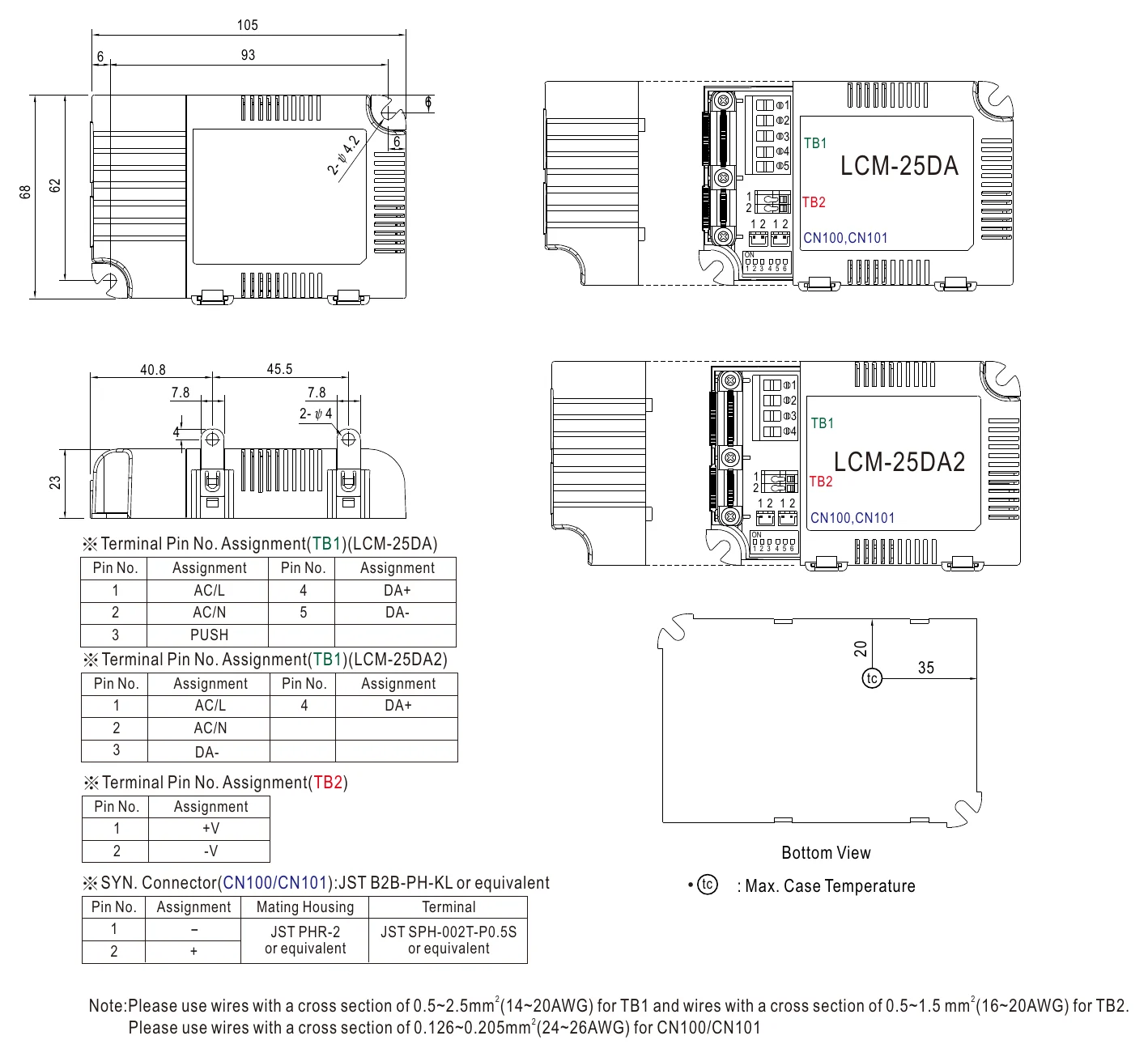

LCM-25DA MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED indoor lighting
LED office lighting
LED commercial lighting
LED panel lighting
Industrial lighting

Downloads

Certificates4

UL Certificate(LCM-25DA)(EN) PDF Download

CB Certificate(LCM-25DA)(EN) PDF Download

ENEC Certificate(LCM-25DA)(EN) PDF Download

EMC Certificate(LCM-25DA)(EN) PDF Download

Test reports1

Test Report (LCM-25DA)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the LCM-25DA with dimmable LED downlights?

Yes, the LCM-25DA is a constant current LED driver rated at 25.2W (18.9W at 350mA), with DIP-switch selectable output from 350mA to 1050mA (700mA default, 6-36V at that setting). It is intended for constant current LED downlights and adds DALI and push dimming.

Is the LCM-25DA a good fit for signage modules that need dimming control?

It can be, provided the signage modules are designed for constant current operation instead of constant voltage. This model delivers 700mA by default over 6-36V (selectable 350mA to 1050mA via DIP switch) and is rated up to 25.2W, with DALI and push dimming for controlled dimming.

Can the LCM-25DA power a small constant current LED array?

Yes, for small LED arrays built around a constant current input, the LCM-25DA fits loads within its 6-36V range at the default 700mA setting (other DIP-switch settings from 350mA to 1050mA change the range). Its 25.2W power level makes it appropriate for smaller arrays rather than higher-power constant current assemblies.

How do I match the LCM-25DA to my LED load?

Match it to LEDs that require constant current and whose total forward voltage stays within the DC voltage range of the selected current: 6-54V at 350mA, 6-50V at 500mA, 6-42V at 600mA, 6-36V at 700mA (default), 6-28V at 900mA and 6-24V at 1050mA. Size the load by forward-voltage total, not as a constant voltage driver.

Can the LCM-25DA handle demanding ambient conditions?

It is specified for a case temperature (Tcase) of -30°C to +85°C, with output load derating at higher temperatures per the output load vs temperature curve, which supports enclosed lighting equipment. Environmental suitability still needs to align with the rest of the fixture because the listed specs here focus on temperature, not a separate IP rating.
