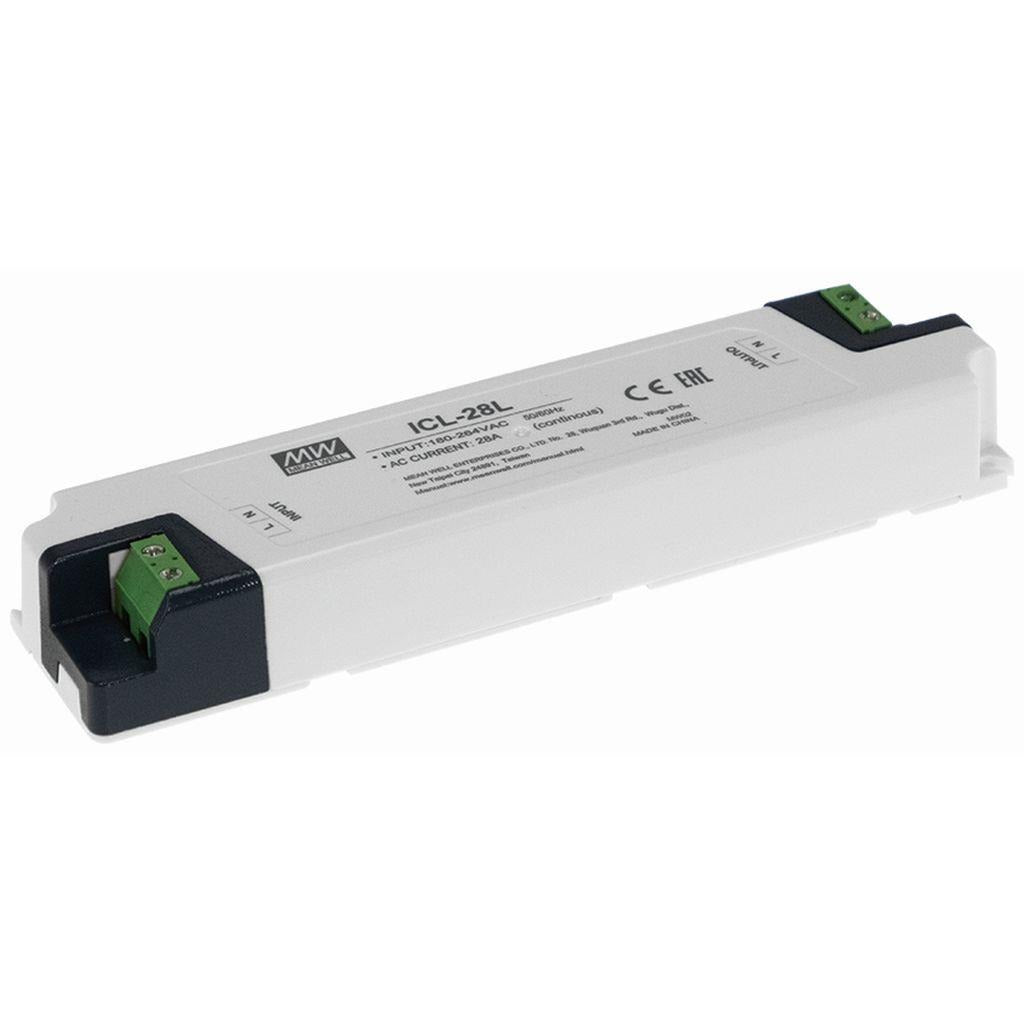

Mean Well ICL-28L AC Inrush Current Limiter
$69.47 USD
Unit price /
Unavailable
Overview
The ICL-28 is a 28A inrush current limiter that can be used to reduce the high starting current due to capacitive load causing the circuit breaker to be false triggered. Several power supplies can be installed on the same AC line after the implementation of an ICL-28.
Features
- 48A inrush limiting current, 28A continuous
- 180~264VAC AC input
- Integrated bypass relay, no simple NTC
- Internal thermal protection
- Installed on DIN Rail TS-35/7.5 or 15 (ICL-28R)
- -30~+70°C wide working temperature
- Over voltage category Ⅲ
- Operating altitude up to 5000 meters(Note. 2)
- 3 years warranty
Specifications
ICL-28LSpecifications from the official datasheet (2026-04-03 edition)
SPECIFICATION
- AC INPUT VOLTAGE
- 180 ~ 264VAC
- AC LINE FREQUENCY
- 47 ~ 63Hz
- INRUSH CURRENT LIMITING
- 48A
- AC CONTINUOUS RATED CURRENT
- 28A continuous
- AC INPUT POWER
- 6440VA (28A x 230VAC)
- AC INPUT CONSUMPTION
- <2W at 264VAC, 50Hz input
- INTERNAL RELAY LIMITING TIME (TON POWER ON)
- 150±50ms
- INTERNAL RELAY LIMITING CYCLES
- 3 cycle / 1 min
- INTERNAL RELAY RELEASE TIME
- 100±50ms
- INTERNAL PROTECTION
- Thermal fuse protects overload and fire
- ALLOWED CAPACITIVE LOAD
- 6000μF max.
- WORKING TEMP.
- -30 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP.
- -40 ~ +85℃
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃) RH non-condensing
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
- OPERATING ALTITUDENote. 2
- 5000 meters
- OVER VOLTAGE CATEGORY
- Ⅲ; According to IEC62368-1; altitude up to 5000 meters
- POLLUTION DEGREE
- 2
- SAFETY STANDARDS
- LVD BS EN/EN62368-1 approved
- SAFETY & EMC EMC EMISSIONNote.3
-
Parameter Standard Test Level Conducted BS EN/EN55032 Class B Radiated BS EN/EN55032 Class B Harmonic Current BS EN/EN61000-3-2 Class A Voltage Flicker BS EN/EN61000-3-3 - SAFETY & EMC EMC IMMUNITYNote.3
-
BS EN/EN55035, BS EN/EN61000-6-2
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A Radiated Susceptibility BS EN/EN61000-4-3 Level 3, criteria A EFT/Burest BS EN/EN61000-4-4 Level 3, criteria A Surge BS EN/EN61000-4-5 Level 4,2KV/L-N, criteria A Conducted BS EN/EN61000-4-6 Level 3, criteria A Magnetic Field BS EN/EN61000-4-8 Level 4, criteria A Voltage Dips and interruptions BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods - MTBF
- 6781.7K hrs min. Telcordia SR-332 (Bellcore) ; 1626.6K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 175*42*24mm (L*W*H)
- PACKING
- 0.155Kg; 84pcs/14Kg/0.91CUFT
Test conditions and notes3
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 3. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
Technical drawings
Typical applications
- Allow connecting multiple power supply at same line
- Allows smaller and faster Circuit Breaker
- Capacitive load
- Protects against unintended trigger of circuit breaker
