Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

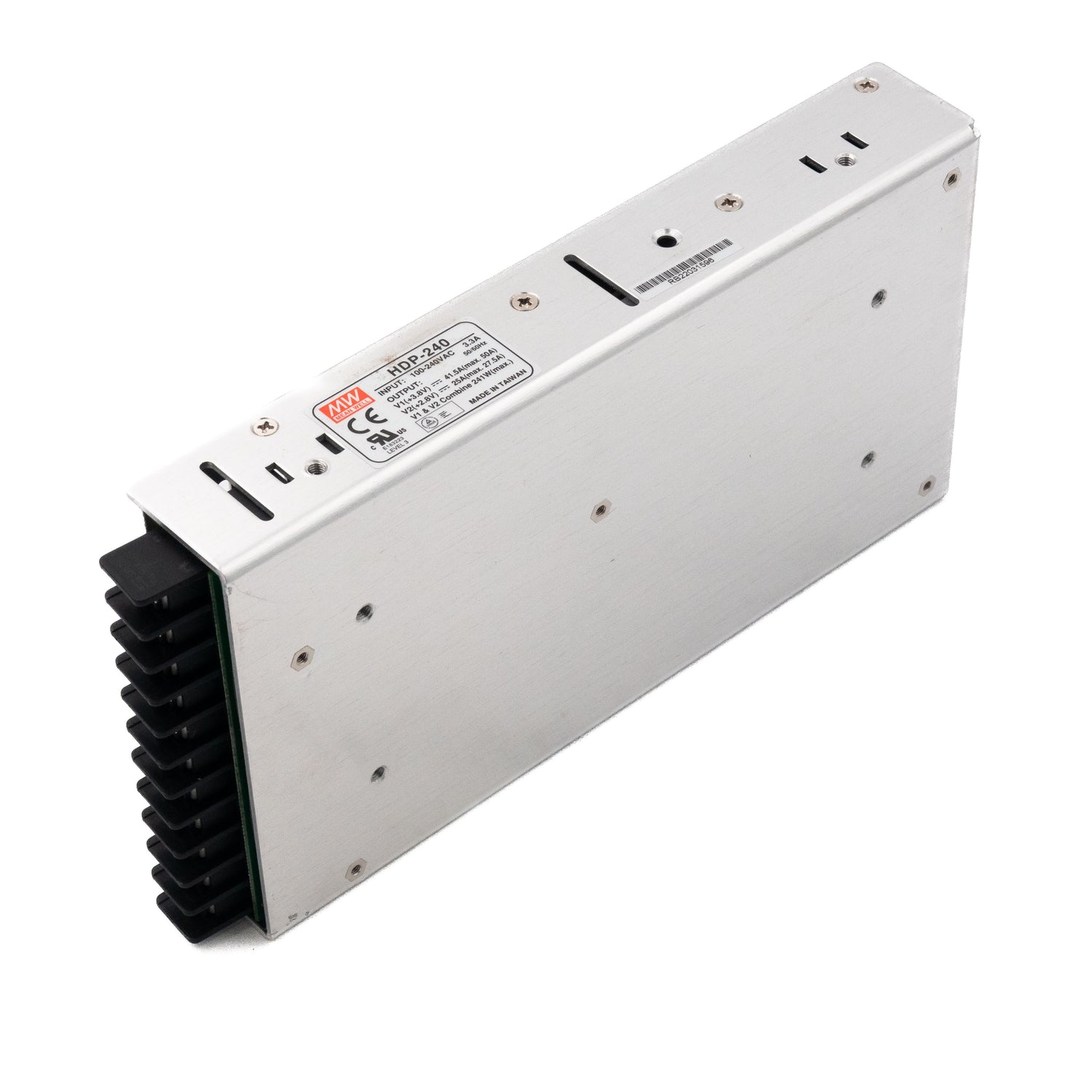

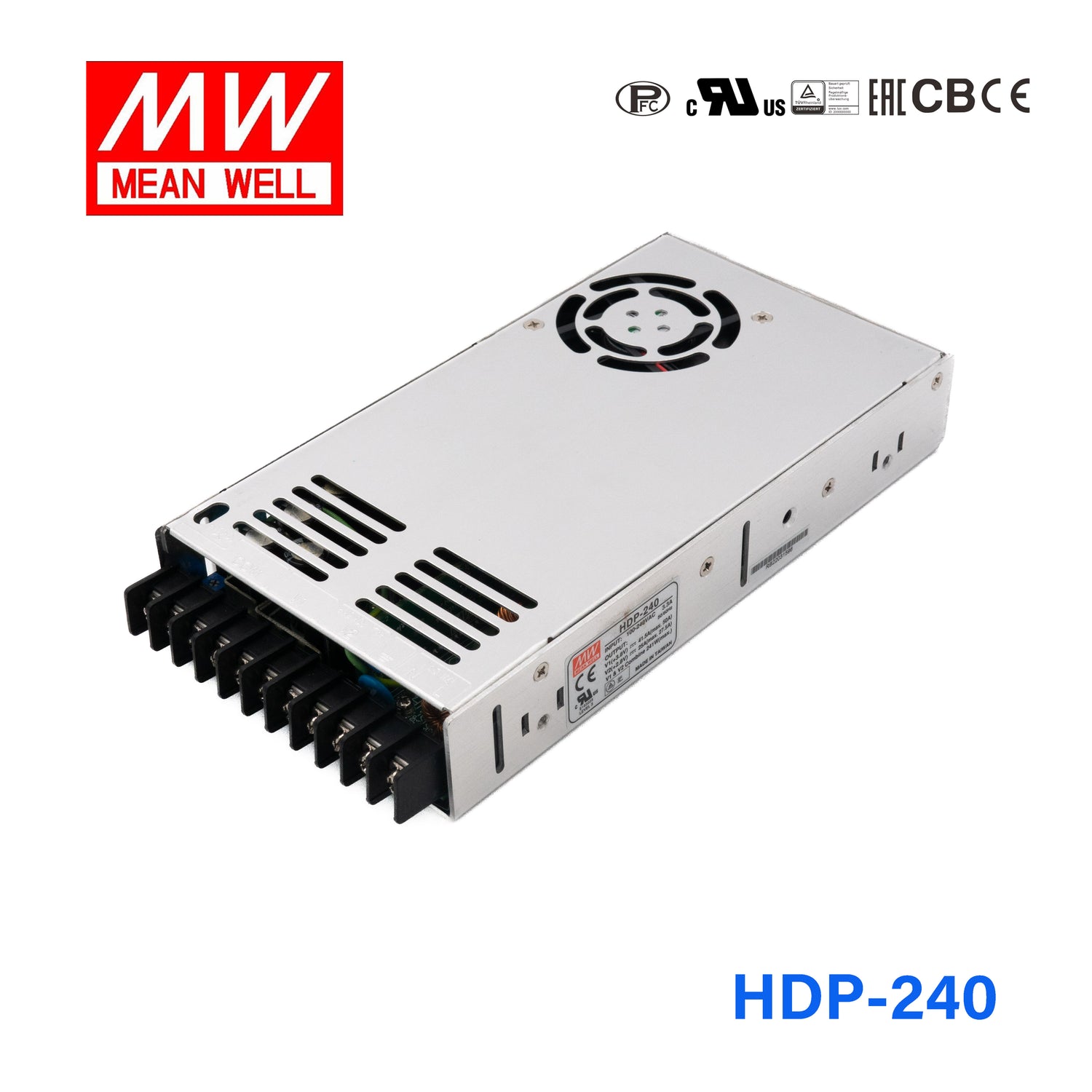

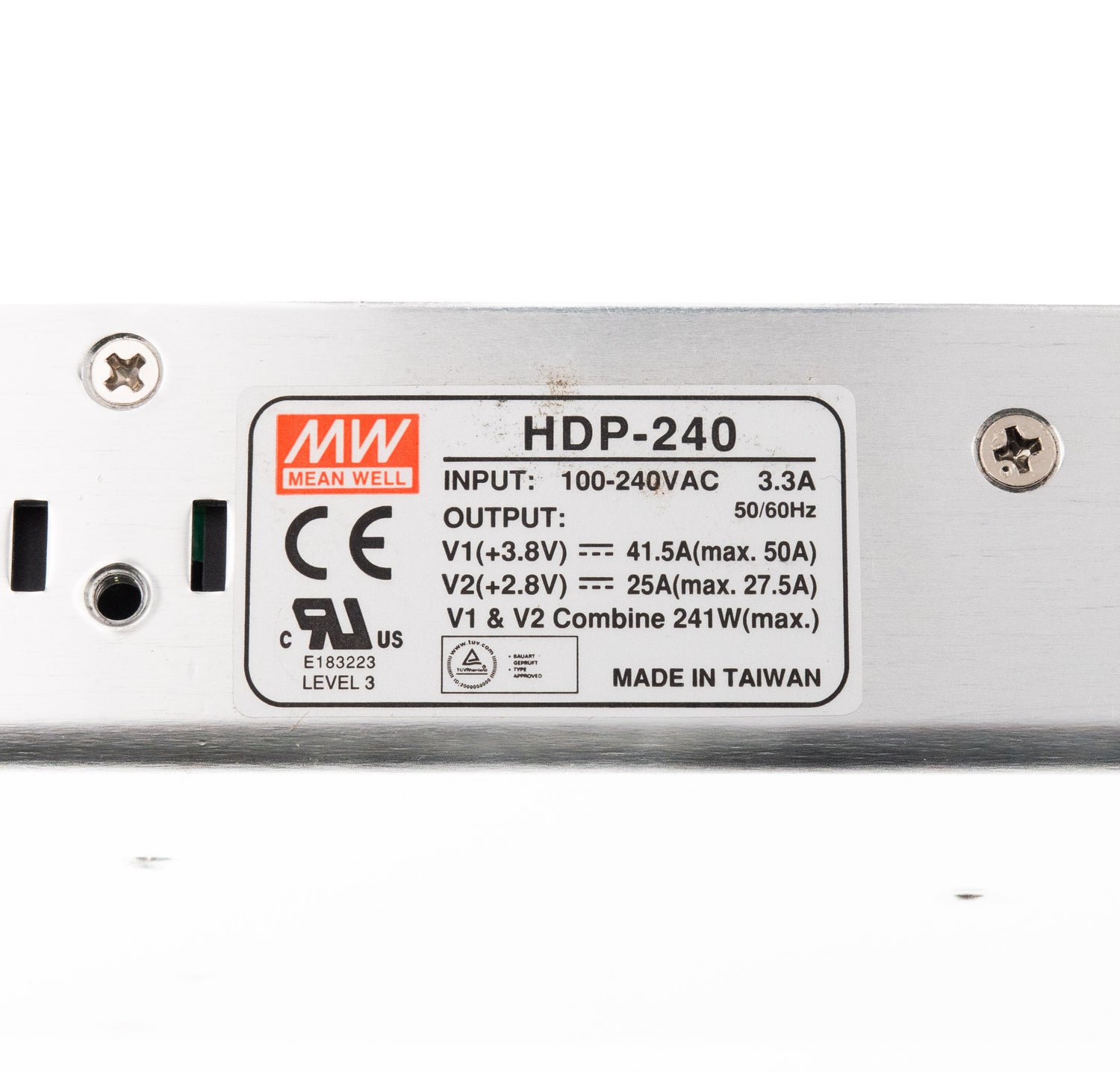

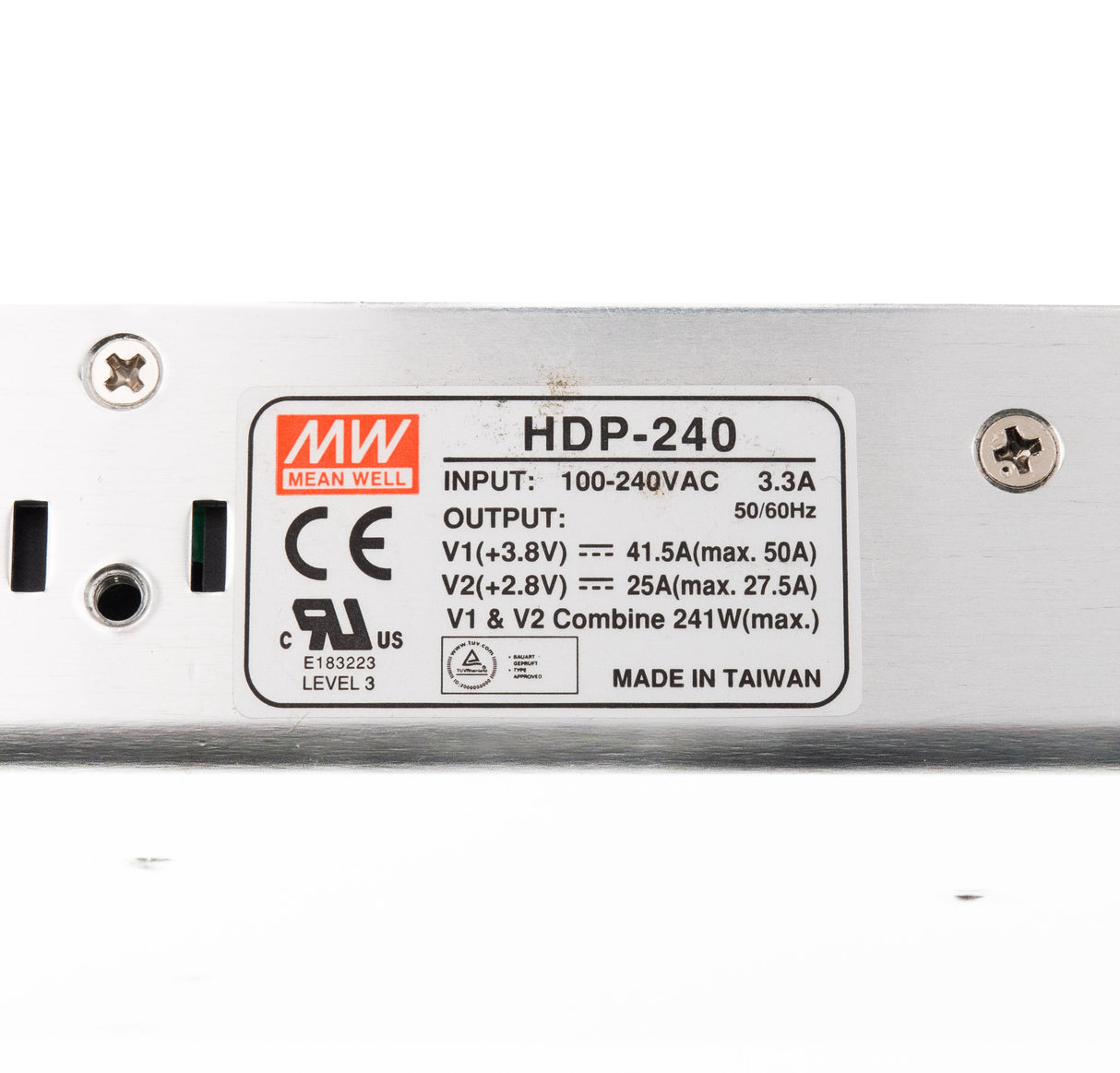

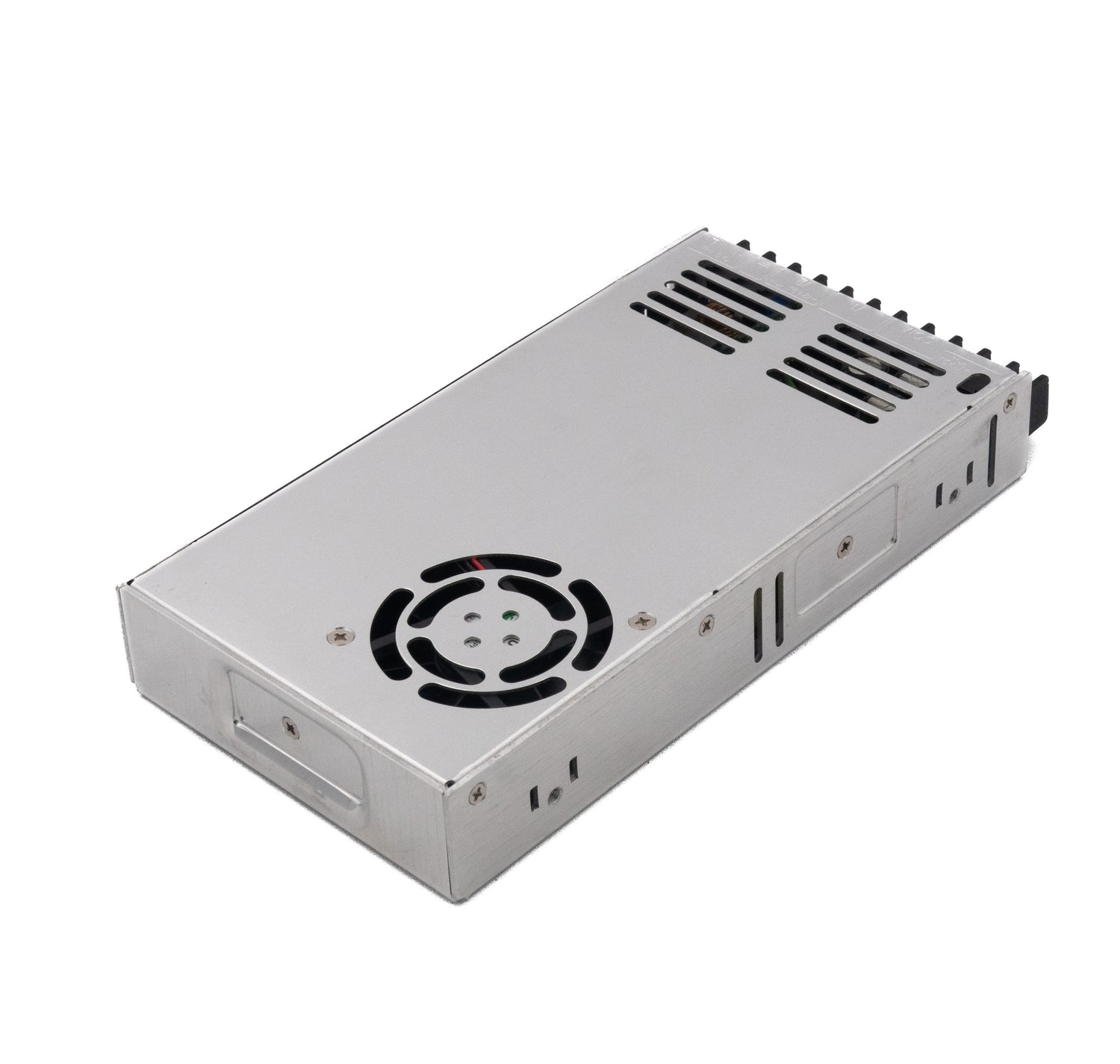

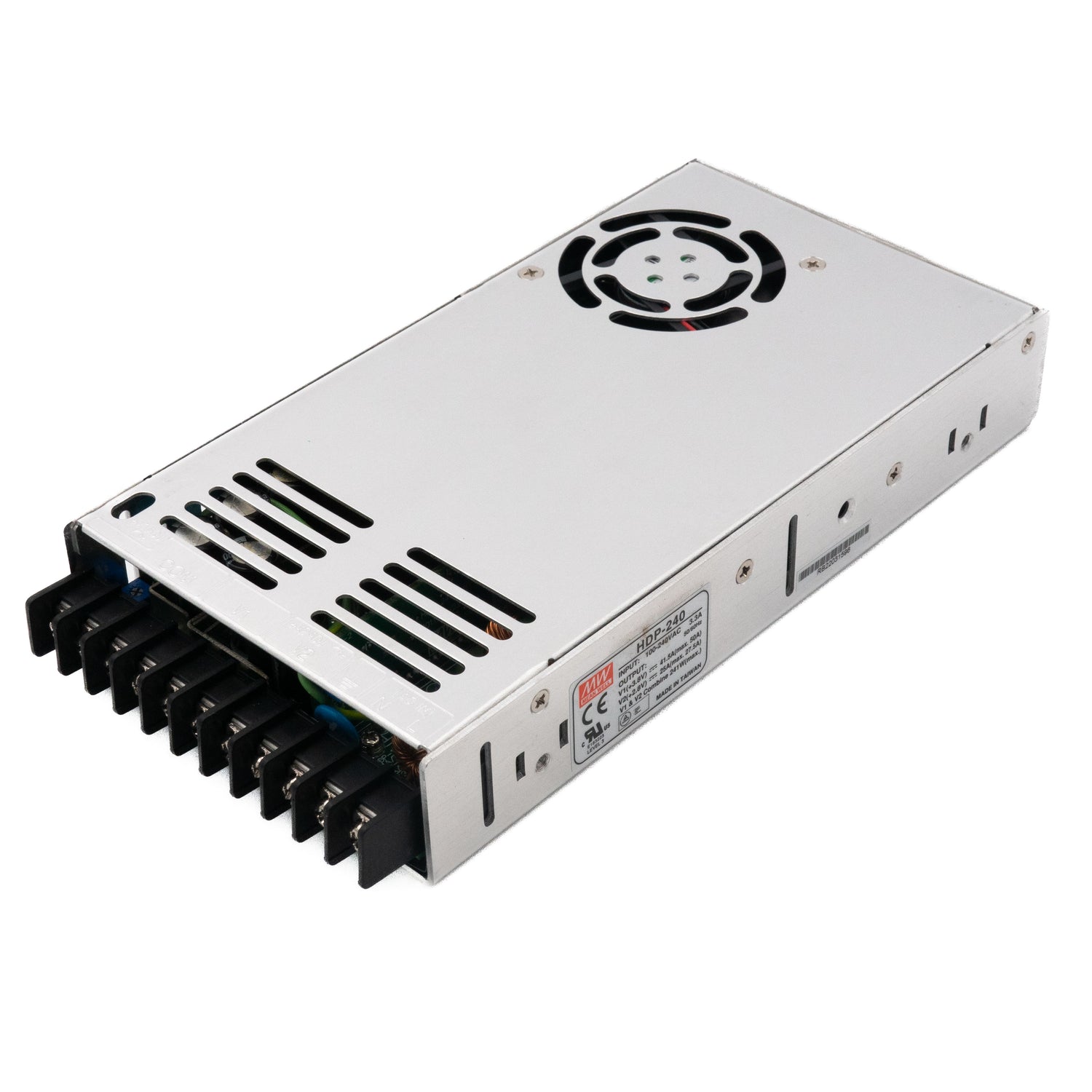

Mean Well HDP-240 Dual Output with PFC Function Switching Power Sup...
$64.67 USD
Unit price /
Unavailable
Overview
HDP-240 is the +3.8V +2.8V output model of this series: rated current 41.5A 25A, rated power 227.7W (typ.) 241W (max.), typical efficiency 84%.
Features
- Universal AC input / Full range
- Built-in active PFC function
- High efficiency up to 84%
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Forced air cooling by built-in DC fan
- 1U low profile 36mm
- Conformal coated
- Built-in cooling fan ON-OFF control
- ZVS technology to reduce power dissipation
- LED indicator for power on
- 3 years warranty
Specifications
HDP-240Specifications from the official datasheet (2021-12-10 edition)Download datasheet PDF
OUTPUT
- OUTPUT NUMBER
- V1 V2
- DC VOLTAGE
- +3.8V +2.8V
- RATED CURRENT
- 41.5A 25A
- CURRENT RANGE (max.)
- 0 ~ 50A 0 ~ 27.5A
- RATED POWER
- 227.7W (typ.) 241W (max.)
- OUTPUT POWER (max.)
- 241W continue. V1 total power output shall not exceed 200W (max. 50A) ; V2 total power output shall not exceed 82.5W (max. 27.5A) (The V1 & V2 combine total power output shall not exceed 241W)
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p 100mVp-p
- VOLTAGE ADJ. RANGENote.6
- 3.6 ~ 4V 2.5 ~ 3V
- VOLTAGE TOLERANCENote.3
- ±2.0% ±2.0%
- LINE REGULATION
- ±0.5% ±0.5%
- LOAD REGULATION
- ±2.0% ±2.0%
- SETUP, RISE TIME
- 1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 16ms/230VAC 16ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.5
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.94/230VAC PF≧0.98/115VAC at full load
- EFFICIENCY (Typ.)
- 84%
- AC CURRENT (Typ.)
- 3.3A/115VAC 1.3A/230VAC
- INRUSH CURRENT (Typ.)
- 30A/115VAC 45A/230VAC
- LEAKAGE CURRENT
- <0.7mA / 240VAC
PROTECTION
- OVERLOAD
- V1+V2: 105 ~ 150% max. output power ; or V2: 125 ~ 170% rated current Protection type: Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- V1: 4.37 ~ 5.13V V2: 3.22 ~ 3.78V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recovery
FUNCTION
- FAN CONTROL (Typ.)
- RTH4≧50℃ Fan on ; RTH4≦45℃ Fan off
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- UL 62368-1, IEC/EN 62368-1,EAC TP TC 004 approved;design refer to GB4943.1
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to EN55032 (CISPR32), class B, EN61000-3-2,-3,EAC TP TC 020; design refer to GB17625.1,GB/T9254
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2, heavy industry level, criteria A,EAC TP TC 020
OTHERS
- MTBF
- 111.3K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 215*115*36mm (L*W*H)
- PACKING
- 1Kg; 15pcs/16Kg/0.7CUFT
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
- 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
- 6. Output voltage between V1 and V2 should be higher than 1.0V(V1-V2≧1.0V).
