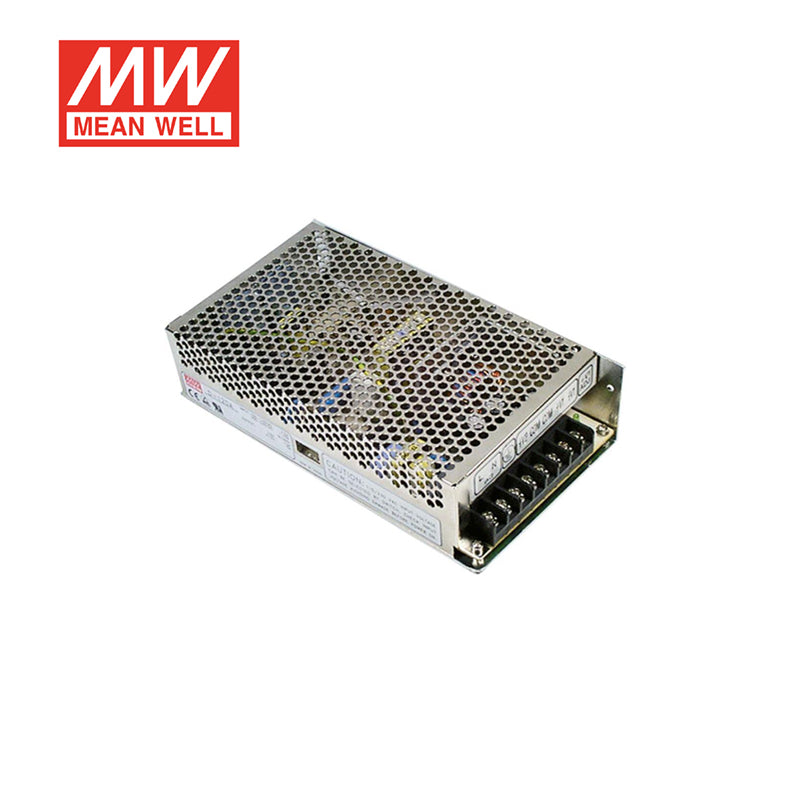

Mean Well D-120A Switching Power Supply
$26.15 USD
Unit price /
Unavailable
Overview
D-120A is the 5V 12V output model of this series: rated current 12A 5A, rated power 120W, typical efficiency 78%.
Features
- AC input range selected by switch
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- 100% full load burn-in test
- Fixed switching frequency at 28KHz
- 2 years warranty
Specifications
D-120ASpecifications from the official datasheet (2017-06-23 edition)Download datasheet PDF
OUTPUT
- OUTPUT NUMBER
- CH1 CH2
- DC VOLTAGE
- 5V 12V
- RATED CURRENT
- 12A 5A
- CURRENT RANGE
- 2 ~ 12A 0.5 ~ 5A
- RATED POWER
- 120W
- RIPPLE & NOISE (max.)Note.2
- 60mVp-p 120mVp-p
- VOLTAGE ADJ. RANGE
- CH1: 4.75 ~ 5.5V
- VOLTAGE TOLERANCENote.3
- ±2.0% ±6.0%
- LINE REGULATION
- ±0.5% ±1.0%
- LOAD REGULATION
- ±0.5% ±5.0%
- SETUP, RISE TIME
- 200ms, 50ms at full load
- HOLD UP TIME (Typ.)
- 24ms at full load
INPUT
- VOLTAGE RANGE
- 88 ~ 132VAC/176 ~ 264VAC selected by switch 248 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 78%
- AC CURRENT (Typ.)
- 2.2A/115VAC 1.3A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 32A
- LEAKAGE CURRENT
- <3.5mA / 240VAC
PROTECTION
- OVERLOAD
- 105 ~ 135% rated output power Protection type : Shut down o/p voltage, re-power on to recover
- OVER VOLTAGE
- CH1:5.75 ~ 6.75VDC Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.

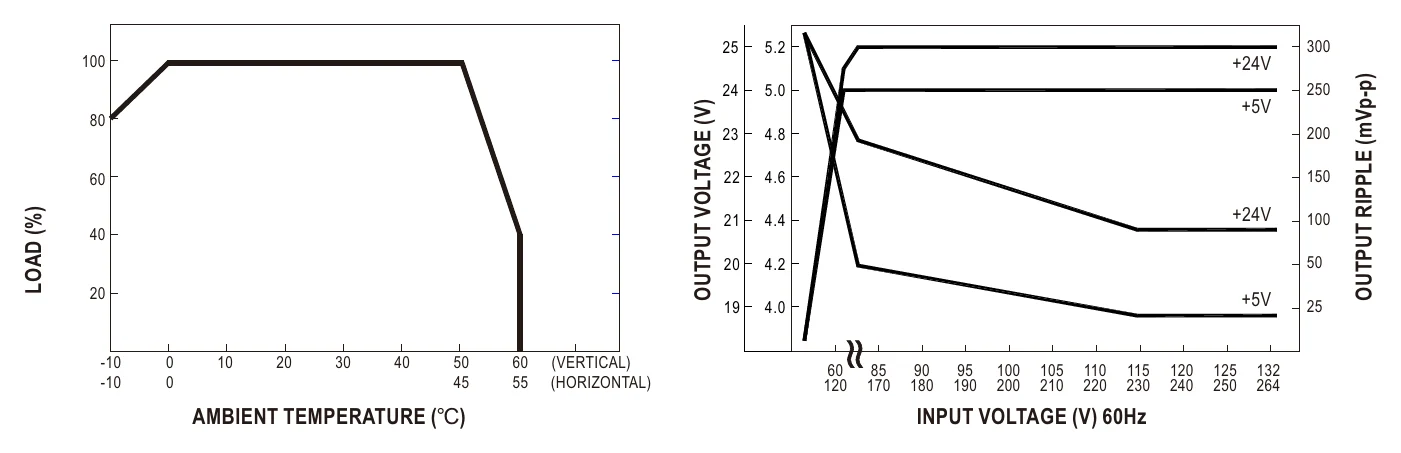

- -10 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0~50℃) on +5V output
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY
- SAFETY STANDARDS
- UL60950-1, TUV EN60950-1
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
OTHERS
- MTBF
- 272.8K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 199*110*50mm (L*W*H)
- PACKING
- 0.82Kg; 16pcs/14.2Kg/0.95CUFT
Test conditions and notes3
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uF & 47uF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
