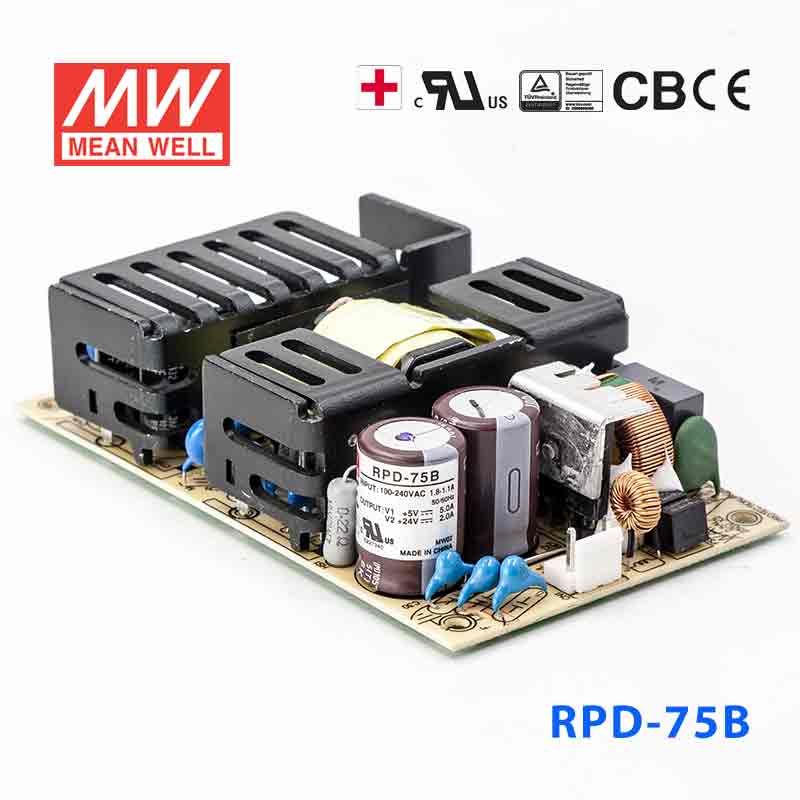

Mean Well RPD-75B Power Supply 75W 5V 24V
$32.77 USD
Unit price /
Unavailable
Description
Description
Features
| 5"x3" compact size |
| Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1 |
| Suitable for BF application with appropriate system consideration |
| Free air convection for rated power and 23.5CFM forced air convection for peak load |
| EMI Class B for class I configuration |
| Extremely low leakage current |
| Protections: Short circuit/ Overload/ Over voltage Lifetime > 140K hours |
| 3 years warranty |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current | Cold start 25A/115VAC |
| Leakage current | <150 μA/264VAC |
| Overload protection | 140 ~ 180% rated output power |
| Over-voltage protection | 114%~136% rated output voltage |
| Setup, rise, hold up time | 500ms, 30ms, 90ms |
| Withstand voltage | I/P-O/P:4KVAC, I/P-FG:2KVAC, O/P-FG:1.5KVAC |
| Working temperature | -20~+70°C |
| Vibration | 10~500Hz, 2G 10min./1 cycle, the period for 60min. Each along X, Y, Z axes |
| Safety standards | IEC60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved, TUV BS EN/EN60601-1 approved |
| EMC standards | EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | I/P: 3 Pin JST VHR, O/P: 6 Pin JST SVH-21T-P1.1 |
| Dimension (LxWxH) | 127x76.2x31 |
| Packing | 63pcs / 17.3kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesRPD Series
-
Power Rating73 Watt
-
Output Voltage5 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.22 in
-
Weight0.55 lb
