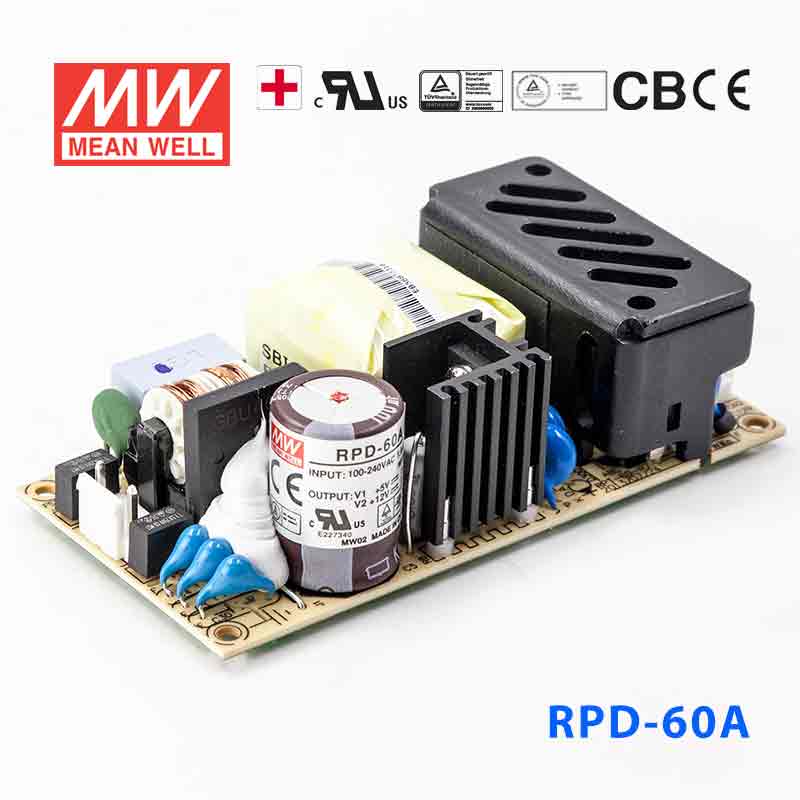

Mean Well RPD-60A Power Supply 60W 5V 12V 5A
Overview
RPD-60A is the CH1: 5V / CH2: 12V output model of this series: rated current CH1: 5A / CH2: 2A, rated power 49W, typical efficiency 78%.
RPD-60 is a 60W highly reliable green PCB type medical power supply with a high power density on the 4” by 2” footprint. It accepts 90~264VAC input and offers dual output voltages . RPD-60 is able to be used for ClassⅠ (with FG) system design. The extremely low leakage current is less than 150μA. In addition, it conforms to international medical regulations (2*MOPP) and EMC BS EN/EN55011.
Features
- 4"×2" compact size
- Medical safety approved (2 x MOPP) accroding to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- Suitable for BF application with appropriate system consideration
- Cooling by free air convection
- EMI class B for class Ⅰ configuration
- Extremely low leakage current
- Protections: Short circuit / Overload / Over voltage
- 3 years warranty
Specifications
OUTPUT
- OUTPUT NUMBER
- 2 (CH1, CH2)
- DC VOLTAGE
- CH1: 5V / CH2: 12V
- RATED CURRENT
- CH1: 5A / CH2: 2A
- CURRENT RANGE
- CH1: 0.5 ~ 5.5A / CH2: 0.1 ~ 2.2A
- RATED POWER
- 49W
- PEAK LOAD(10sec.)Note.2
- 53.9W
- RIPPLE & NOISE (max.)Note.3
- CH1: 80mVp-p / CH2: 80mVp-p
- VOLTAGE TOLERANCENote.4
- CH1: +3,-2% / CH2: ±6.0%
- LINE REGULATION
- CH1: ±0.5% / CH2: ±1.0%
- LOAD REGULATION
- CH1: ±1.5% / CH2: ±2.0%
- SETUP, RISE TIME
- 300ms, 15ms/230VAC 300ms, 15ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 70ms/230VAC 14ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 78%
- AC CURRENT (Typ.)
- 1.1A/115VAC 0.7 A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 60A/230VAC 30A/115VAC
- LEAKAGE CURRENTNote.5
- Earth leakage current < 150μA/264VAC , Touch current < 100μA/264VAC
PROTECTION
- OVERLOAD
- 115 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- CH1: 5.75 ~ 6.75V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -20 ~ +65℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 45℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
- OPERATING ALTITUDENote.6
- 3000 meters
SAFETY & EMC
- SAFETY STANDARDS
- IEC 60601-1:2005+A1+A2, TUV BS EN/ EN 60601-1:2006+A1+A12+A2, ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2, IEC 62368-1:2014, UL 62368-1, 2nd Ed, CSA C22.2 No. 62368-1-14, 2nd Ed, TUV BS EN/ EN 62368-1:2014+A11, EAC TP TC 004 approved
- ISOLATION LEVEL
- Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP
- WITHSTAND VOLTAGE
- I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted emission BS EN/EN55011 (CISPR11) Class B Radiated emission BS EN/EN55011 (CISPR11) Class B Harmonic current BS EN/EN61000-3-2 Class A Voltage flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
BS EN/EN55035,BS EN/EN60601-1-2
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) EFT bursts BS EN/EN61000-4-4 Level 3, 2KV Surge susceptibility BS EN/EN61000-4-5 Level 4, 4KV/Line-FG; 2KV/Line-Line Conducted susceptibility BS EN/EN61000-4-6 Level 3, 10V Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m Voltage dip, interruption BS EN/EN61000-4-11 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods
OTHERS
- MTBF
- 5031.3K hrs min. Telcordia SR-332 (Bellcore) ; 679.5K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION (L*W*H)
- 101.6*50.8*29mm or 4" * 2" *1.14" inch
- PACKING
- 0.15Kg; 96pcs/15.4Kg/0.89CUFT
Test conditions and notes9
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 4. Tolerance : includes set up tolerance, line regulation and load regulation.
- 5. Touch current was measured from primary input to DC output.
- 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 8. Heat Sink HS1,HS2 can not be shorted.
- 9. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
Technical drawings
Typical applications
- Oral irrigator
- Hemodialysis machine
- Medical computer monitors
- Sleep apnea devices
Downloads
Datasheet1
Certificates11
Test reports1
Catalogues1
FAQ
Can I use the RPD-60A for a compact embedded system that needs 5V and 12V rails?
Yes, this model is positioned for compact dual-output designs and is named as a 5V 12V supply. Its listed electrical rating is 49W total with a 5V output at 5A, and the compact 101.6 × 50.8 × 29.0 mm size suits embedded assemblies.
Is the RPD-60A suitable for industrial control boards and HMI electronics?
It can fit industrial control boards, HMI assemblies, and other low-power automation electronics that match a constant voltage supply and stay within 49W total power. The 90-264VAC input range also helps for equipment used across different AC input conditions.
Can the RPD-60A work in medical or lab equipment power sections?
It can be considered where the product requirement calls for medical safety approved construction and extremely low leakage current, since both are listed features. Electrically, the supplied specs show 49W total power, a 5V output at 5A, and operation from -20°C to +65°C.
Is the RPD-60A meant for outdoor use?
The provided specs give an operating temperature range of -20°C to +65°C, but no IP rating is listed. Based on the supplied data, environmental sealing for exposed outdoor use is not specified.
How does the RPD-60A compare with other RPD models in the same family?
In the supplied sibling list, RPD-60B is 53.5W 5V 3.5A. Higher-power siblings shown are RPD-75A at 71W 5V 7A and RPD-75B at 73W 5V 5A, while RPD-160B is listed as a sibling but no additional output specs were provided here.
