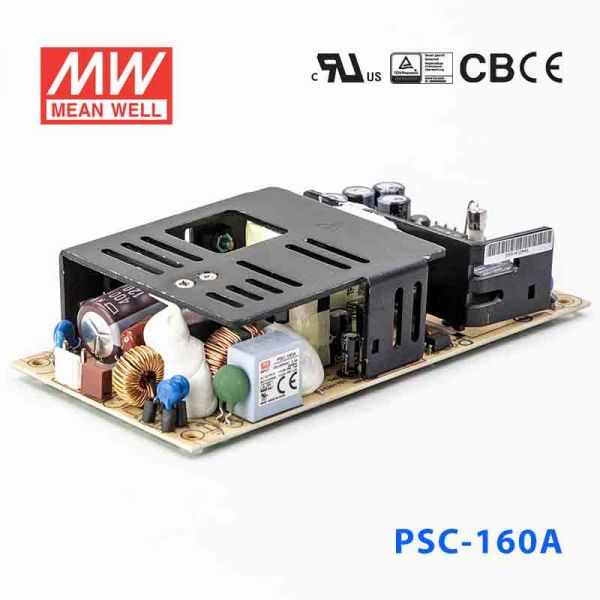

Mean Well PSC-160A Battery Chargers 160W 13.8V 7.6A - PFC
$59.61 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| 5"x3" compact size |
| Models with L-Bracket and cover available(PSC-100x-C, x=A,B) |
| Protections: Short circuit/Overload/Over voltage |
| Battery low protection/Battery reverse polarity protection by fuse |
| Relay contat signal output for AC OK and Battery low |
| Cooling by free convection |
| 100% full load burn-in-test |
| 2 years warranty |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current | COLD START 35A/115VAC; 70A/230VAC |
| Leakage current | <1mA / 240VAC |
| Overload protection | 105%~150% rated output power |
| Over voltage protection | 105%~135% rated output voltage |
| Setup, rise, hold up time | 2400ms, 30ms/230VAC; 2400ms, 30ms/115VAC at full load; 40ms/230VAC; 14ms/115VAC at full load |
| Withstand voltage | I/P-O/P:3KVAC; I/P-FG:2KVAC; O/P-FG:0.5KVAC |
| Working temperature | -20 ~ +70℃ (Refer to "Derating Curve") |
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
| Safety standards | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| Dimension (LxWxH) | 127x76.2x31 mm |
| Packing | 63pcs / 15.5kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesPSC Series
-
Power Rating160 Watt
-
Output Voltage13.8 Volt
-
Rated Current7.6 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty2 Year
-
Length6 in
-
Width3 in
-
Height1.26 in
-
Weight0.77 lb
