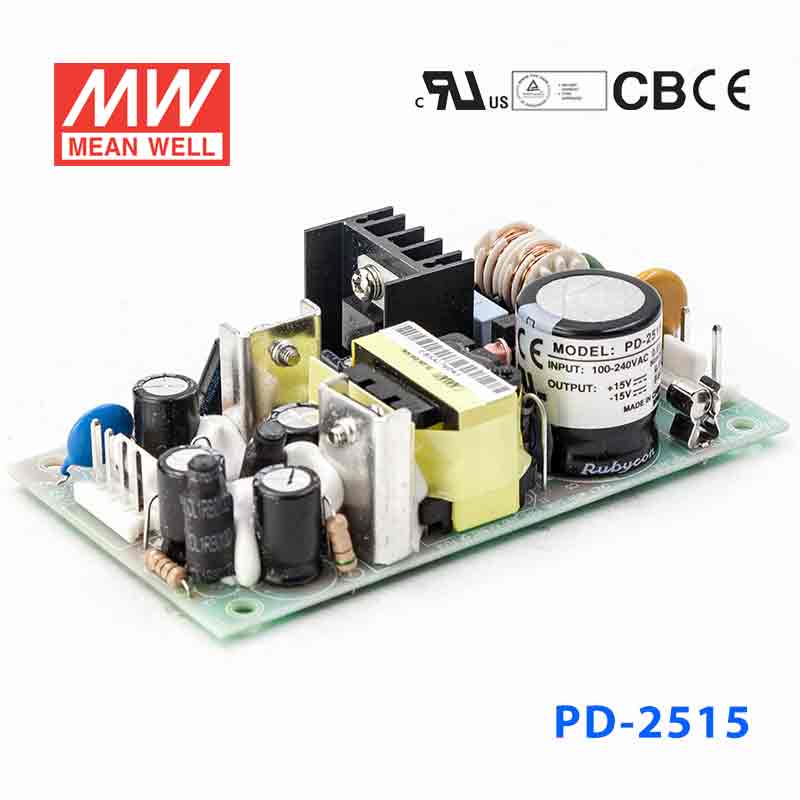

Mean Well PD-2515 Power Supply 25W 15V -15V 800mA

low leakage current < 0.5mAlow costhigh reliability
SKU PD-2515
$19.05 USD
Shipping calculated at checkout.
Available to order
|

Overview

PD-2515 is the 15V / -15V output model of this series: rated current 0.8A / 0.8A, rated power 24W, typical efficiency 75%.

Features

  • Universal AC input / Full range
  • Low leakage current<0.5mA
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • 100% full load burn-in test
  • Fixed switching frequency at 100KHz
  • Low cost
  • High reliability
  • 2 years warranty

Specifications

PD-2515Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

OUTPUT NUMBER
CH1 / CH2
DC VOLTAGE
15V / -15V
RATED CURRENT
0.8A / 0.8A
CURRENT RANGE
0.1 ~ 1A / 0.1 ~ 1A
RATED POWER
24W
RIPPLE & NOISE (max.)Note.2
50mVp-p / 50mVp-p
VOLTAGE TOLERANCENote.3
±4.0% / ±4.0%
LINE REGULATION
±0.5% / ±0.5%
LOAD REGULATION
±3.0% / ±3.0%
SETUP, RISE TIME
250ms, 50ms/230VAC 250ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
100ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY(Typ.)
75%
AC CURRENT (Typ.)
0.65A/115VAC 0.4A/230VAC
INRUSH CURRENT (Typ.)
COLD START 32A
LEAKAGE CURRENT
<0.5mA / 240VAC

PROTECTION

OVERLOAD
Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
CH1: 17.3 ~ 20.3V, CH2: -17.3 ~ -20.3V Protection type : Shut off o/p voltage, clamping by zener diode
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃) ON CH1 output
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, CCC GB4943.1(for PD-25A only ) approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, GB9254 Class B, GB17625.1
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
5363.3K hrs min. Telcordia SR-332 (Bellcore) ; 707.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
107*61*28mm (L*W*H)
PACKING
0.15Kg; 96pcs/15.9Kg/1.2CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Heat Sink HS1,HS2,HS3 can not be shorted.
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

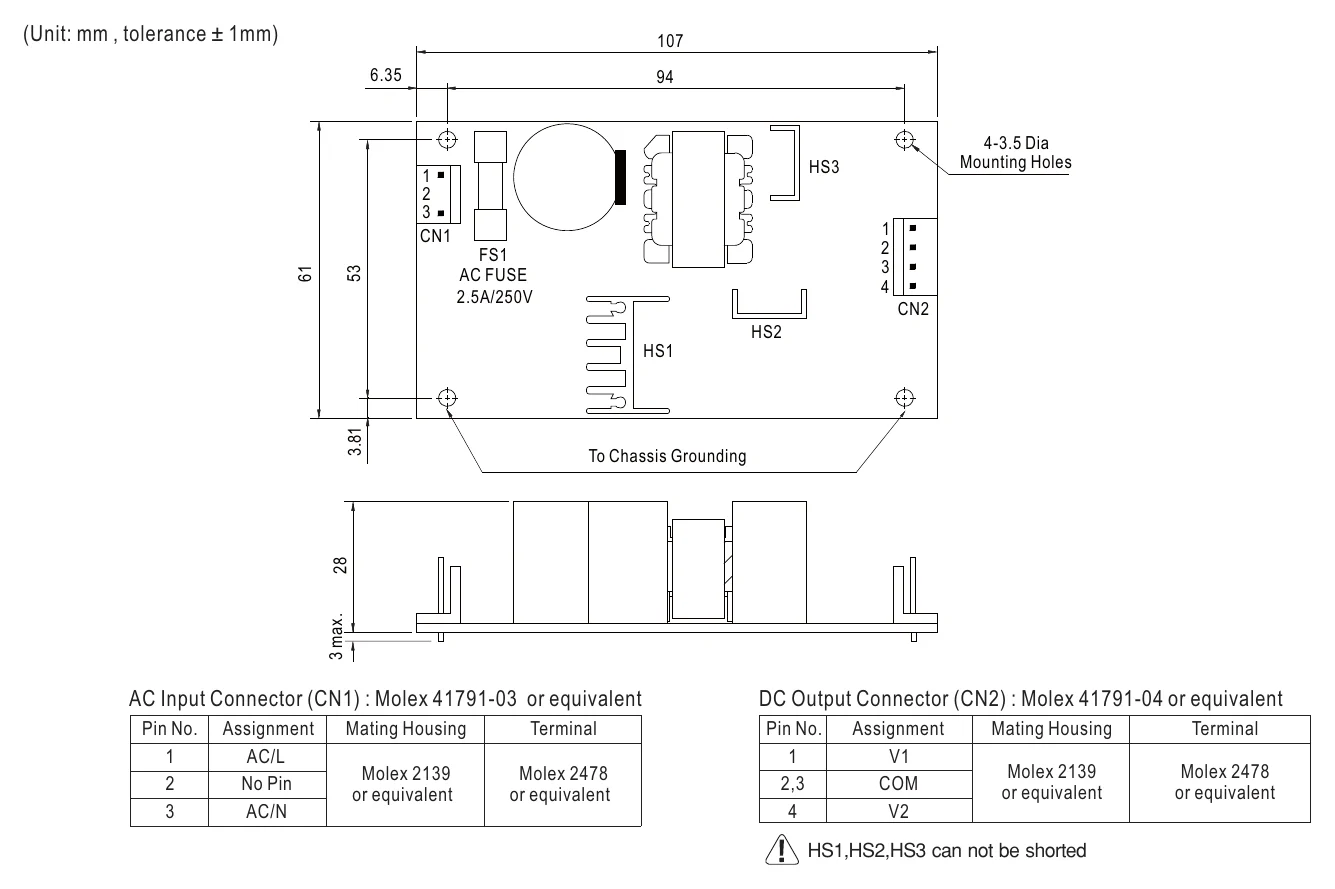

PD-2515 Mechanical Specification
Mechanical Specification

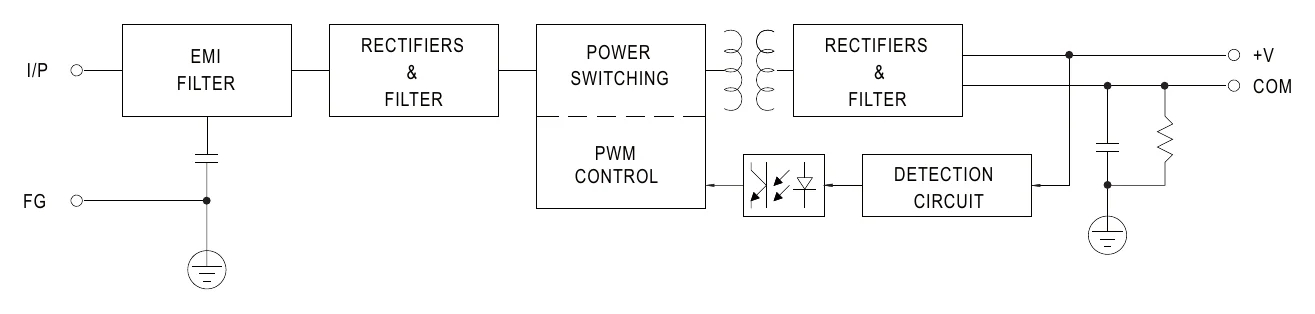

PD-2515 Block Diagram
Block Diagram

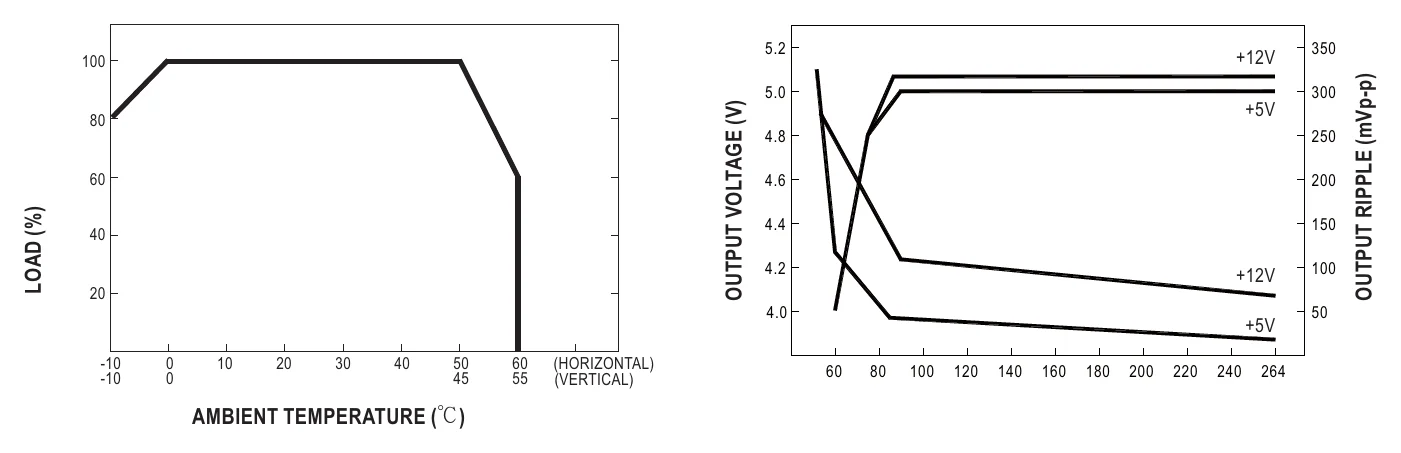

PD-2515 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the PD-2515 for a 15V industrial sensor or control circuit?

Yes, this model is a dual-output constant voltage power supply with +15V and -15V outputs, each rated 0.8A (1A max). It fits 15V industrial sensors, control boards, or monitoring circuits that stay within its 24W power rating.

Is the PD-2515 suitable for embedded electronics that need a regulated 15V rail?

It can be a fit for embedded equipment that requires fixed ±15V supplies rather than a constant current source. The unit provides +15V and -15V at 0.8A each with 24W total output power, which suits lower-power embedded assemblies.

Can this power supply be used in a small automation cabinet with 15V loads?

Yes, the PD-2515 is appropriate for small automation loads that need 15V constant voltage and draw no more than 0.8A per rail. Its 85-264VAC input also supports use across a wide AC input range in control equipment.

Is the PD-2515 suitable for outdoor or washdown environments?

This product has an operating temperature range of -10°C to +60°C with derating per the derating curve, but no IP rating is listed in the specs. Based on that, it is better suited to indoor or protected environments rather than exposed outdoor or washdown locations.

How does the PD-2515 compare with other Mean Well PD series models?

The PD-2515 is rated at 24W with +15V/-15V at 0.8A each. The other PD-25 series models are PD-2512 at 24W, 12V/-12V 1A each; PD-2505 at 25W, 5V/-5V 2.5A each; PD-25A at 24.9W, 5V 2.1A/12V 1.2A; and PD-25B at 25.2W, 5V 1.2A/24V 0.8A.
