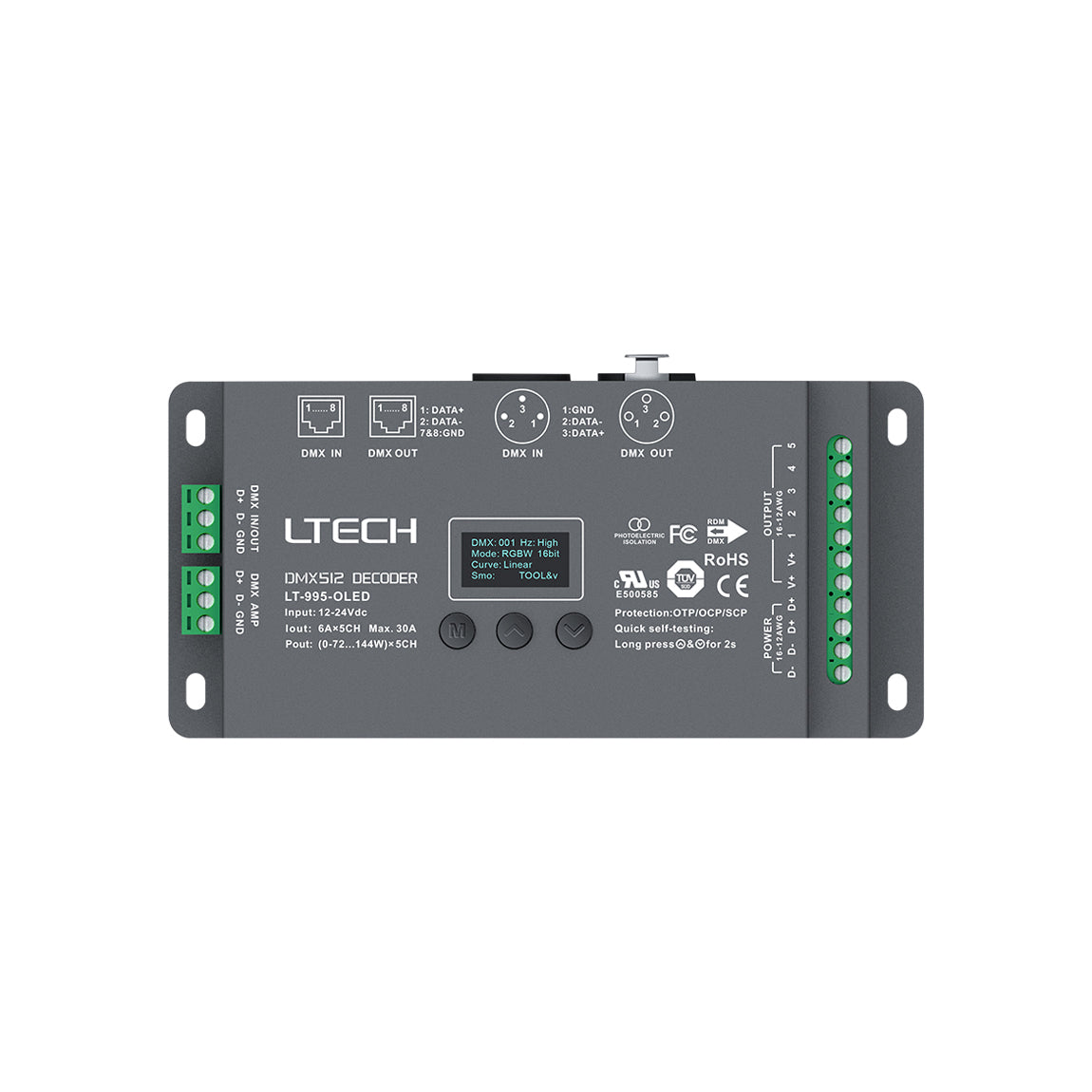

Ltech LT-995-OLED Constant Voltage Decoder - DMX/RDM

Name: Ltech LT-995-OLED Constant Voltage Decoder - DMX/RDM
Brand: Ltech
SKU: LT-995-OLED
Price: 159.3 USD
Availability: InStock

$159.30 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The 5-channel OLED DMX decoder is suitable for applications where DIM, CT, RGB, RGBW and RGBWY modules must be controlled with a DMX signal. In case you are using RGBW FlexStrip a maximum of 1 module can be connected. With the Dimming this will be 5 modules. It has 5 channels of 6A (30A max) and a maximum power of 720W. Works with 12 and 24 Volt DC LED modules. Has multiple DMX sockets to chose from: Green terminal, RJ45 and XLR-3. Also supports 8 & 16 bit functions and has 0.1 - 9,9 dimming curve.

Specifications

Brand

Ltech
Series

Ltech DMX Series
Power Rating

720 Watt
Output Voltage

24 Volt
Rated Current

30 Ampere
Input Voltage

12V~24V
Standards Met

CE,FCC,ROHS,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~65°C
Warranty

5 Year
Length

6.65 in
Width

3.15 in
Height

1.54 in
Weight

1.21 lb

File Downloads

::specification::
