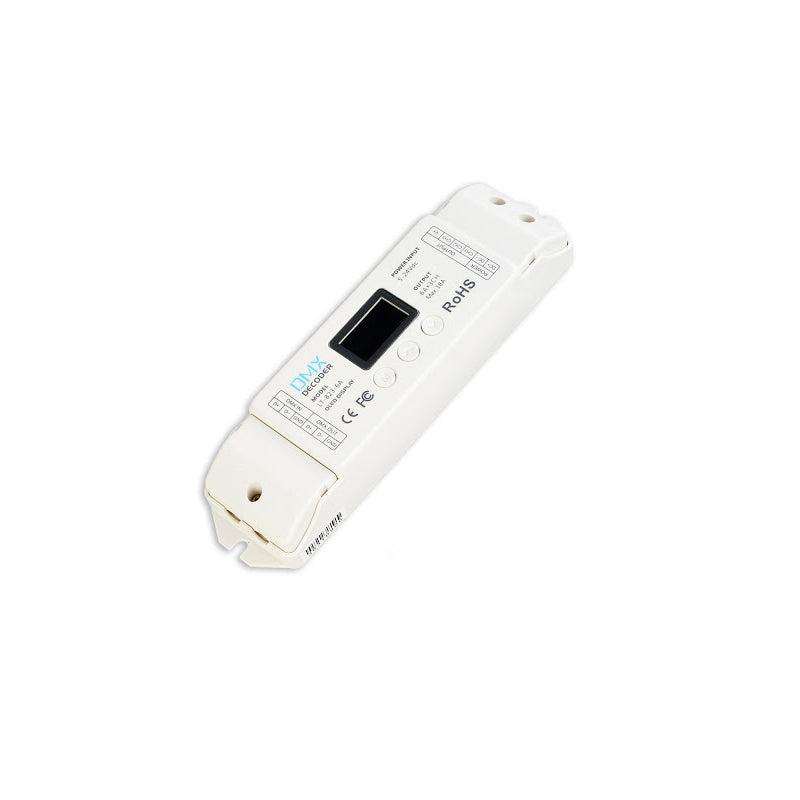

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Ltech LT-823-6A Constant Voltage Decoder - DMX

Name: Ltech LT-823-6A Constant Voltage Decoder - DMX
Brand: Ltech
SKU: LT-823-6A
Price: 104.24 USD
Availability: InStock

$104.24 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

DMX Decoder adopted the advanced micro-electronic control technology to convert universal DMX512/1990 digital signal to CC/CV PWM signal to drive LED, which controlled by DMX512 console, realize 0-100% brightness or various changing effect. And can control single color, dupi-color, RGB, RGBY, RGBW, RGBA LED lights.

Have excellent performance:

16-bit dimming curve.

Frame rate is as high as 850 frames per second.

Built-in protection circuit of resistance to lighting stroke and ESD static electricity.

Specifications

Brand

Ltech
Series

Ltech DMX Series
Power Rating

432 Watt
Output Voltage

24 Volt
Rated Current

18 Ampere
Input Voltage

5V~24V
Standards Met

CE,FCC,ROHS
Operation Mode

Constant Voltage
Operating Temperature

-30°C~55°C
Warranty

5 Year
Length

6.89 in
Width

1.73 in
Height

1.18 in
Weight

0.4 lb

File Downloads

::specification::
