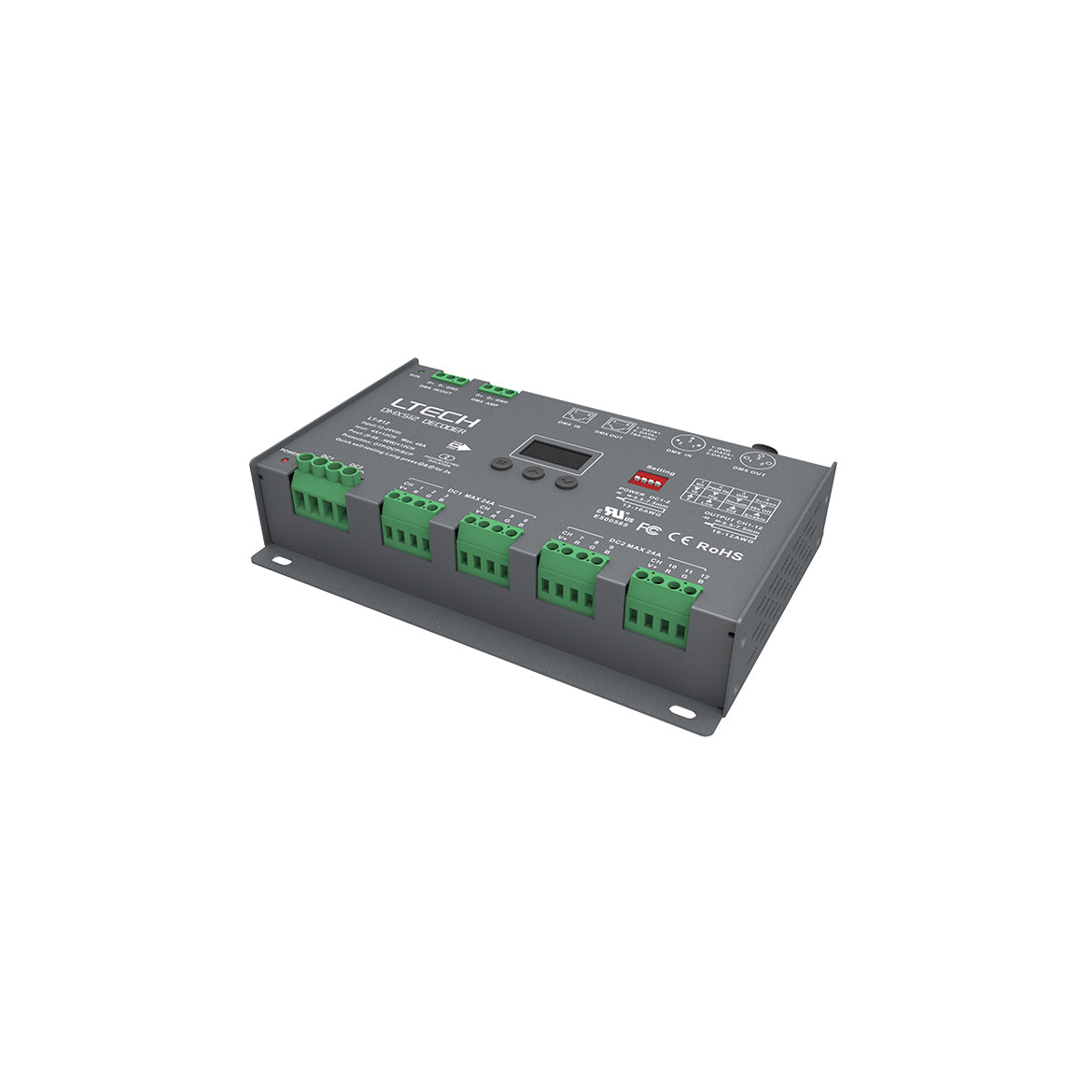

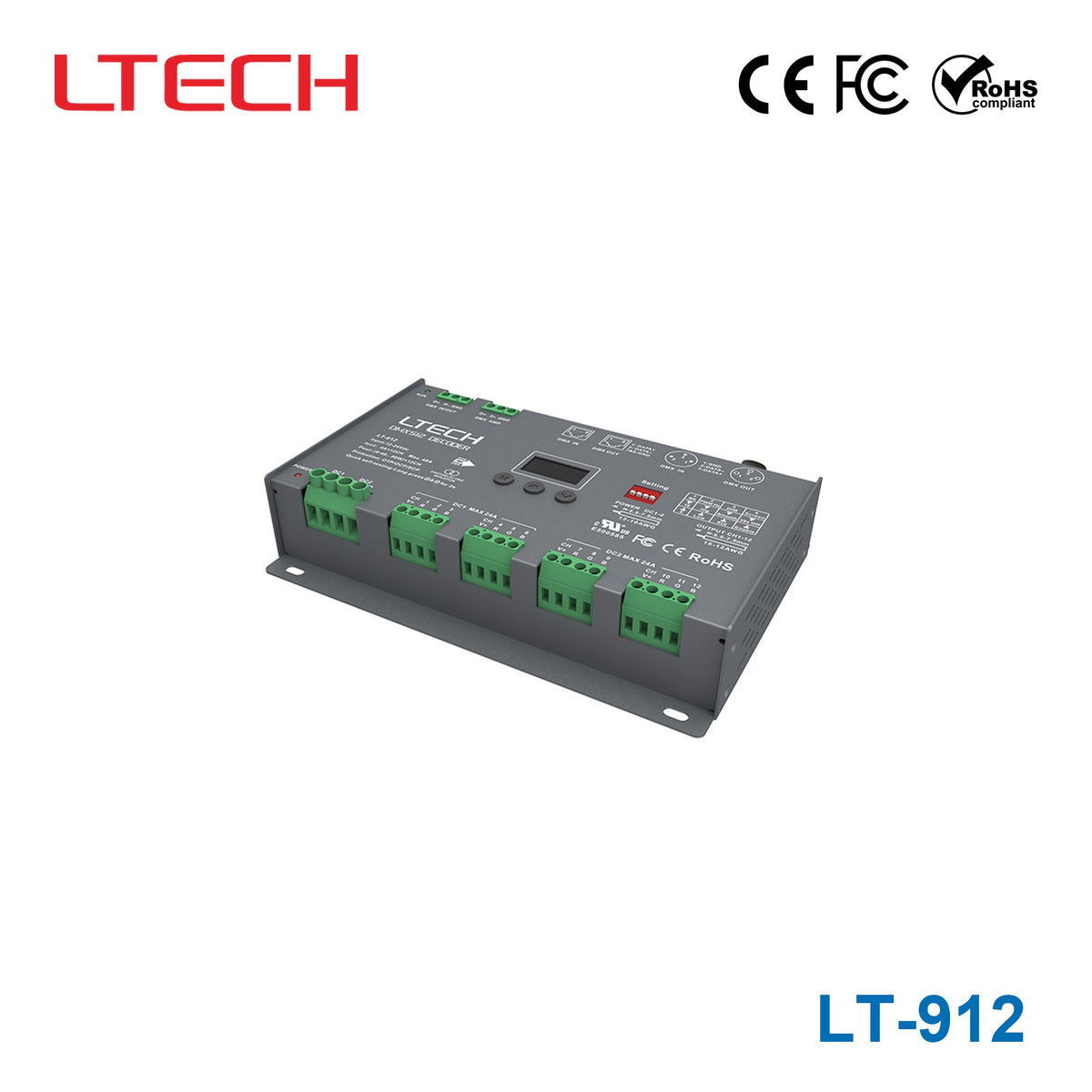

Ltech LT-912 Constant Voltage Decoder - DMX/RDM

Name: Ltech LT-912 Constant Voltage Decoder - DMX/RDM
Brand: Ltech
SKU: LT-912
Price: 192.85 USD
Availability: InStock

$192.85 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

LTech LT-912 Product Introduction

1. Designed for Hi-power multiple channels application, 12 channels output, and up to 1152W output power.

2. Easy operation with digital display and the touch buttons.

3. Support 3 kinds of DMX ports : 3-pin XLR, RJ45 and green terminal (with signal amplifier function).

4. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.

5. With shortcut protection and over load protection, as well as warning function when fault.

6. With fast self-testing function.

7. High/low PWM frequency for optional

8. 16bit (65536 levels) / 8bit (256 levels) grey level optional.

Specifications

Brand

Ltech
Series

Ltech DMX Series
Power Rating

1152 Watt
Output Voltage

24 Volt
Rated Current

48 Ampere
Input Voltage

12V~24V
Standards Met

CE,FCC,ROHS
Operation Mode

Constant Voltage
Operating Temperature

-30°C~65°C
Warranty

5 Year
Length

7.09 in
Width

4.8 in
Height

1.54 in
Weight

1.61 lb
