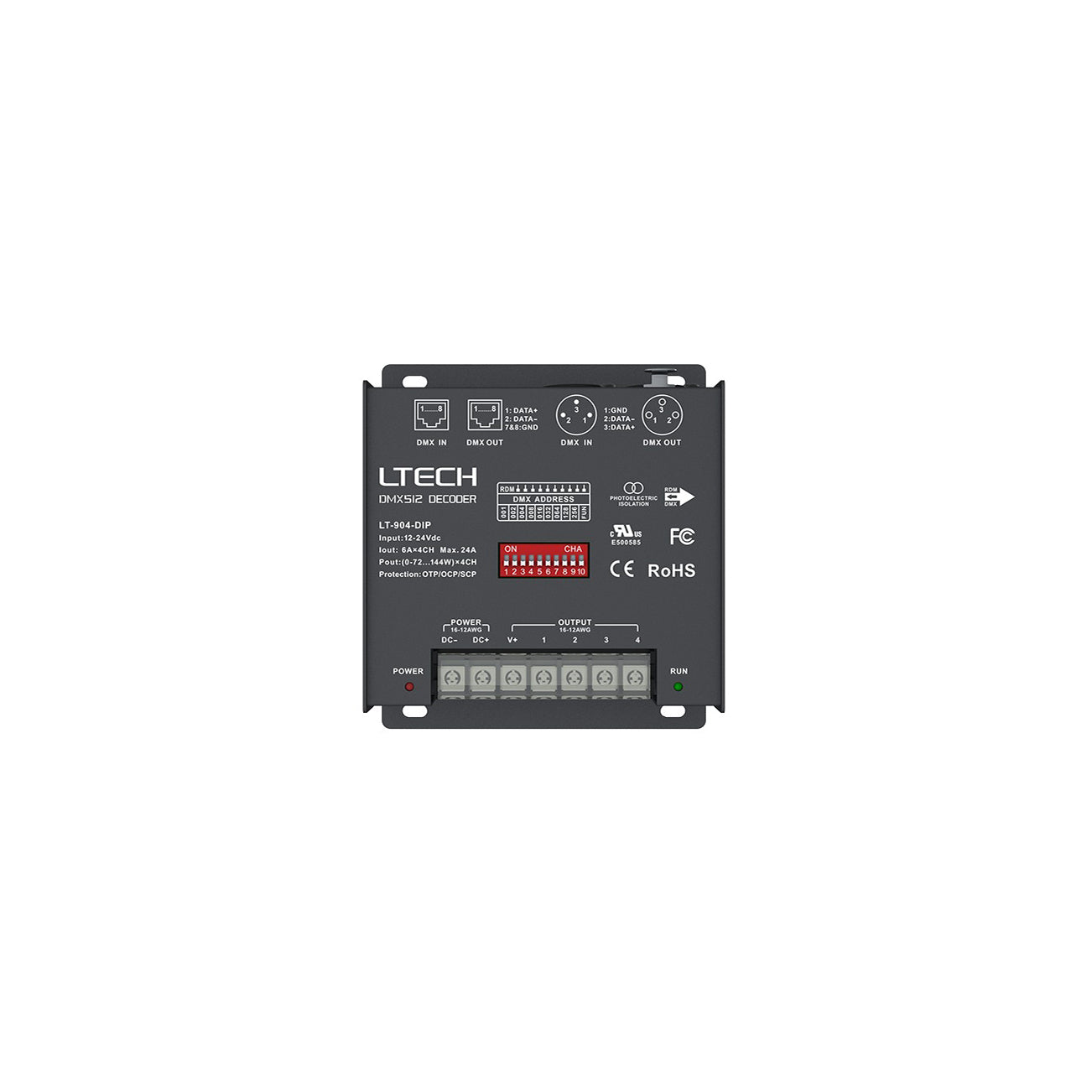

Ltech LT-904-DIP Constant Voltage Decoder - DMX/RDM

Name: Ltech LT-904-DIP Constant Voltage Decoder - DMX/RDM
Brand: Ltech
SKU: LT-904-DIP
Price: 104.75 USD
Availability: InStock

$104.75 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

LTech LT-904-DIP Product Introduction

1. Designed with 4 channels output, and Max. 6A current per channel, up to 576W output power.

2. Support 2 kinds of DMX ports: 3-pin XLR, RJ45.

3. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition,etc.

4. With short circuit protection and over current protection, as well as warning function when fault.

Specifications

Brand

Ltech
Series

Ltech DMX Series
Power Rating

576 Watt
Output Voltage

24 Volt
Rated Current

24 Ampere
Input Voltage

12V~24V
Standards Met

CE,FCC,ROHS
Operation Mode

Constant Voltage
Operating Temperature

-30°C~65°C
Warranty

5 Year
Length

4.8 in
Width

4.33 in
Height

1.46 in
Weight

1.21 lb

File Downloads

::specification::
