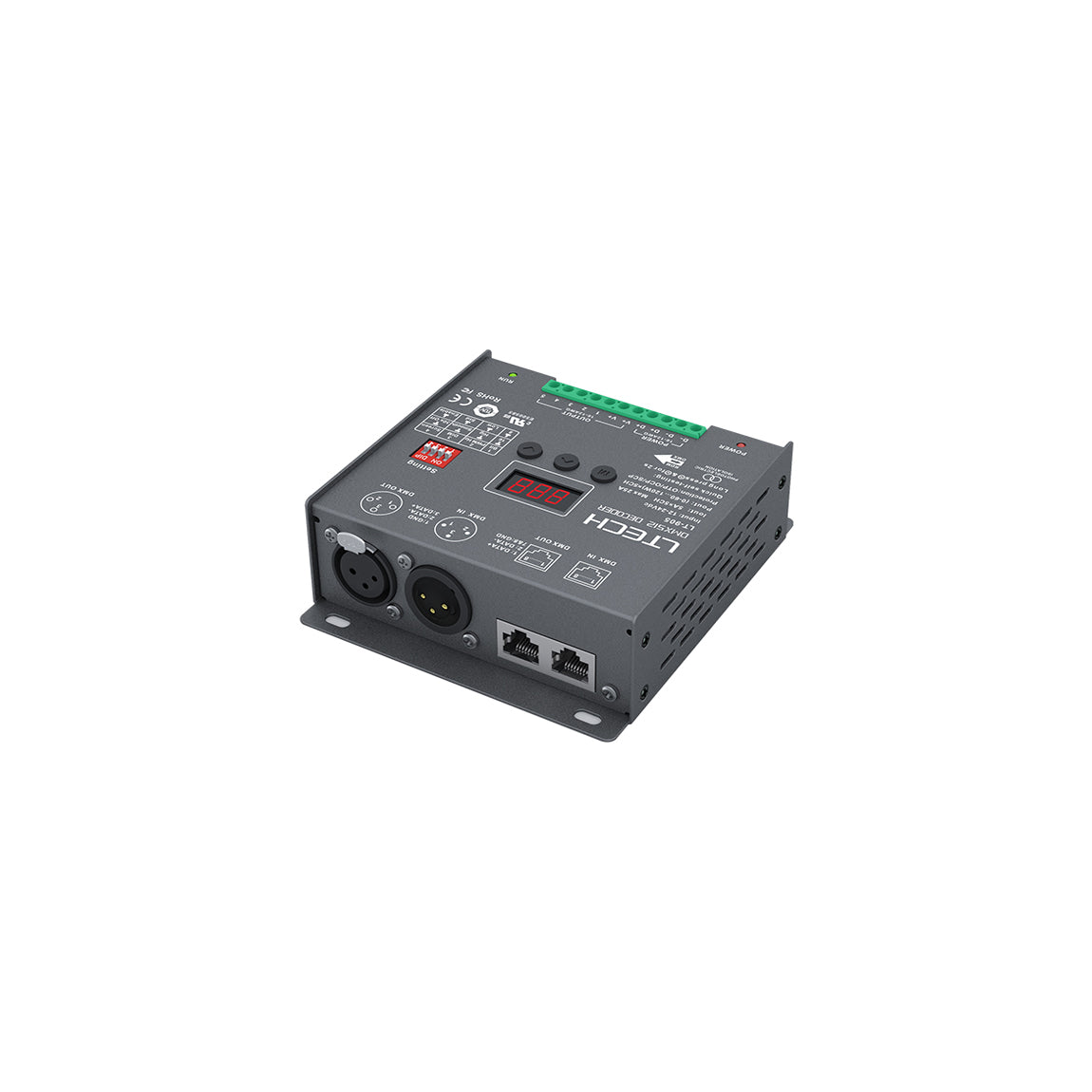

Ltech LT-905 Constant Voltage Decoder - DMX/RDM

Name: Ltech LT-905 Constant Voltage Decoder - DMX/RDM
Brand: Ltech
SKU: LT-905
Price: 141.11 USD
Availability: InStock

$141.11 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

LTech LT-905 Product Introduction

1. Designed with 5 channels output, and Max. 5A current per channel, up to 600W output power.

2. Easy operation with digital display and the touch buttons.

3. Support 2 kinds of DMX ports: 3-pin XLR, RJ45.

4. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition,etc.

5. With shortcut protection and over load protection, as well as warning function when fault.

6. With fast self-testing function.

7. High/low PWM frequency for optional

8. 16bit (65536 levels) / 8bit (256 levels) grey level optional

Specifications

Brand

Ltech
Series

Ltech DMX Series
Power Rating

600 Watt
Output Voltage

24 Volt
Rated Current

25 Ampere
Input Voltage

12V~24V
Standards Met

CE,FCC,ROHS,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~65°C
Warranty

5 Year
Length

4.8 in
Width

4.33 in
Height

1.46 in
Weight

1.21 lb
