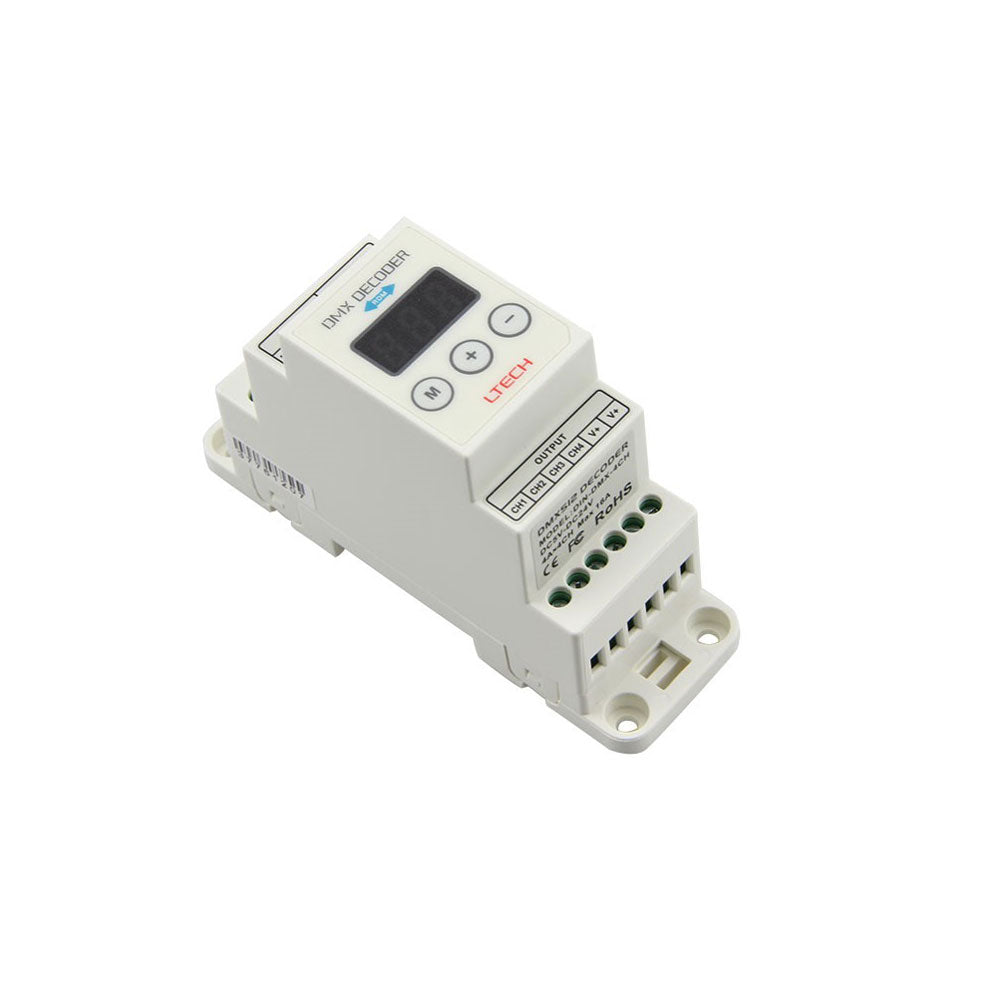

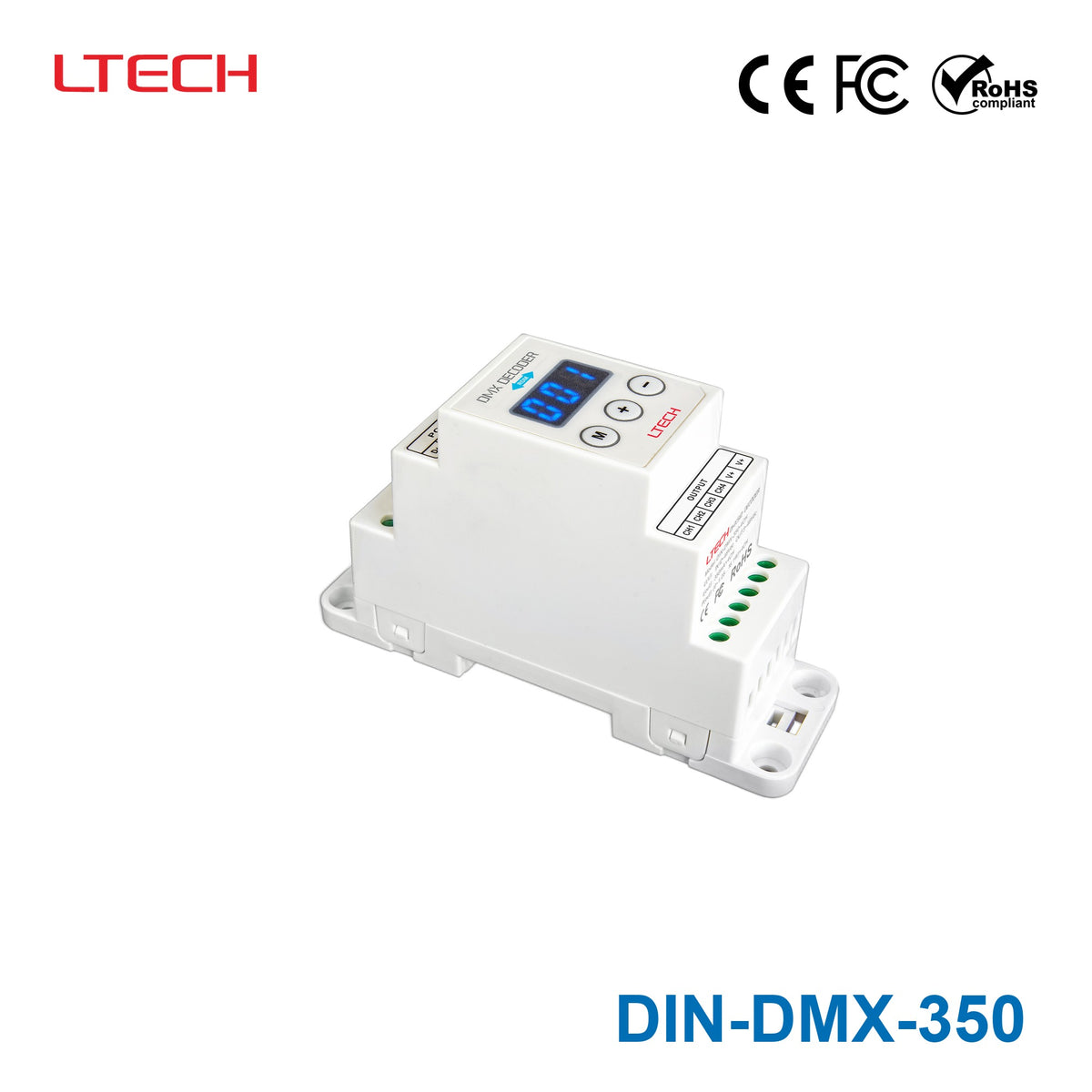

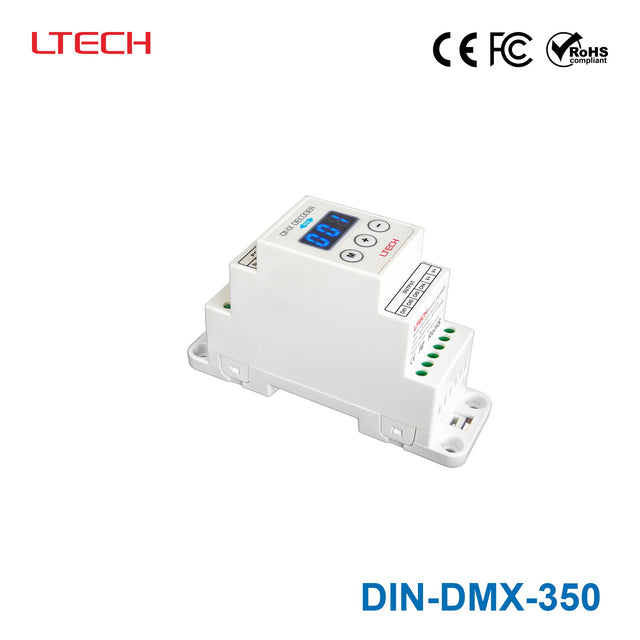

Ltech DIN-DMX-350 Constant Current Decoder - DMX/RDM

Name: Ltech DIN-DMX-350 Constant Current Decoder - DMX/RDM
Brand: Ltech
SKU: DIN-DMX-350
Price: 75.17 USD
Availability: InStock

$75.17 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

DMX Decoder adopted the advanced micro-electronic control technology to convert universal DMX512/1990 digital signal to CC/CV PWM signal to drive LED, which controlled by DMX512 console, realize 0-100% brightness or various changing effect. And can control single color, dupi-color, RGB LED lights.

Have excellent performance:

16-bit dimming curve.

Frame rate is as high as 850 frames per second.

Built-in protection circuit of resistance to lighting stroke and ESD static electricity.

Specifications

Brand

Ltech
Series

Ltech DMX Series
Power Rating

48.3 Watt
Output Voltage

46 Volt
Rated Current

0.35 Ampere
Input Voltage

12V~48V
Standards Met

CE,FCC,ROHS
Operation Mode

Constant Voltage
Operating Temperature

-30°C~55°C
Warranty

5 Year
Length

4.41 in
Width

1.38 in
Height

2.64 in
Weight

0.31 lb

File Downloads

::specification::
