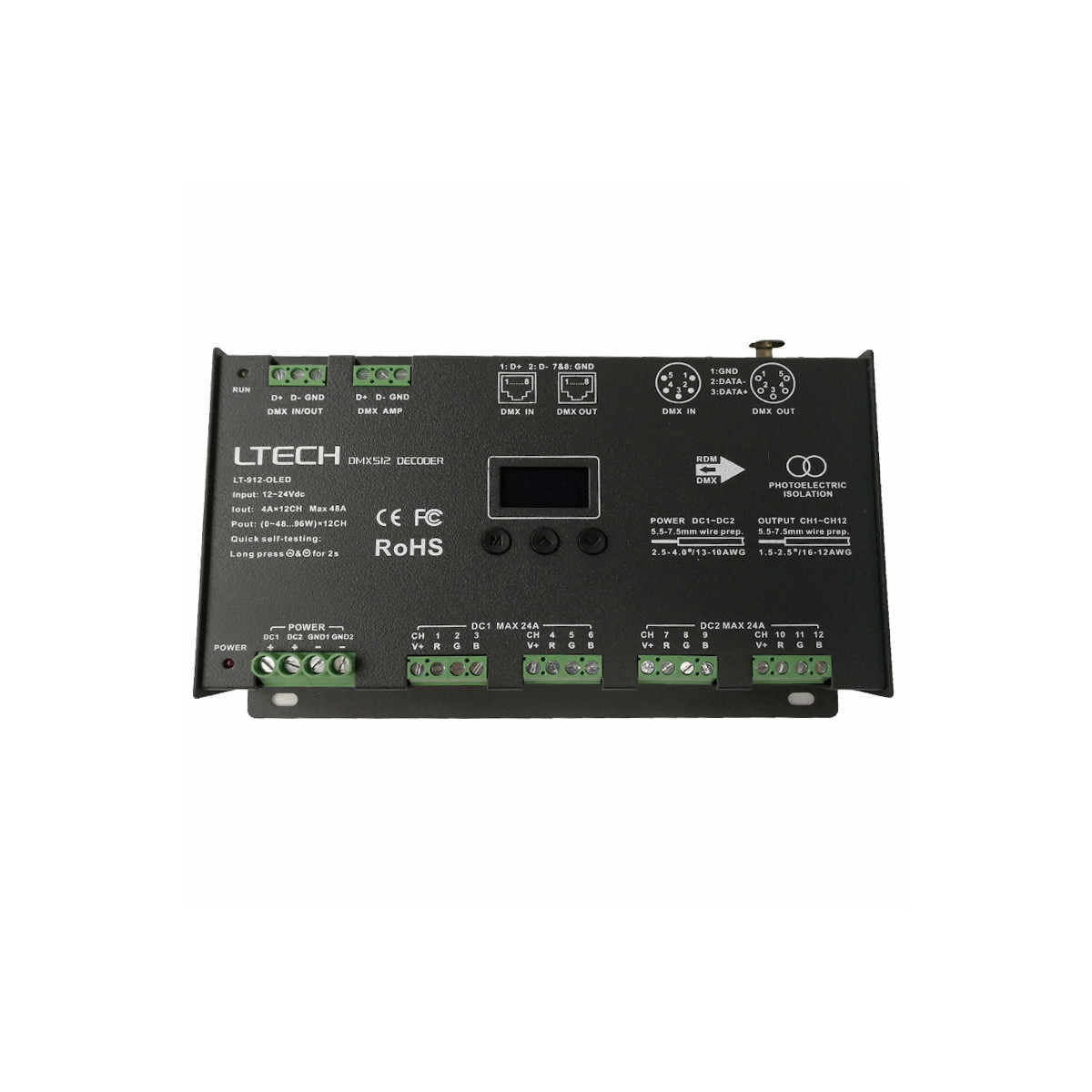

Ltech LT-912-OLED Constant Voltage Decoder - DMX/RDM

Name: Ltech LT-912-OLED Constant Voltage Decoder - DMX/RDM
Brand: Ltech
SKU: LT-912-OLED
Price: 207.4 USD
Availability: InStock

$207.40 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The 12-channel OLED DMX decoder is suitable for applications where multiple DIM, CT or RGB must be controlled with a DMX signal. In case you are using RGB FlexStrip a maximum of 4 modules can be connected. It has 12 channels of 4A (48A max) and a maximum power of 1152W. Works with 12 and 24 Volt DC LED modules. Has multiple DMX sockets to chose from: RJ45, Green terminal and XLR-5. Also supports 8 & 16 bit functions and has 0.1 - 9,9 dimming curve.

Specifications

Brand

Ltech
Series

Ltech DMX Series
Power Rating

1152 Watt
Output Voltage

24 Volt
Rated Current

48 Ampere
Input Voltage

12V~24V
Standards Met

CE,FCC,ROHS,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~65°C
Warranty

5 Year
Length

7.09 in
Width

4.8 in
Height

1.54 in
Weight

1.61 lb

File Downloads

::specification::
