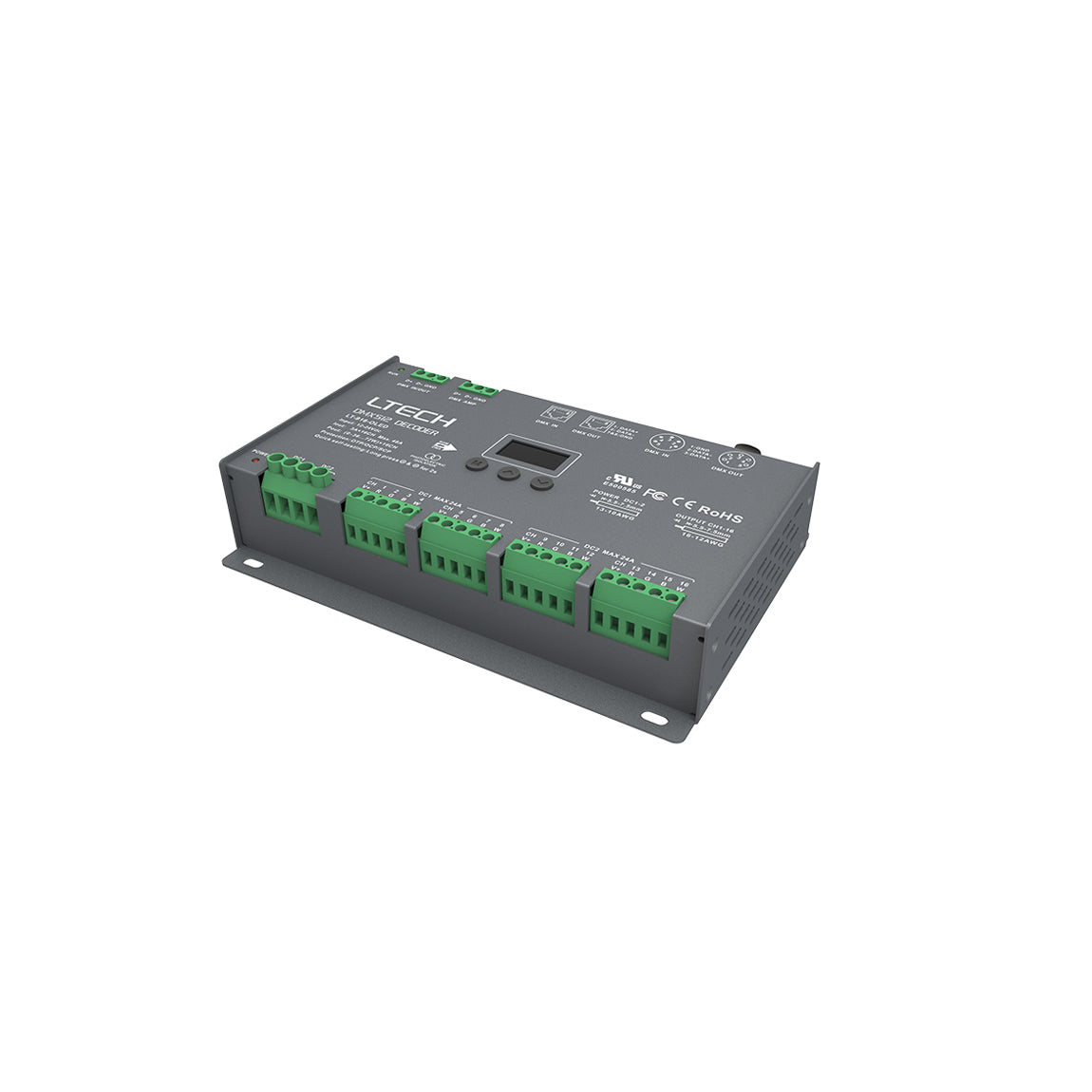

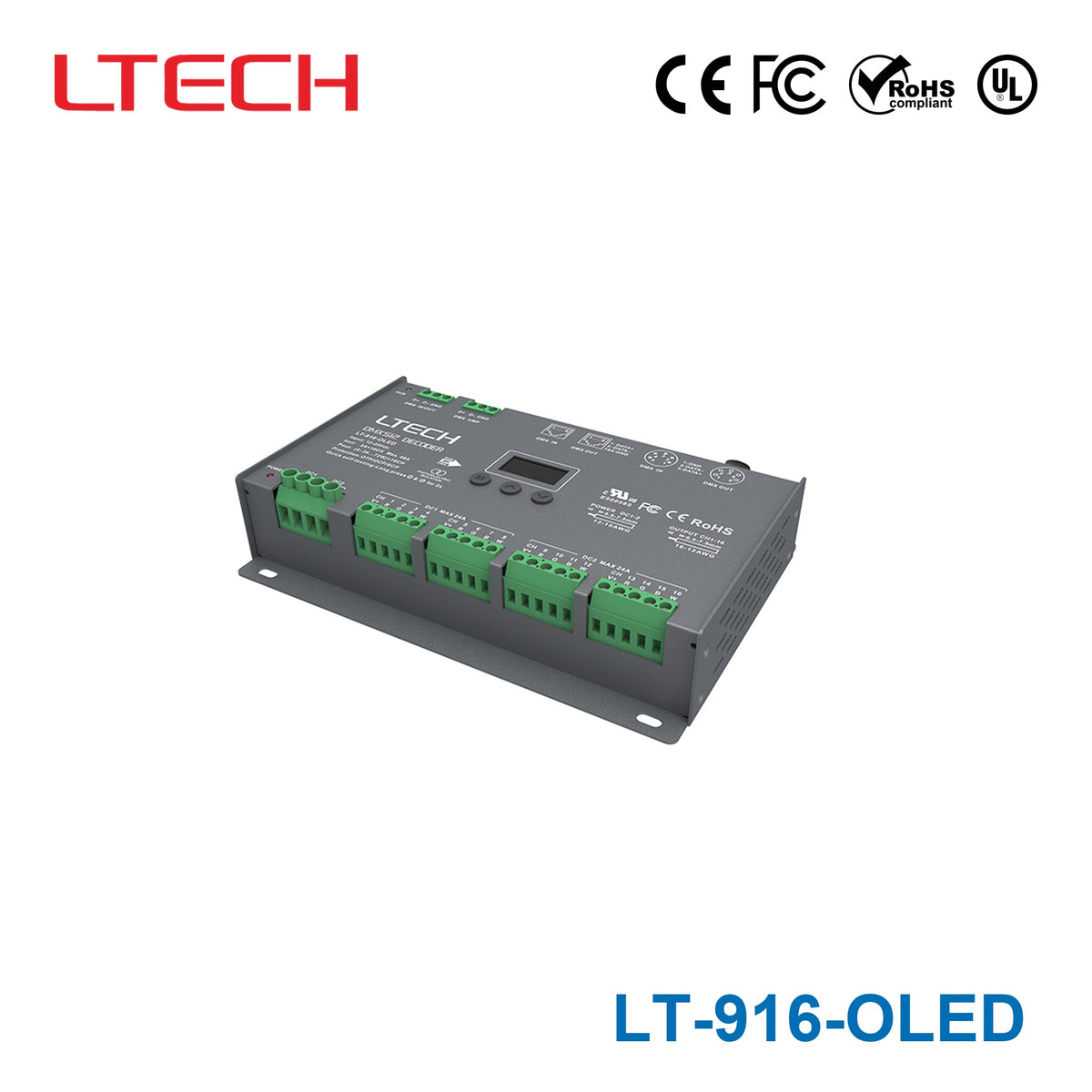

Ltech LT-916-OLED Constant Voltage Decoder - DMX/RDM

Name: Ltech LT-916-OLED Constant Voltage Decoder - DMX/RDM
Brand: Ltech
SKU: LT-916-OLED
Price: 247.4 USD
Availability: InStock

$247.40 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

- Designed for Hi-power multiple channels application, 16 channels output, and

Max. 3A current per channel, up to 1152W output power.

- Easy operation with OLED screen and touch buttons.

- 4 kinds of mode optional: single color, color temperature, RGB, RGBW.

- Support 3 kinds of DMX ports with signal isolation function: 5-pin XLR, RJ45 and

green terminal (with signal amplifier function).

- With RDM remote management protocol, the operations can be completed via the

RDM master console, such as parameters browsing & setting, DMX address

setting, equipment recognition, etc.

- With photoelectric isolation function.

- With short circuit protection and over current protection, as well as warning

function when fault.

- With fast self-testing function.

- 16bit (65536 levels) / 8bit (256 levels) grey level optional.

- Multiple dimming curve (0.1~9.9) optional.

Specifications

Brand

Ltech
Series

Ltech DMX Series
Power Rating

1152 Watt
Output Voltage

24 Volt
Rated Current

48 Ampere
Input Voltage

12V~24V
Standards Met

CE,FCC,ROHS,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~65°C
Warranty

5 Year
Length

7.09 in
Width

4.8 in
Height

1.54 in
Weight

1.61 lb
