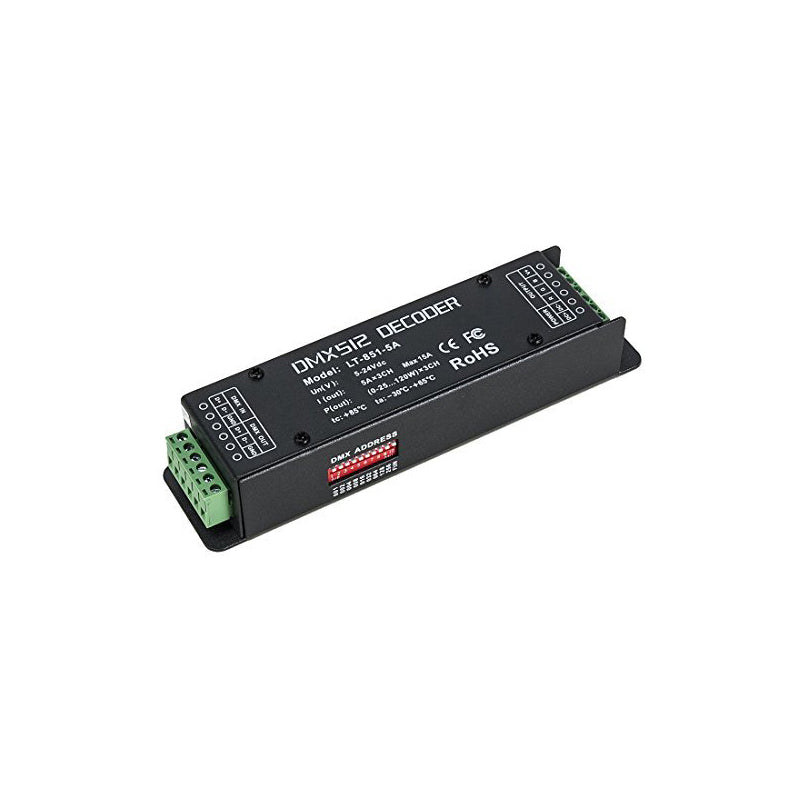

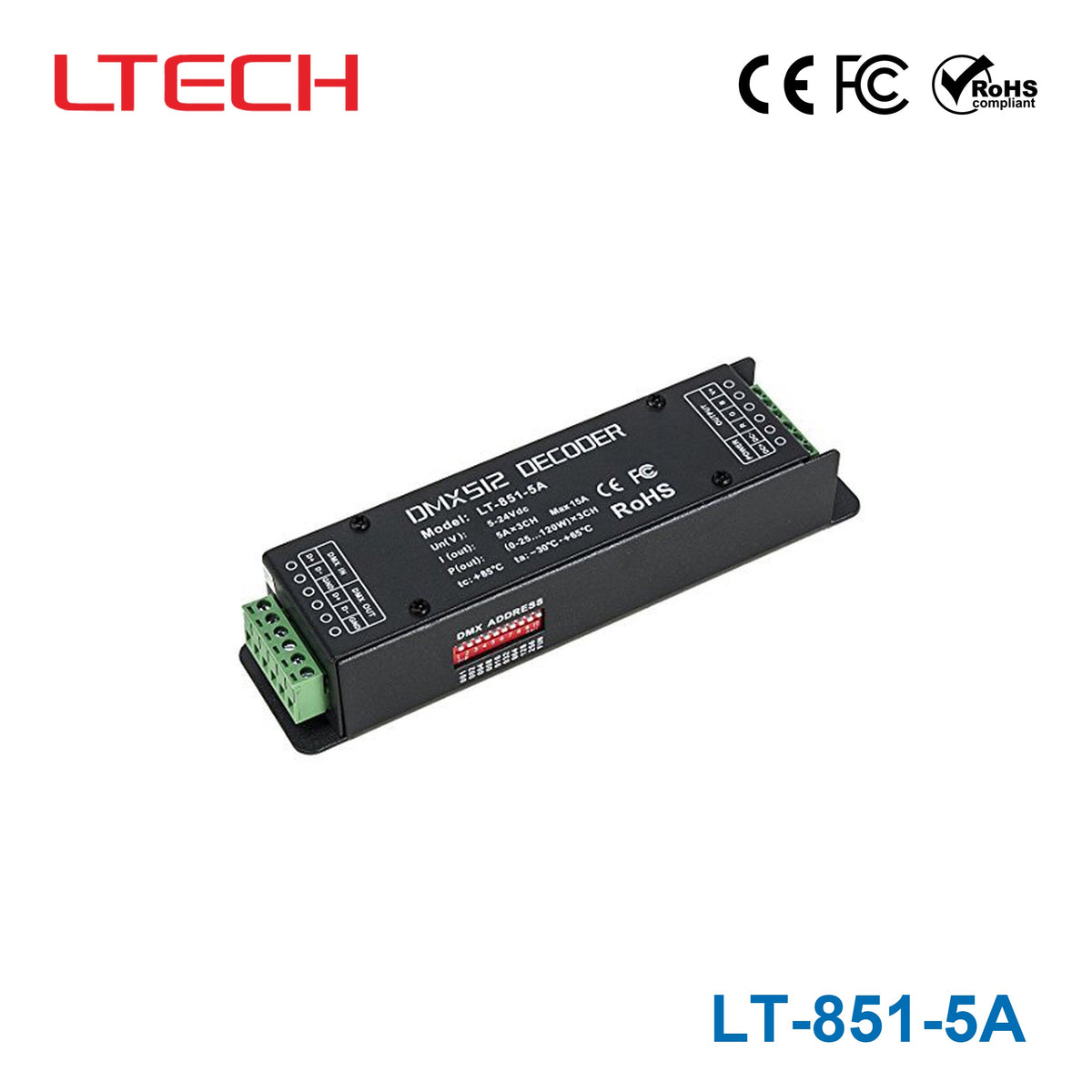

Ltech LT-851-5A Constant Voltage Decoder - DMX/RDM
$47.77 USD
Unit price /
Unavailable
Description
Description
LT-851-5A DMX-PWM decoder works to convert universal DMX512 digital signal to PWM
signal, which controlled by DMX512 console, with 8bit gray scale output per channel.
Realize 0-100% brightness and various changing effect. And can control single color, two
color, RGB LED lights.
Specifications
Specifications
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating360 Watt
-
Output Voltage24 Volt
-
Rated Current15 Ampere
-
Input Voltage5V~24V
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~65°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.65 in
-
Height1.3 in
-
Weight0.68 lb
