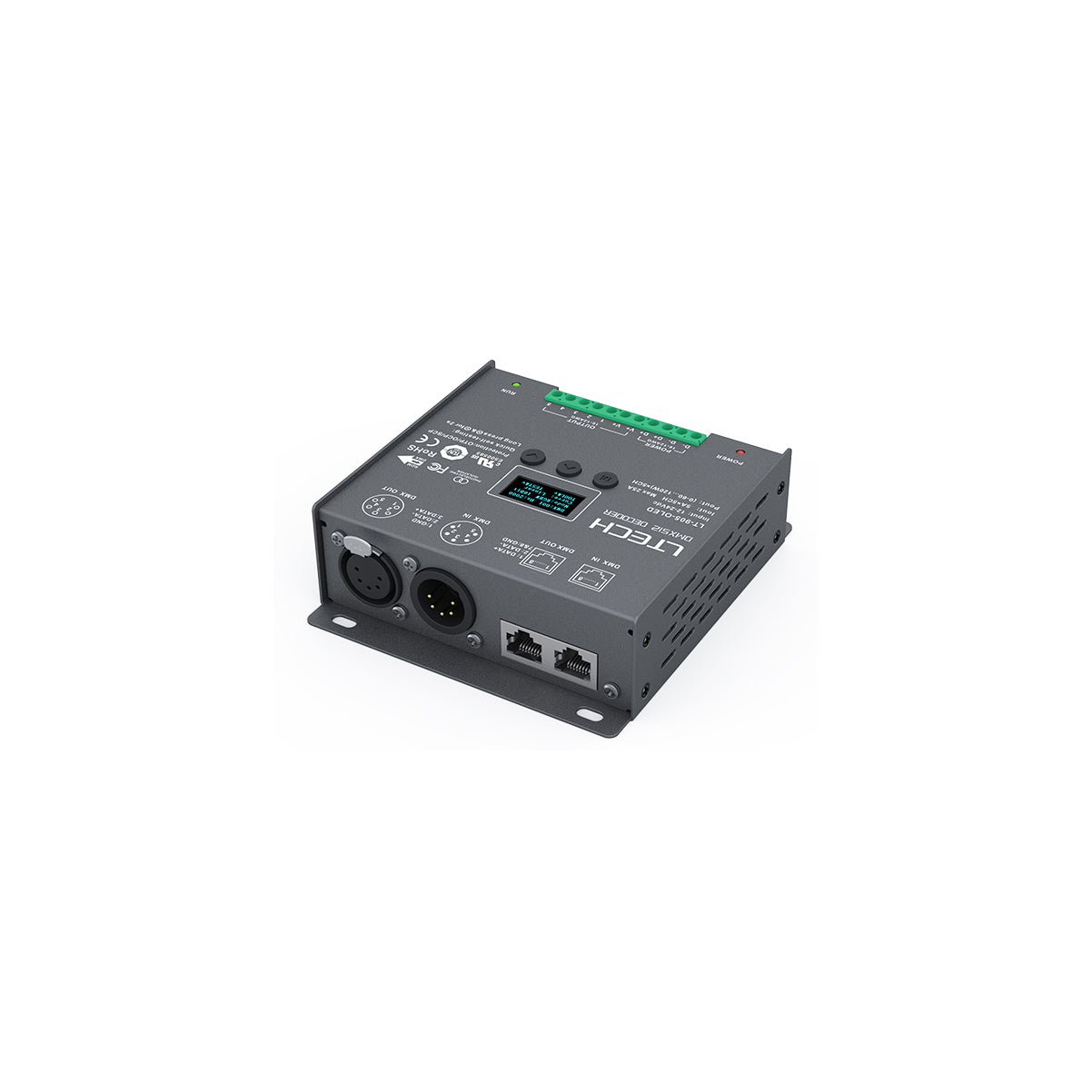

Ltech LT-905-OLED Constant Voltage Decoder - DMX/RDM

Name: Ltech LT-905-OLED Constant Voltage Decoder - DMX/RDM
Brand: Ltech
SKU: LT-905-OLED
Price: 155.66 USD
Availability: InStock

$155.66 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The 5-channel OLED DMX decoder is suitable for applications where DIM, CT, RGB, RGBW and RGBWY modules must be controlled with a DMX signal. In case you are using RGBW FlexStrip a maximum of 1 module can be connected. With the Dimming this will be 5 modules. It has 5 channels of 5A (25A max) and a maximum power of 600W. Works with 12 and 24 Volt DC LED modules. Has multiple DMX sockets to chose from: RJ45 and XLR-5. Also supports 8 & 16 bit functions and has 0.1 - 9,9 dimming curve.

Specifications

Brand

Ltech
Series

Ltech DMX Series
Power Rating

600 Watt
Output Voltage

24 Volt
Rated Current

25 Ampere
Input Voltage

12V~24V
Standards Met

CE,FCC,ROHS
Operation Mode

Constant Voltage
Operating Temperature

-30°C~65°C
Warranty

5 Year
Length

4.8 in
Width

4.33 in
Height

1.46 in
Weight

1.21 lb
