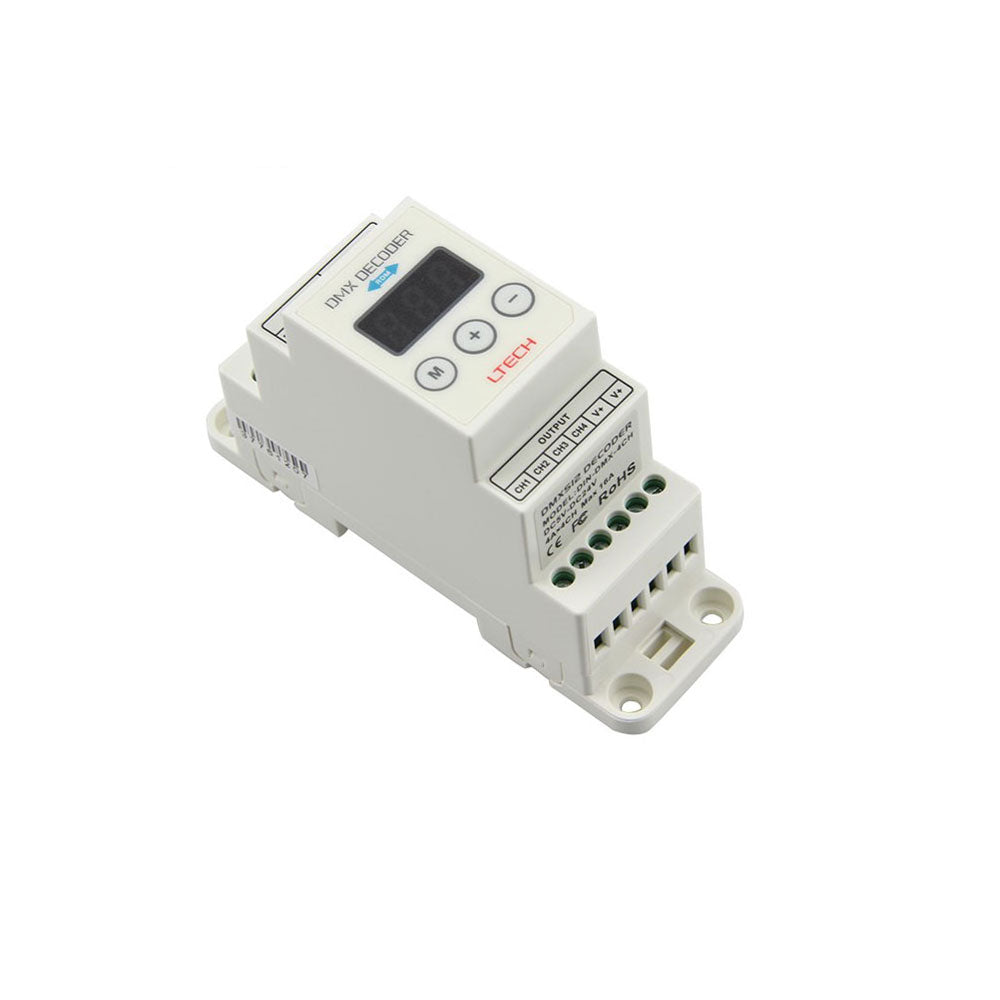

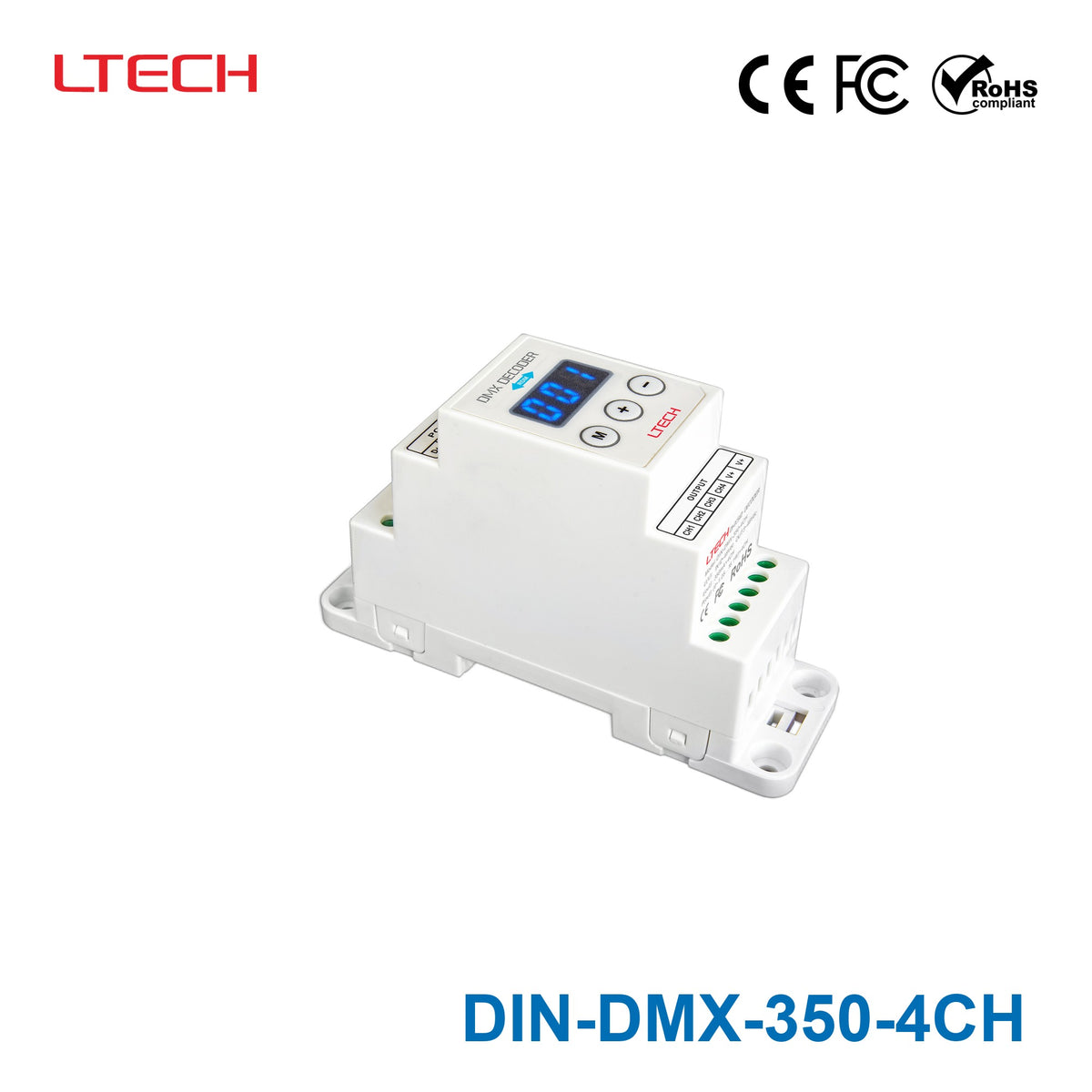

Ltech DIN-DMX-350-4CH Constant Current Decoder - DMX/RDM
$82.44 USD
Unit price /
Unavailable
Description
Description
- Dimming interface: MX512, RDM
- PWM digital dimming, no alter LED color rendering index.
- Dimming range: 0~100%, LED start at 0.1% possible.
- 4CH output, 350mA per channel.
- Full protective plastic housing.
- Suitable for indoor environments.
Specifications
Specifications
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating64.4 Watt
-
Output Voltage46 Volt
-
Rated Current0.35 Ampere
-
Input Voltage12V~48V
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length4.41 in
-
Width1.38 in
-
Height2.64 in
-
Weight0.31 lb
