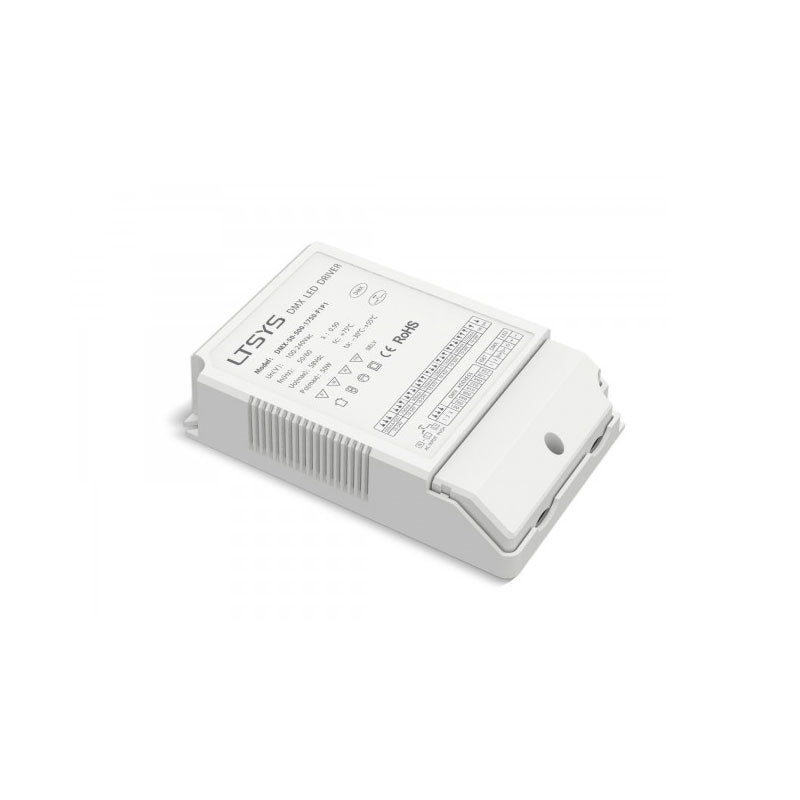

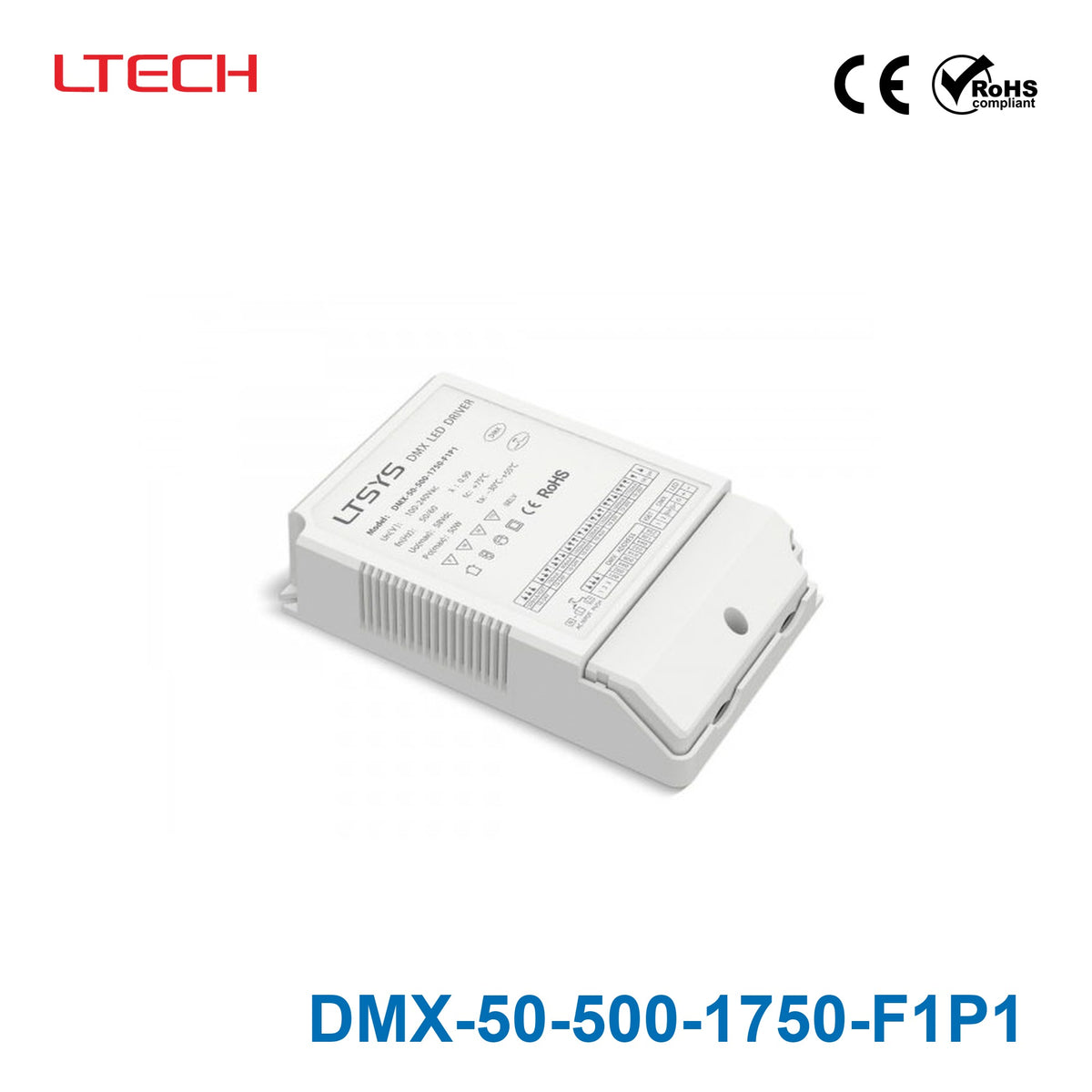

Ltech DMX-50-500-1750-F1P1 DMX Driver 500-1750mA 50W
$67.13 USD
Unit price /
Unavailable
Description
Description
Features
- Dimming interface: DMX512/RDM, Push Dim.
- PWM digital dimming, no alter LED colour temperature
- Dimming range: 0~100%, LED start at 0.1% possible
- Multiple current, wide voltage, compatible with a variety of LED lights
- Power factor > 0.99, Efficiency > 85%.
- Short circuit / Over-temperature / Over load / Non-load protection
- Non-load output voltage 0V to prevent damages to LED caused by poor contact.
- Class 2 power supply. Full protective plastic housing.
- Compliant with Safety Extra Low Voltage standard
- Suitable for indoor environments
Specifications
Specifications
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating50 Watt
-
Output Voltage50 Volt
-
Rated Current1 Ampere
-
Input Voltage100V~240V
-
Standards MetCE,ROHS,SELV
-
Operation ModeConstant Current
-
Operating Temperature-30°C~55°C
-
Warranty3 Year
-
Length5.24 in
-
Width3.5 in
-
Height1.18 in
-
Weight0.71 lb
