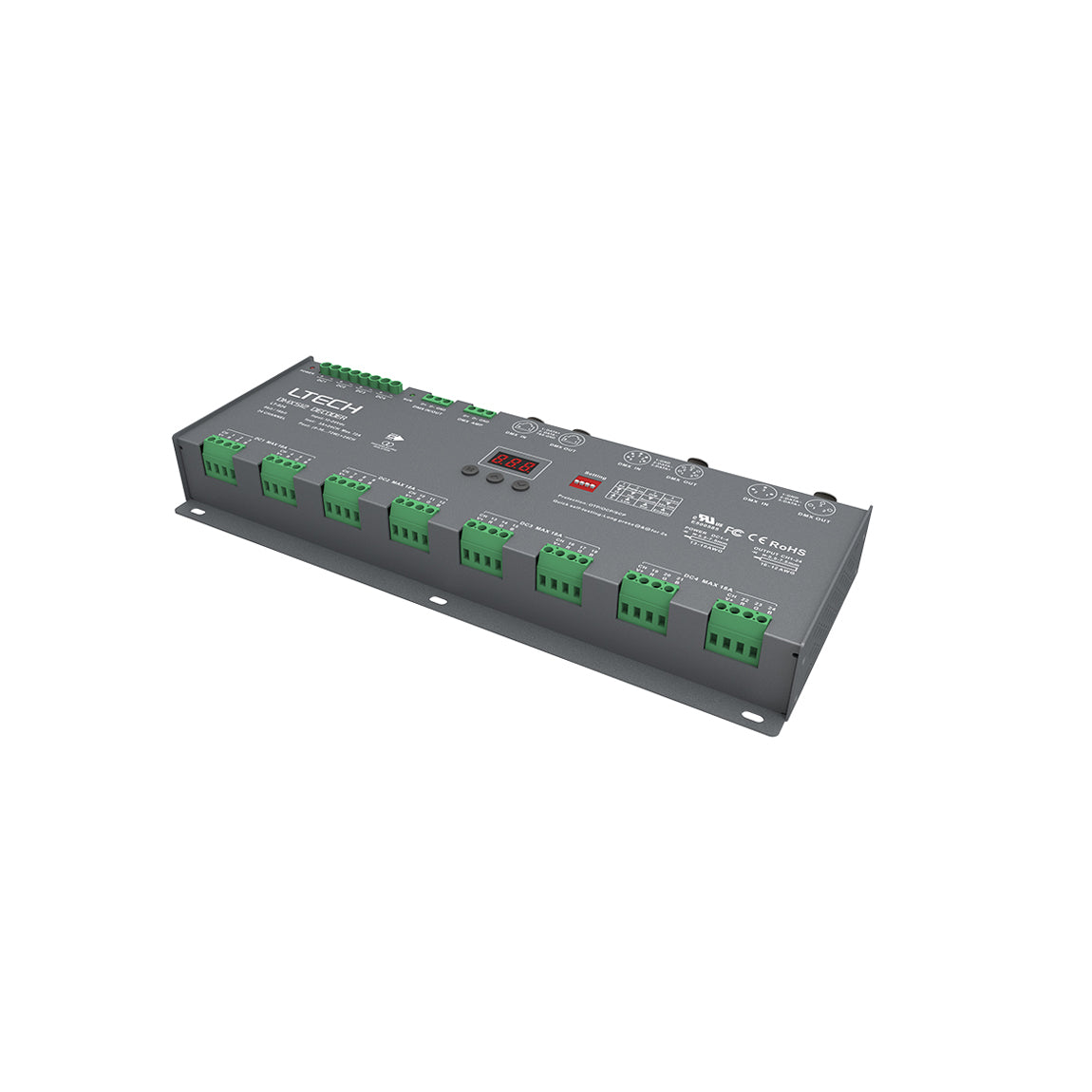

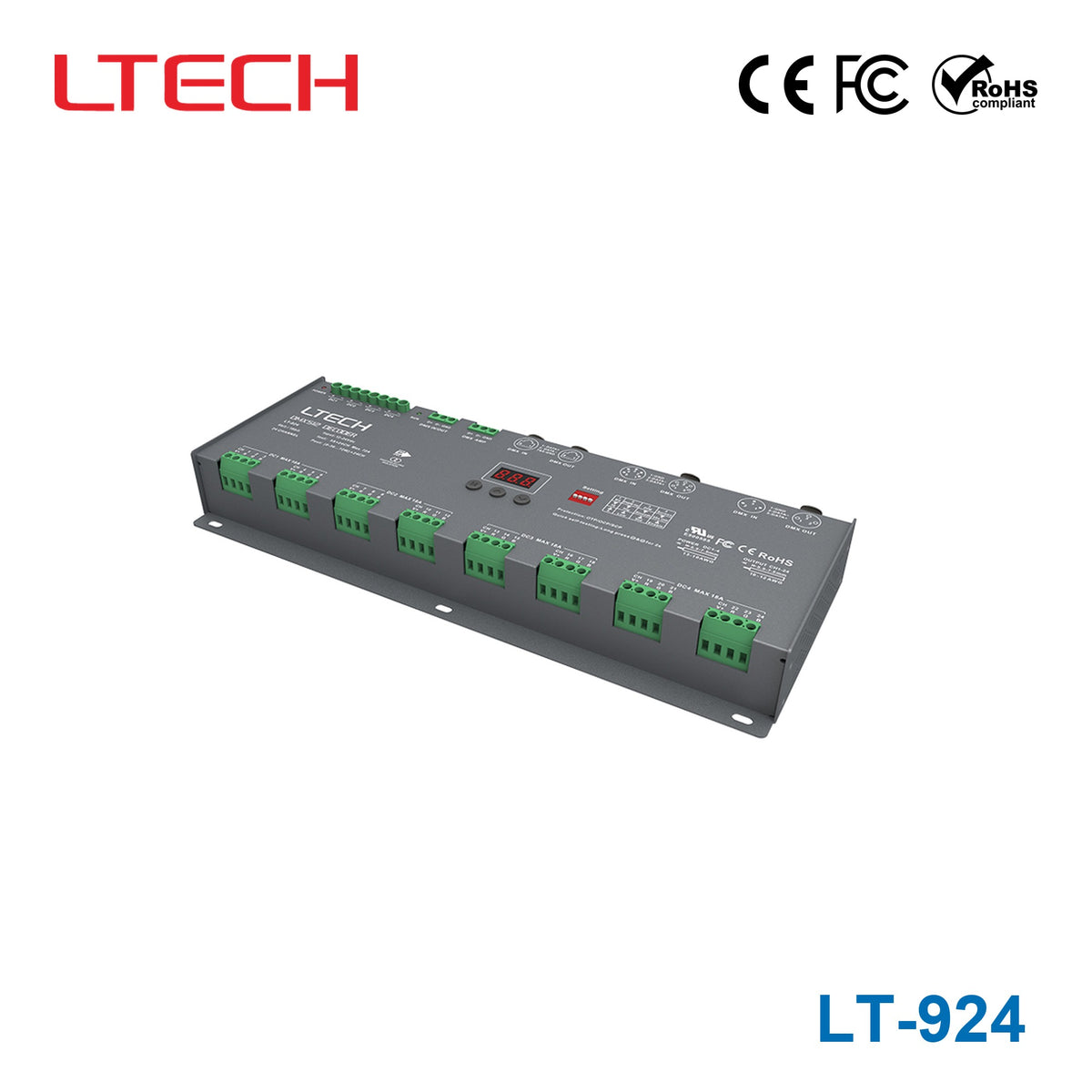

Ltech LT-924 Constant Voltage Decoder - DMX/RDM

Name: Ltech LT-924 Constant Voltage Decoder - DMX/RDM
Brand: Ltech
SKU: LT-924
Price: 304.01 USD
Availability: InStock

$304.01 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The 24-channel OLED DMX decoder is suitable for applications where multiple DIM, CT or RGB must be controlled with a DMX signal. In case you are using RGB FlexStrip a maximum of 8 modules can be connected. It has 24 channels of 3A (72A max) and a maximum power of 1728W. Works with 12 and 24 Volt DC LED modules. Has multiple DMX sockets to chose from: RJ45, Green terminal, XLR-3 and XLR-5. Also supports 8 & 16 bit functions and has 0.1 - 9,9 dimming curve.

Specifications

Brand

Ltech
Series

Ltech DMX Series
Power Rating

1728 Watt
Output Voltage

24 Volt
Rated Current

72 Ampere
Input Voltage

12V~24V
Standards Met

CE,FCC,ROHS
Operation Mode

Constant Voltage
Operating Temperature

-30°C~65°C
Warranty

5 Year
Length

11.81 in
Width

4.8 in
Height

1.54 in
Weight

2.6 lb

File Downloads

::specification::
