Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well LCM-40U Power Supply 35W 350mA 500mA 600mA 700mA(default)...
$31.29 USD
Unit price /
Unavailable
Overview
LCM-40U is the model of this series: rated power 35W, typical efficiency 87.5%.
LCM-40U series is a 35W LED AC/DC constant current mode output LED driver featuring the multiple levels selectable by dip switch. LCM-40U operates from 90～132VAC and offers different current levels ranging between 350mA and 1050mA. Thanks to the efficiency up to 87.5%, with the fanless design, the entire series is able to operate for -30℃~+90℃ case temperature under free air convection. LCM-40U is equipped with various functions, such as the dimming function and synchronization, so as to provide the optimal design flexibility for LED lighting system.
Features
- Constant Current mode output with multiple levels selectable by dip switch
- Plastic housing with class II design
- Built-in active PFC function
- Functions: 3 in 1 dimming (dim-to-off); Auxiliary DC output; synchronization up to 10 units
- 3 years warranty
Specifications
LCM-40USpecifications from the official datasheet (2024-10-16 edition)
OUTPUT
- CURRENT LEVEL
- Current level selectable via DIP switch, please refer to"DIP SWITCH TABLE" section; 350mA / 500mA / 600mA / 700mA(default) / 900mA / 1050mA
- RATED POWER
- 35W
- DC VOLTAGE RANGE
- 2 ~ 100V (350mA) / 2 ~ 70V (500mA) / 2 ~ 59V (600mA) / 2 ~ 50V (700mA) / 2 ~ 39V (900mA) / 2 ~ 34V (1050mA)
- OPEN CIRCUIT VOLTAGE (max.)
- 110V (350mA ~ 600mA) / 65V (700mA ~ 1050mA)
- CURRENT RIPPLENote.6
- 5.0% max. @rated current
- CURRENT TOLERANCE
- ±5%
- AUXILIARY DC OUTPUT
- Nominal 12V(deviation 11.4~12.6V)@50mA
- SETUP TIMENote.3
- 1000ms / 115VAC
INPUT
- VOLTAGE RANGENote.2

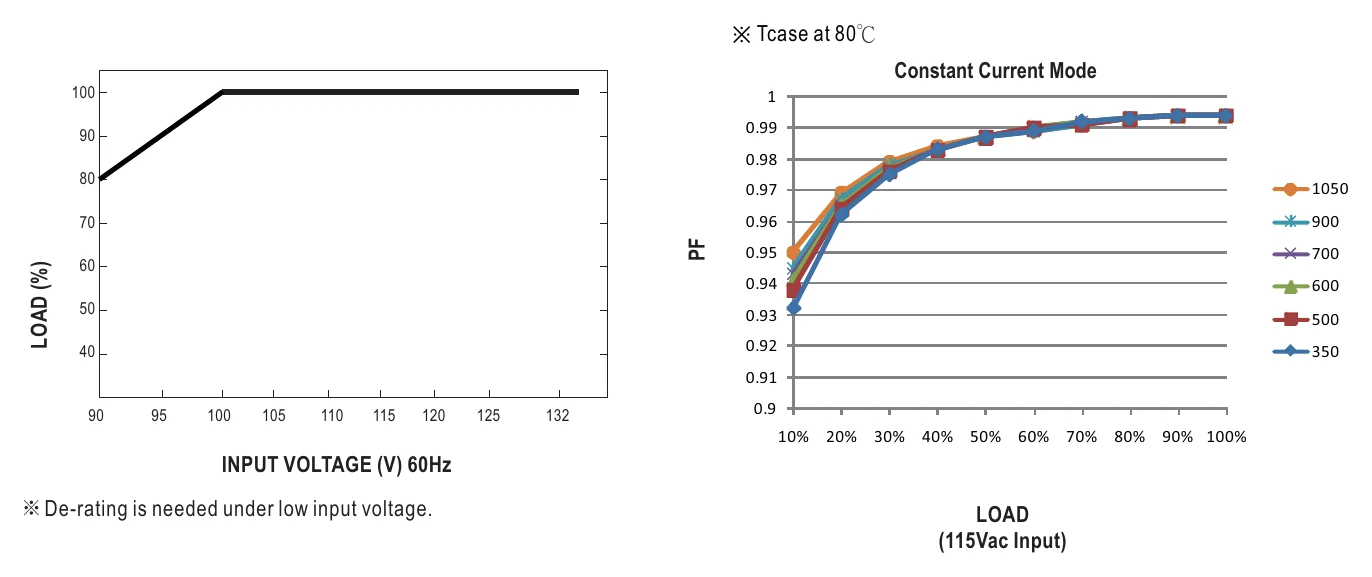

- 90 ~ 132VAC 127 ~ 186VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.98/115VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION

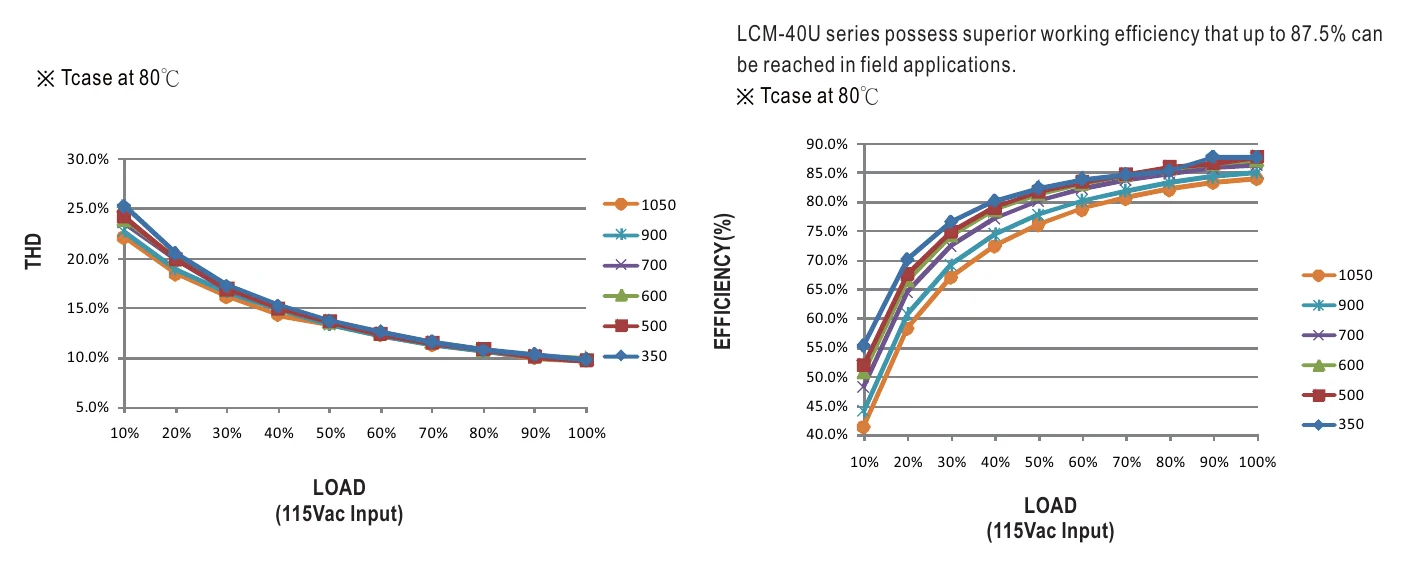

- THD< 20%(@load≧50%) (Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)
- EFFICIENCY (Typ.)Note.4
- 87.5%
- AC CURRENT (Typ.)
- 0.43A/115VAC
- INRUSH CURRENT (Typ.)
- COLD START 15A(twidth=270μs measured at 50% Ipeak) at 115VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 22 units (circuit breaker of type B) / 38 units (circuit breaker of type C) at 115VAC
- LEAKAGE CURRENT
- <0.5mA / 120VAC
PROTECTION
- SHORT CIRCUIT
- Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 110 ~ 130V Shutdown o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shutdown o/p voltage,re-power on to recover
FUNCTION
- DIMMING

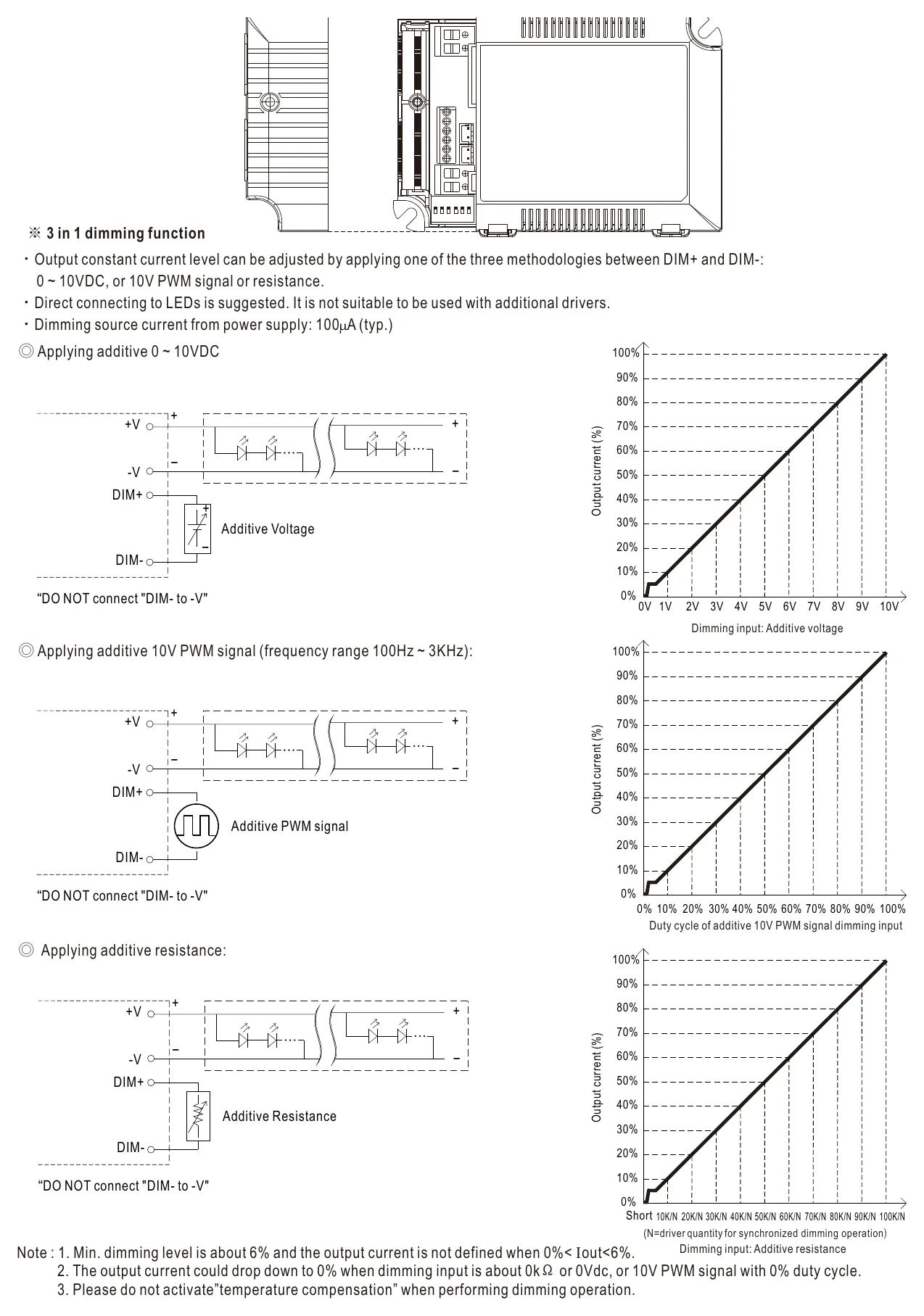

- Please refer to "DIMMING OPERATION" section
- SYNCHRONIZATION
- Please refer to "SYNCHRONIZATION OPERATION" section
- TEMP. COMPENSATION

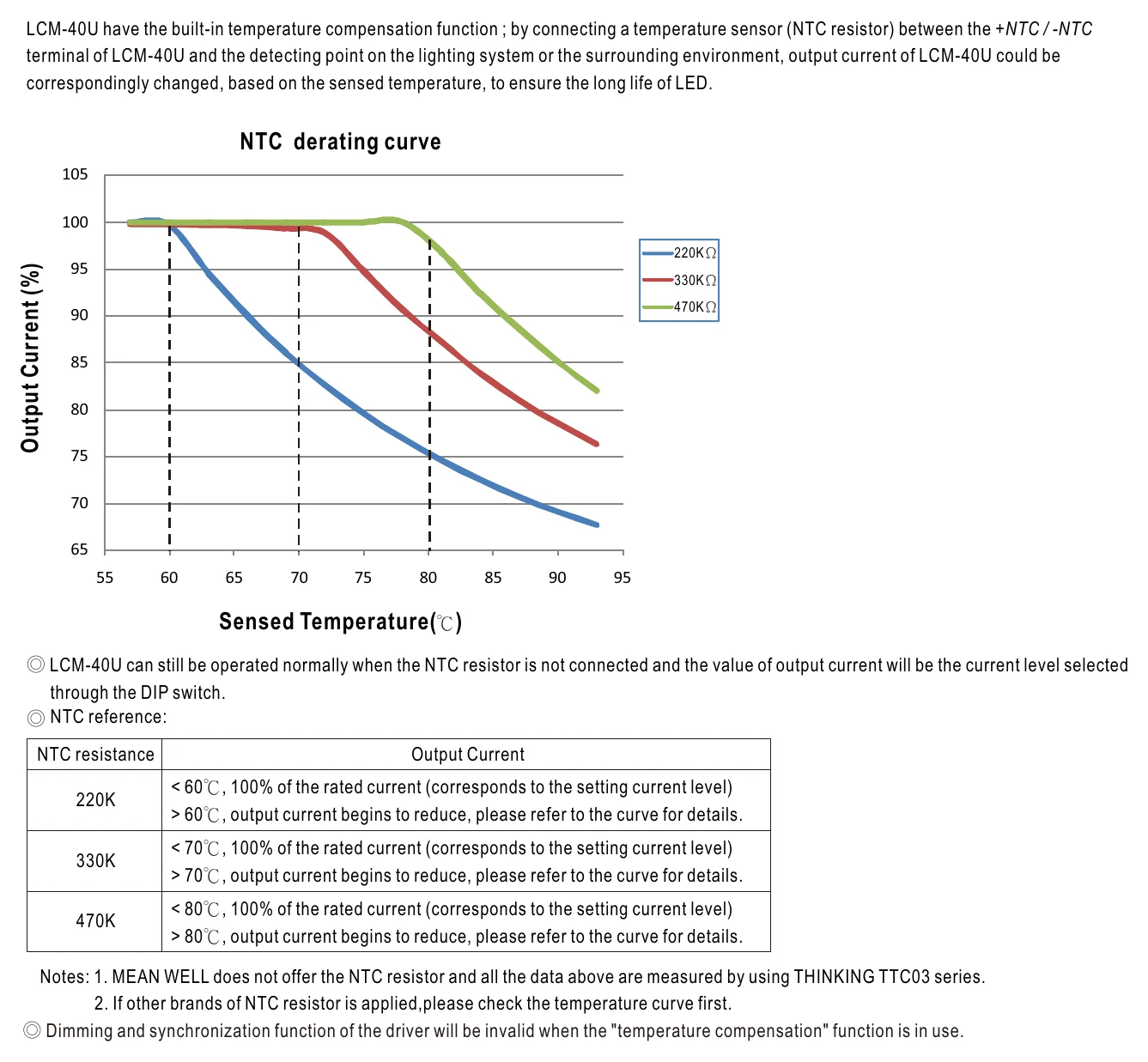

- By external NTC, please refer to "TEMPERATURE COMPENSATION OPERATION"section
ENVIRONMENT
- WORKING TEMP.

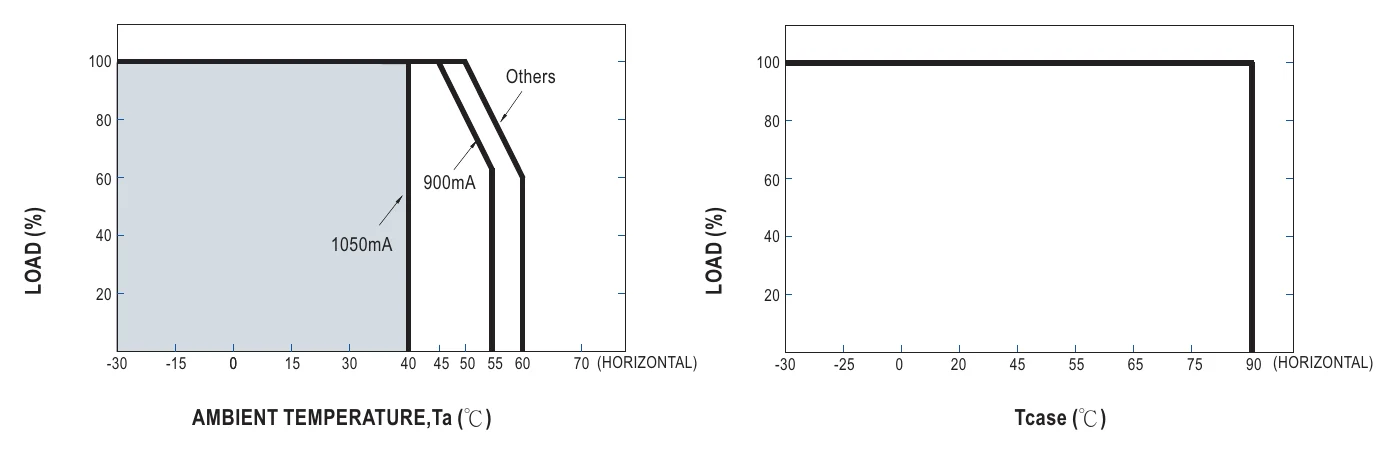

- Tcase=-30 ~ +90℃ (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase=+90℃
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750 approved
- DALI STANDARDS
- Comply with IEC62386-101, 102, 207
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC
- ISOLATION RESISTANCE
- I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to FCC part 15 Subpart B
OTHERS
- MTBF
- 2649.1K hrs min. Telcordia SR-332 (Bellcore) ; 273.7K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION

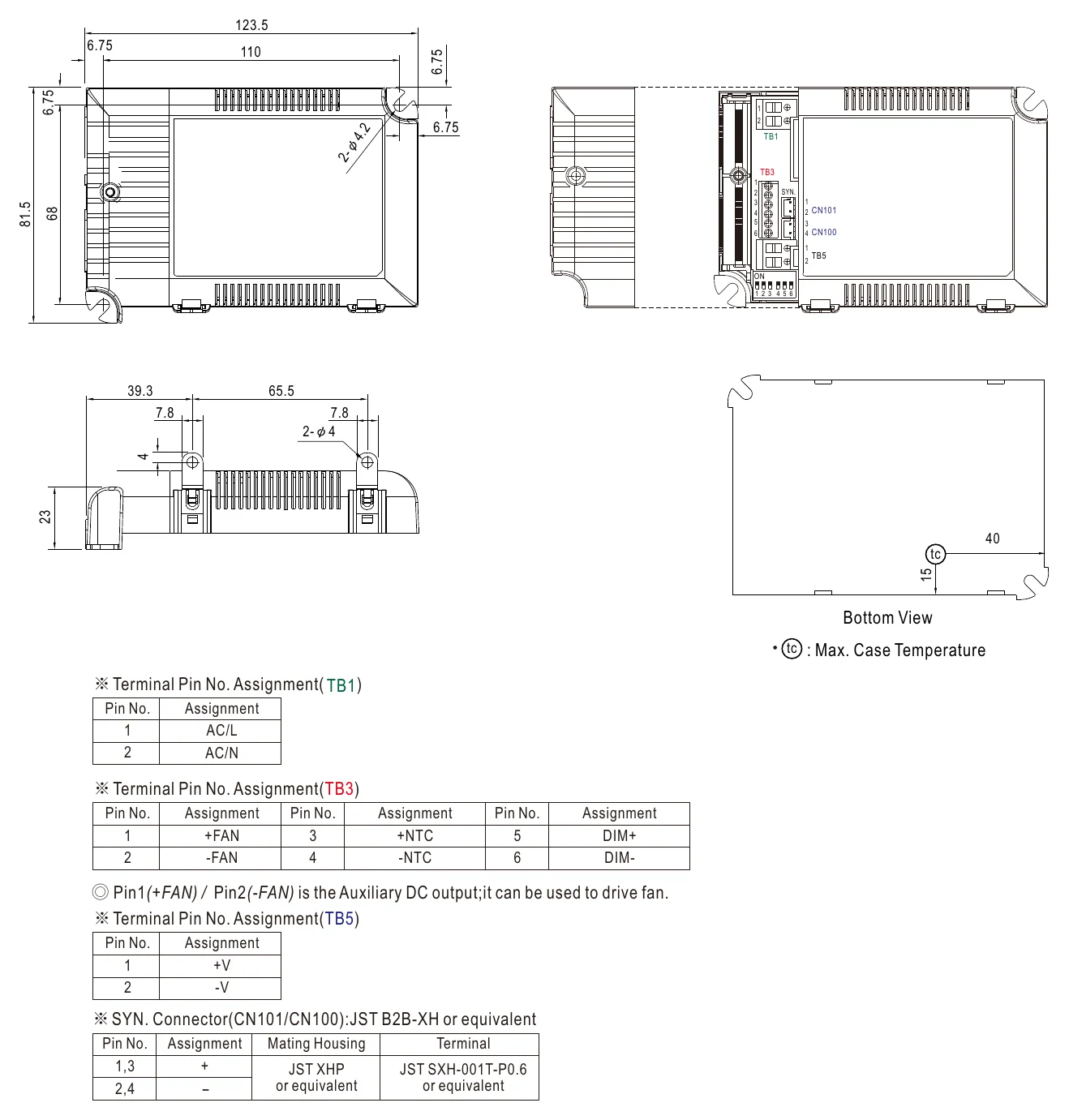

- 123.5*81.5*23mm (L*W*H)
- PACKING
- 0.28Kg ; 54pcs/16Kg/1.12CUFT
Test conditions and notes7
- 1. All parameters NOT specially mentioned are measured at 115VAC input, rated current and 25℃ of ambient temperature.
- 2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 3. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 4. Efficiency is measured at 500mA/70V output set by DIP switch.
- 5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 6. It is measured 50%~100% of maximum voltage under rated power delivery.
- 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

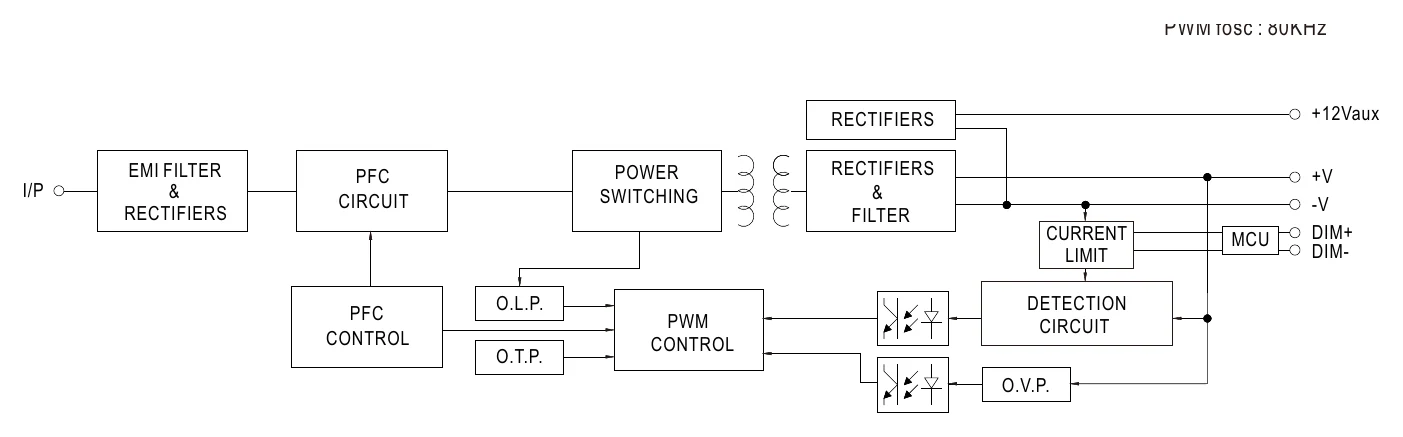

Technical drawings
Typical applications
- LED indoor lighting
- LED office lighting
- LED architectural lighting
- LED panel lighting
Downloads
Datasheet1
