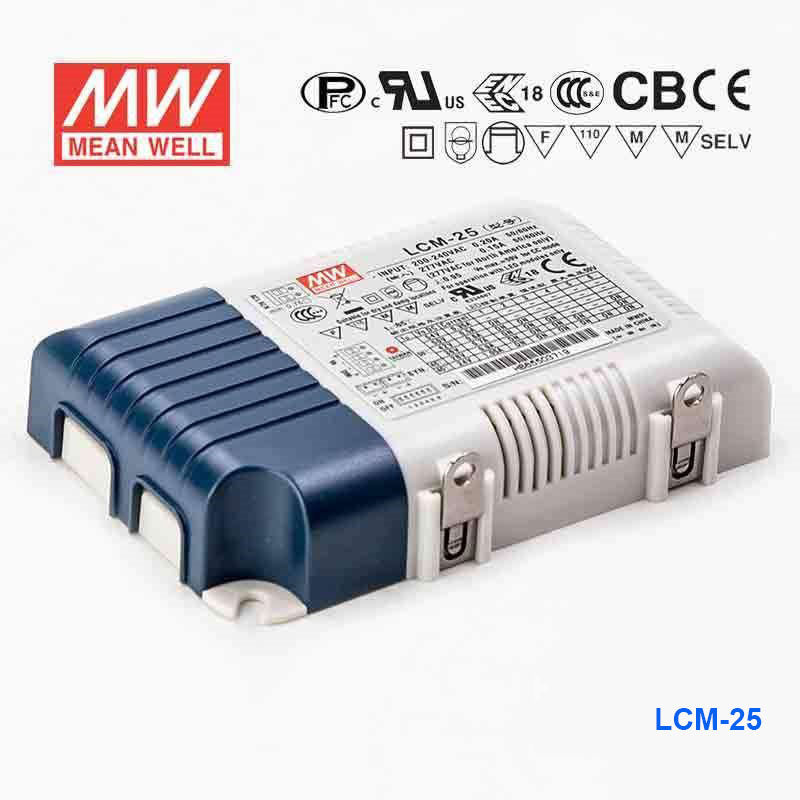

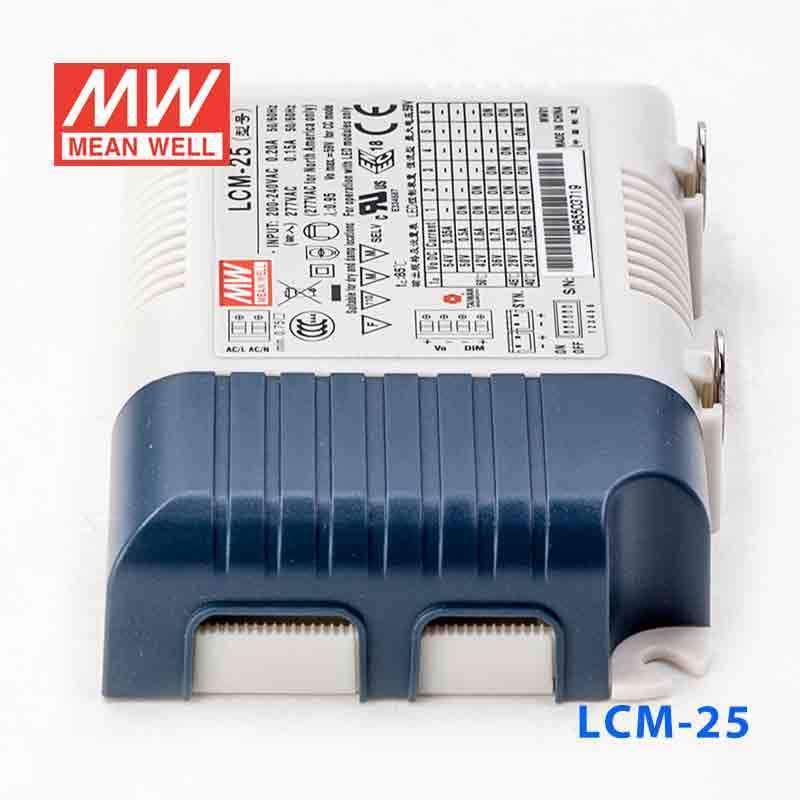

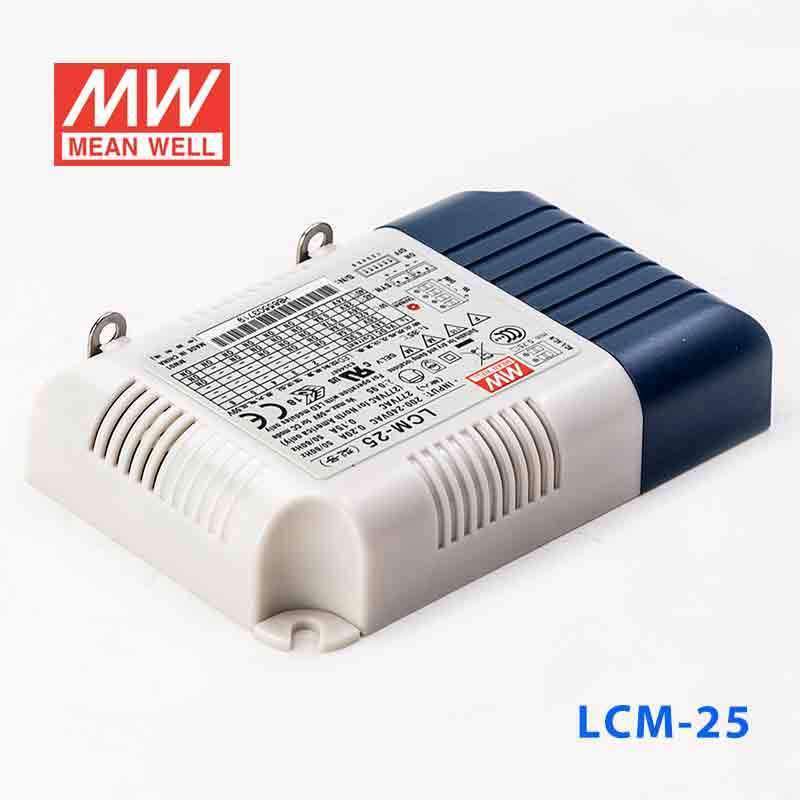

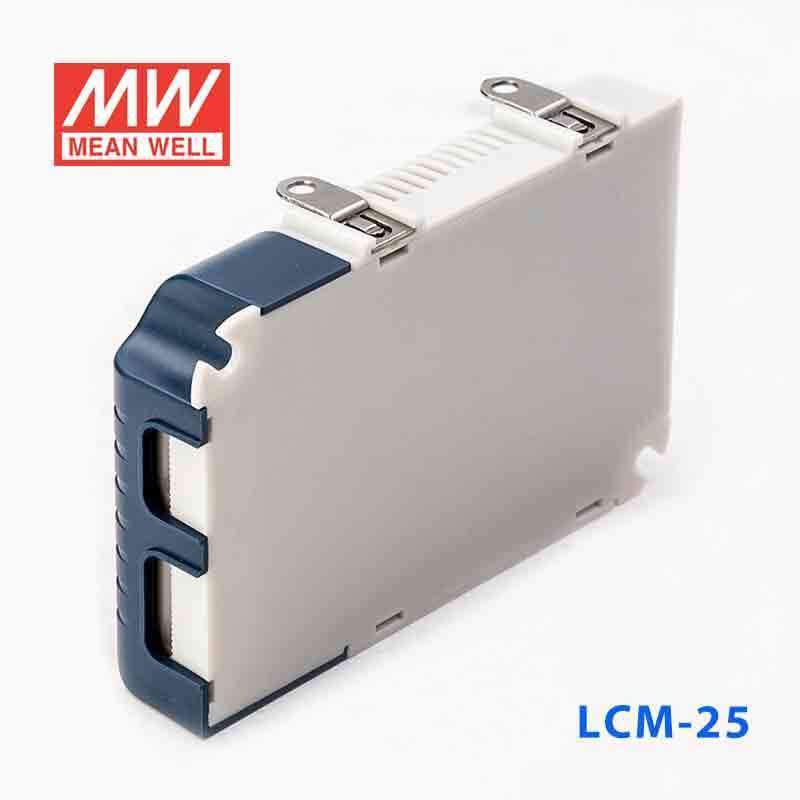

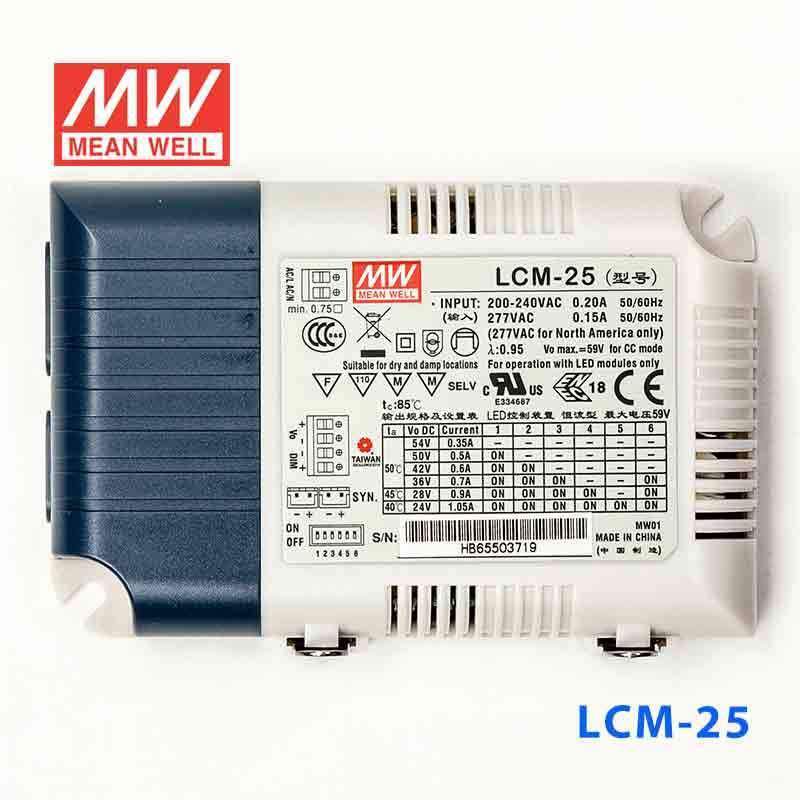

Mean Well LCM-25 Power Supply 25W 350mA 500mA 600mA 700mA(default) 900mA 1050mA - Dimmable

Name: Mean Well LCM-25 Power Supply 25W 350mA 500mA 600mA 700mA(default) 900mA 1050mA - Dimmable
Brand: Mean Well
SKU: LCM-25
Price: 28.67 USD
Availability: InStock

selectable output current using dip switchflicker-freeClass II without FGbuilt-in 3 in 1 dimming

SKU LCM-25

$28.67 USD

Shipping calculated at checkout.

In stock

Overview

LCM-25 is the model of this series: rated power 18.9W (350mA) / 25.2W (500mA ~ 1050mA), typical efficiency 86%.

LCM-25 series is a 25W AC/DC constant current mode output LED driver featuring the multiple levels selectable by dip switch. LCM-25 operates from 180~277VAC and offers different current levels ranging between 350mA and 1050mA. Thanks to the efficiency up to 86%, with the fanless design, the entire series is able to operate for -30℃~+85℃ case temperature under free air convection. LCM-25 is equipped with various functions, such as the dimming function and synchronization, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output with multiple levels selectable by dip switch
Plastic housing with class II design
Built-in active PFC function
Standby power consumption <0.5W
Functions: 3 in 1 dimming (dim-to-off); synchronization up to 10 units
3 years warranty

Specifications

LCM-25Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

CURRENT LEVEL: Current level selectable via DIP switch, please refer to"DIP SWITCH TABLE" section; 350mA / 500mA / 600mA / 700mA(default) / 900mA / 1050mA
RATED POWER: 18.9W (350mA) / 25.2W (500mA ~ 1050mA)
DC VOLTAGE RANGE: 6 ~ 54V (350mA) / 6 ~ 50V (500mA) / 6 ~ 42V (600mA) / 6 ~ 36V (700mA) / 6 ~ 28V (900mA) / 6 ~ 24V (1050mA)
OPEN CIRCUIT VOLTAGE (max.): 59V (350mA ~ 600mA) / 41V (700mA ~ 1050mA)
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SETUP TIME^Note.3: 500ms / 230VAC

INPUT

VOLTAGE RANGE^Note.2: 180 ~ 277VAC 254 ~ 392VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.94/230VAC, PF≧0.91/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/230VAC; @load≧75%/277VAC) (Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)
EFFICIENCY (Typ.)^Note.4: 86%
AC CURRENT (Typ.): 0.17A/230VAC 0.15A/277VAC
INRUSH CURRENT (Typ.): COLD START 20A(twidth=260μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 26 units (circuit breaker of type B) / 44 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.5mA / 240VAC
STANDBY POWER CONSUMPTION^Note.5: <0.5W

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

DIMMING: Please refer to "DIMMING OPERATION" section

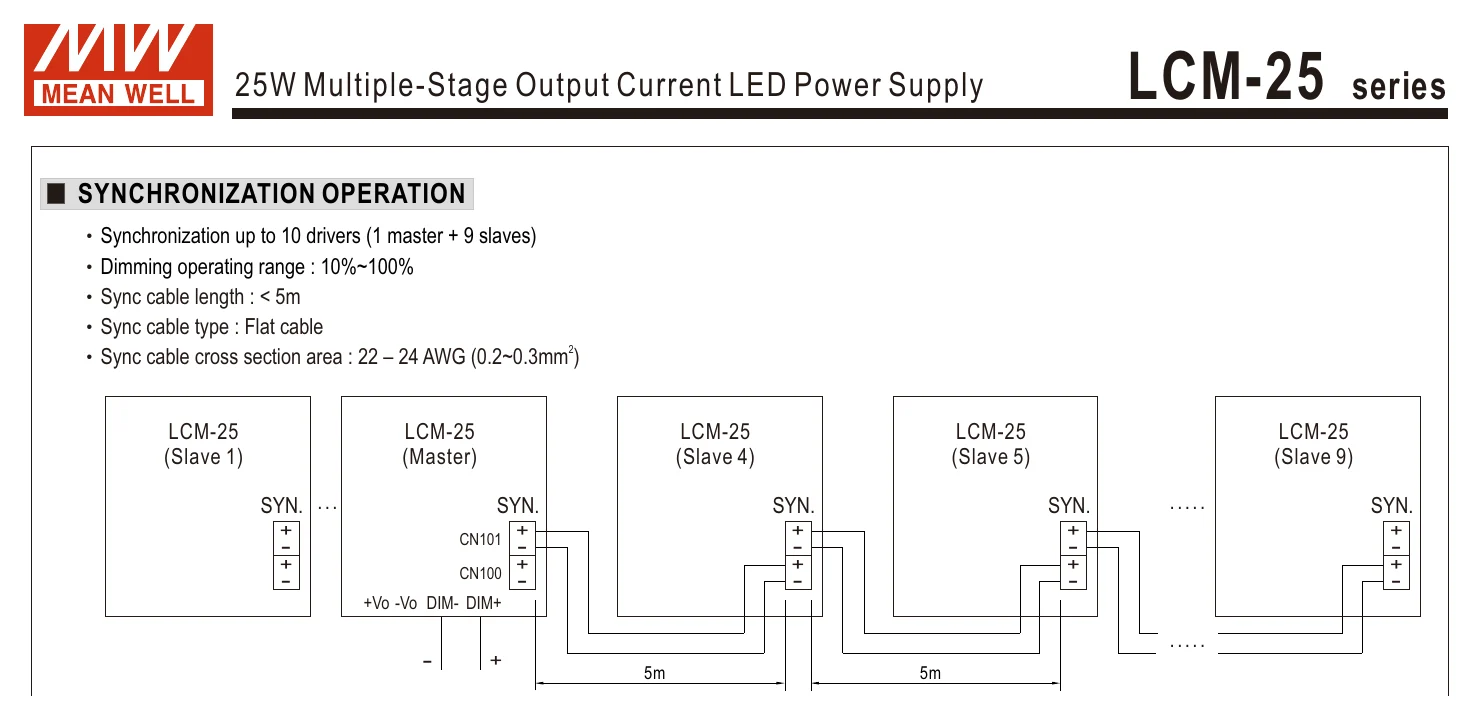

SYNCHRONIZATION: Please refer to "SYNCHRONIZATION OPERATION" section

ENVIRONMENT

WORKING TEMP.: Tcase=-30 ~ +85℃ (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: Ul8750, CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, GB/T19510.1,GB/T19510.213, BIS IS15885, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C(@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(surge immunity Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 3298.3K hrs min. Telcordia SR-332 (Bellcore) ; 298.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 105*68*23mm (L*W*H)
PACKING: 0.16Kg ; 72pcs/12.5Kg/1.04CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
3. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
4. Efficiency is measured at 500mA/50V output set by DIP switch.
5. Standby power consumption is measured at 230VAC.
6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

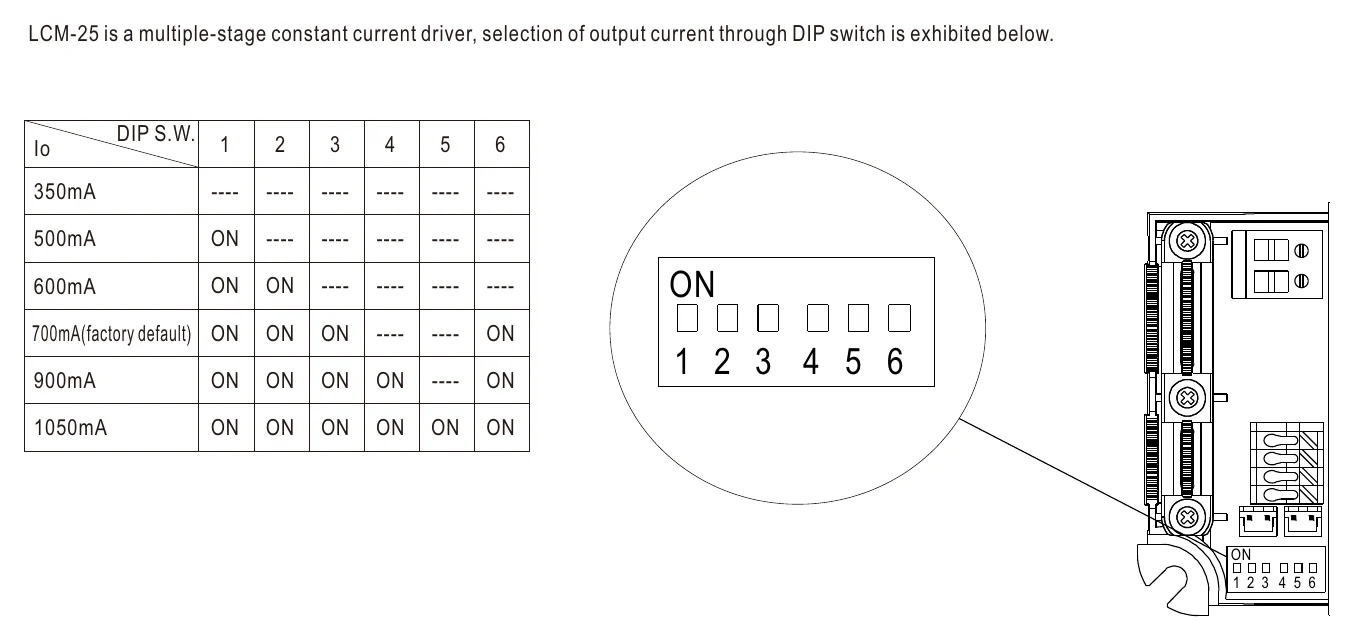

LCM-25 DIP SWITCH TABLE — DIP SWITCH TABLE

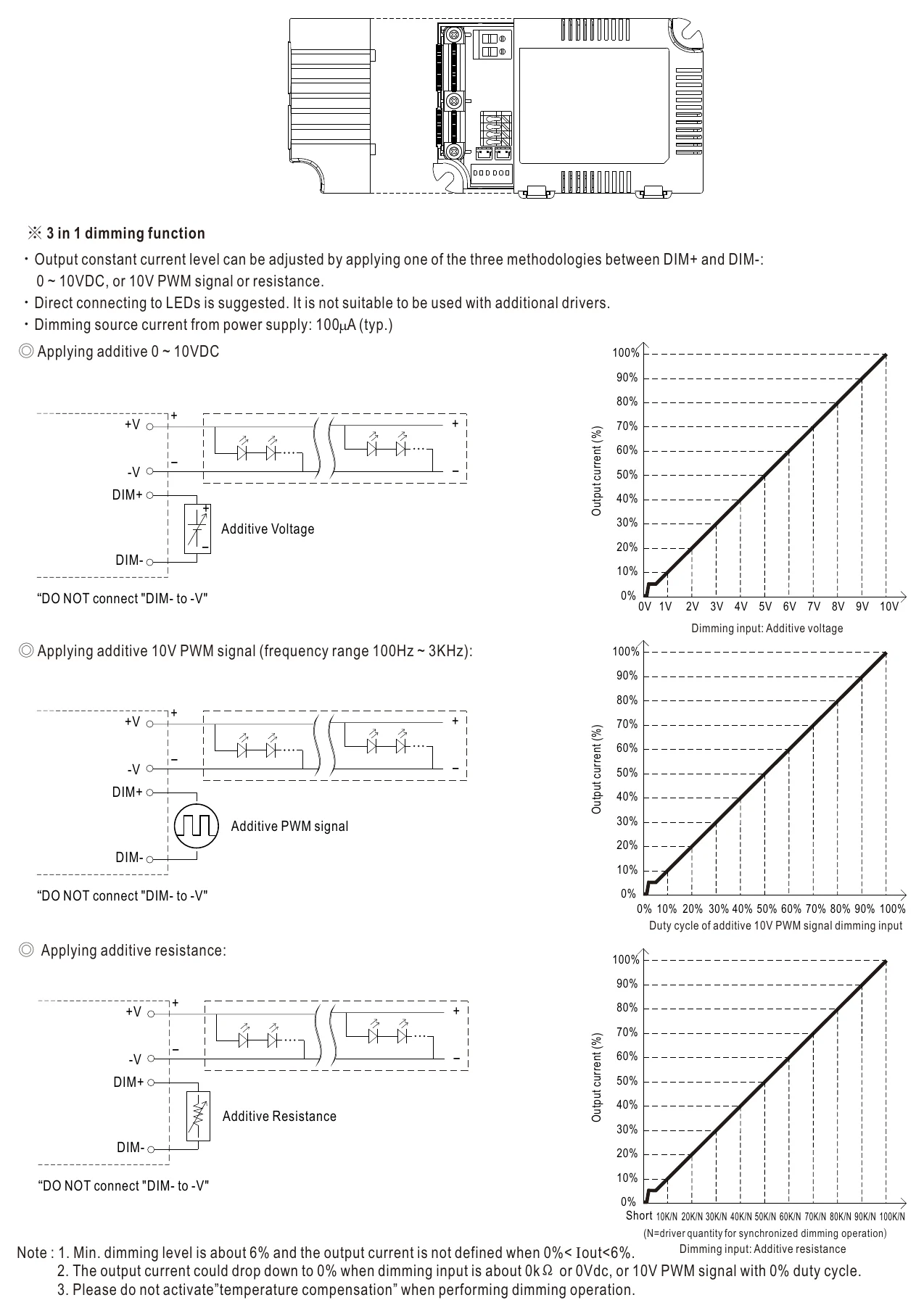

LCM-25 DIMMING OPERATION — DIMMING OPERATION

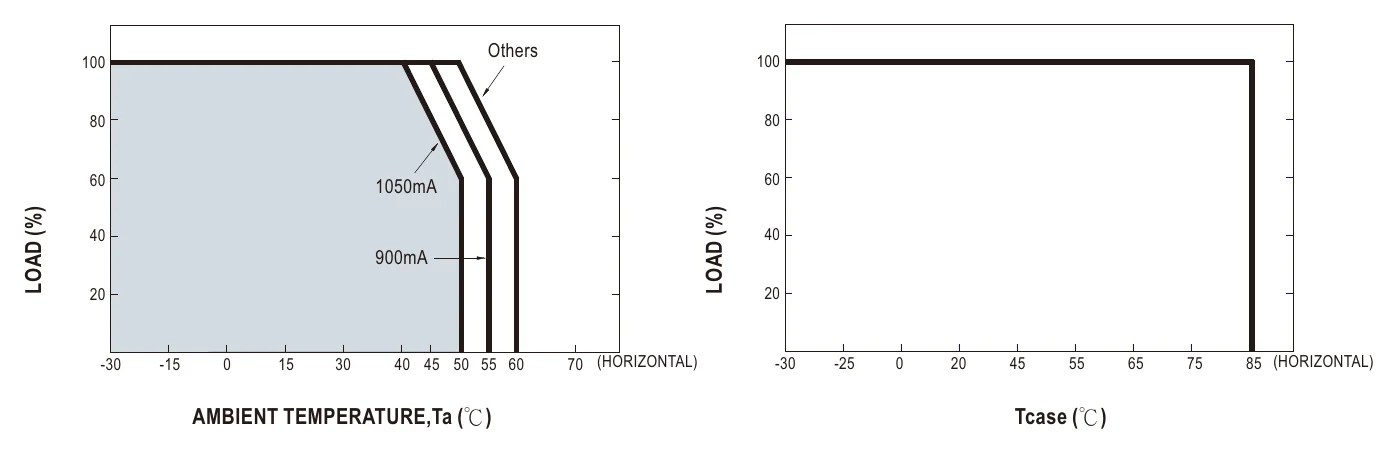

LCM-25 OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

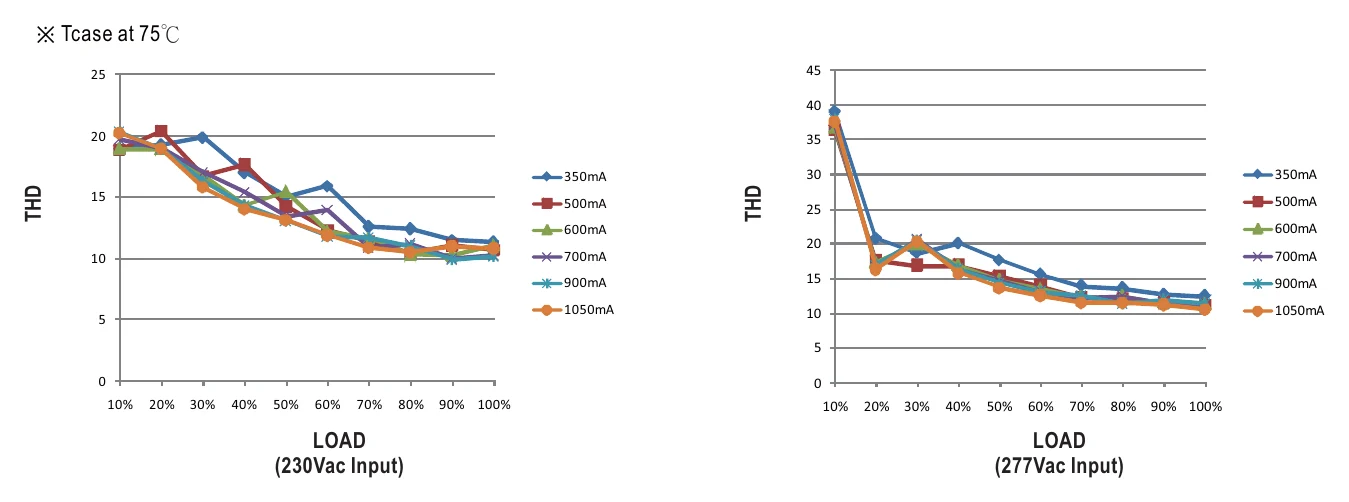

LCM-25 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

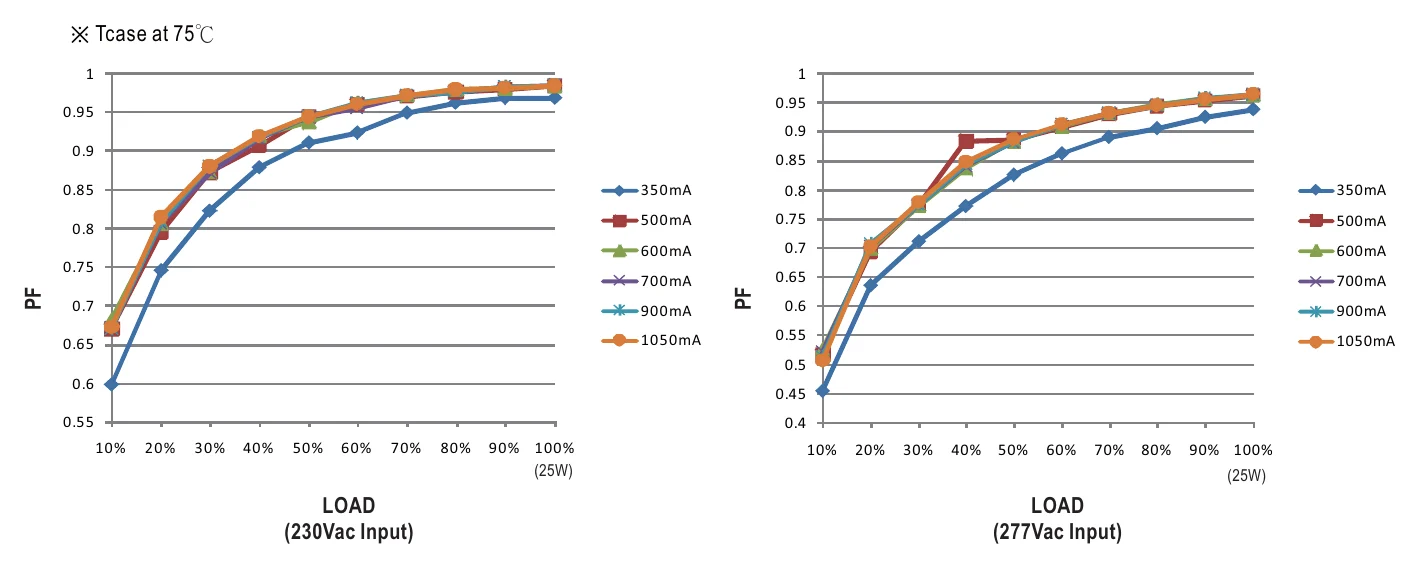

LCM-25 POWER FACTOR (PF) CHARACTERISTIC — POWER FACTOR (PF) CHARACTERISTIC

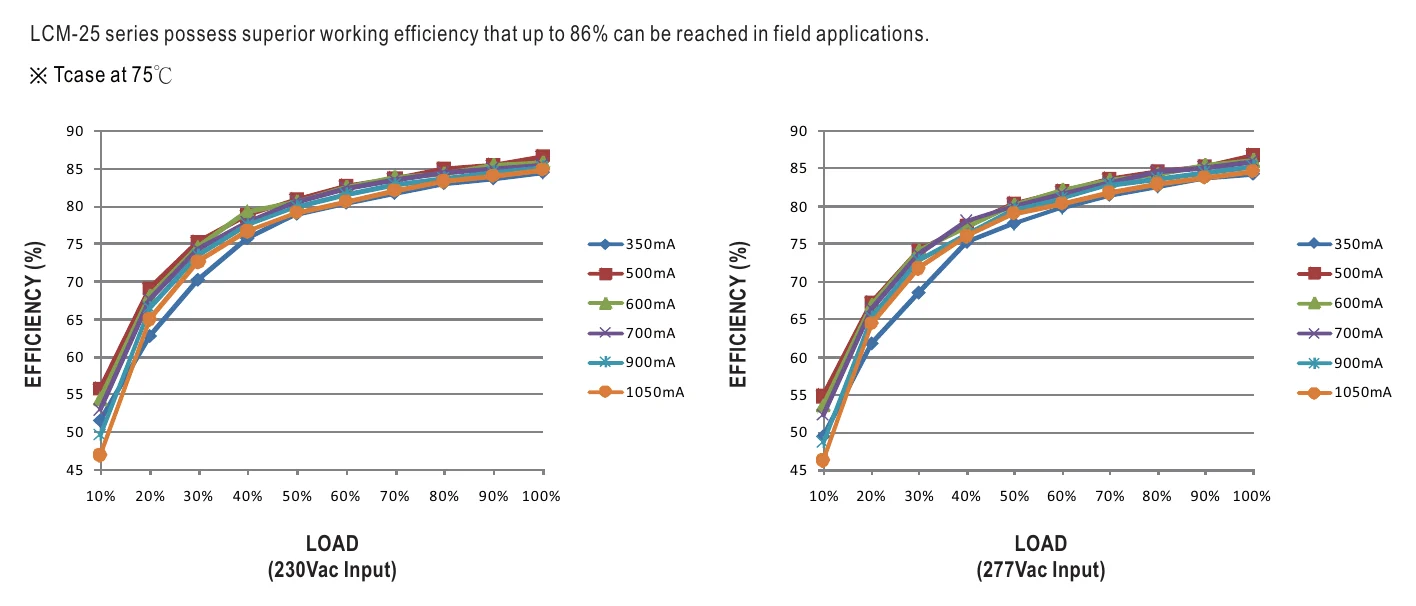

LCM-25 EFFICIENCY vs LOAD — EFFICIENCY vs LOAD

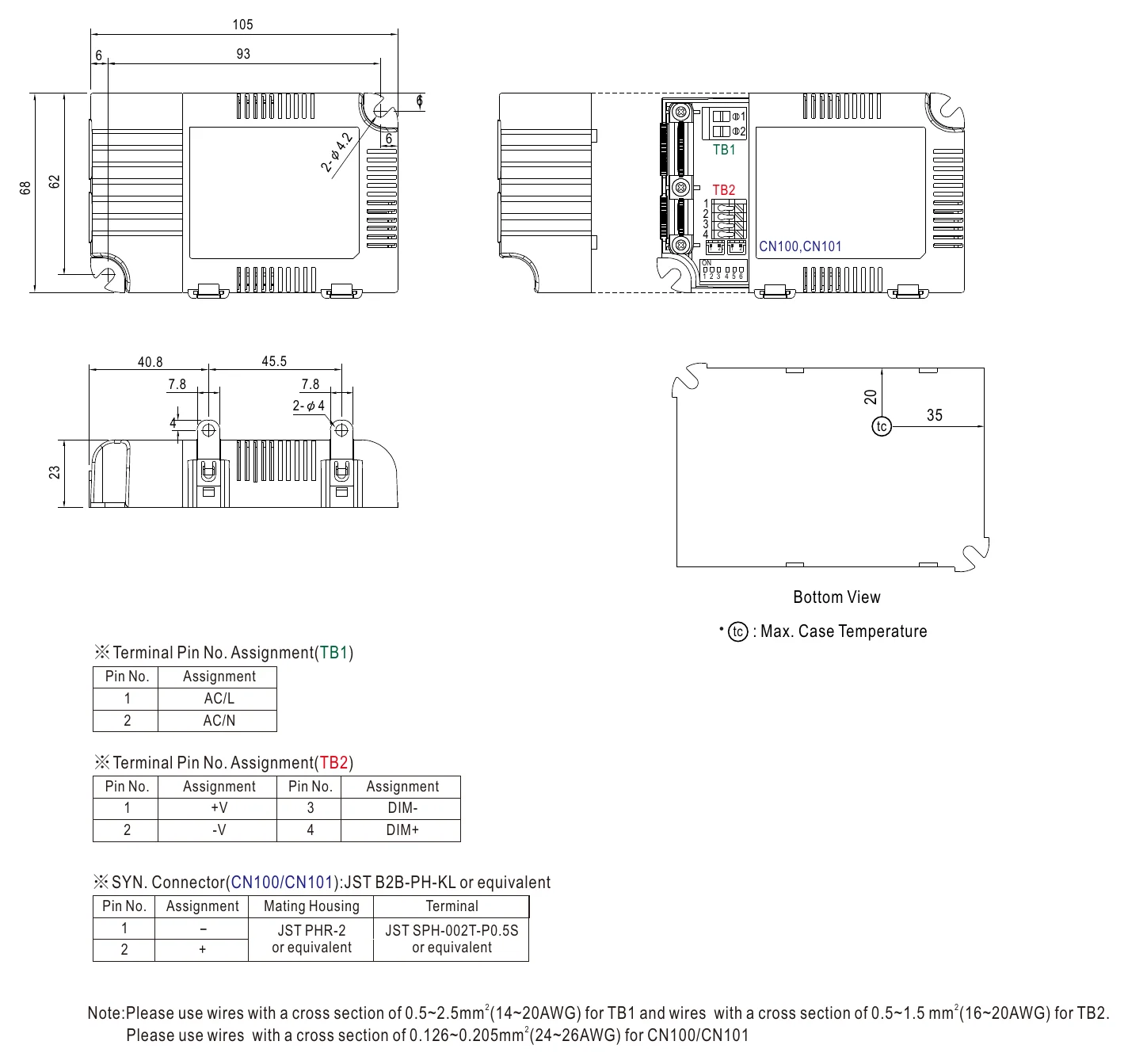

LCM-25 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED indoor lighting
LED office lighting
LED architectural lighting
LED panel lighting

Downloads

Certificates4

UL Certificate(LCM-25)(EN) PDF Download

CB Certificate(LCM-25)(EN) PDF Download

ENEC Certificate(LCM-25)(EN) PDF Download

EMC Certificate(LCM-25)(EN) PDF Download

Test reports1

Test Report (LCM-25)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the LCM-25 for LED downlights?

Yes, the LCM-25 is a constant current LED driver rated at 25.2W with a 700mA default output current. Its 6-36V output range at 700mA makes it suitable for LED downlights that are designed for constant current operation within that range, and it also includes built-in 3 in 1 dimming (0-10VDC, 10V PWM or resistance).

Is the LCM-25 suitable for signage LED modules?

It can be used for signage modules if the modules require constant current rather than constant voltage. This driver provides 700mA by default across a 6-36V CC range, so the total forward voltage of the module string needs to stay inside that range and within the 25.2W rating.

Can the LCM-25 run a small LED array?

Yes, it is intended for constant current LED loads such as small LED arrays when the array fits a 6-36V CC range at 700mA default. The 25.2W limit sets the driver size, so it is better suited to smaller arrays than higher-power assemblies.

How do I know if the LCM-25 is compatible with my LEDs?

Check that your LEDs require a constant current driver and that their combined forward voltage falls within the output voltage range of the current you select by DIP switch: 6-36V at the 700mA default, from 6-54V at 350mA down to 6-24V at 1050mA. The number of LEDs depends on each LED's forward voltage, so this should not be sized like a constant voltage supply.
