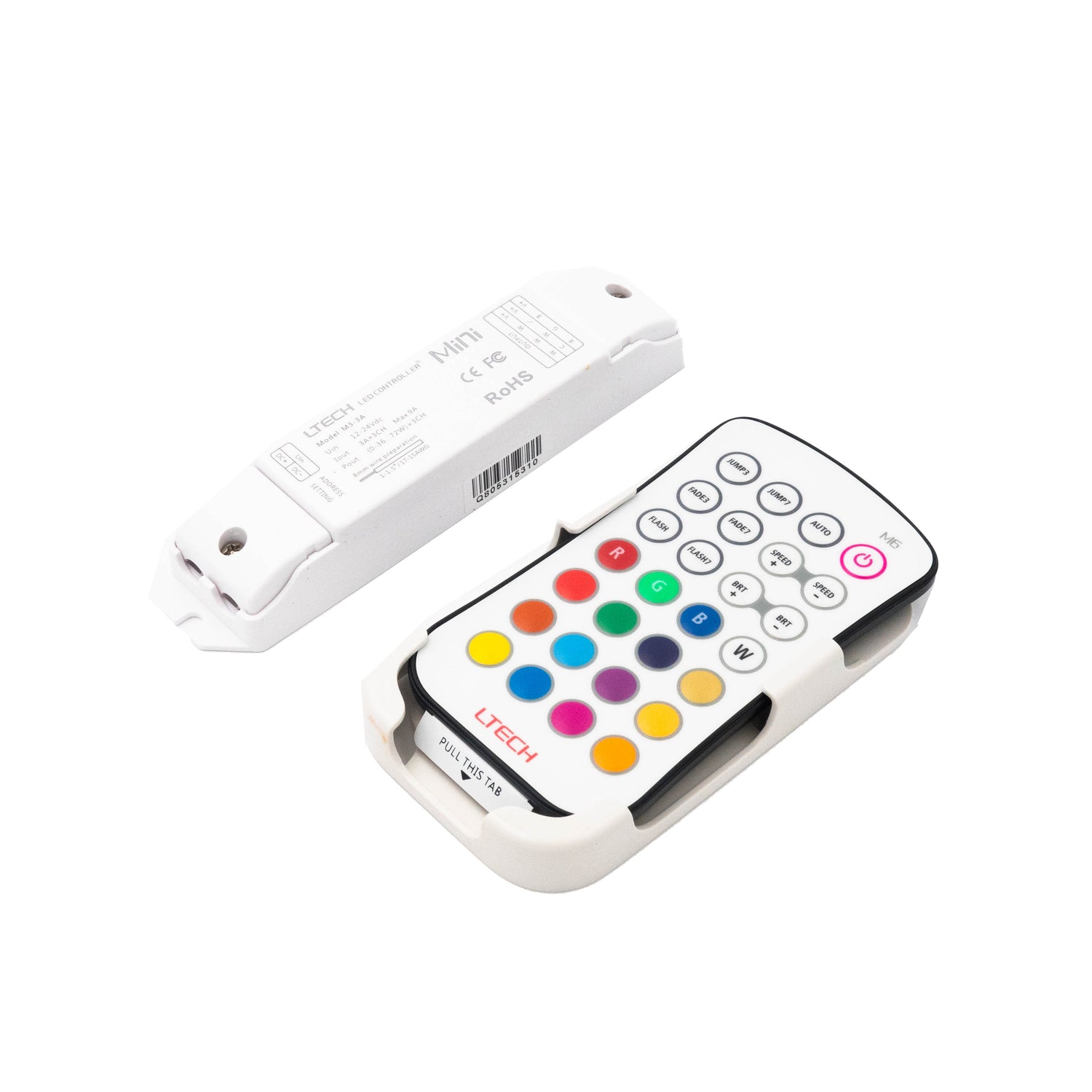

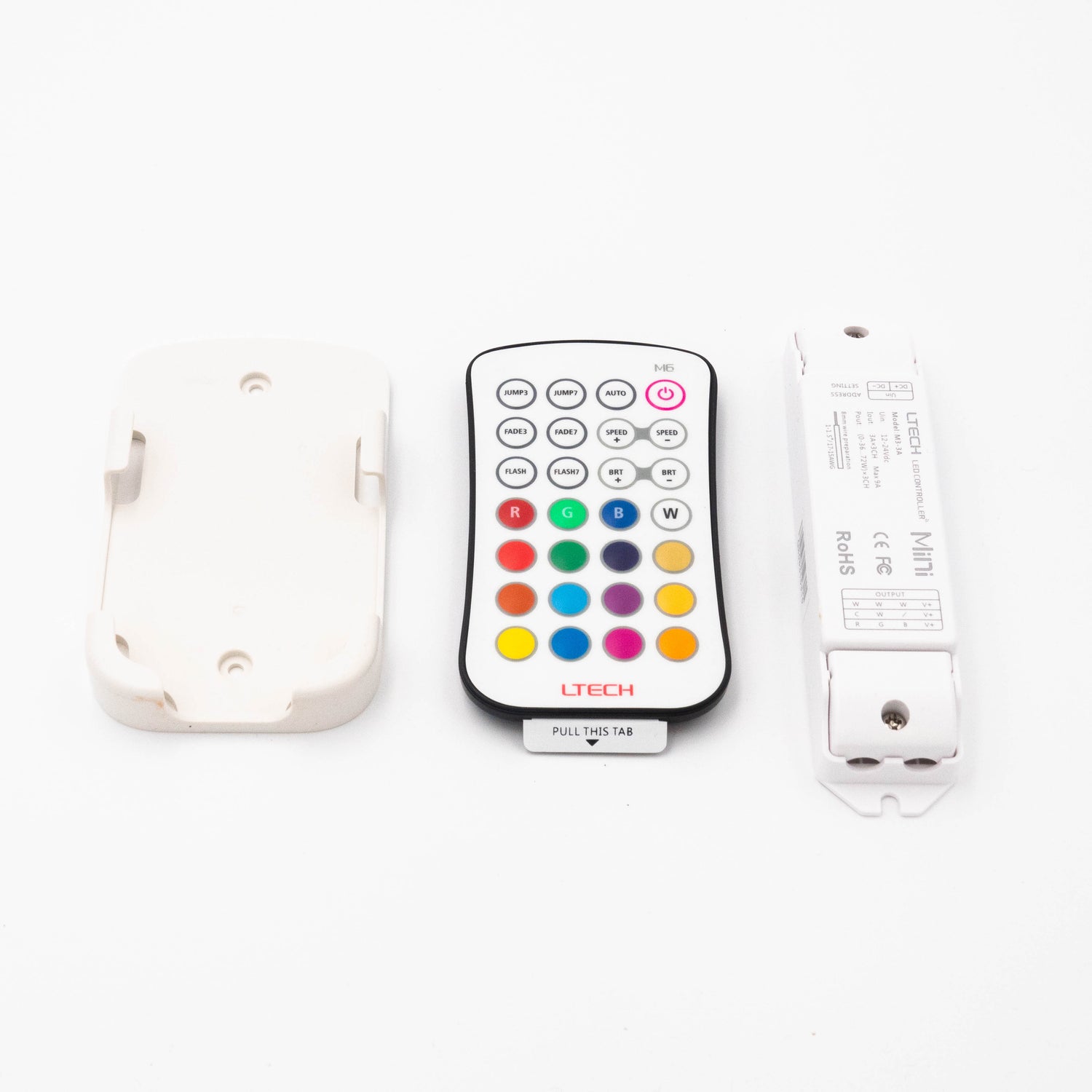

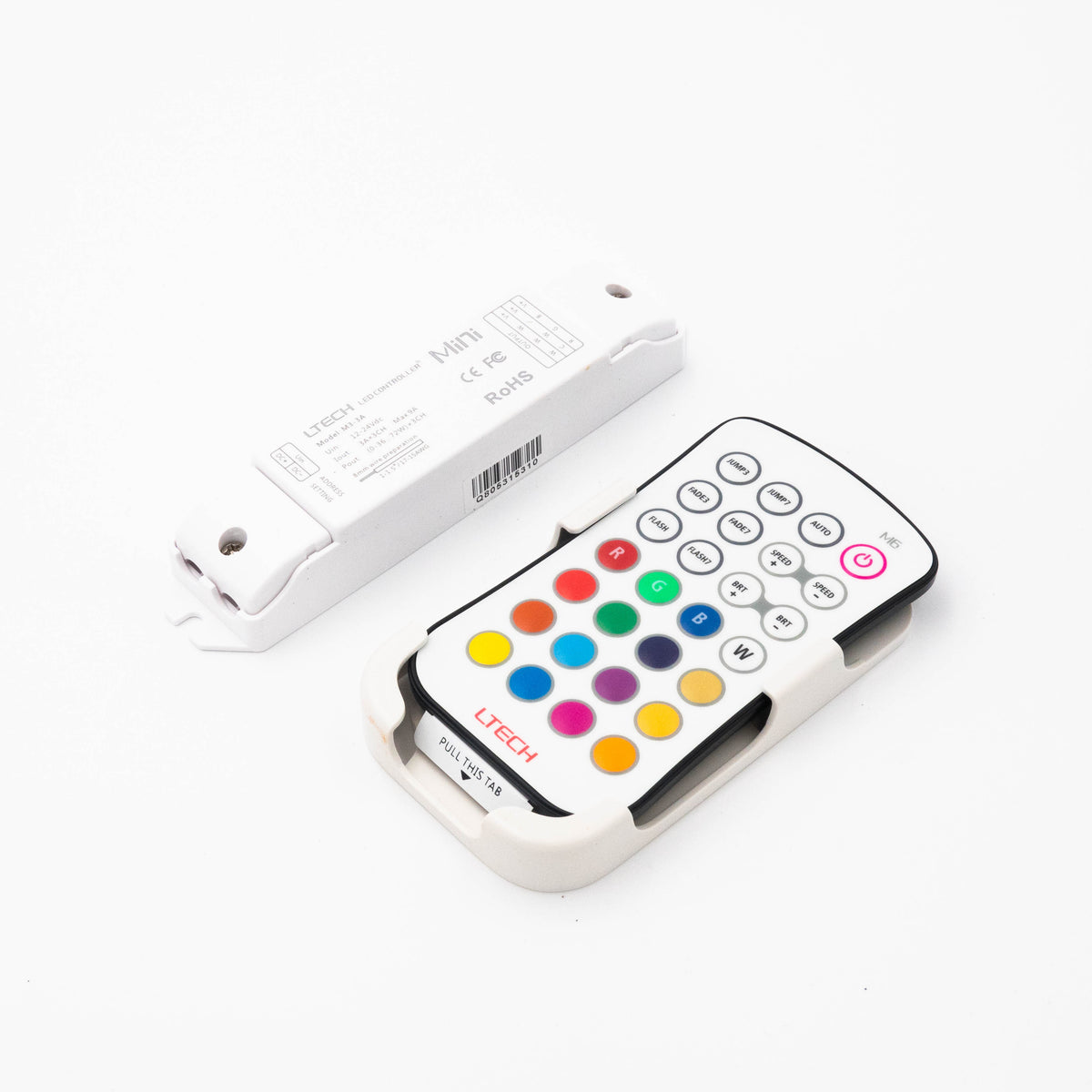

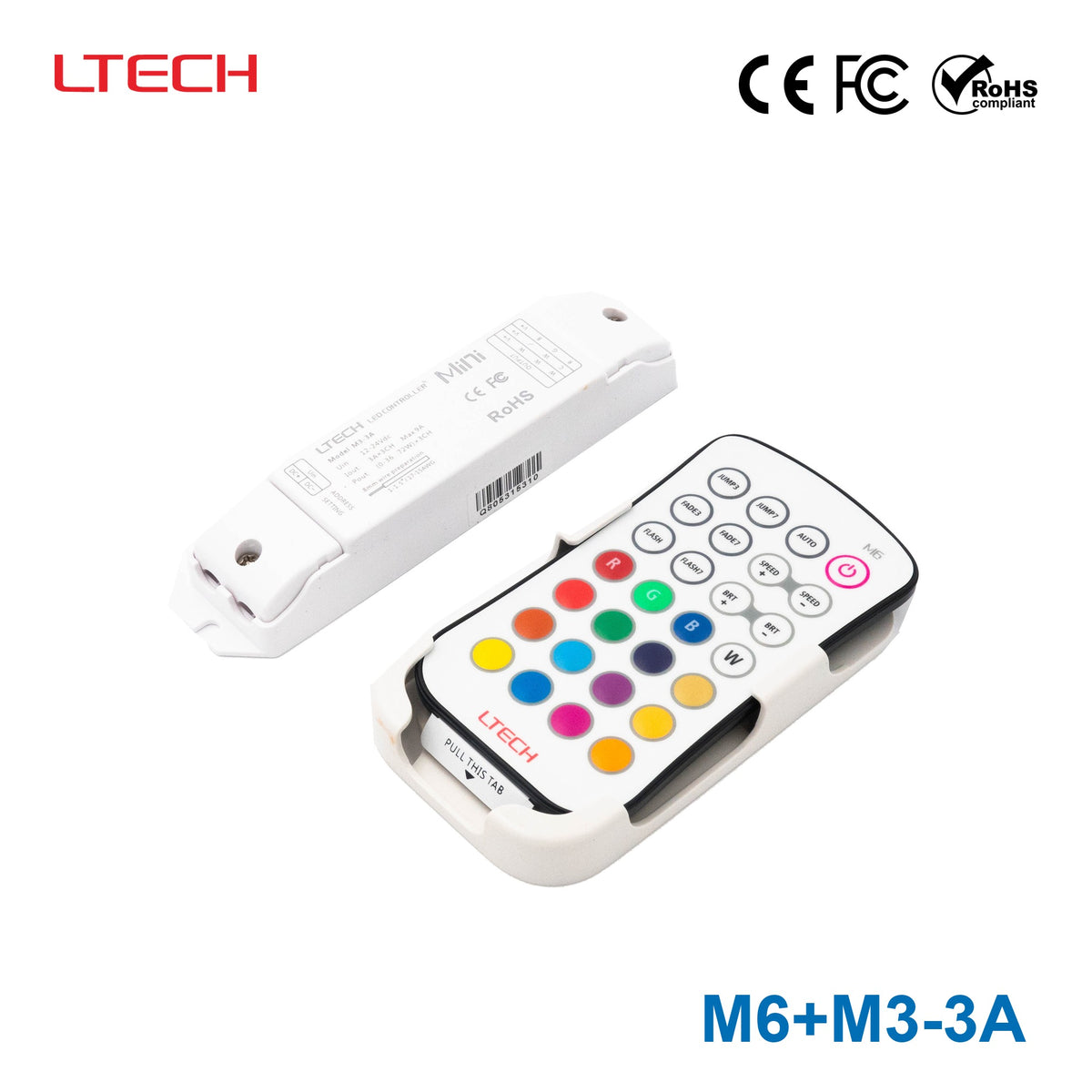

Ltech M6+M3-3A Mini Controller with RF Remote - RGB
The M6+M3-3A is an RGB LED controller designed for color-changing lighting applications. It supports RF dimming control and is intended for setups that need adjustable color, brightness, and lighting mode selection from a compatible RF remote.
Input 12~24VDC. 3 channels at 3A each. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 12~24VDC
- ✓Control protocol: RF
- ✓Output channels: 3A - 3 Channel
- ✓Maximum load: 3A per channel
- ✓Maximum total load: 216W
- ✓Operating temperature: -30~+55°C
- ✓Certifications: CE, FCC, ROHS
- ✓Dimensions: 200 x 130 x 22mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech M Series
-
Power Rating216 Watt
-
Output Voltage24 Volt
-
Rated Current9 Ampere
-
Input Voltage12V~24V
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length7.87 in
-
Width5.12 in
-
Height0.87 in
-
Weight0.31 lb
::specification::
Frequently Asked Questions
What does the Ltech M6+M3-3A Mini Controller with RF Remote control?
This model is an RGB LED controller designed for color-changing lighting applications. It supports RF dimming control and is intended for setups that need adjustable color, brightness, and lighting mode selection from a compatible RF remote.
What are the electrical ratings of the Ltech M6+M3-3A?
The controller is rated for 24 V output, 9 A rated current, and 216 W power. Those published ratings make it suitable for 24 V RGB LED control applications that stay within those limits.
Is this controller compatible with different Ltech remote functions?
According to the product description, the M series receiver is compatible with 8 kinds of remotes with different functions. That means this controller family is intended to support multiple control experiences, including functions associated with single-color, color temperature, RGB, and RGBW adjustment.
Where is the Ltech M6+M3-3A best suited for use?
This controller is best suited for RGB lighting projects where wireless RF control is preferred. Typical buyer interest includes commercial or professional LED lighting applications that need compact control hardware and easy remote-based color and brightness adjustment.
What operating temperatures can the Ltech M6+M3-3A handle?
The published operating temperature range is -30 °C to 55 °C. That gives this model a relatively wide environmental range for indoor or protected-use lighting control applications operating within those limits.
How does this model compare with a standard single-function LED controller?
The main differentiator in the description is its compatibility across multiple remote types within the M series approach. Compared with a controller limited to one control style, this model is positioned for buyers who want more flexibility in how lighting functions are controlled.
What warranty is offered for the Ltech M6+M3-3A Mini Controller?
This model carries a 5-year warranty period based on the provided product data. For B2B buyers, that can be useful when evaluating long-term support expectations for LED control components.
