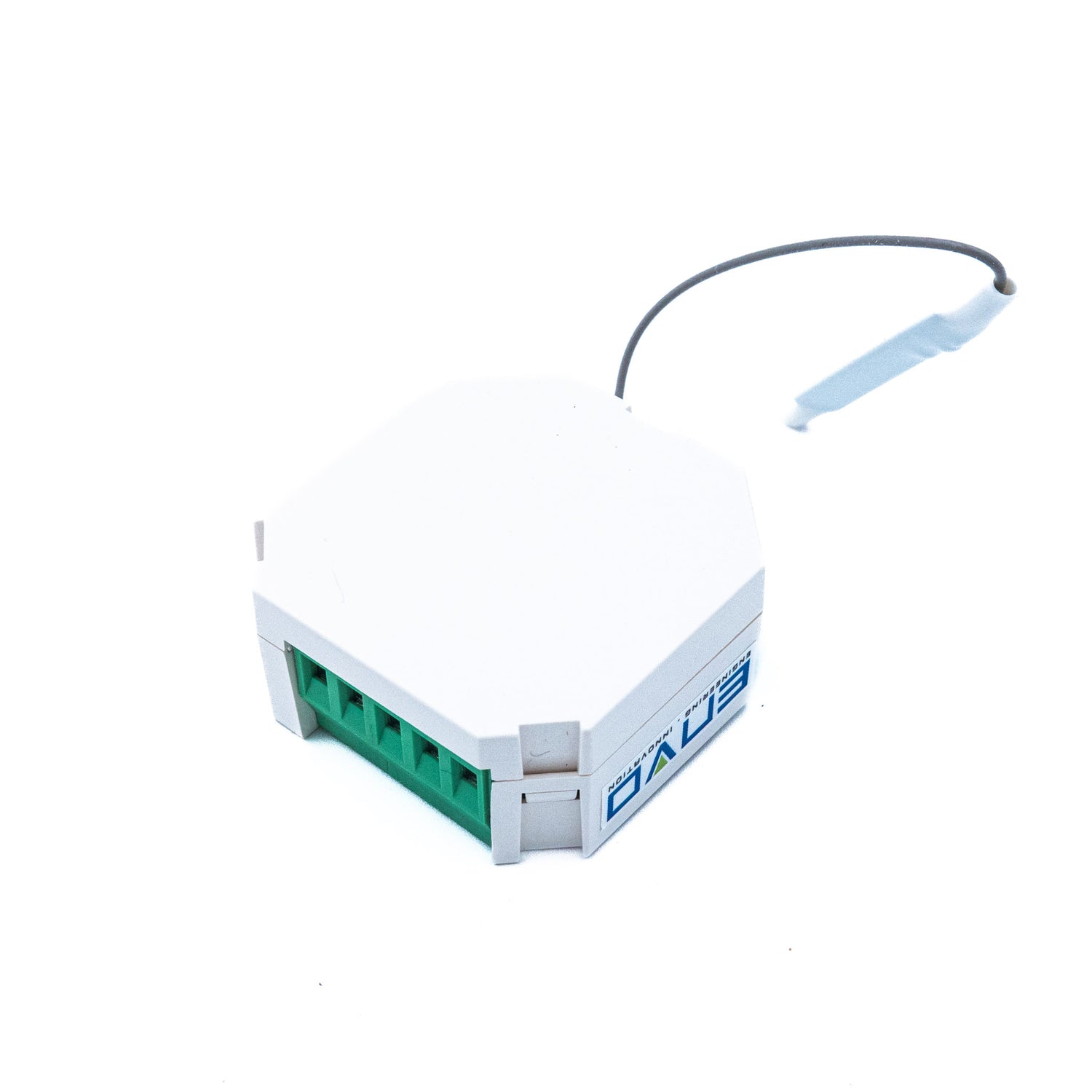

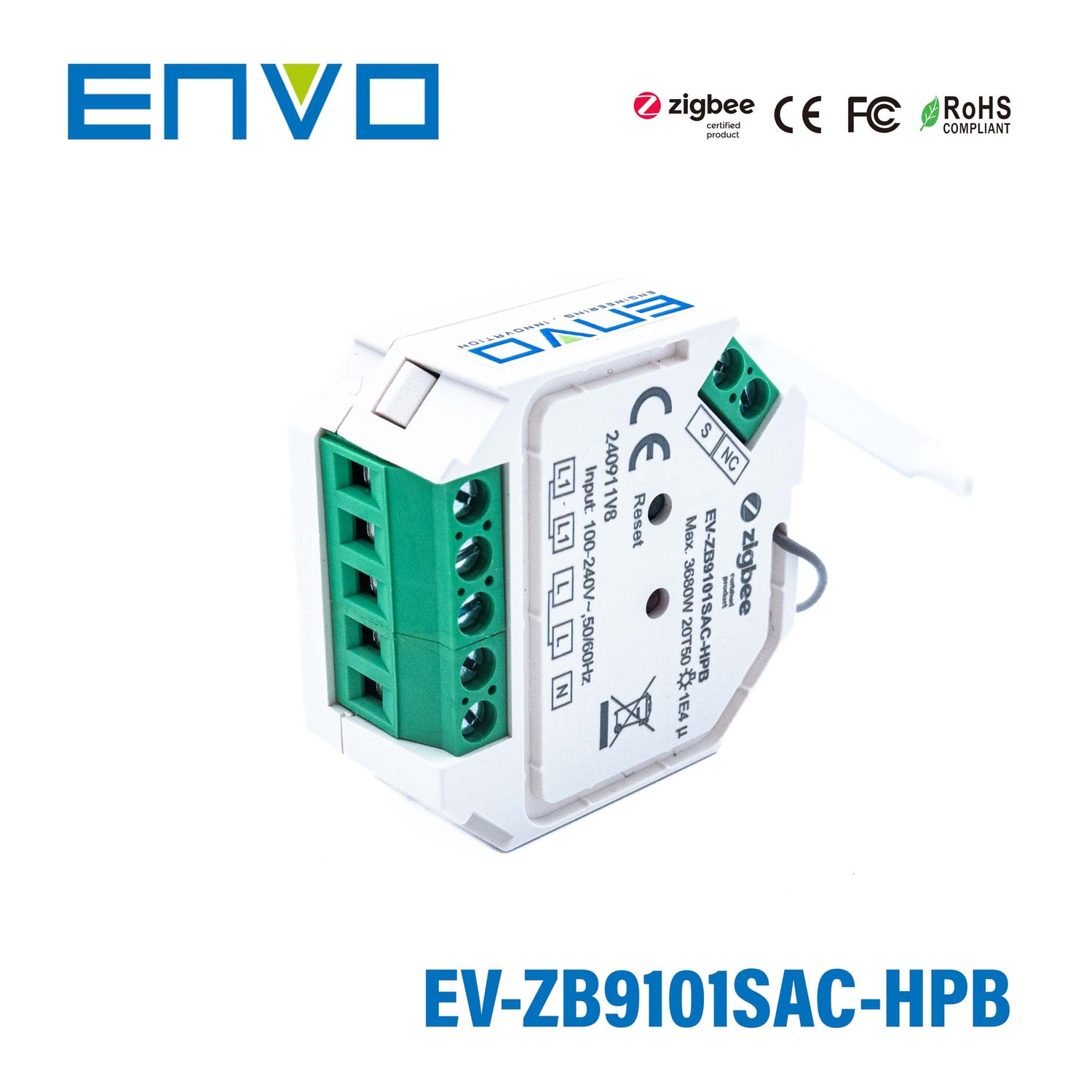

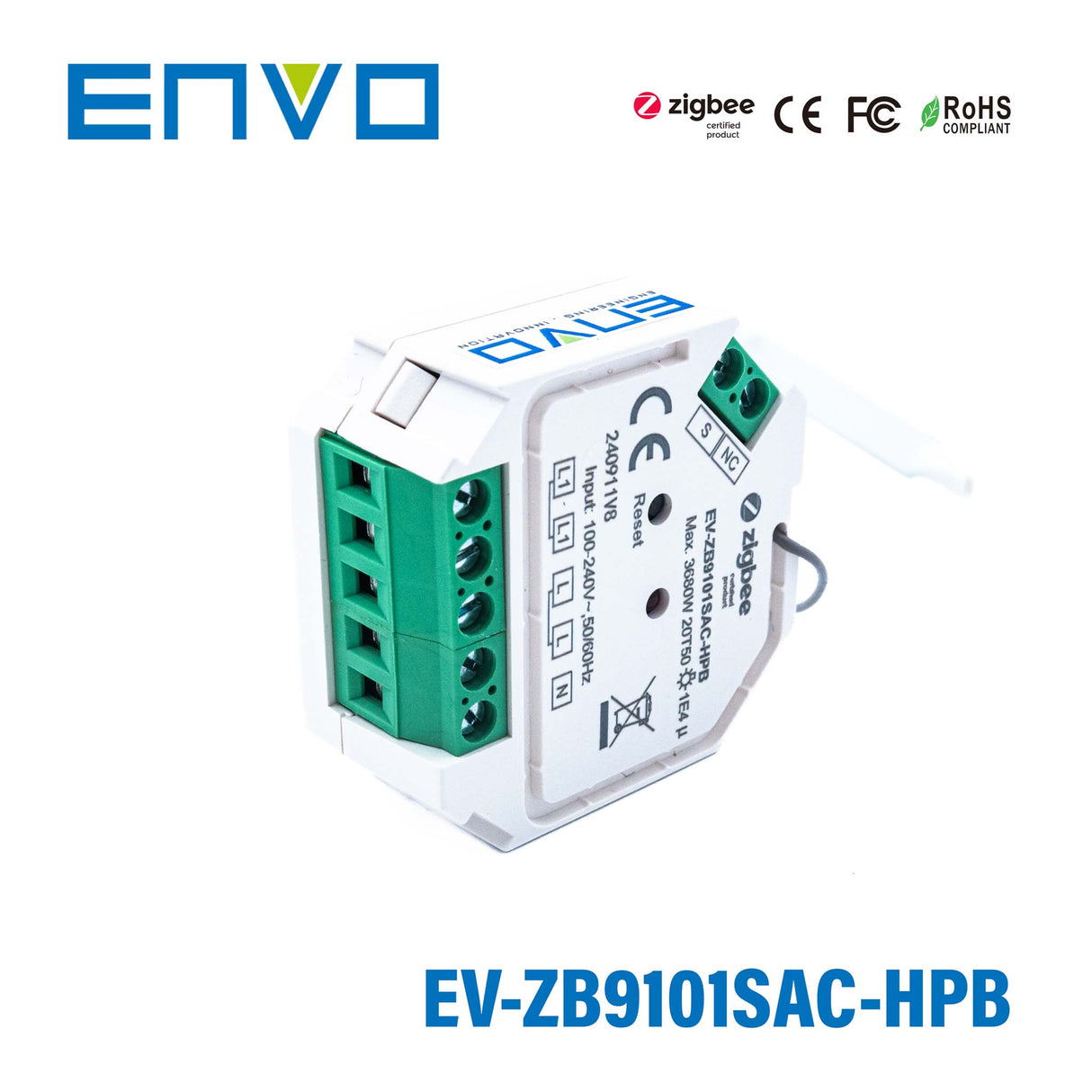

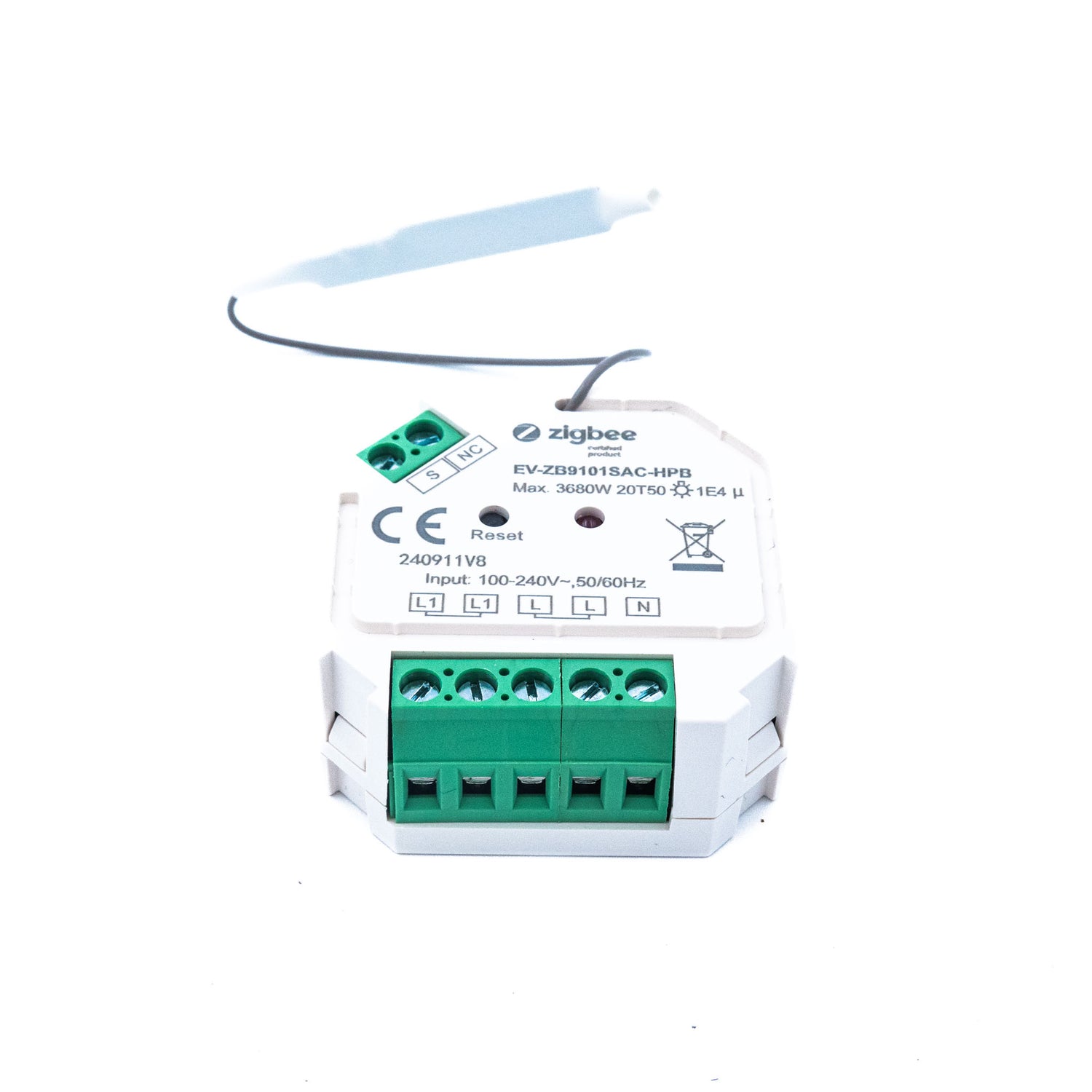

ENVO ZigBee In-wall Switch - On/Off Control, 16A
$64.85 USD
Unit price /
Unavailable
Description
Description
Features:
- ZigBee AC phase cut dimmer based on latest ZigBee 3.0 protocol
- 100-240VAC Wide Input and Output Voltage
- Supports resistive loads and capacitive loads
- 1 Channel Output, Up to 400W
- Input and Output with Screw Terminals, Safe and Reliable
- Both leading edge version and trailing edge version are available for choosing, default factory setting is trailing edge
- Enables to control ON/OFF and light intensity of connected triac dimmable led light or led driver
- ZigBee end device that supports Touchlink commissioning
- Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
- Supports self-forming zigbee network without coordinator and add other devices to the network
- Supports find and bind mode to bind a ZigBee remote
- Supports zigbee green power and can bind max. 20 zigbee green power remotes
- Compatible with universal ZigBee gateway products
- Can be controlled by universal 8-230V input single wire push switch
- Mini Size, Easy to be Installed into a standard 86*86mm wall box
- Radio Frequency : 2.4GHz
- Waterproof grade: IP20
- DO NOT install with power applied to device.
- DO NOT expose the device to moisture.
General Specification
Zigbee Protocol
Zigbee 3.0
Input Voltage
100-240VAC
Output Current
100-240VAC
Output Current
16A max
Input Type
Constant voltage
Dimension (LxWxH)
45.5x45x20.3mm
Specifications
Specifications
-
BrandEnvo
-
SeriesENVO Zigbee Series
-
Power Rating3680 Watt
-
Output Voltage220 Volt
-
Rated Current16 Ampere
-
Input Voltage100V~240V
-
Standards MetCE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length1.79 in
-
Width1.77 in
-
Height0.8 in
