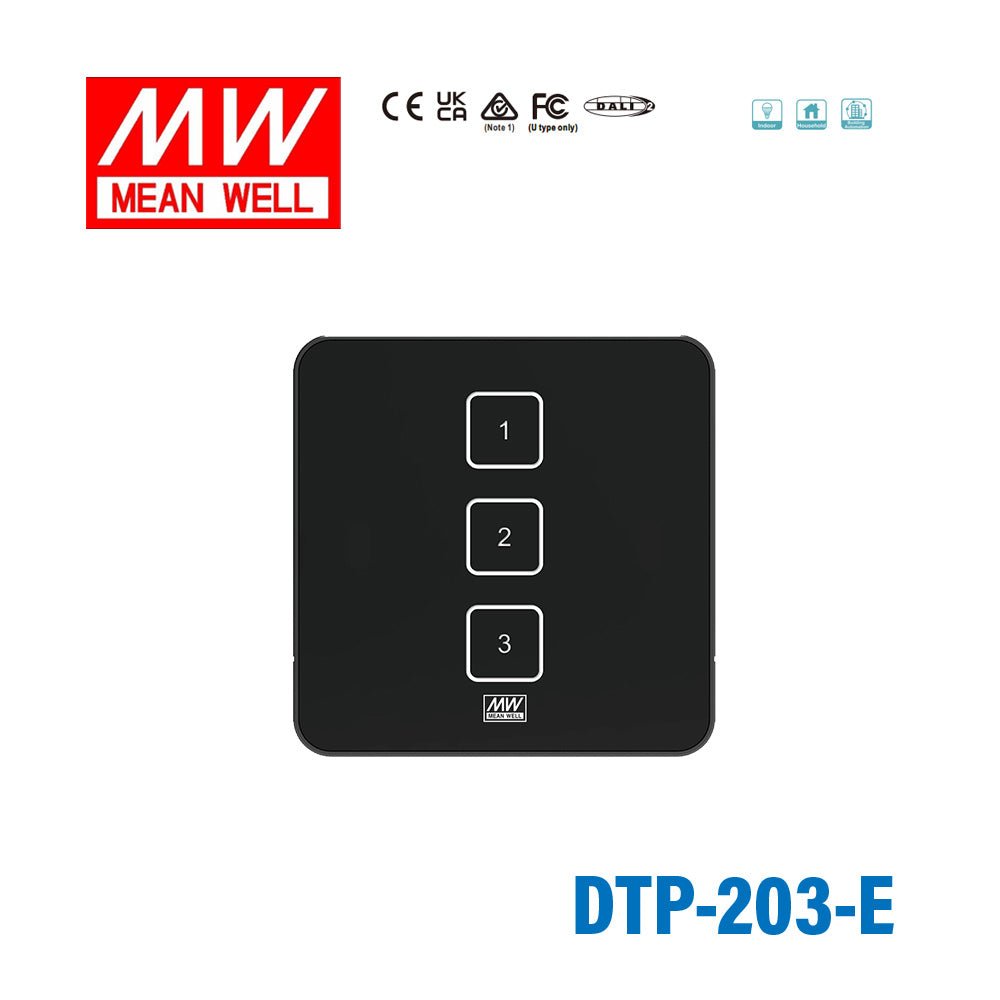

Mean Well DALI2 Panel 3-Keys E Type

Name: Mean Well DALI2 Panel 3-Keys E Type
Brand: Mean Well
SKU: DTP-203-E
Price: 68.21 USD
Availability: InStock

$68.21 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features:⦁ DALI-2 certified touch panel⦁ Compliant with IEC-62386-301 push button⦁ Compliant with IEC-62386-332 feedback⦁ Compatible for DALI-2 controllers⦁ Powered by DALI Bus⦁ Configurable functionality via MEAN WELL DLC-02 software⦁ Each button can trigger multiple modes:⦁ Short Click/Double Click/Long Press, to trigger scene or grouping functions⦁ Backlight brightness adjustable⦁ Touch panel volume adjustable⦁ 5 years warrantyGeneral Specification:Input VoltageDALI bus 9.5V~22.5V DC according to IEC62386 regulationCurrent ConsumptionTyp. Current <4mA (at 16V) Inrush Current <10mAProtocolDALI-2DALI StandardIEC62386-101, 103, 301, 332Button EventShort click, Double click, Long pressBacklightThree adjustable levels: high brightness, low brightness, and offVolumeOptional to turn on or offOperating Temperature-20 - +50 °CSafety standardsBS EN/EN61347-1; BS EN/EN61347-2-11Dimension (LxWxH)86 x 86 x 26.5mm

Specifications

Brand

Mean Well
Series

DTP Series
Power Rating

0.5 Watt
Rated Current

0.00 Ampere
Input Voltage

9.5V~22.5V
Standards Met

CE,FC
Operation Mode

Constant Voltage
Operating Temperature

-20°C~50°C
Warranty

5 Year
Length

3.39 in
Width

3.39 in
Height

1.04 in
Weight

0.29 lb
