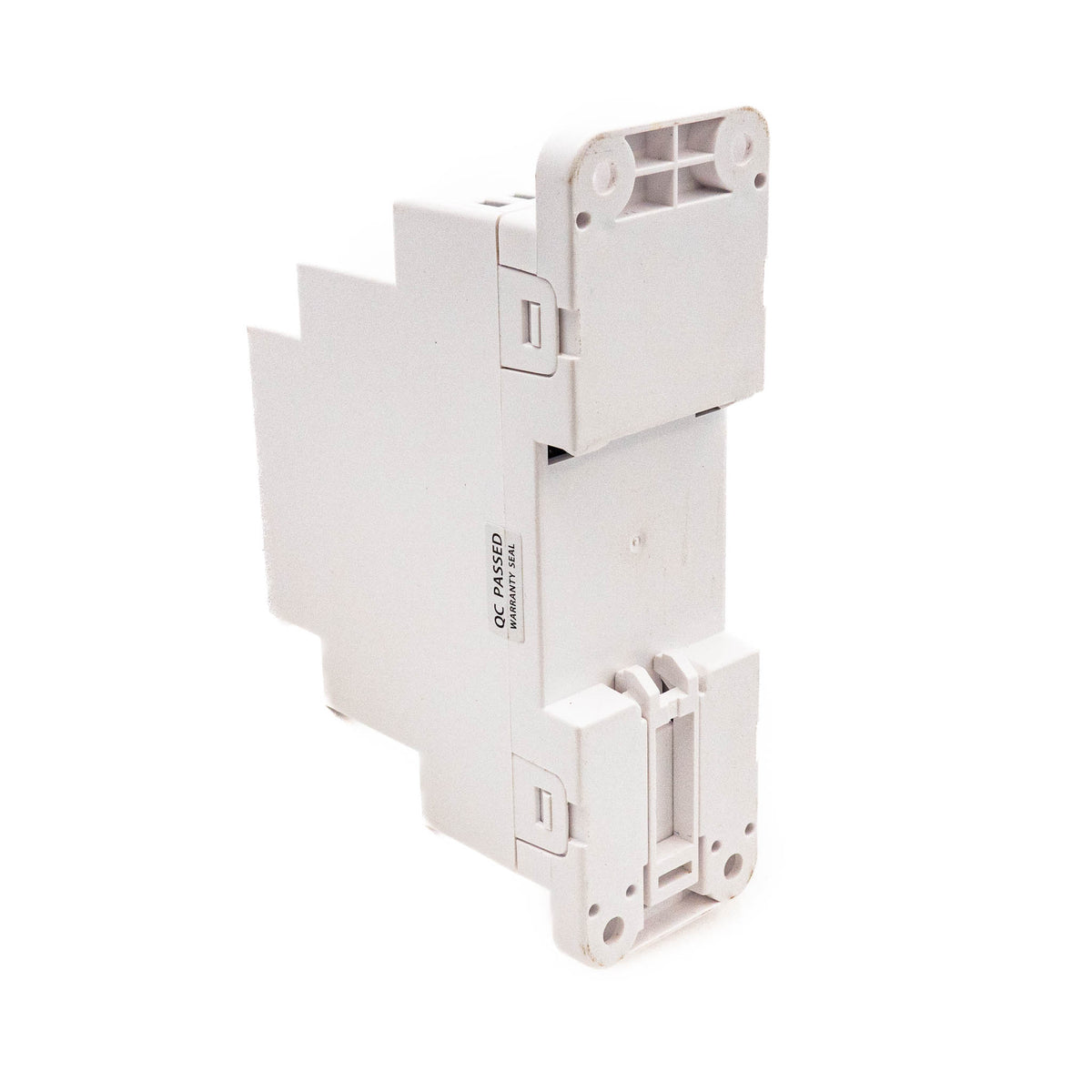

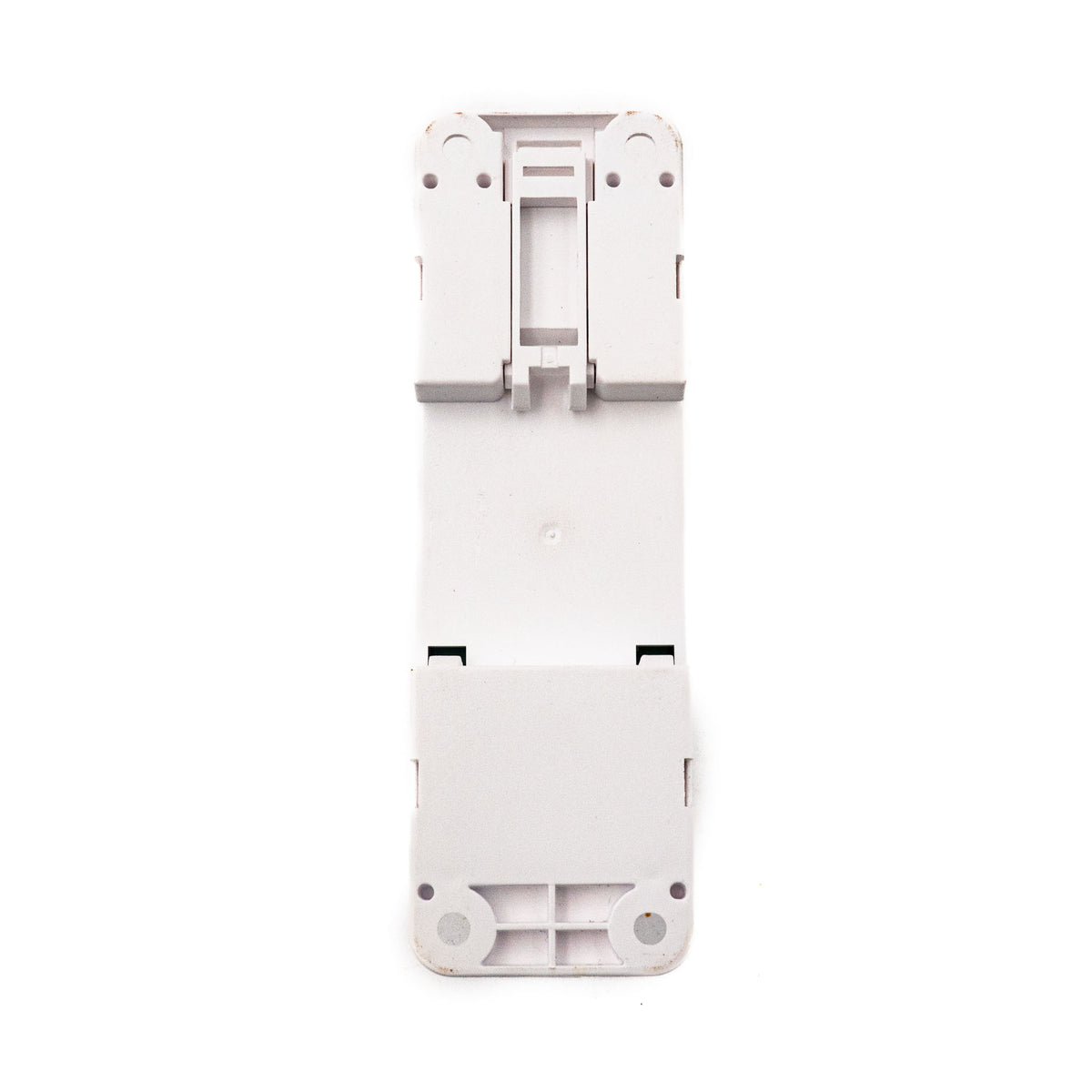

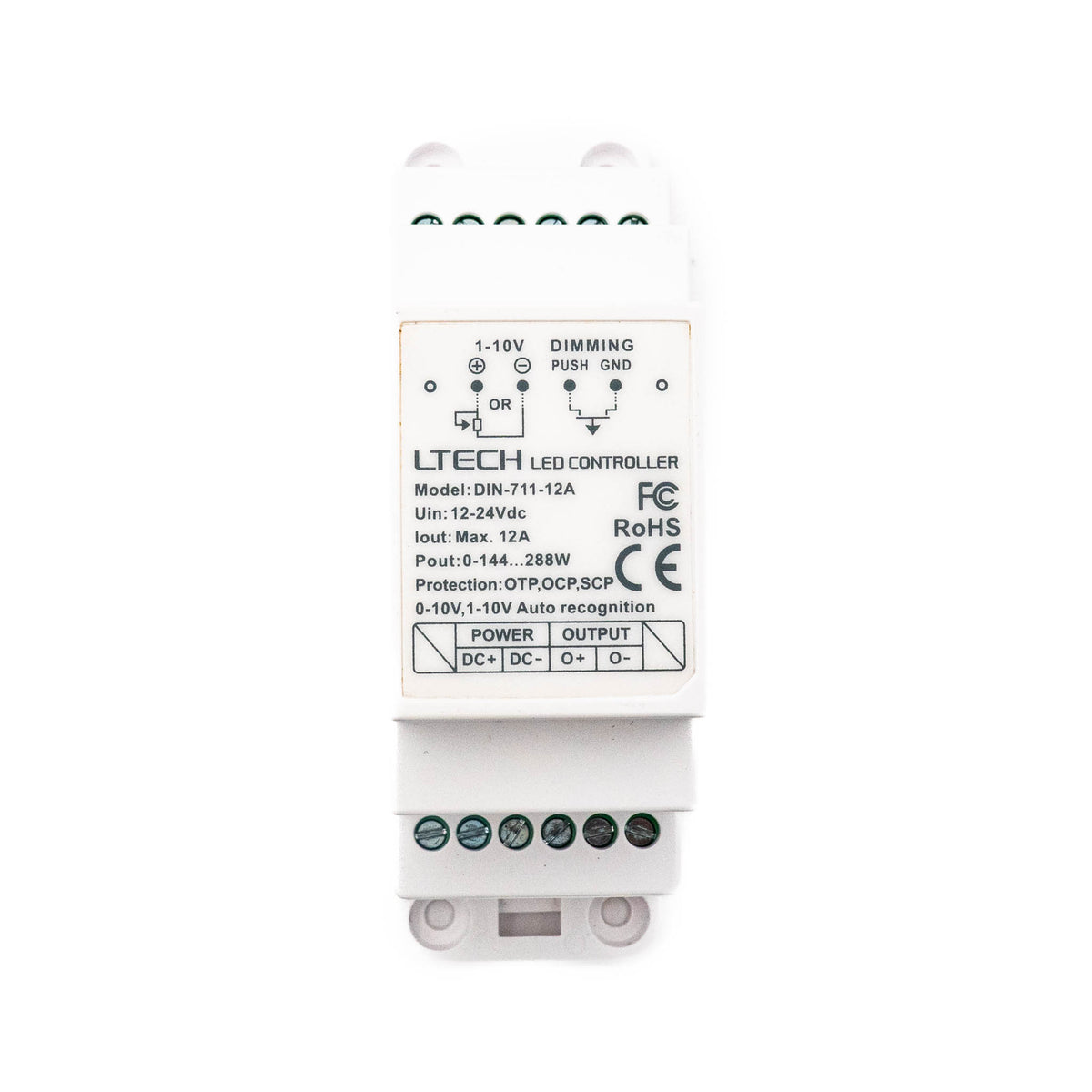

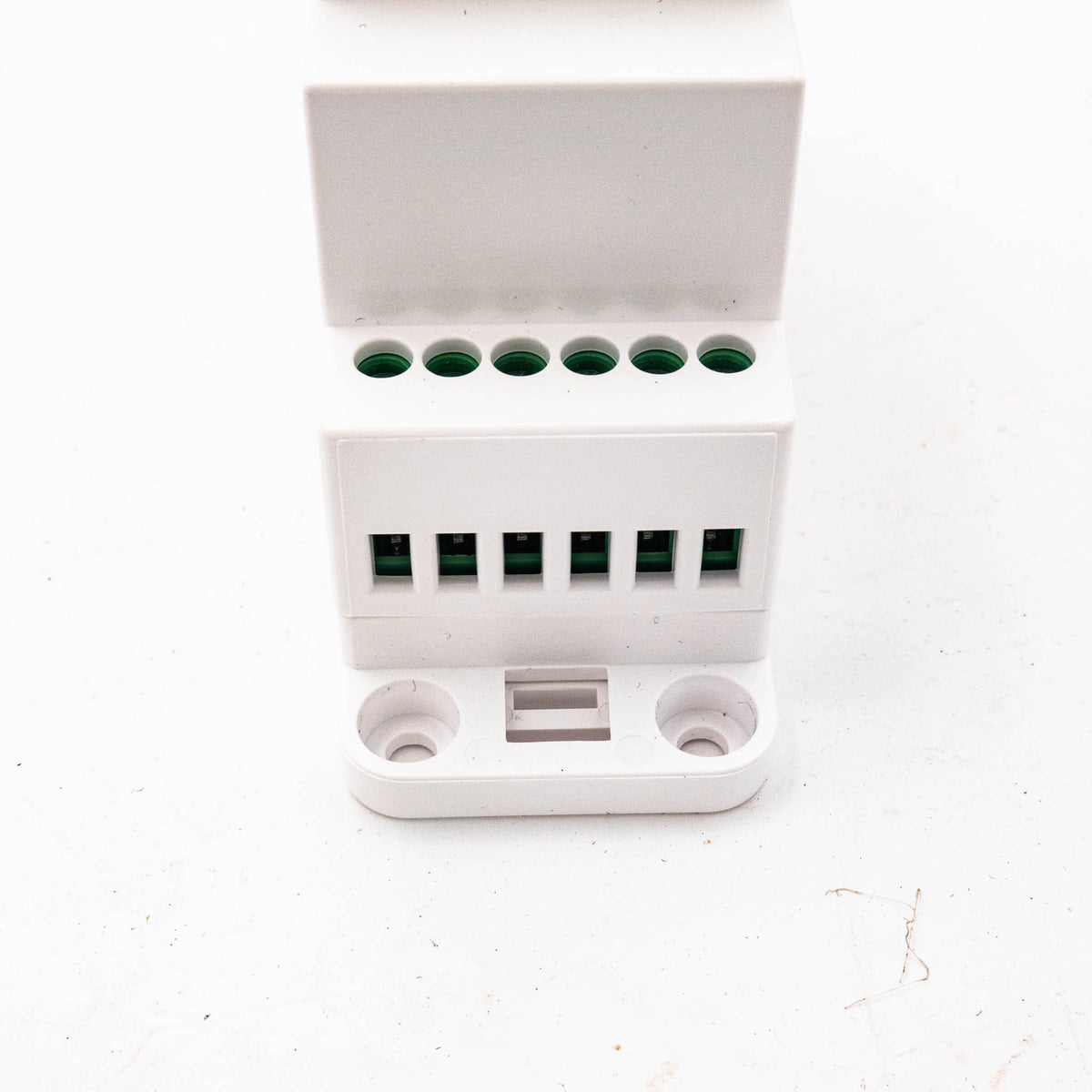

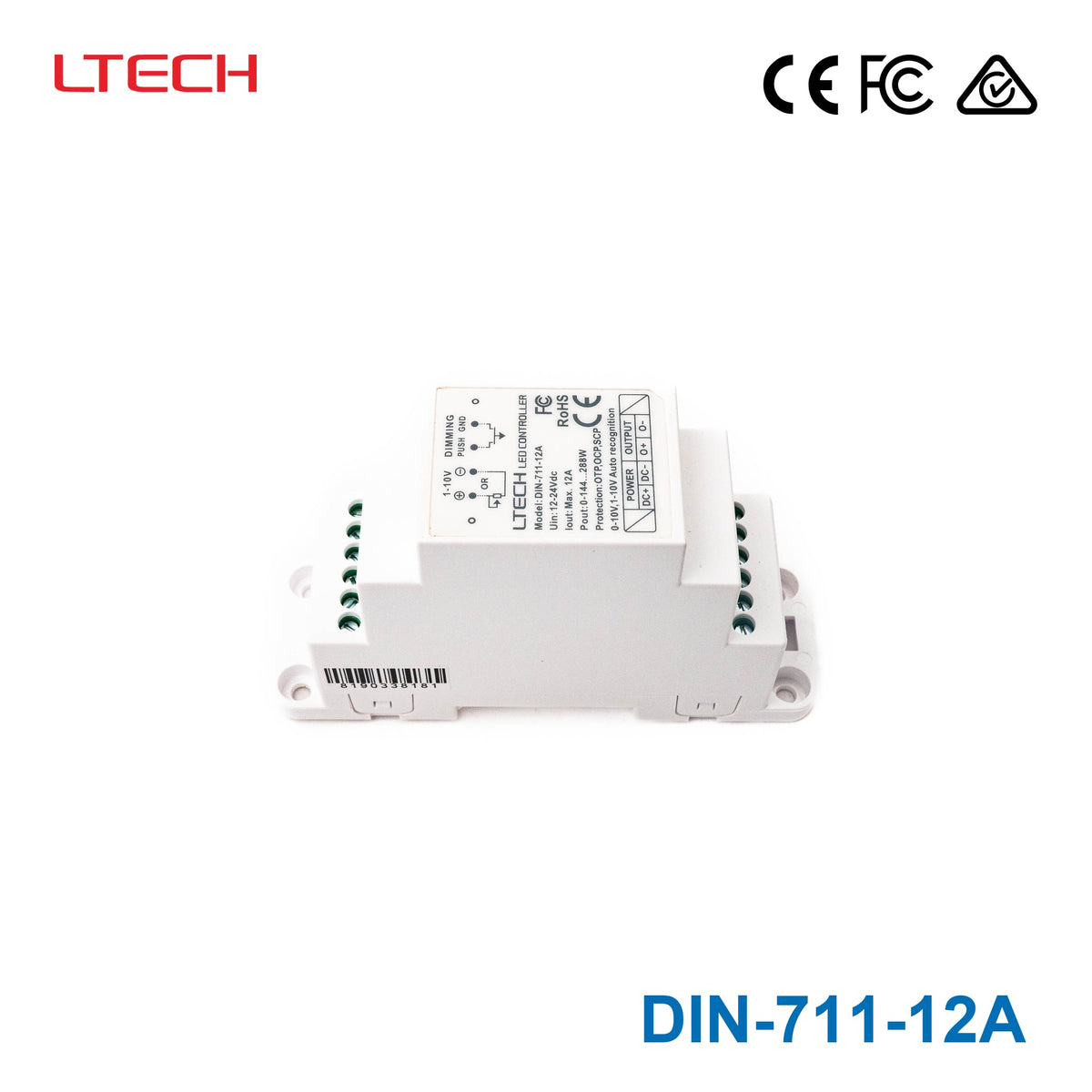

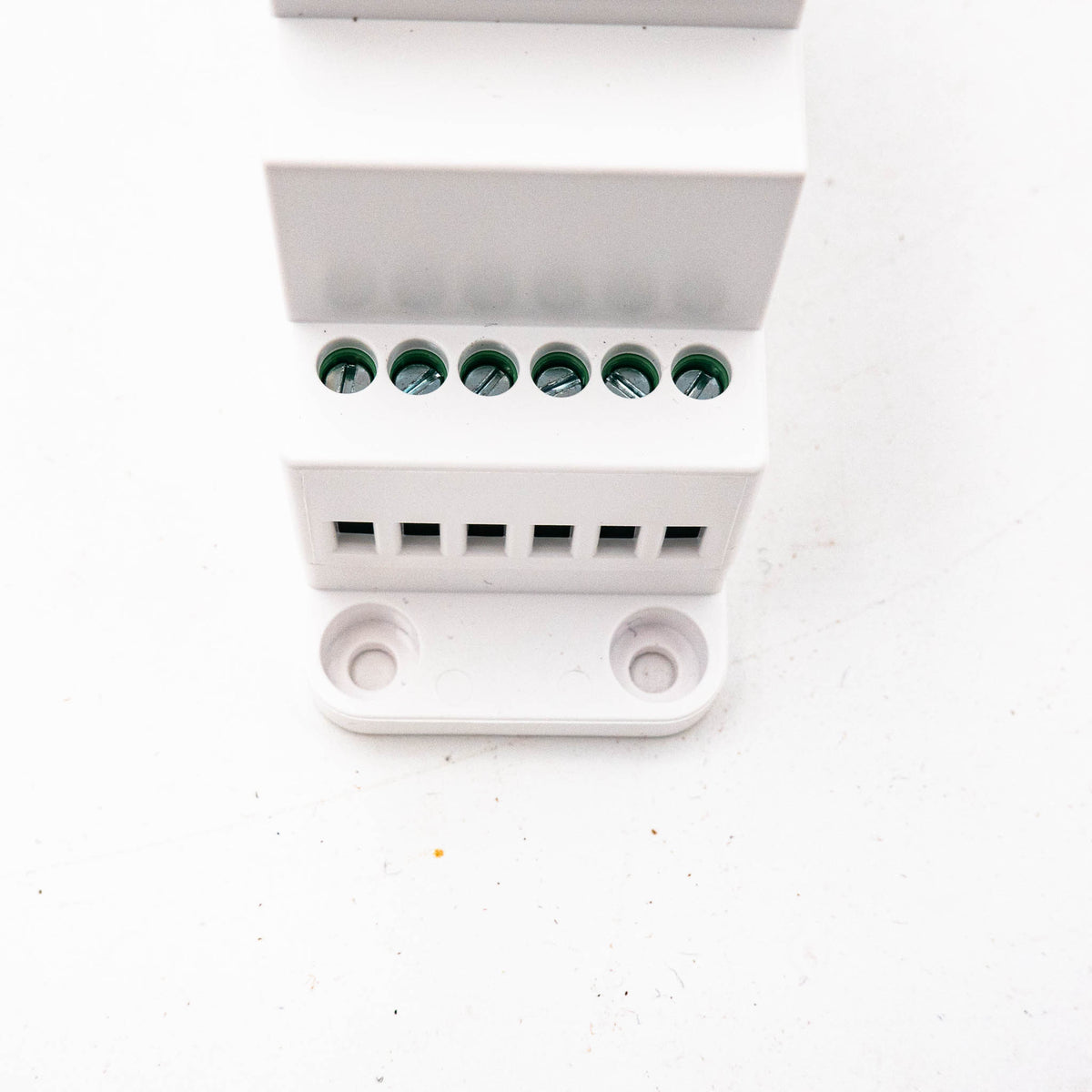

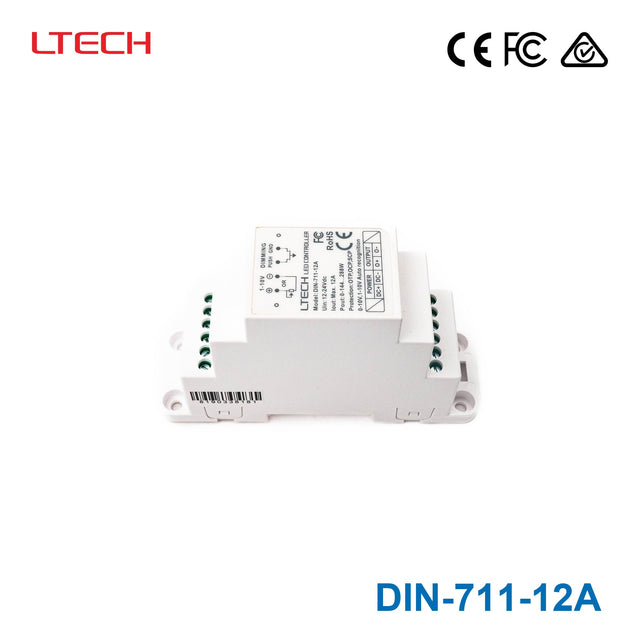

Ltech DIN-711-12A Din Rail 1-10V LED Controller 12A

Name: Ltech DIN-711-12A Din Rail 1-10V LED Controller 12A
Brand: Ltech
SKU: DIN-711-12A
Price: 67.44 USD
Availability: InStock

SKU DIN-711-12A

$67.44 USD ~~$9,999.00~~

Shipping calculated at checkout.

In stock

The Ltech DIN-711-12A is a 1-10V LED controller designed for dimming LED lighting systems. It also supports 0-10V, 10V PWM, and push-button dimming input methods, which makes it useful in commercial and building lighting control applications.

Input 12~24VDC. 1 channels at 12A each. Operating temperature -30~+55°C. Backed by a 3 year warranty.

Key Features

✓Input voltage: 12~24VDC
✓Control protocol: 0-10V, 10V PWM, 1-10V, Push DIM
✓Output signal: Normal
✓Output channels: 12A - 1 Channel
✓Maximum load: 12A per channel
✓Maximum total load: 288W
✓Operating temperature: -30~+55°C
✓Certifications: CE, FCC, RCM
✓Dimensions: 112 x 35 x 67mm
✓3 year warranty

Frequently Asked Questions

What does the Ltech DIN-711-12A control?

What dimming signal types are supported by this controller?

This model supports 0-10V, 1-10V, 10V PWM, and push-button dimming interfaces. It also includes automatic identification of 0-10V input, helping it work across multiple low-voltage dimming control approaches.

What are the electrical ratings of the DIN-711-12A?

The DIN-711-12A is rated for 24V output, 12A maximum current, and 288W power. These ratings make it suitable for higher-load 24V LED dimming applications where a single controller needs to handle substantial output capacity.

How smooth is the dimming performance on this model?

This controller uses PWM digital dimming and supports a dimming range from 0-100%. It also allows LED startup at as low as 0.1%, which is useful for applications that need very low-end dimming performance.

Is the Ltech DIN-711-12A suitable for indoor commercial environments?

Yes, this model is specified for indoor environments and uses a full protective plastic housing. Its DIN rail form factor and broad control signal support make it a practical option for indoor lighting control panels and commercial LED systems.

What operating temperature range does this controller support?

The DIN-711-12A is rated for operation from -30°C to 55°C. That range supports use in a wide variety of indoor environments where control equipment may be exposed to colder or warmer conditions.

Does this controller include protection features?

Yes, the Ltech DIN-711-12A includes short-circuit and overload protection. These built-in protections help safeguard the controller in demanding LED control applications.

What warranty is offered for the DIN-711-12A?

This model includes a 3-year warranty period. That warranty term can be useful for buyers evaluating long-term support and lifecycle expectations for commercial LED control components.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Outputs	Output Type	Dimming
ENVO SR-2701S-N Relay On/Off Control + SR-2701S-N to 0/1-10V Converter, Configurable Single Address	1	—	0-10V,1-10V,DALI	View
Ltech LT-704-5A Constant Voltage Controller - 0-10V/Push Dimmable	4	Normal	0-10V,10V PWM,1-10V,Push Dimming	View
Ltech LT-701-6A Constant Voltage Controller - 0-10V/Push Dimmable	1	Normal	0-10V,10V PWM,1-10V,Push Dimming	View
Ltech LT-701-12A Constant Voltage Controller - 0-10V/Push Dimmable	1	Normal	0-10V,10V PWM,1-10V,Push Dimming	View
