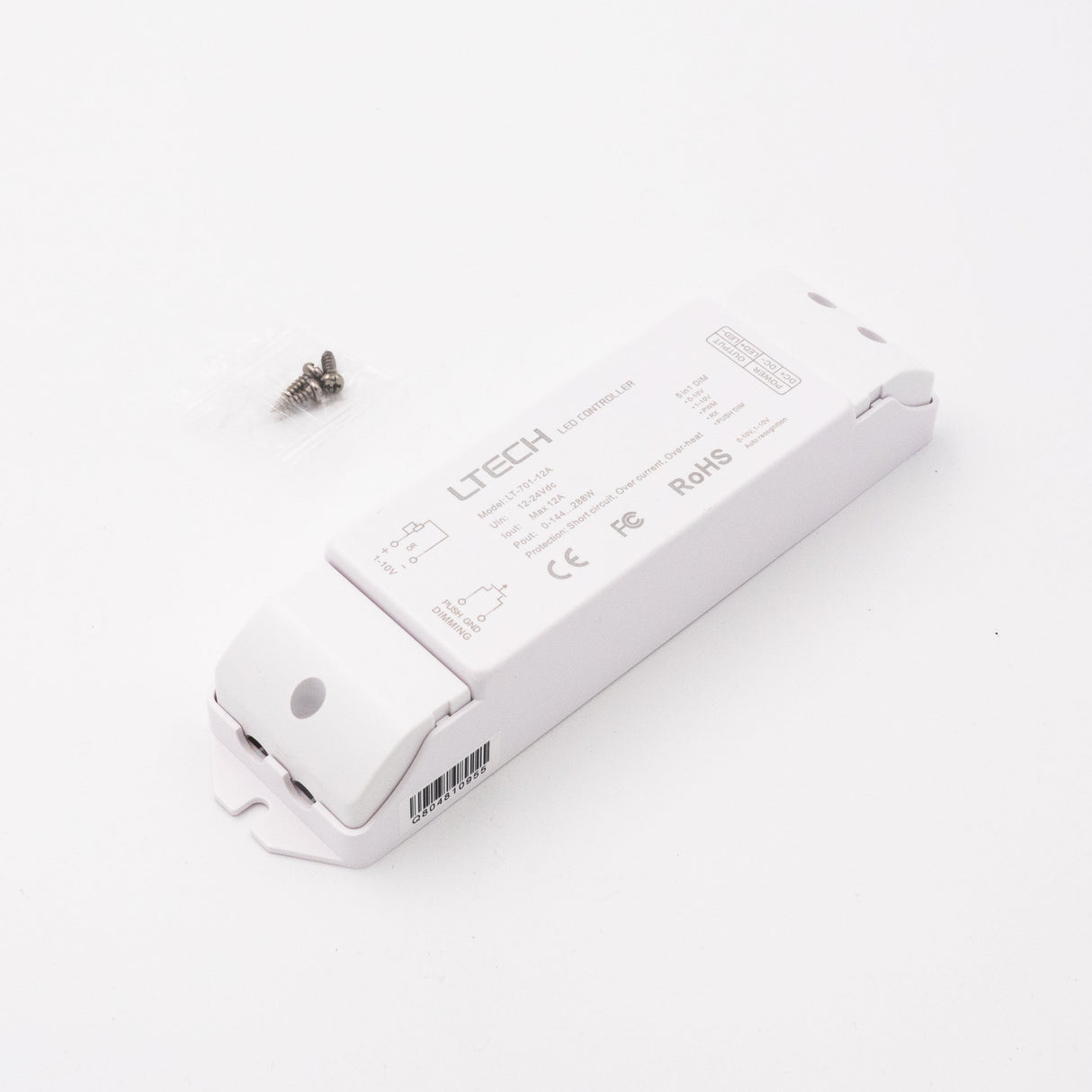

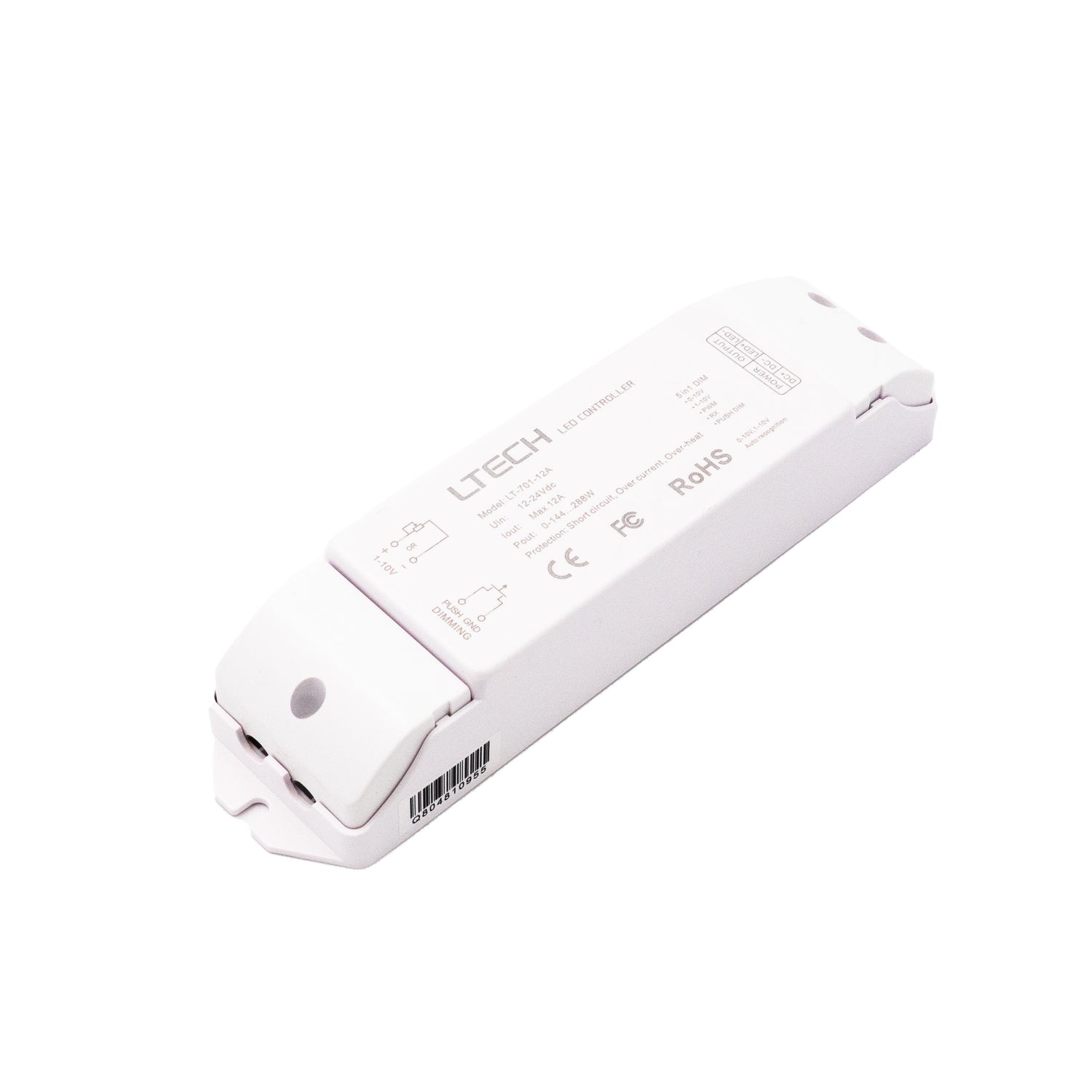

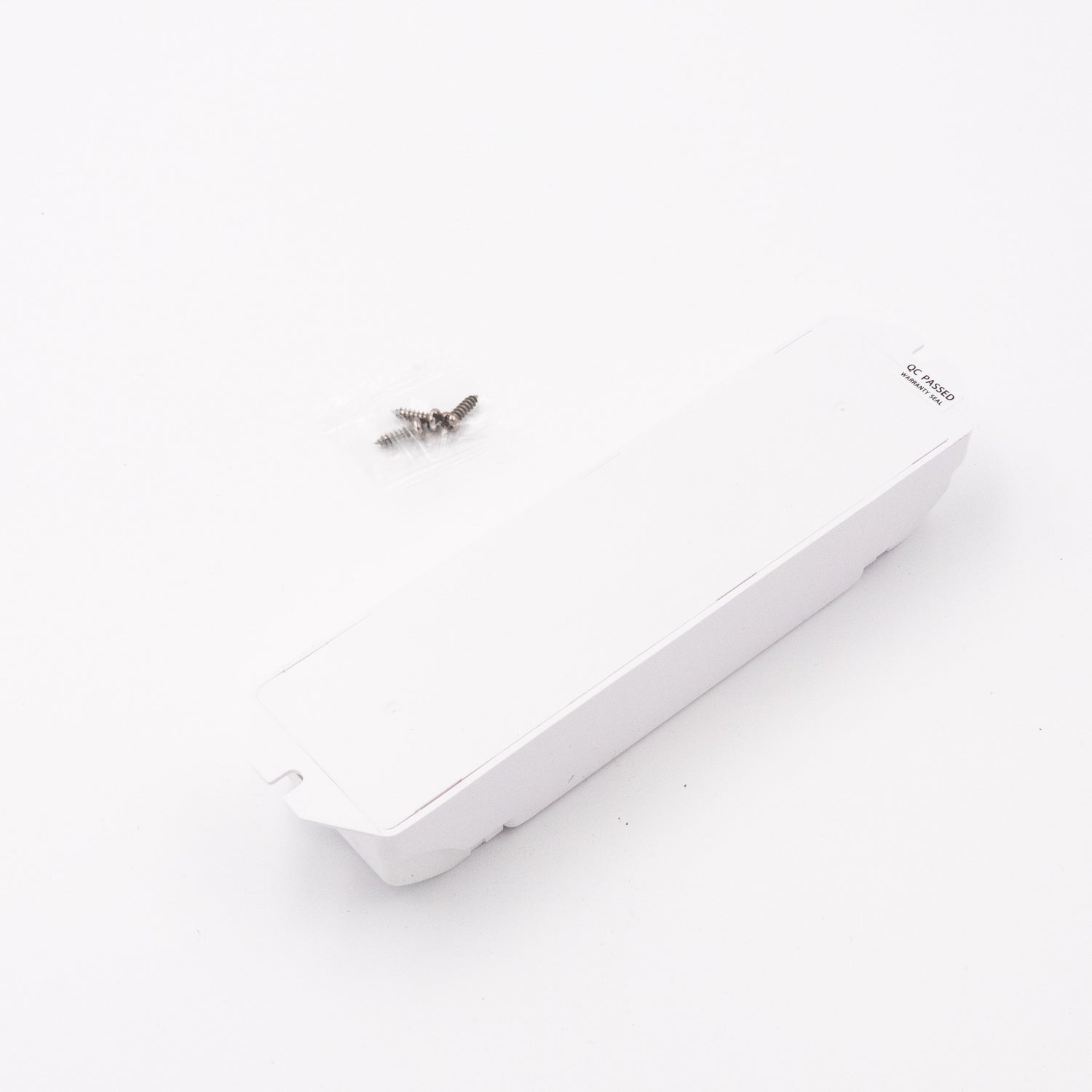

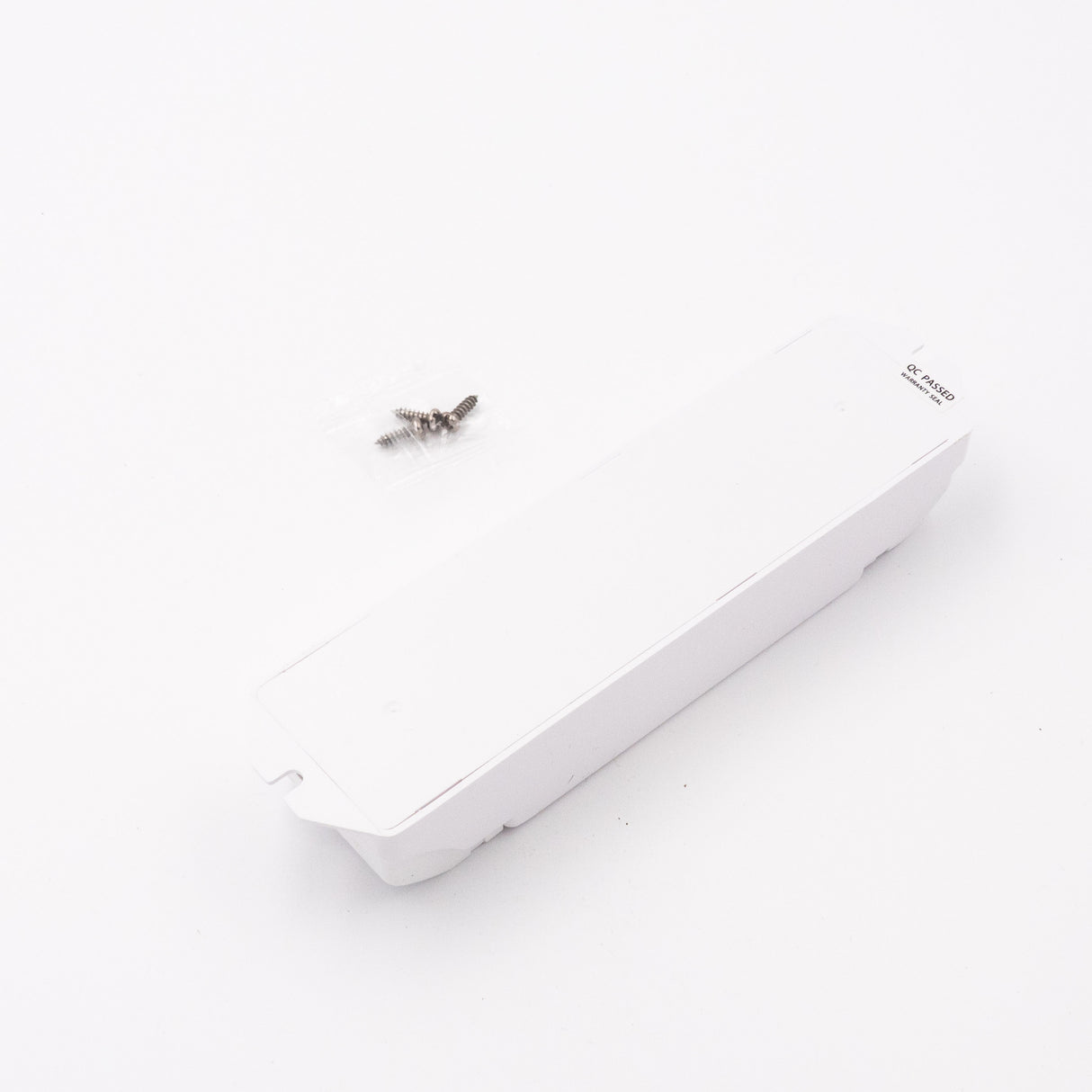

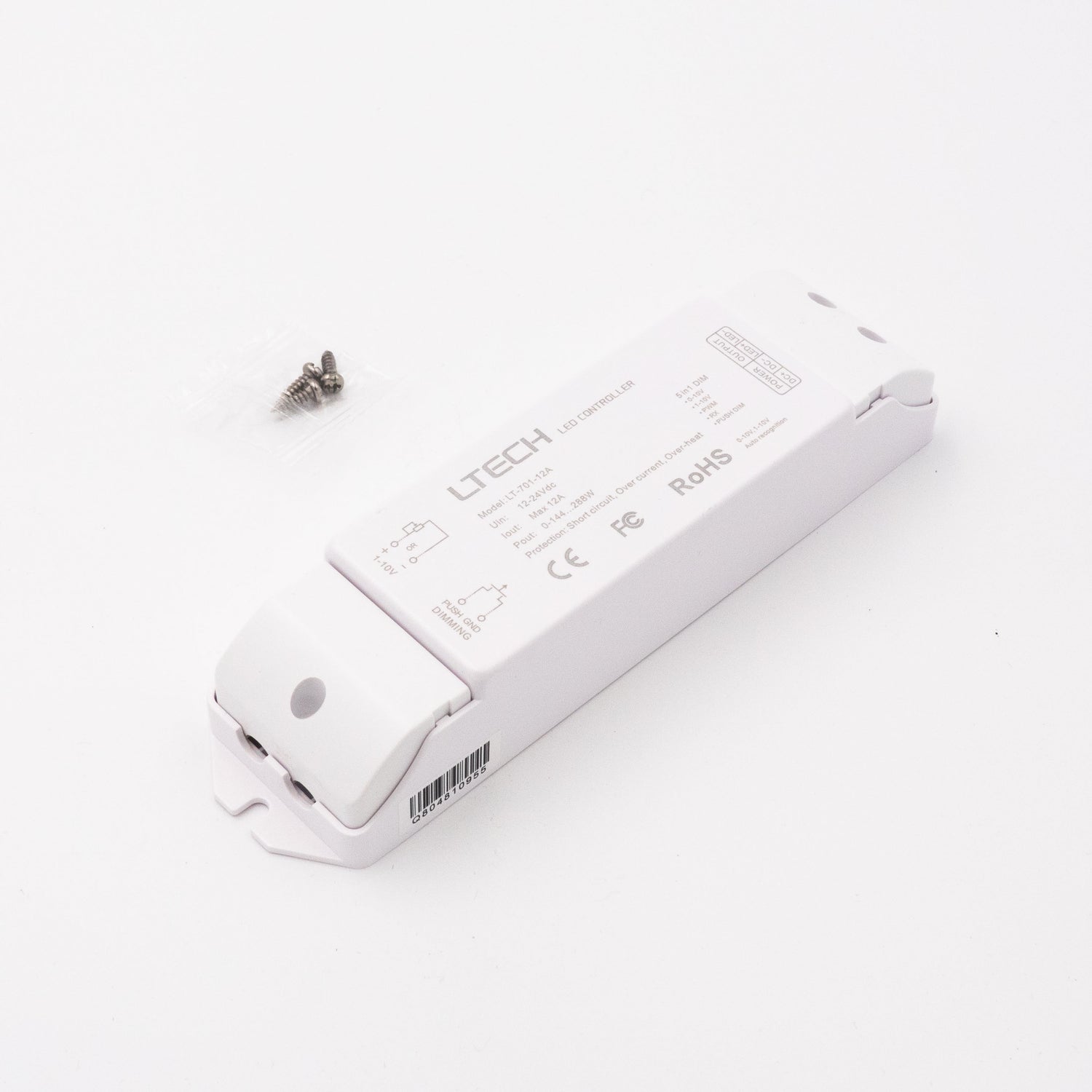

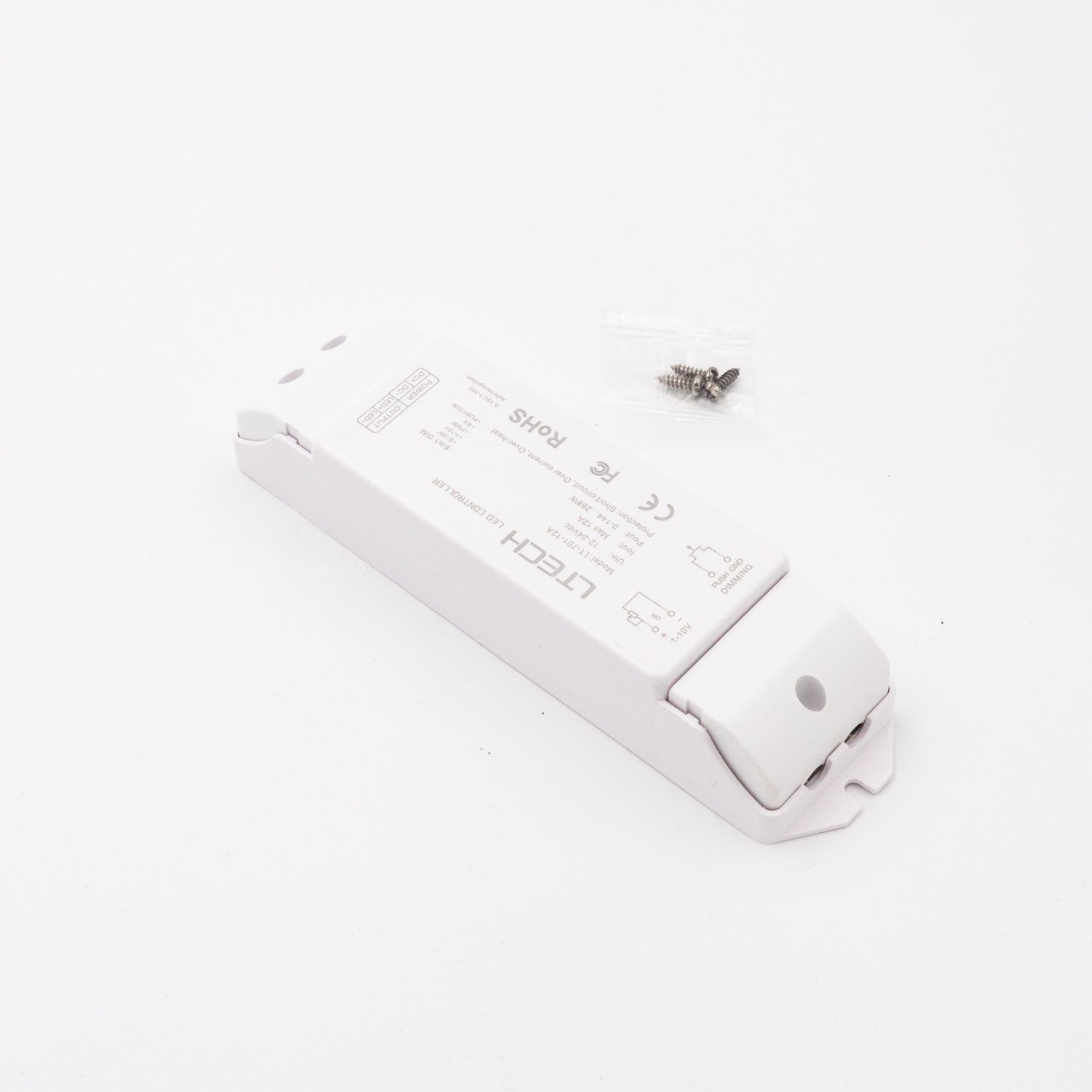

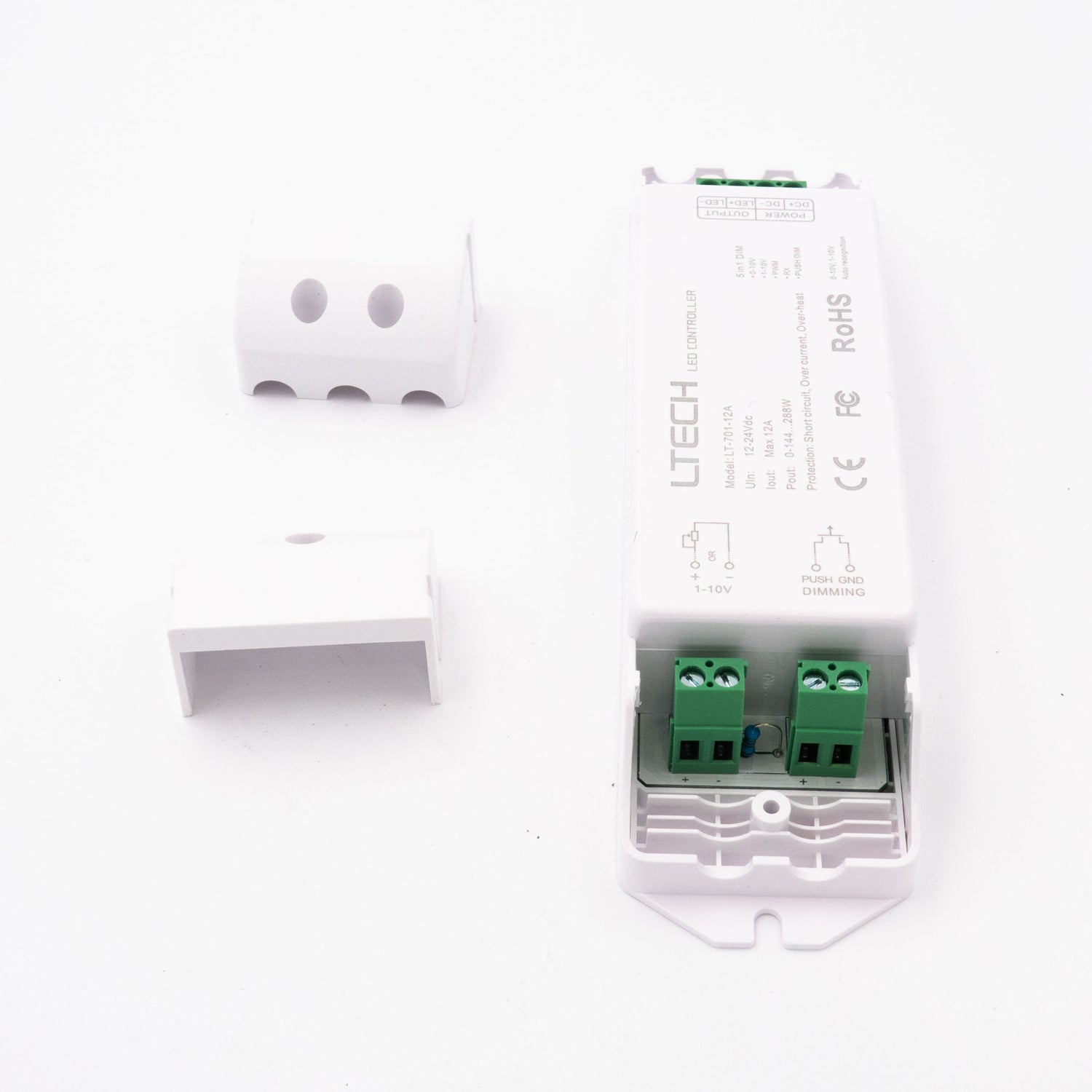

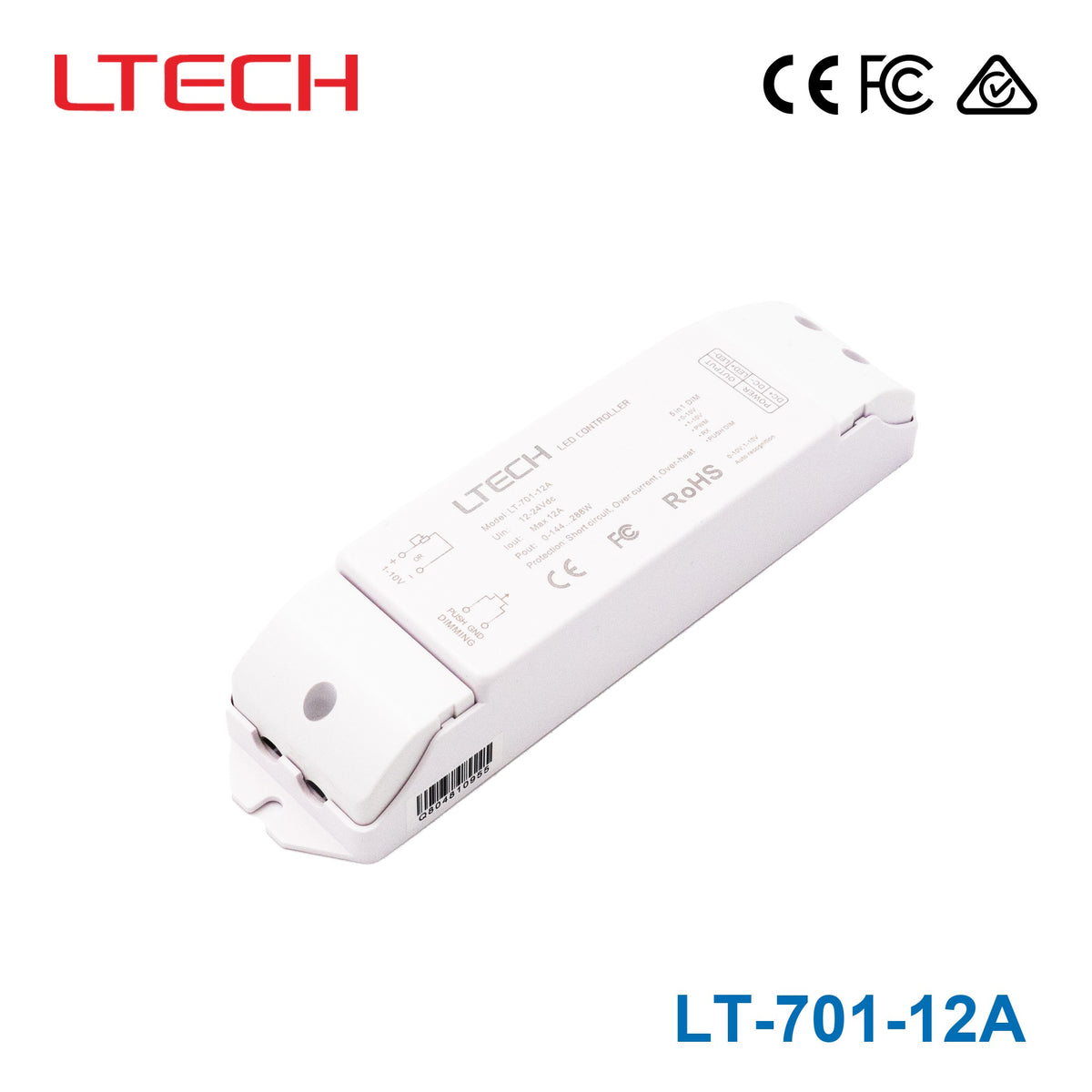

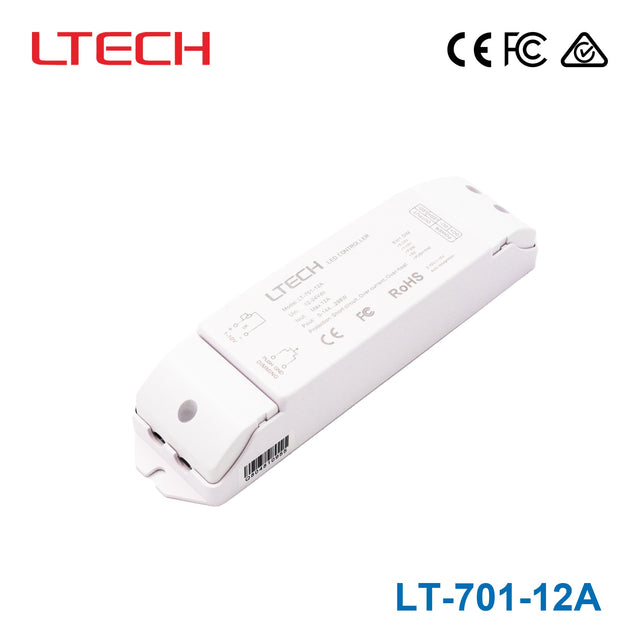

Ltech LT-701-12A Constant Voltage Controller - 0-10V/Push Dimmable

Name: Ltech LT-701-12A Constant Voltage Controller - 0-10V/Push Dimmable
Brand: Ltech
SKU: LT-701-12A
Price: 67.67 USD
Availability: InStock

SKU LT-701-12A

$67.67 USD ~~$9,999.00~~

Shipping calculated at checkout.

In stock

The LT-701-12A supports 0-10V, 1-10V, 10V PWM, and push dimming control. It also automatically identifies 0-10V and 1-10V input signals, which makes it suitable for systems that use either standard.

Input 12~24VDC. 1 channels at 12A each. Operating temperature -30~+55°C. Backed by a 5 year warranty.

Key Features

✓Input voltage: 12~24VDC
✓Control protocol: 0-10V, 10V PWM, 1-10V, Push DIM
✓Output signal: Normal
✓Output channels: 12A - 1 Channel
✓Maximum load: 12A per channel
✓Maximum total load: 288W
✓Operating temperature: -30~+55°C
✓Certifications: CE, FCC, RCM
✓Dimensions: 175 x 44 x 30mm
✓5 year warranty

Frequently Asked Questions

What type of dimming control does the Ltech LT-701-12A support?

The LT-701-12A supports 0-10V, 1-10V, 10V PWM, and push dimming control. It also automatically identifies 0-10V and 1-10V input signals, which makes it suitable for systems that use either standard.

What are the main electrical ratings for the LT-701-12A?

This model is a 12V constant voltage controller rated for up to 12A output current. Its maximum power rating is 288W, matching applications that need constant-voltage dimming at 12V.

What kinds of LED lighting applications is the LT-701-12A best suited for?

The LT-701-12A is designed for constant-voltage LED dimming applications where 0-10V, 1-10V, 10V PWM, or push dimming is required. It is a practical fit for commercial and professional indoor LED control systems using 12V loads.

How smooth is the dimming range on this controller?

The LT-701-12A provides a dimming range from 0 to 100 percent, with LED startup possible at 0.1 percent. It uses PWM digital dimming and is specified to avoid altering the LED color rendering index during dimming.

Can the LT-701-12A be used in indoor or outdoor environments?

This controller is intended for indoor environments. Its operating temperature range is -30°C to 55°C, which supports use in a wide range of interior commercial and industrial settings.

What protection features are built into the LT-701-12A?

The LT-701-12A includes short circuit, overload, and over-heat protection. These protections are designed to recover automatically, helping support safer operation in demanding LED control applications.

How does the LT-701-12A compare to controllers with only one dimming method?

A key advantage of the LT-701-12A is that it supports multiple dimming control types in one model: 0-10V, 1-10V, 10V PWM, and push dimming. That flexibility can make it a better choice for projects where control standards vary across equipment or specifications.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Outputs	Output Type	Dimming
Ltech DIN-711-12A Din Rail 1-10V LED Controller 12A	1	Normal	0-10V,10V PWM,1-10V,Push Dimming	View
ENVO SR-2701S-N Relay On/Off Control + SR-2701S-N to 0/1-10V Converter, Configurable Single Address	1	—	0-10V,1-10V,DALI	View
Ltech LT-704-5A Constant Voltage Controller - 0-10V/Push Dimmable	4	Normal	0-10V,10V PWM,1-10V,Push Dimming	View
Ltech LT-701-6A Constant Voltage Controller - 0-10V/Push Dimmable	1	Normal	0-10V,10V PWM,1-10V,Push Dimming	View
