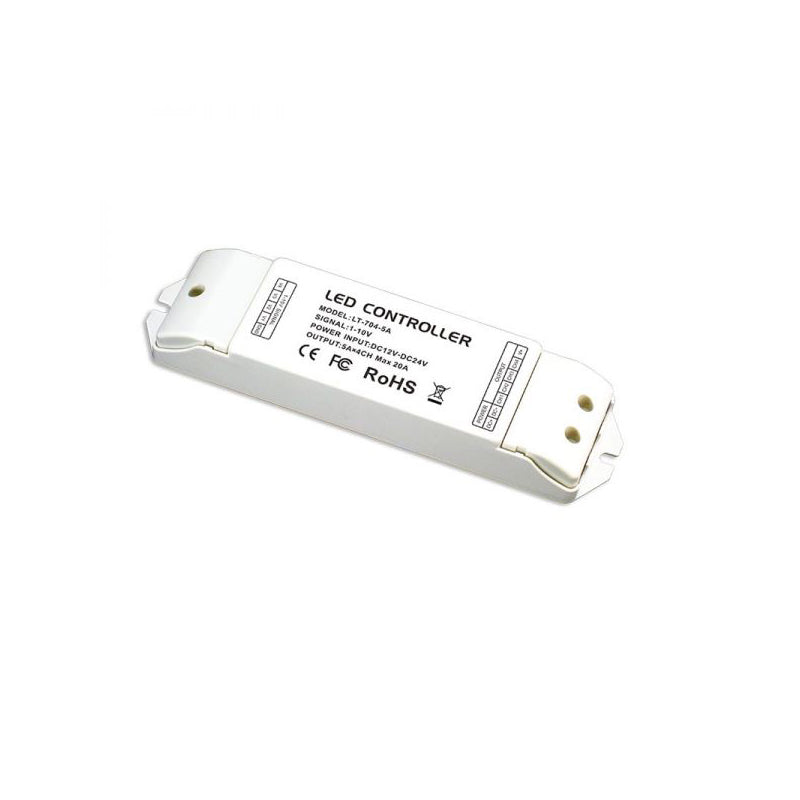

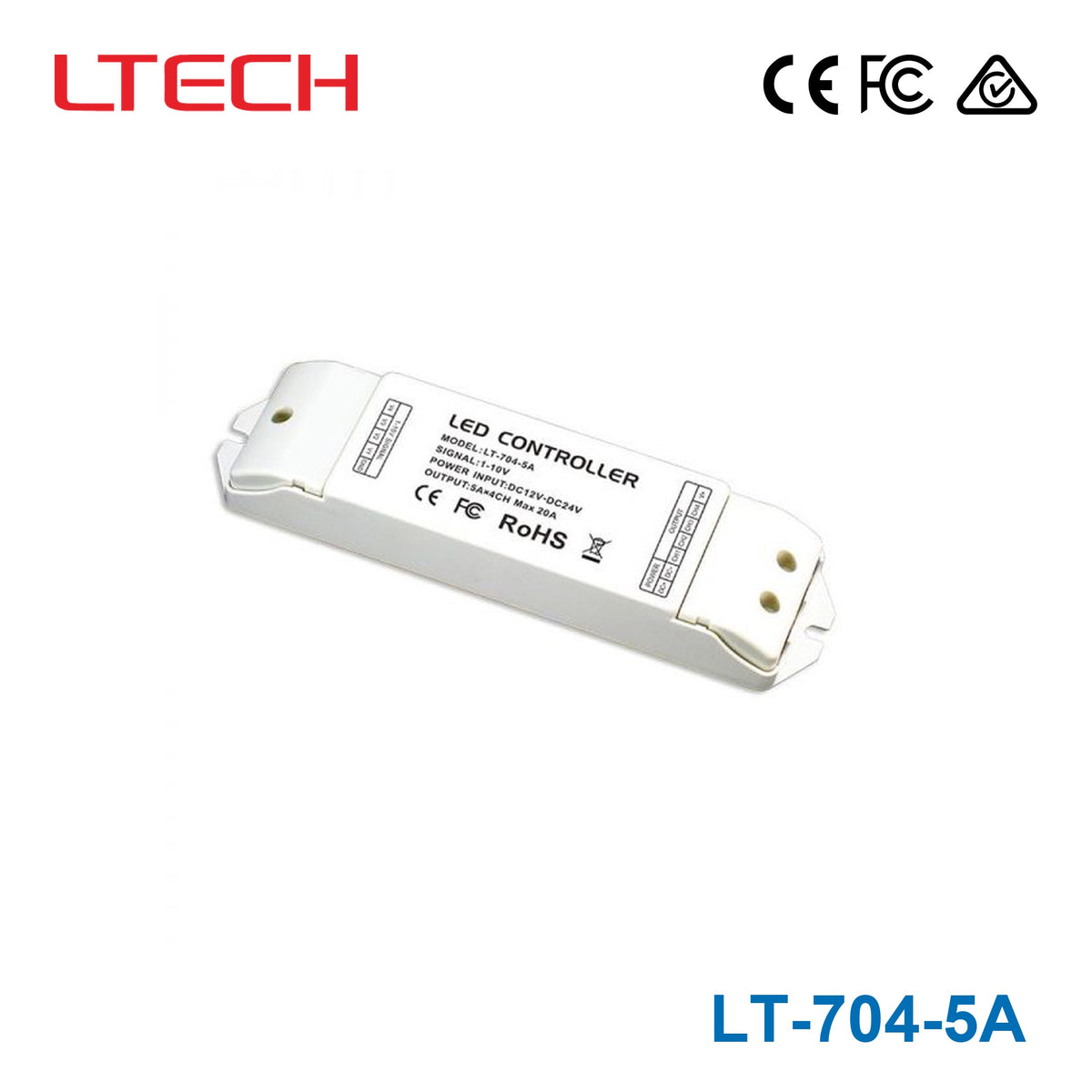

Ltech LT-704-5A Constant Voltage Controller - 0-10V/Push Dimmable

Name: Ltech LT-704-5A Constant Voltage Controller - 0-10V/Push Dimmable
Brand: Ltech
SKU: LT-704-5A
Price: 75.84 USD
Availability: InStock

SKU LT-704-5A

$75.84 USD ~~$172.83~~

Shipping calculated at checkout.

In stock

The LT-704-5A is a constant voltage LED controller intended for low-voltage lighting systems that need dimming control. It is best suited to applications where a 12V constant voltage setup is already being used and dimming is required at the controller level.

Input 12~24VDC. 4 channels at 5A each. Operating temperature -30~+55°C. Backed by a 5 year warranty.

Key Features

✓Input voltage: 12~24VDC
✓Control protocol: 0-10V, 10V PWM, 1-10V, Push DIM
✓Output signal: Normal
✓Output channels: 5A - 4 Channel
✓Maximum load: 5A per channel
✓Maximum total load: 480W
✓Operating temperature: -30~+55°C
✓Certifications: CE, FCC, RCM
✓Dimensions: 175 x 44 x 30mm
✓5 year warranty

Frequently Asked Questions

What type of LED lighting is the Ltech LT-704-5A designed for?

What dimming control methods does the LT-704-5A support?

This model supports multiple dimming inputs, including 0-10V, 1-10V/PWM, and push dimming. That makes it useful for projects that need flexibility in how brightness is controlled without changing to a different controller model.

Does this controller dim smoothly at very low light levels?

Yes. The product data states a 0-100% dimming range and notes that LED startup at 0.1% is possible. It also uses PWM digital dimming, which is intended to provide controlled brightness adjustment across the range.

Is the LT-704-5A meant for indoor or outdoor use?

This controller is specified for indoor environments. The listed operating temperature range is -30°C to 55°C, so it is intended for indoor applications that may still experience demanding ambient conditions.

Will this controller affect LED color quality when dimming?

The product description states that its PWM digital dimming does not alter the LED color rendering index. For buyers comparing dimming options, that means this model is positioned to reduce visible color-quality changes during dimming.

What are the main physical and product specs buyers usually ask about?

For this model, the listed output voltage is 12V, the power rating is 480W, and the housing is full protective plastic. The product data also lists a 5-year warranty and a weight of 0.15 kg, which helps when evaluating it for commercial lighting control projects.
