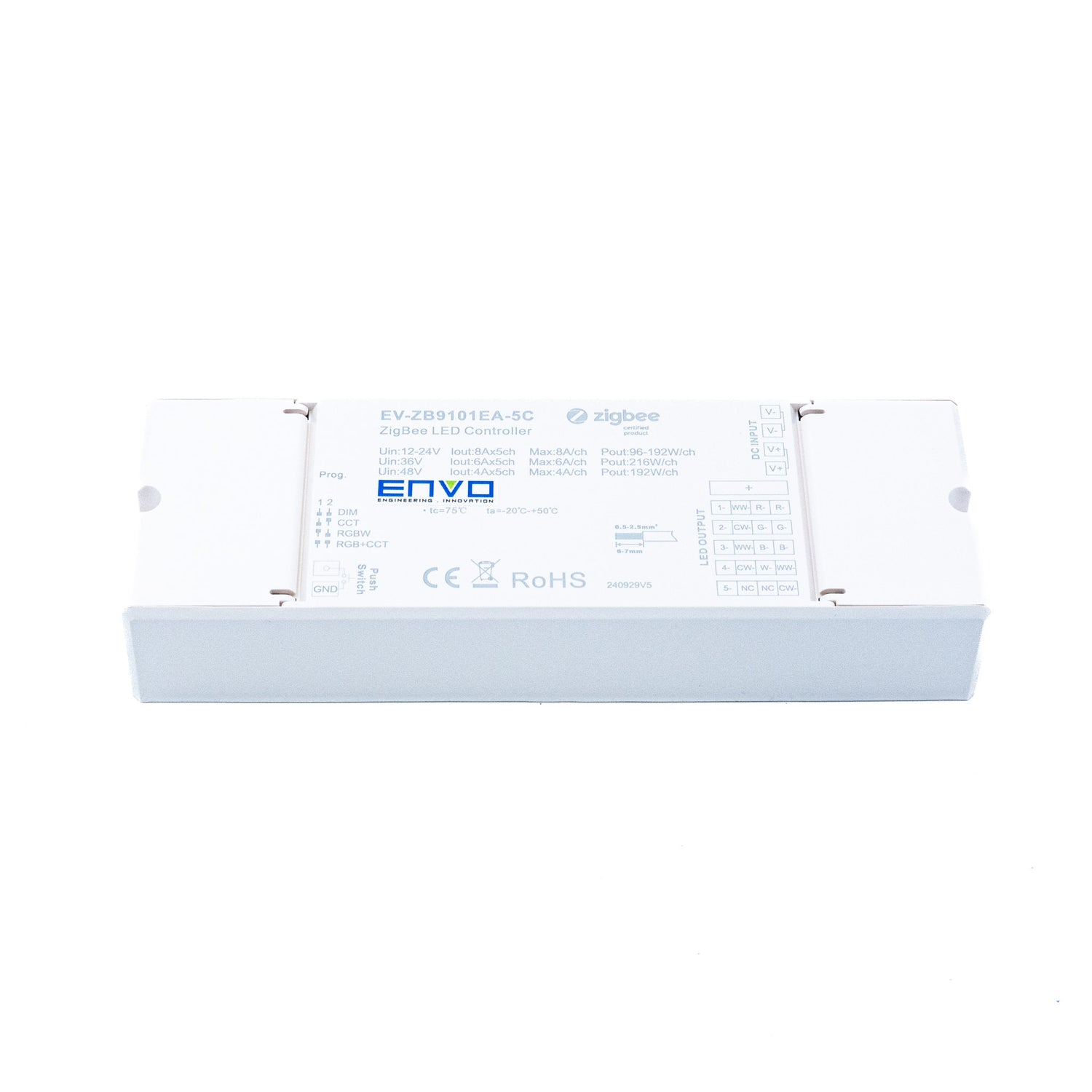

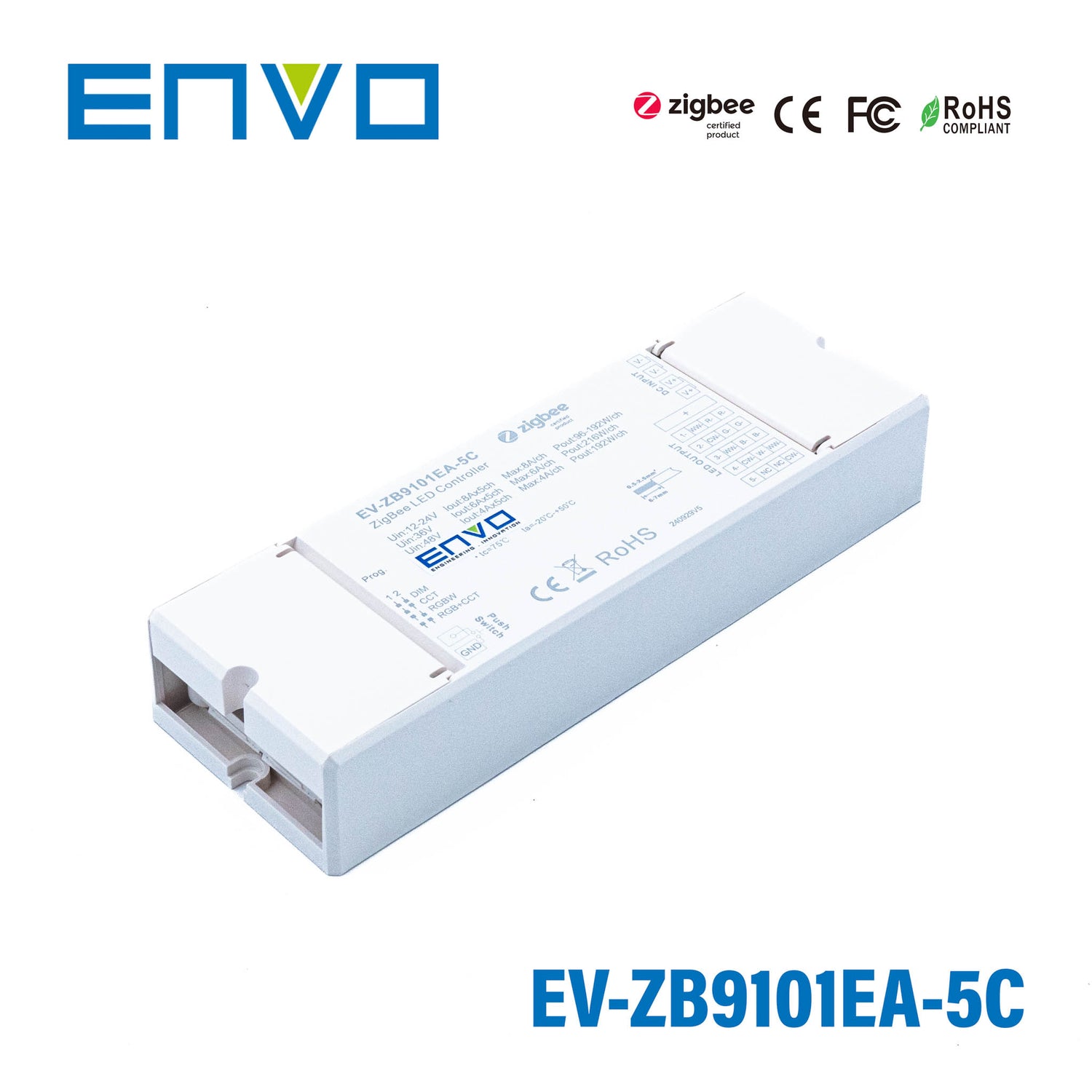

ENVO ZigBee 5 Channel Controller 12-48V 4-8A per Channel

Name: ENVO ZigBee 5 Channel Controller 12-48V 4-8A per Channel
Brand: Envo
SKU: EV-ZB9101EA-5C
Price: 58.19 USD
Availability: InStock

$58.19 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features:

4 in 1 universal Zigbee LED controller based on latest ZigBee 3.0 protocol

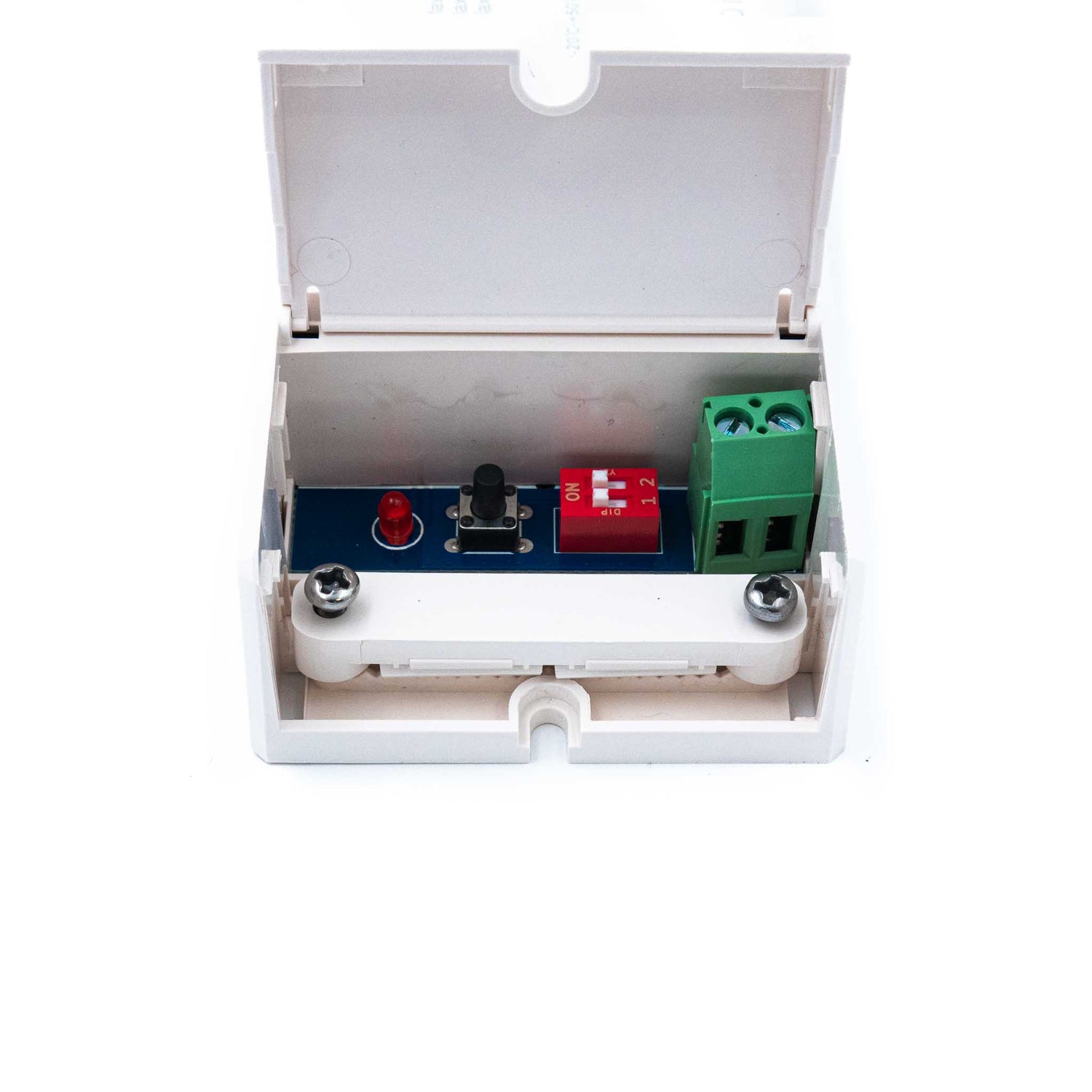

4 different device modes DIM, CCT, RGBW and RGB+CCT in 1 controller, and selectable by dial switch
Enables to control ON/OFF, light intensity, color temperature, RGB color of connected LED lights
Can directly pair to a compatible ZigBee remote via Touchlink
Supports self-forming zigbee network without coordinator
Supports find and bind mode to bind a ZigBee remote
Supports zigbee green power and can bind max. 20 zigbee green power switches
Compatible with universal Zigbee gateway or hub products
Compatible with universal Zigbee remotes
Waterproof grade: IP20
DO NOT install with power applied to device.
DO NOT expose the device to moisture.

General Specification

Zigbee Protocol

Zigbee 3.0

Input Voltage

12-48VDC

Output Current

Max. 8A/CH@12V/24V

Max. 6A/CH@36V

Max. 4A/CH@48V

Output Power

Max. 96W/CH@12V

Max. 192W/CH@24V

Max. 216W/CH@36V

Max. 192W/CH@48V

Connector Current Rating

Max. 20A

Wire Size

0.05-3.3mm (12-30AWG)

Input Type

Constant voltage

Ambient Temperature

-20°C ~ +50°C

Max. Casing Temperature

75°C

Dimension (LxWxH)

95x37x20mm

Specifications

Brand

Envo
Series

ENVO Zigbee Series
Power Rating

480 Watt
Output Voltage

12 Volt
Rated Current

8 Ampere
Input Voltage

12V~48V
Standards Met

CE,ROHS
Operation Mode

Constant Voltage
Operating Temperature

-20°C~50°C
Warranty

5 Year
Length

6.69 in
Width

2.32 in
Height

1.14 in
