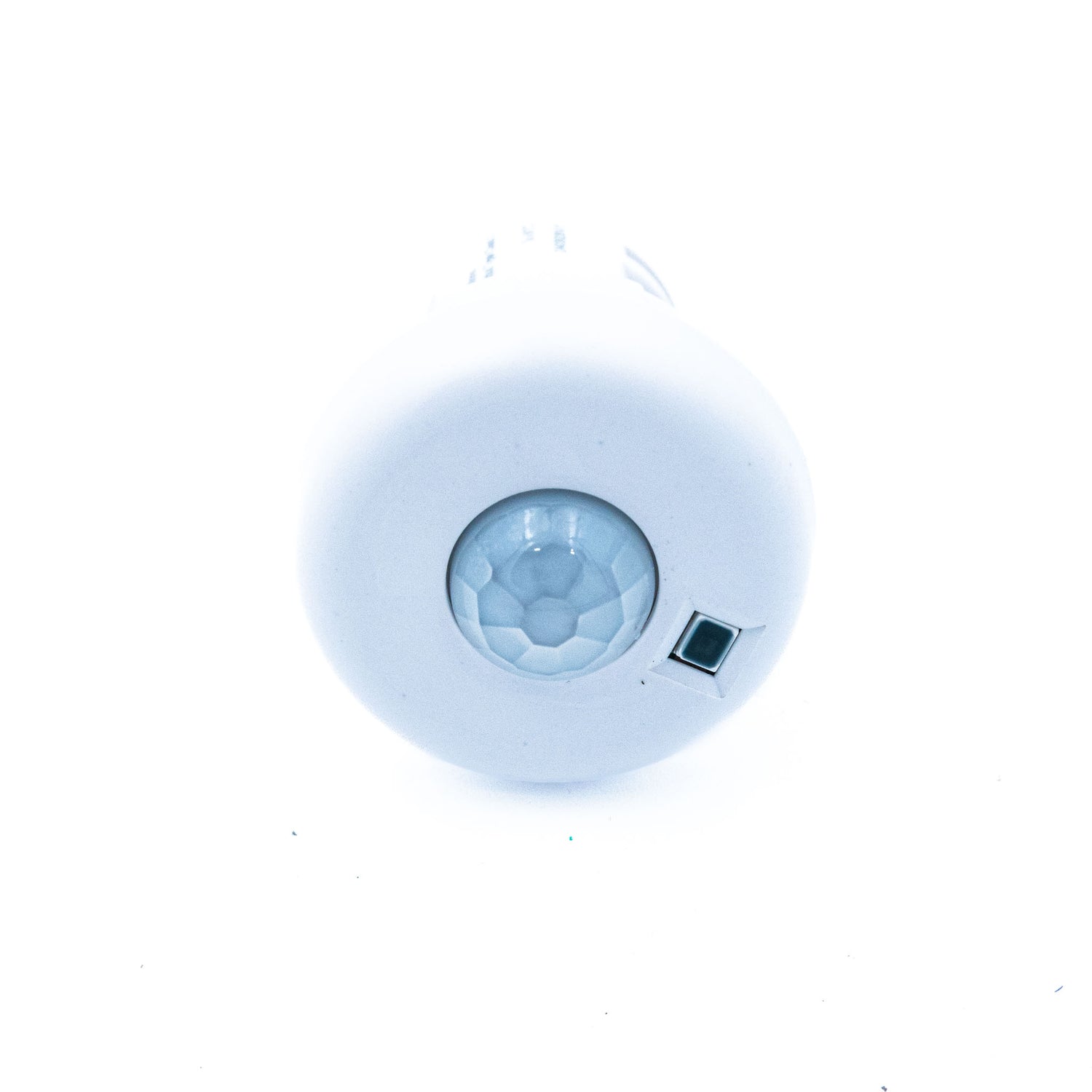

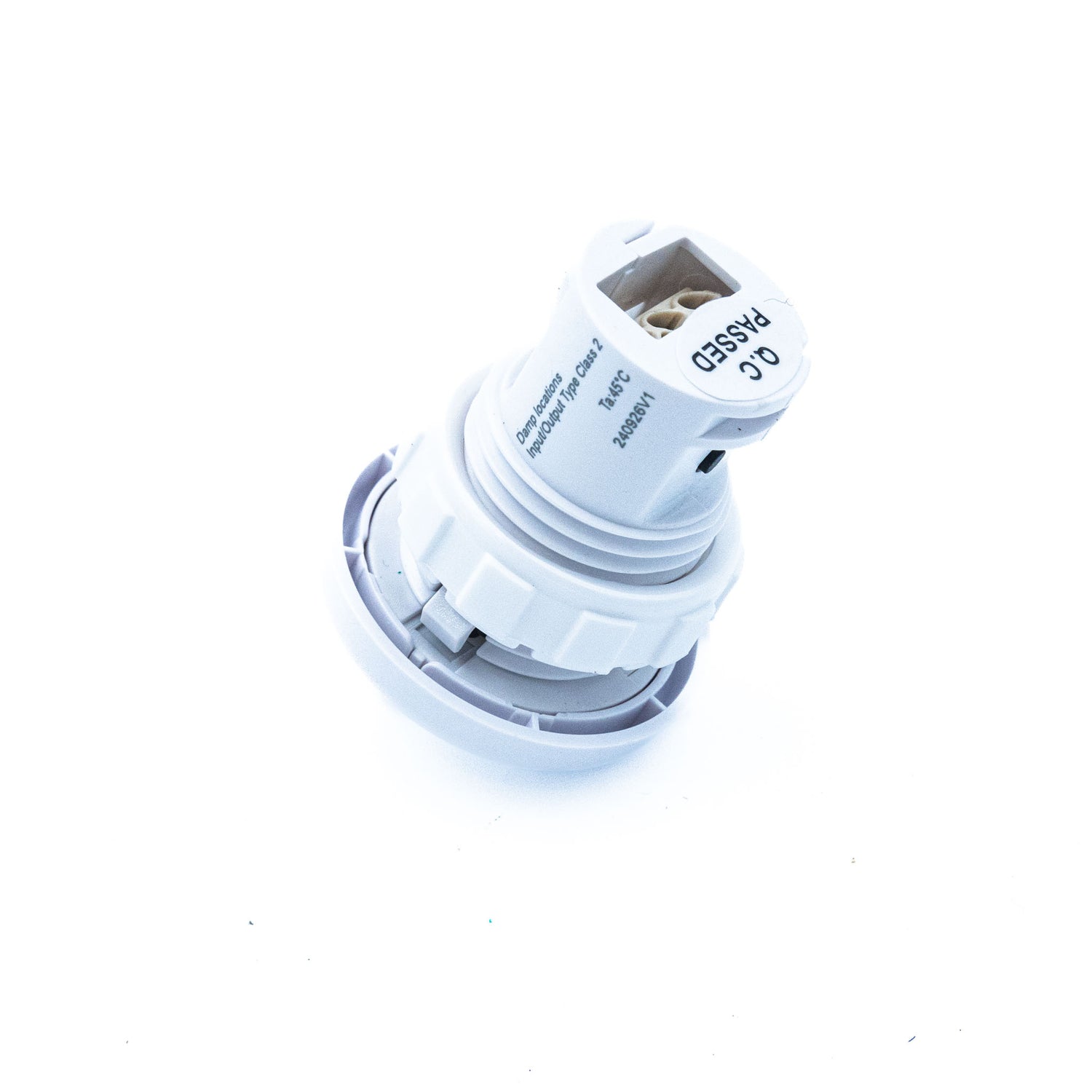

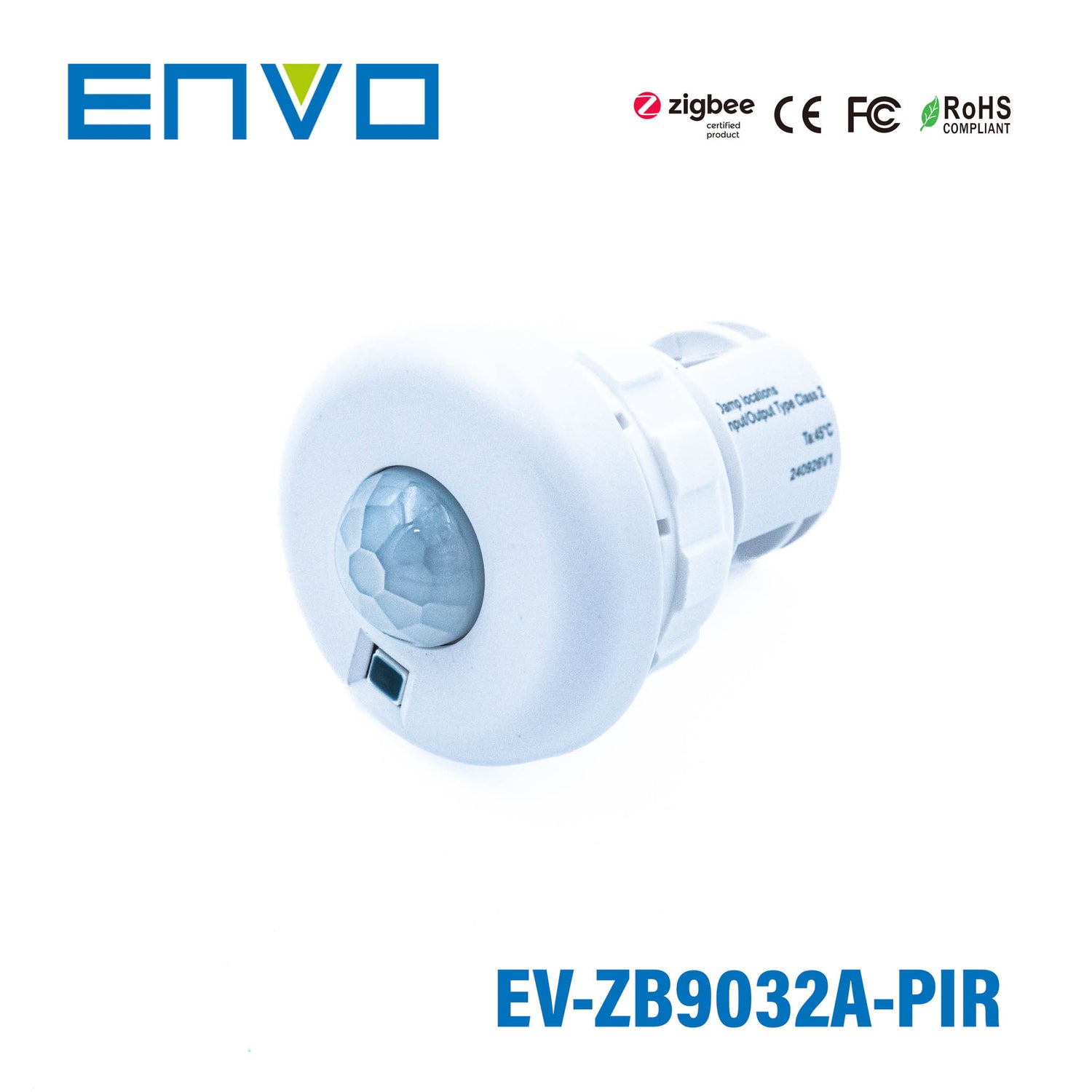

ENVO ZigBee Fixture Integrated PIR+Photocell Sensor

$48.04 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features:

  • Zigbee 3.0 compliant
  • PIR motion detection
  • Daylight harvesting
  • Works with 0-10V dim-to-off LED drivers
  • Autonomous sensor-based control
  • OTA firmware upgrade
  • Ceiling recessed installation
  • Can be use for indoor applications
  • Cost-effective solution for energy savings
  • Energy code compliance
  • Robust mesh network
  • Compatible with universal Zigbee platforms that support sensor

General Specification

Zigbee Protocol

Zigbee 3.0

Input Voltage

12/24 VDC

Current Consumption

< 30mA (when dimming method = sink)

Dimming Control

Analog (0-10V)

Dimming Output

4mA (sink) / 20mA (source)

Status Indicators

Red (motion detection)

Radio Frequency

2.4 GHz

Wireless Range

100 feet (30m) Line of Sight

Radio Certification

FCC/IC, CE

Dimension (LxWxH)

Φ35xH30mm

Specifications

  • Brand
    Envo
  • Operating Temperature
    0°C~40°C
  • Warranty
    5 Year
  • Length
    1.26 in
  • Width
    1.26 in
  • Height
    1.43 in
  • Weight
    0.05 lb
