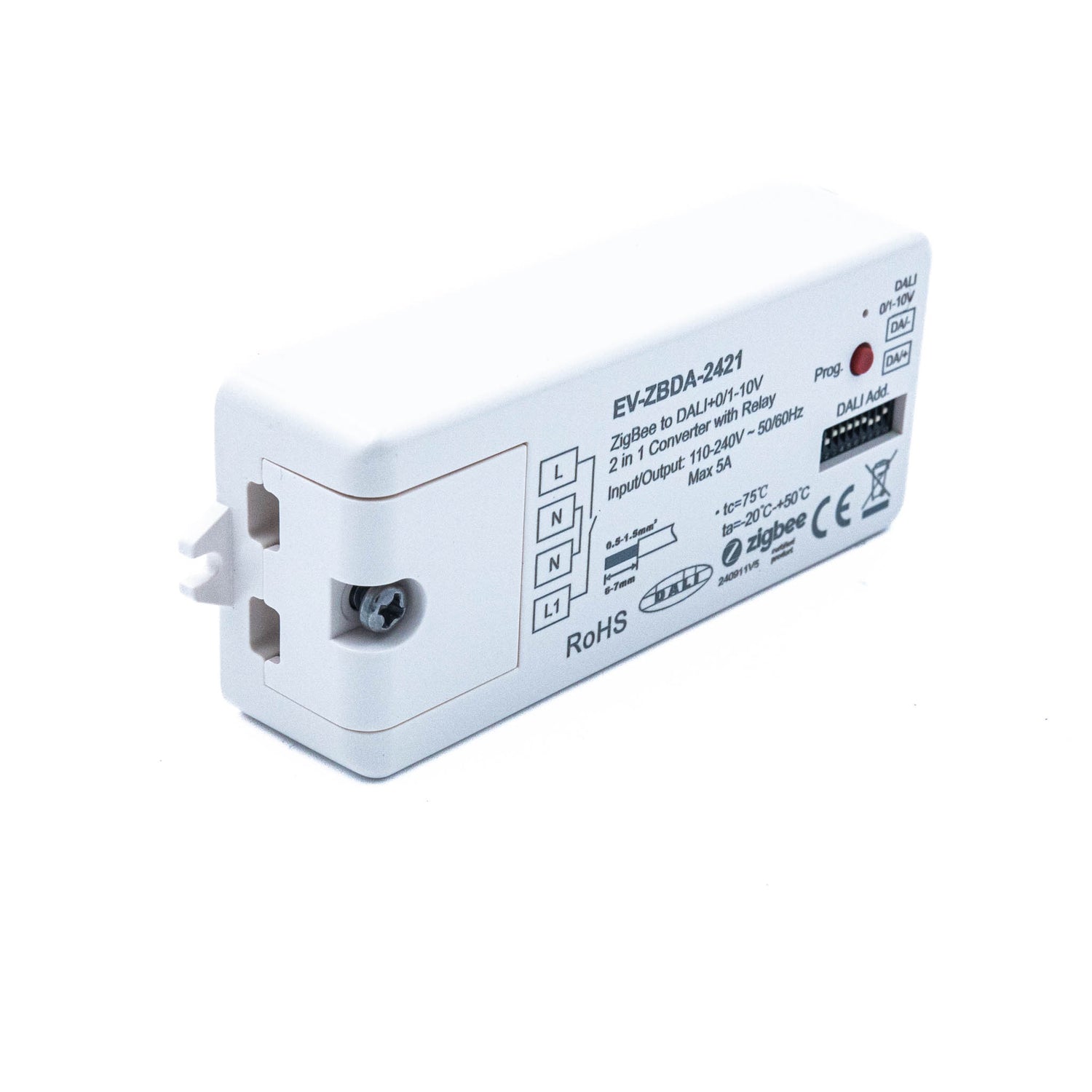

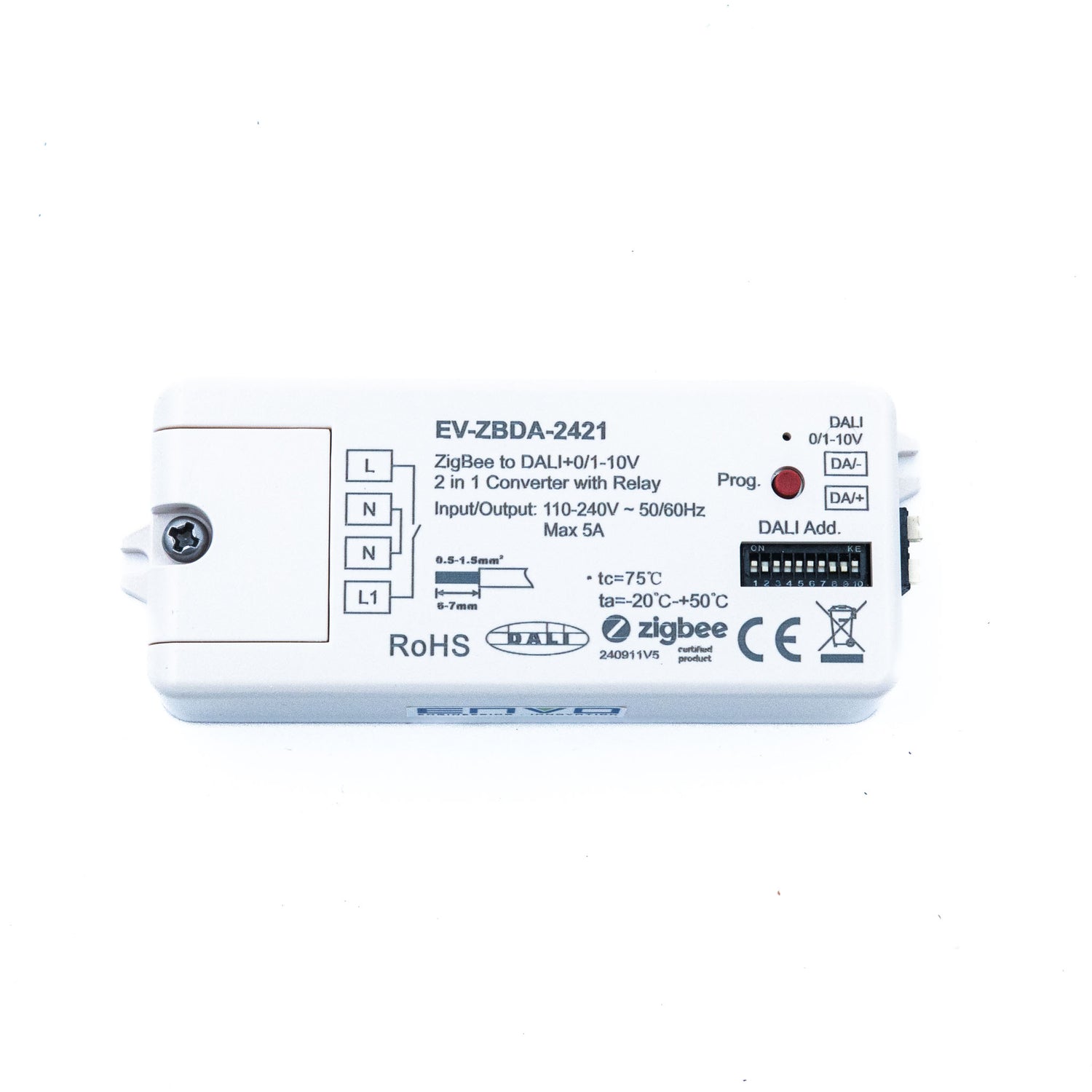

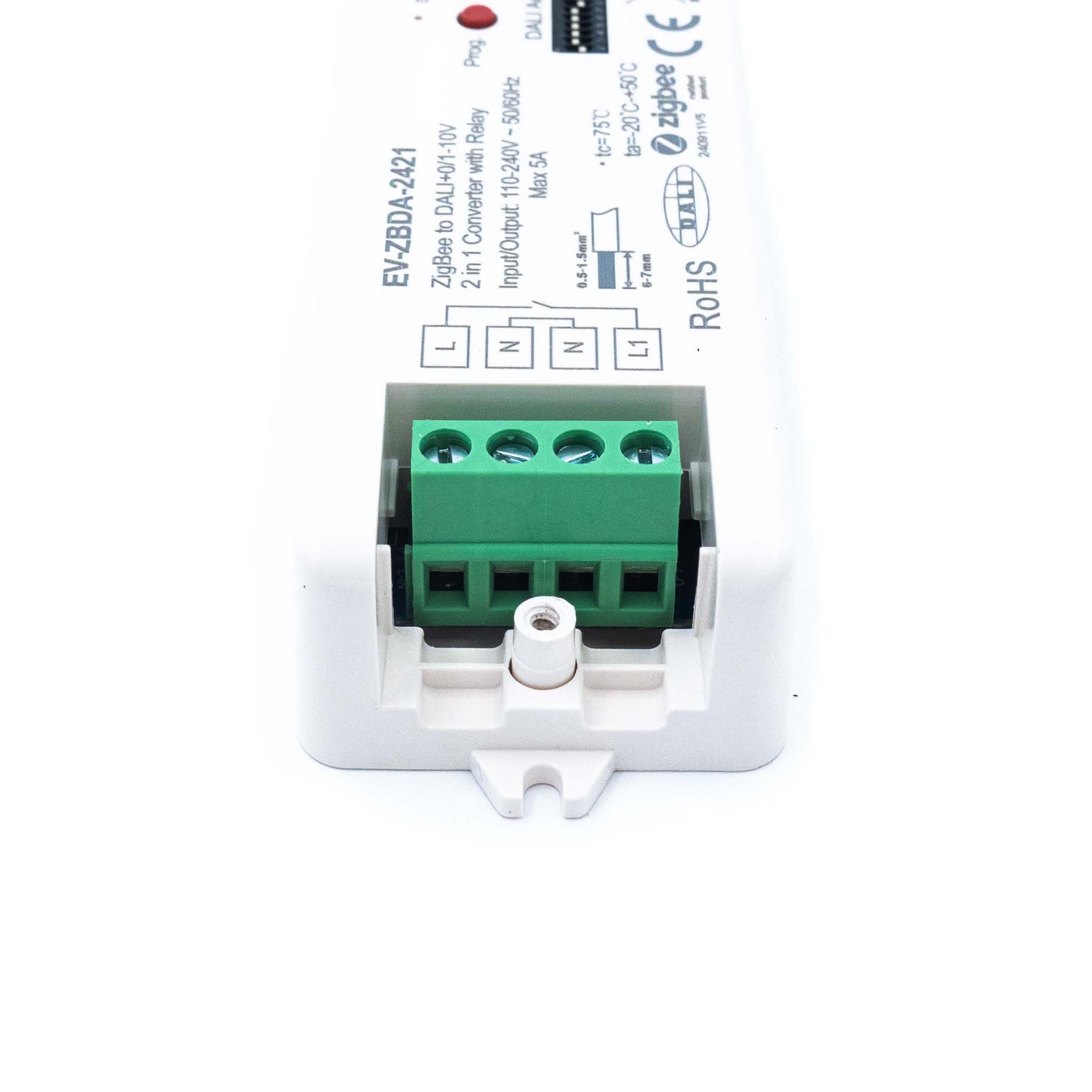

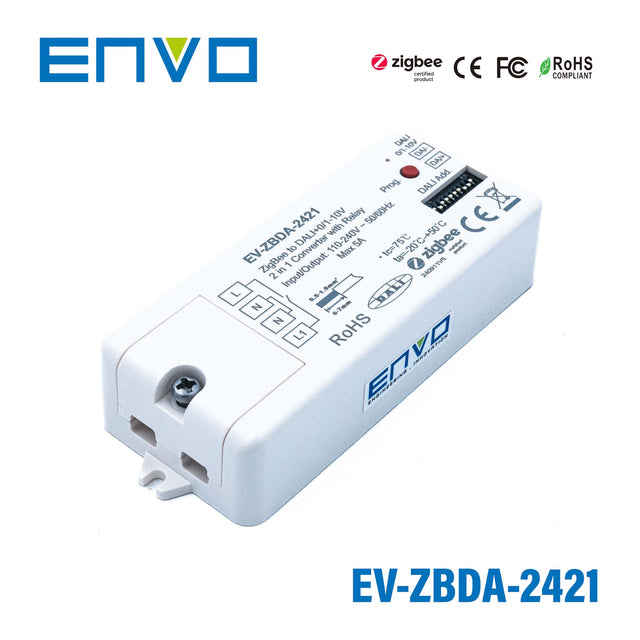

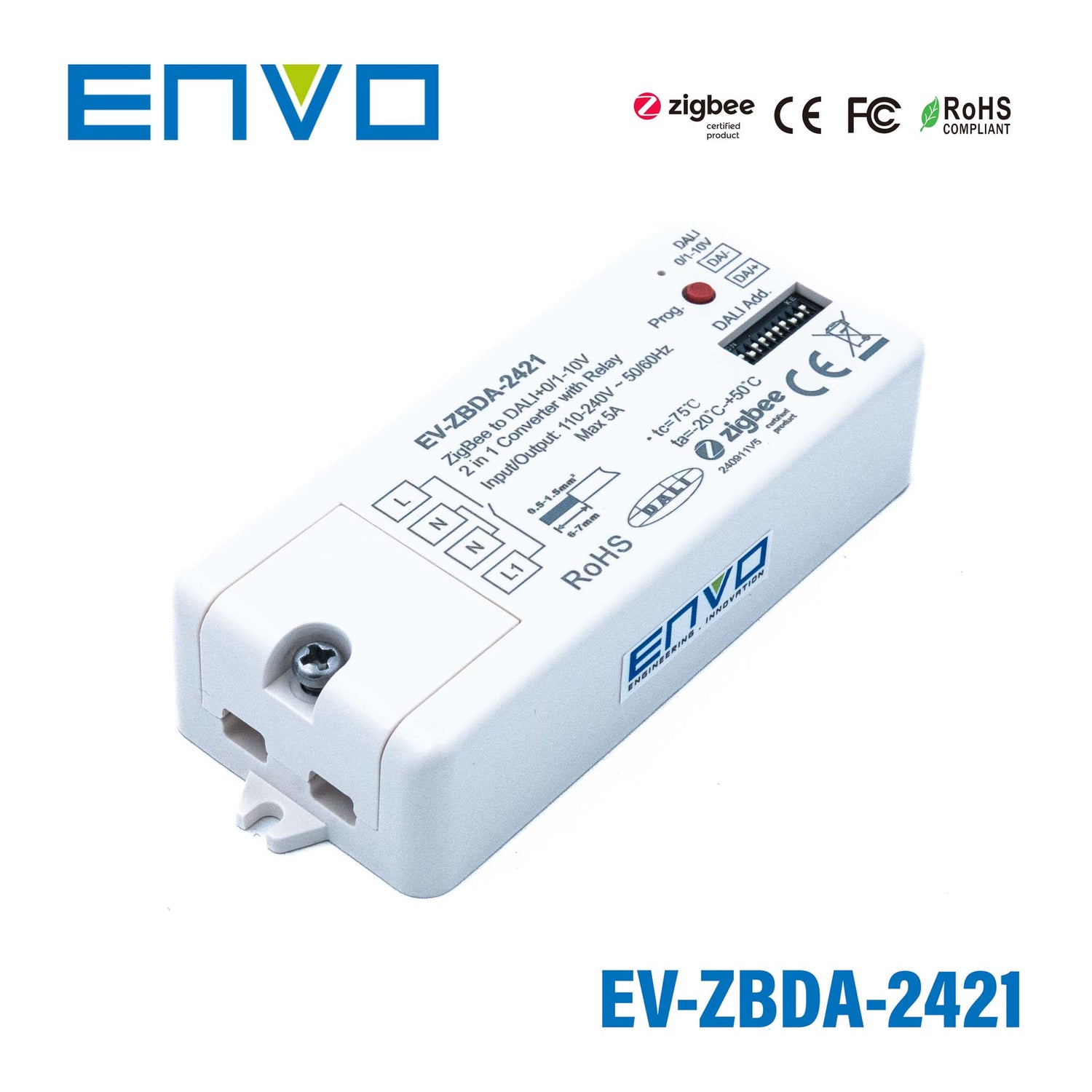

ENVO ZigBee to DALI + 0/1-10V 2-in-1 Conveter

Name: ENVO ZigBee to DALI + 0/1-10V 2-in-1 Conveter
Brand: Envo
SKU: EV-ZBDA-2421
Price: 67.94 USD
Availability: InStock

$67.94 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features:

Zigbee to DALI+0/1-10V 2 in 1 converter based on zigbee 3.0
Zigbee signal input, DALI signal output to DALI line or 0/1-10V signal output, 110-240VAC power input
With relay output, max. 5A for traditional incandescent & HV halogen lamps, max 1.6A for LED load
Compatible with universal Zigbee gateway or hub products
Can directly pair to a compatible ZigBee remote via Touchlink
Compatible with universal Zigbee remotes
Supports self-forming zigbee network without coordinator
Supports find and bind mode to bind a ZigBee remote
Supports zigbee green power and can bind max. 20 zigbee green power remotes
DALI signal or 1-10V signal output selectable by DIP switch
Built-in DALI bus power supply, no extra DALI bus PS required
With max. 50mA DALI bus power current output
To supply control current to up to 25 DALI control gears
DALI DT6 or DT8 device type selectable by DIP switch under DALI mode
Color control according to DALI specifications of Device Type 8,
Color type: Tc, XY coordinates, RGBW selectable by DIP switches
DALI address control mode or group control mode selectable by DIP switch
Enables to select the DALI address (00-63) to be controlled by DIP switches
Enables to select the DALI group (0-15) to be controlled by DIP switches
Enable to control 1 DALI Group of devices or 1 DALI Address on DALI line
Enable to control all devices on DALI line via broadcast
Waterproof grade: Ip20
DO NOT install with power applied to device.
DO NOT expose the device to moisture.

General Specification

Zigbee Protocol

Zigbee 3.0

Input Power

110-240VAC

Input Signal

Zigbee 2.4Ghz

Output DALI PS current

Max. 50mA

DALI current consumption

Max. 4mA

Output Current

Max. 20mA

Switching Voltage

110-240VAC

Max. Current

Incandescent: 5A

LED: 1.6A

Operating Temperature

-20°C-+50°C

Relative Humidity

8% to 80%

Dimension (LxWxH)

95x37x20mm

Specifications

Brand

Envo
Series

ENVO Zigbee Series
Output Voltage

110 Volt
Rated Current

5 Ampere
Input Voltage

110V~240V
Standards Met

CE,FC,ROHS
Operation Mode

Constant Voltage
Operating Temperature

-20°C~50°C
Warranty

5 Year
Length

3.74 in
Width

1.46 in
Height

0.79 in
